Frequency Scan Mode - Lectrosonics UCR211 Operating And Troubleshooting Manual

To use the integrated scanning function, press both UP/DOWN buttons and the MENU button at the same time. The
display will switch to the SCAN WINDOW and start scanning immediately. Data gathered during a scan is stored
until it is purposely erased or the power is turned off. Previous data will remain and subsequent scans can be made
to search for additional signals or to accumulate higher peaks.
Press All 3 Buttons

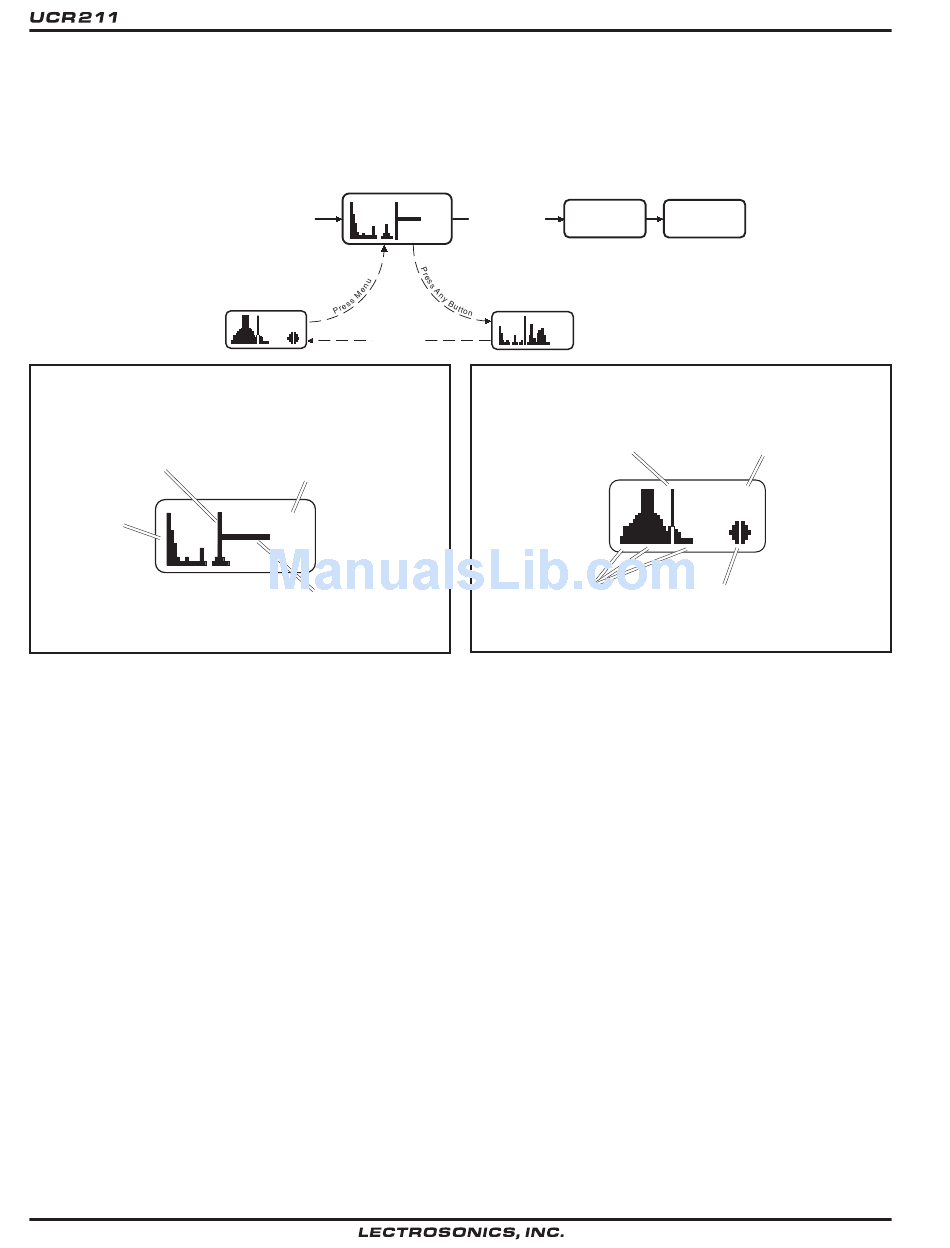

SCAN & VIEW WINDOW ELEMENTS
Cursor - shows relative
position of the scanner within
the 25Mhz band of the receiver
Scan level
indications -
showing
relative level
of RF activity
across the 25MHz
bandwidth of the receiver.
To stop scanning, press the MENU button once. The
scanning will stop immediately, and the display will
switch to the VIEW window. In this window, each vertical
band of the display represents 8 frequencies (800kHz).
Pressing the UP or DOWN buttons will scroll the cursor
coarsely across the tuning range. The transmitter switch
settings matching the frequency indicated by the cursor
are shown in the upper right corner of the screen.
Spectrum data is collected only when the receiver is
scanning. Successive scanning with repeated passes
through the tuning range will accumulate the highest
peaks encountered to aid in finding clear frequencies. To
clear the scan memory without leaving scan mode, turn
the power switch off and back on quickly.
Pressing the MENU button once will shift the display to
the FINE VIEW window which will show an expanded
portion of the spectrum around the cursor.
In the FINE VIEW window, each vertical band represents
one frequency the UCR211 is capable of tuning. The
upper right corner shows the transmitter switch settings
for the. In this screen, a vertical center bar is the cursor.
Underneath the switch settings are two arrows to remind
you that this is a partial picture of the spectrum and that
you can scroll left or right to view the entire spectrum of
the receiver by pressing the UP and DOWN buttons.
8

FREQUENCY SCAN MODE

Scan
Fine View
B8
Press Menu
Switch Settings - shows the
transmitter switch settings -
will change rapidly while
the unit is scanning.
B8
Remaining unscanned
part of band.
To Exit Scan
B8
USE OLD
Mode, Press All 3
Buttons From Any
USE NEW
Window.
View
B8
FINE VIEW WINDOW ELEMENTS
Cursor (center bar)
RF Level indicators
Pressing the UP button will make the display scroll left,
showing higher frequencies. Pressing the DOWN button
will make the display scroll right, showing lower frequen-
cies. The cursor remains in place while the display
scrolls left or right
In addition to assessing the congestion within the RF
tuning range of the receiver, the scanning mode is also
used to find a clear operating frequency. Scroll through
the screen and find a frequency where no RF signals are
present (or in the worst case, only very weak RF sig-
nals). With the cursor on this frequency, press the UP,
DOWN and MENU buttons at the same time to leave the
scan mode.
When leaving the scan mode, you are given the option of
using the frequency the unit was on before entering the
scan mode, or using the frequency just selected in the
scan mode. The display shows USE OLD and USE
NEW to prompt you to make a frequency selection. To
accept the new frequency just selected in the scan
mode, press the DOWN button for USE NEW. To return
to the frequency you were using before entering the scan
mode, press the UP button for USE OLD. (the MENU
button defaults to USE OLD).
Once you leave the scan mode, the Frequency Window
will be displayed. Set your transmitter switches to the
same settings as shown on the display and your system
will be ready for operation.
Freq
Window
Transmitter
Switch Settings
B8
SCROLL reminders
