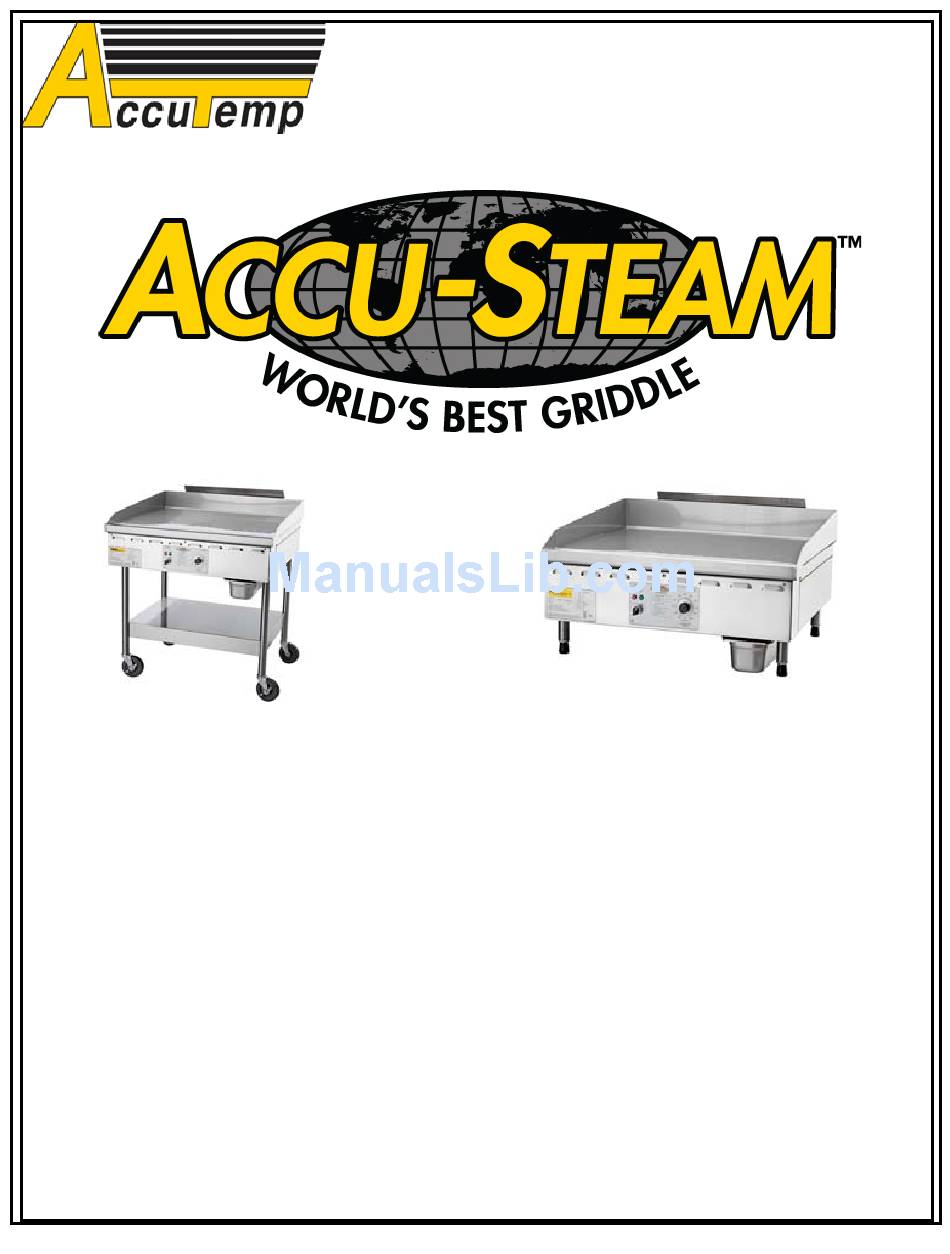

- Page 1 SERVICE MANUAL SERIAL NUMBERS 2611 AND UP NATURAL GAS AND PROPANE SP8016-1005 ACCU-STEAM SERVICE MANUAL...
- Page 2 Technical Services 800.480.0415 Toll Free Office 260.469.3040 260.493.8914 email service@accutemp.net Web Site www.accutemp.net SP8016-1005 ACCU-STEAM SERVICE MANUAL...
-
Page 3: Table Of Contents
ChART - RESISTANCE RTD TEMPERATURE SENSOR ChART - RESISTANCE K TyPE TEMPERATURE SENSOR ChART - ORIFICE SIZE VERSUS ELEVATION AND BTU CONTENT SChEMATIC - STANDARD IGNITION SChEMATIC - INTERMITTENT IGNITION WITh MAIN BURNER VALVE SChEMATIC - INTERMITTENT IGNITION SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 1... -
Page 4: Document History
DOCUMENT hISTORy CURRENT PRIOR REVISION DATE REVISION ChANGE DATE 1005 5/14/10 Initial release of manual SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 2... -
Page 5: Introduction
When the heat cycle is over all burners will be off. CONTINUOUS PILOT BURNER SEQUENCE OF OPERATION S/N 2611 to 7183 120V power is supplied to the primary side of the transformer. 24VAC comes off the secondary side of the transformer which provides power to the over-temp / solder washer assembly. Once the ON/ OFF switch is set to the ON position, power is applied to the ignition module through the blue wire and back out the red wire to the main gas control valve. -
Page 6: Troubleshooting Matrix
Check for line voltage to the primary side and that 24 volts is present at the secondary side. Replace as necessary. Ignition Cable Check for cracks or loose connections. Orifices Check for any blockage and clean as necessary. Fuses Check for continuity. Replace as necessary. SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 4... -
Page 7: Removal And Installation - Transformer
Remove the three screws from the front door panel and drop the panel down. Disconnect the wires from the primary and secondary side of the thermostat. Note their locations. Remove the nylock nuts and pull the transformer out. Reassemble in reverse order. TRANSFORMER AT0E-1809-1 SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 5... -
Page 8: Removal And Installation - Lamps
Push the spring loaded locking tab on the mounting ring and pull the switch out from the front of the panel. Pry the contacts off of the locking ring. Reinstall in reverse order. CONTACT, ON SWITCH, SELECTOR MOUNTING BLOCK AT0E-3338-1 AT0E-3336-1 AT0E-3339-1 2 REQUIRED SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 6... - Page 9 Disconnect the wires from the pins on the thermostat. Note their locations. Reassemble in reverse order. Note: Units with serial numbers 2611 to 7550 have a type K thermostat and thermocouple. (red and yellow leads) Serial numbers 7551 and above have a RTD thermostat and probe.
- Page 10 Remove the leads from pins 6 & 7 on the thermostat. Reinstall in reverse order. (Type K probe, yellow on #6 and red on #7) PROBE LOCATION RTD TEMPERATURE SENSOR UNDERSIDE OF GRIDDLE AT0E-2885-3 SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 8...
- Page 11 Make sure the solder washer is installed before the flat washer. Reattach the spring and access cover. See the drawing on the following page. EXTENSION COMPRESSION BRACKET, SWITCH WAShER SOLDER WAShER SPRING SPRING AT2M-1558 AT2F-1367-1 AT2M-2861-1 AT2M-2860-1 AT2h-1640-1 AT2h-1365-1 MICROSWITCh MICROSWITCh AT2E-1639-1 COVER AT2E-1759 SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 9...
- Page 12 REMOVAL AND INSTALLATION SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 10...
- Page 13 Note: Make sure that the hose clamp does not block the venturi opening. See Pages XX to XX for instructions on measuring flame sense. PROBES IGNITOR & FLAMES SENSE SETTING STANDBy BURNER IGNITOR KIT AT2A-2255-2 SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 11...
- Page 14 Apply silicone dielectric grease to the connections. Reassemble in reverse order. Note: Serial numbers 7184 and above will have an Interim Intermittent Ignition system in conjunction with the dual solenoid valve. The main gas valve was removed IGNITION MODULE AT2E-1807-1 SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 12...
- Page 15 10 INCHES WATER COLUMN 8 INCHES WATER COLUMN PILOT VALVE CONTROL VALVE MAIN BURNER VALVE AT0P-2847-1- NG (3.5”WC) AT2E-1806-2 - NG (5”WC) AT2E-2087-1 AT0P-2847-2 - P (8” WC) AT2E-1806-3 - P (10”WC) S/N 7894 & LOWER SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 13...
-
Page 16: Testing - Flame Sense
TESTING FLAME SENSE MEASUREMENT The ACCU-STEAM gas griddle has a flame sensing circuit to determine if the system has proper combustion. When the system is turned on gas is sent to the pilot burner and an electronic ignition tries to ignite the griddle. The griddle then checks to see if flame is established in the pilot burner. - Page 17 Set multi-meter to DC mv. Connect Flame Tester leads, to Igniter Harness Orange (or yellow) and Green wires. Verify your reading is above 60 DC mv and the system will shutdown below 19 DC mv. SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 15...
-
Page 18: Testing - Chamber Integrity
Increase thermostat setting to 300ºF allow griddle to cycle through two heat cycles. Place weighted temperature probe and record temperatures according to the chart below Temperatures shall be within ±5º F of each other across the entire surface. SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 16... - Page 19 6.763 6.763 6.785 6.807 6.829 6.852 6.874 6.896 6.918 6.941 6.963 6.985 6.985 7.007 7.029 7.052 7.074 7096 7.118 7.14 7.163 7.185 7.207 7.207 7.229 7.251 7.276 7.296 7.318 7.34 7.362 7.384 7.407 7.429 SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 17...
- Page 20 PROPANE GAS - 2400 24" GRIDDLE MAIN 36" GRIDDLE MAIN 48" GRIDDLE MAIN PILOT BURNER BURNER BURNER BURNER Altitude ft 3000 3/64 4000 5000 6000 7000 1.25MM 8000 1.25MM 9000 1.25MM 3/64 10000 1.25MM 3/64 SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 18...
- Page 21 NATURAL GAS - 1300 PROPANE GAS - 2700 24" GRIDDLE MAIN 36" GRIDDLE MAIN 48" GRIDDLE MAIN PILOT BURNER BURNER BURNER BURNER Altitude ft NG 3000 4000 5000 6000 7000 8000 9000 1.25MM 10000 1.25MM SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 19...
- Page 22 PRI. N.C. N.O . O. T. SW MAIN GAS CONTROL VALVE P1 2 J1 2 DELAY TIMER MAIN BURNER VALVE K TYPE HEAT ORN or YEL SENSOR BURNER HV IGNITOR SPARK MODULE AT2T-3041-1 AT2T-3041 SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 20...
- Page 23 SERIAL NUMBERS 7185 TO 7894 120V PRI. N.C. N. O. O.T. SW MAIN GAS CONTROL VALVE MAIN BURNER VALVE DELAY TIMER HEAT LT 2 SENSOR ORN or YEL BURNER HV IGNITOR SPARK MODULE AT2T-3041 -3 SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 21...
- Page 24 SERIAL NUMBERS 7895 & UP 120V PRI. N. C. N.O. MAIN GAS CONTROL O.T. SW VALVE MAIN BURNER VALVE DELAY TIMER HEAT LT 2 LT 1 SENSOR ORN or YEL BURNER HV IGNITOR SPARK MODULE AT2T-3041 -2 SP8016-1005 ACCU-STEAM SERVICE MANUAL PAGE 22...
- Page 25 SP8016-1005 ACCU-STEAM SERVICE MANUAL...
