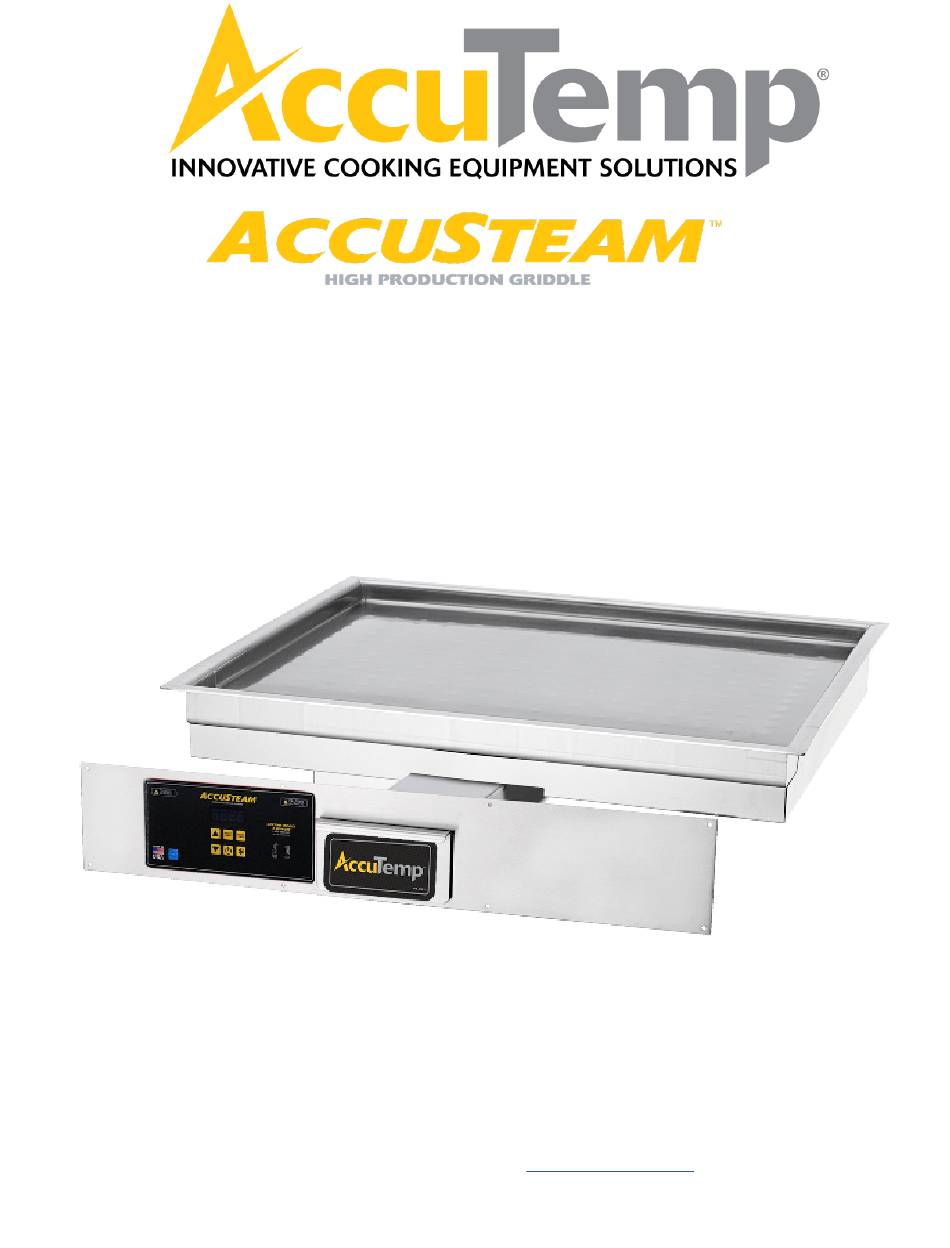

- Page 1 EGD G2 DROP-IN GRIDDLE PARTS MANUAL This Manual is for EGD Drop-In Griddles Starting with Serial Number 24492 & Higher ACCUTEMP PRODUCTS INC 11919 John Adams Dr. New Haven, IN 46774 www.accutemp.net Email: parts@accutemp.net 1-800-480-0415...
- Page 2 In order to establish full compliance with Proposition 65, a yellow warning label has been attached to each gas fired unit manufactured by AccuTemp Products,Inc. Carbon monoxide would not be present in concentrations that would pose a “significant risk”...
- Page 3 WARNING SYMBOL DEFINITIONS SYMBOL DEFINITIONS Symbols are used to attract your attention to possible dangers. They are only effective if the operator uses proper accident prevention measures. Some of the symbols are boxed text; while others maybe just picture icons. Please give this information the respect they deserve for safe operation.
- Page 4 SAFETY PRECAUTIONS DANGER ELECTRICAL SHOCK HAZARD WHILE WORKING ON ENERGIZED EQUIPMENT. Unplug equipment prior to removing any components effected by electricity. BURN HAZARD WHILE WORKING ON STEAM PRODUCING EQUIPMENT. When accessing the cooking chamber, be sure to always stand back while slowing opening the door to allow the chamber to vent off the steam.
-
Page 5: Table Of Contents
Table of Contents GRIDDLE MODEL G2 EGD ELECTRIC Fig: 1.1 Drop-In Griddle Components - Page 6 Fig: 1.2 Drop-In Griddle Components - Page 7 Fig: 1.3 Remote Control Box Assy & Carton - Page 8 Fig: 1.4 Chassis Components - Page 9 Fig: 1.5 Chassis Components - Page 10 Fig: 1.6 Front Panel Components - Page 11 Fig: 1.7 Electrical Components - Page 12... -
Page 6: Fig 1.1 Drop-In Griddle Components
Fig 1.1 Drop-In Griddle Components Fig 1.1 Drop-In Griddle Components Fig 1.1 Drop-In Griddle Components NOTE: 1. CENTRALLY PLACE 1 TRAY ONTO SHIPPING AND SECURE WITH ST 2. PLACE SUPPORTS INTO TRAY AND LOCATE, FROM INSIDE WALLS 1 WALL THICKNESS AND STAPLE IN PLACE. 3. -
Page 7: Fig 1.2 Drop-In Griddle Components
NUT, ¼-20 NYLOC AT2M-2535-1 RETAINER BRACKET AT0F-2666-40000 WASHER, SS #10 INTERNAL TOOTH LOCK AT0T-3033-1 PRODUCT REGISTRATION FORM AT2M-2554-2 GREASE TROUGH HANGER AT2M-5094-1 GREASE TROUGH HNGR BRKT *CONTACT ACCUTEMP SERVICE PARTS AT 1-800-480-0415 OR EMAIL parts@accutemp.net AccuSteam G2 Drop-In Griddle Parts Manual SP8158-2202... -
Page 8: Fig 1.3 Remote Control Box Assy & Carton
Fig 1.3 Remote Control Box Assy & Carton NOTE: 1. WRAP ASSY 2. FILL OR PAC AT0E-2086-4 CORD GRIP LOCKNUT AT0E-1049-1 STRAIN RELIEF 1 1/4" HUB CABLE RANGE 1 AT0A-2788-3 POWER CABLE ASSY AT0S-2935-2 PACKAGING, FOAM AT0F-2755-41040 SCREW, #10-24UNC X 1/2 PHILIPS ROUND HE AT2L-6418-1 SCHEMATIC LABEL, GRIDDLE AT0L-2798-1... -
Page 9: Fig 1.4 Chassis Components
DATA TAG, ELECTRIC GRIDDLE AT2M-5095-1 BRACE, SUPPORT AT0F-2755-41040 SCREW, #10-24UNC X 1/2 PHILIPS ROUND HEAD AT0F-1017-41002 NUT, #10-24UNC HEX SERRATED AT0H-2576-1 GROMMET, 7/8” NYLON *CONTACT ACCUTEMP SERVICE PARTS AT 1-800-480-0415 OR EMAIL parts@accutemp.net AccuSteam G2 Drop-In Griddle Parts Manual SP8158-2202... -
Page 10: Fig 1.5 Chassis Components
AT0F-2755-41040 SCREW, #10-24UNC X 1/2 PHILIPS ROUND HEAD AT0F-1017-41002 NUT, #10-24UNC HEX SERRATED AT0E-2699-1 TERMINAL, QDISC, INSULATED FEM AT0H-2576-1 GROMMET, 7/8” NYLON AT0F-2668-1 NUTSERT, #10-24 HEX AT0E-2885-5 SENSOR, REPLACEABLE *CONTACT ACCUTEMP SERVICE PARTS AT 1-800-480-0415 OR EMAIL parts@accutemp.net AccuSteam G2 Drop-In Griddle Parts Manual SP8158-2202... -
Page 11: Fig 1.6 Front Panel Components
REVISIONS AT1M-3607-4 BRACKET, INDICATOR LAMP AT0E-1800-2 INDICATOR LAMP RED LED 28V AT0H-3623-2 SPACER, ROUND CLEAR HOLE AT0F-3621-1 NUT, #6-32UNC-2B UNDERSIZE AT0F-2691-21002 NUT, #6-32 NYLOC *CONTACT ACCUTEMP SERVICE PARTS AT 1-800-480-0415 OR EMAIL parts@accutemp.net AccuSteam G2 Drop-In Griddle Parts Manual SP8158-2202... -
Page 12: Fig 1.7 Electrical Components
(AT2A-6527-15) (AT2A-6527-21) (AT2A-6527-2) (AT2A-6527-22) (AT2A-6527-1) (AT2A-6527-22) AT2A-6528-2 INDICATED EDGES Unless otherwise specified, Date Name AccuTemp Products, Inc. Dimensions: Inches MUST BE SOFTENED: 8415 N. Clinton Park Drawn 03/05/21 Bends: 90 Fort Wayne, IN 46825 Tolerances: * = NEAR SIDE Checked... -
Page 13: Fig 1.8 Electrical Components
STRAIN RELIEF 1 1/4” HUB CABLE RANGE 1.00-1.125 AT0E-2086-X CORD GRIP LOCKNUT* AT0A-2788-X POWER CABLE ASSY* AT2M-2768-1 PLATE, ADAPTER AT0F-2755-21020 SCREW, #6-32UNC X 1/4 PHILIPS ROUND HEAD *CONTACT ACCUTEMP SERVICE PARTS AT 1-800-480-0415 OR EMAIL parts@accutemp.net AccuSteam G2 Drop-In Griddle Parts Manual SP8158-2202... - Page 14 AccuSteam G2 Drop-In Griddle Parts Manual SP8158-2202...
