Section 1 Introduction; Overview - BIO RAD PowerPac Instruction Manual

Section 1
Introduction

1.1 Overview

The PowerPac HC power supply is designed to provide constant voltage, current or
power for electrophoresis applications. The power supply operates at the value
specified for the constant parameter, with limits for the other parameters. To prevent
damage to the electrophoresis cell, the PowerPac HC provides automatic
crossover to constant current, constant voltage, or constant power, depending on
which set limit is first reached. If the set limit of the non-constant parameter is
reached, the power supply will switch, making the limiting non-constant parameter
the new constant.
Output specifications:
Voltage:
Current :
Power:
Output jacks:

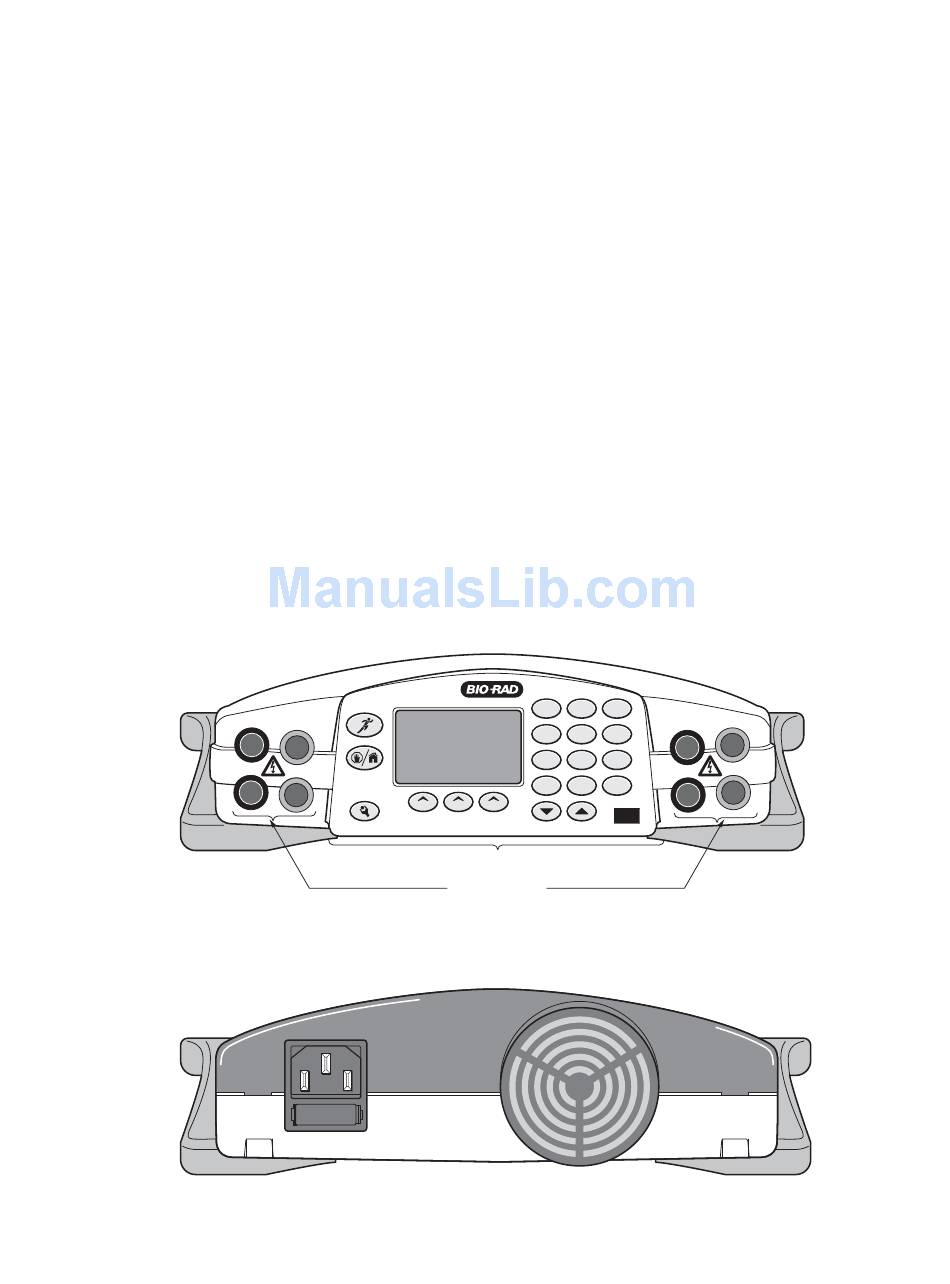

Fig. 1. Front View.
Fig. 2. Rear View.
Adjustable from 5 to 250 volts (V), in 1 V increments
Adjustable from 0.01 to 3.00 amperes (A), in 0.01 A increments
Adjustable from 0.05 to 300 watts (W) in 1 W increments
Four sets of output jacks are provided to facilitate connection of
up to 4 identical electrophoresis cells simultaneously
stop/home
setup
FRONT PANEL
OUTPUT JACKS
1
1 2 3
abc def
4 5 6
ghi jkl mno
7 8 9
pqrs tuv wxyz
0 CE
EDIT
