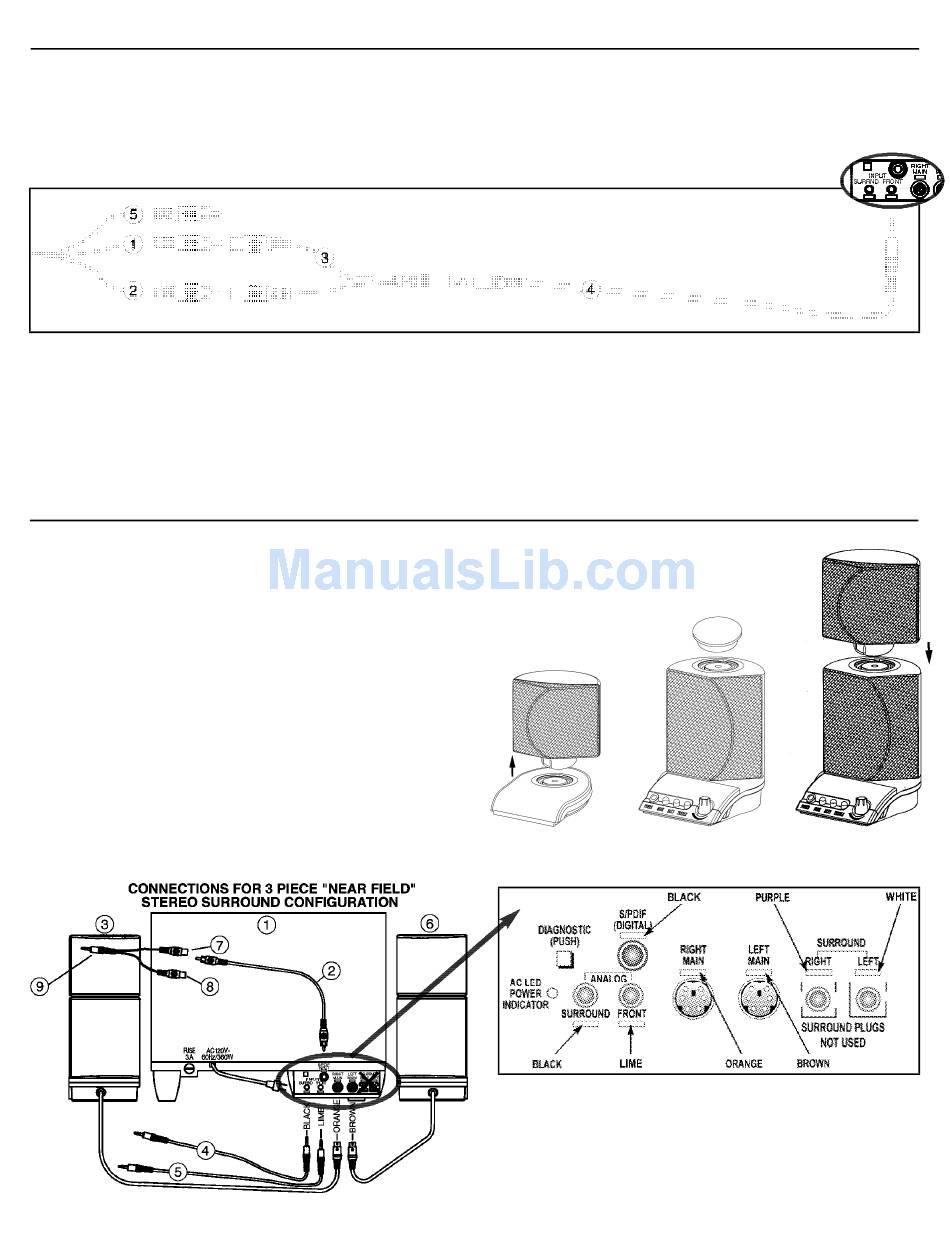

Gaming System Operation (See Figure 2)
To connect a Gaming System to the ADA890:
1. Connect the Red and White RCA plugs from the Game System to the respective Red and White jacks of the adaptor cable.
2. Connect the Lime jack of the adaptor cable to one end of the Lime input cable. Connect the other end of the Lime input cable to the FRONT INPUT on
the subwoofer.
Figure 2
1) White — from Gaming System
2) Red — from Gaming System
3) Adapter Cable
4) Lime — To Front Input on Subwoofer
5) Yellow — Gaming System video (no connection to ADA890)
Near Field Stereo/Surround Sound Operation (See Figures 3 and 4)
If it is desired to convert to a 3-speaker system, follow the instructions and the pictorial view below.
1) Separate the left and right surround speakers from their stands by gently pulling the speaker up
(See Figure 3).
2) Remove the left (WHITE) and right (PURPLE) speaker wires from the subwoofer.
(Set speaker stands aside for future use)
3) Remove the supplied rubber plugs from the top of the satellite speakers.
4) Mount the surround speakers on top of the satellite speakers
as shown in Figure 3.
Be sure to line up tabs on the satellite and surround speakers.
Gently push down on the satellite speaker to fit into place.
(The connections to the satellite speakers are made automatically once the
surround speakers are mounted)
Your ADA890 system is now ready for use.
Figure 4
1) Subwoofer
2) To S/PDIF Output (Black)
3) Right Speaker
4) To Computer Rear Audio Output (Black) 9) To Sound Card
5) To Computer Front Audio Output (Lime)
4
Figure 3
6) Left Speaker
7) For PCM Data
8) For AC3 Data
