- Page 1 Altec Lansing octiv AIR Wireless Speaker System ™ for iPod ® M812 User Guide...
-
Page 2: Safety Information
(TWO-YEAR LIMITEd WARRANTY IN ThE EUROPEAN UNION ANd ASIA) What does The Warranty Cover? Altec Lansing warrants that its products shall be free from defects in materials or workmanship, with the exceptions stated below. What Is The Period Of Coverage? For units purchased in European Union or Asia, this warranty runs for two years from the date of purchase. -
Page 3: Table Of Contents

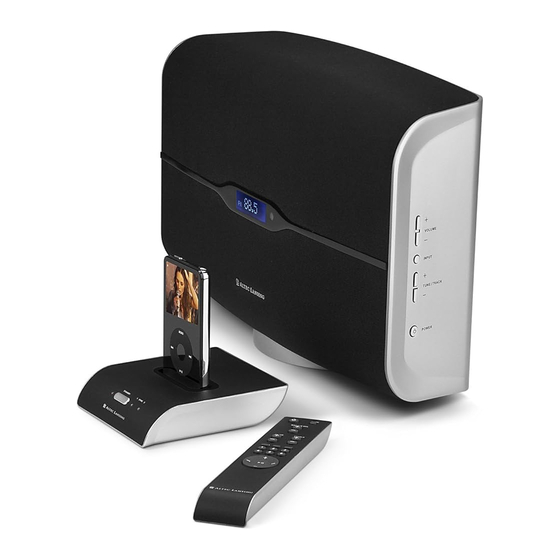

Thank you for purchasing the Altec Lansing M812 Wireless Speaker System for iPod. The M812 includes one or two wireless, high-performance speakers and a transmitter base that allows you to listen to most iPod models, FM radio stations and auxiliary audio sources. - Page 4 The transmitter base and speaker can communicate over three wireless radio frequency (RF) channels. The default setting is AUTO. You may also manually select one of the three channels. In AUTO, the transmitter base looks for and transmits on the most interference-free of the three channels. The speaker searches the channels until it finds the base.
-
Page 5: Basic Controls And Functions
Wireless Speaker Side Panel Bottom Panel Display VOLUME +/– Raises and lowers the volume. INPUT Changes the playback source (iPod, FM and AUX). TUNE / TRACK +/– In FM mode, adjusts tuning. In iPod mode, changes tracks. POWER Switches the power mode between Standby and On. LOCATION: WALL / TABLE This switch adjusts the sound to provide the best listening experience dependent upon whether the... - Page 6 Transmitter Base Front Panel Rear Panel STANDBY / ON Switches the power mode between Standby and On for the transmitter base. This light (left of the STANDBY key) illuminates when the transmitter base is on. SYNC 1 LED Illuminates to indicate that the transmitter base is synchronized with one wireless speaker unit.
- Page 7 Remote Control STANDBY/ON key Turns on the M812 or places it in standby mode. MUTE Mutes the speaker. MASTER VOL +/– keys Press to adjust the volume of several speakers when they are all synchronized with the transmitter base. If you have only one speaker, these keys operate the same as +/–...
-
Page 8: Advanced Operation
Multi-Speaker Systems With a single transmitter base, you can transmit audio to as many as eight wireless speakers. Speakers can be set to standard stereo mode or to serve as pairs of left and right speakers. By adding speakers to your system, you can create separate listening areas served by one or more speakers. -
Page 9: Specifications
To Reset dEFAULT Settings This option allows you to restore some or all default settings. LOCAL resets VOLUME, BASS and TREBLE to the default settings. FACTORY restores all options to the default settings. FM presets are also erased. 1. Select DEFAULT from the menu. 2. -
Page 10: Troubleshooting
Troubleshooting Symptom Possible Problem The power cord is not connected to a wall outlet and/or the power cord is not plugged into the AC inlet on the back of the M812 speaker. The power supply for the transmitter base is not connected to a wall outlet and/ or the DC connection is not made at the rear of the transmitter base. - Page 11 Symptom Possible Problem There is a crackling The operating system’s volume level sound coming from is set too high. the speaker (when Interference. connected to PC or laptop). The M812’s volume level is set too high. The EQ function is enabled on the The sound is distorted.
- Page 12 Patents pending. ©2008 Plantronics, Inc. All rights reserved. ALTEC, ALTEC LANSING, the Altec Lansing logo, the horn design, octiv AIR and M812 are trademarks or registered trademarks of Altec Lansing, a division of Plantronics, Inc. Plantronics, the logo design, and Sound Innovation are trademarks or registered trademarks of Plantronics, Inc.
