Summary of Contents for Jacuzzi BZ00000

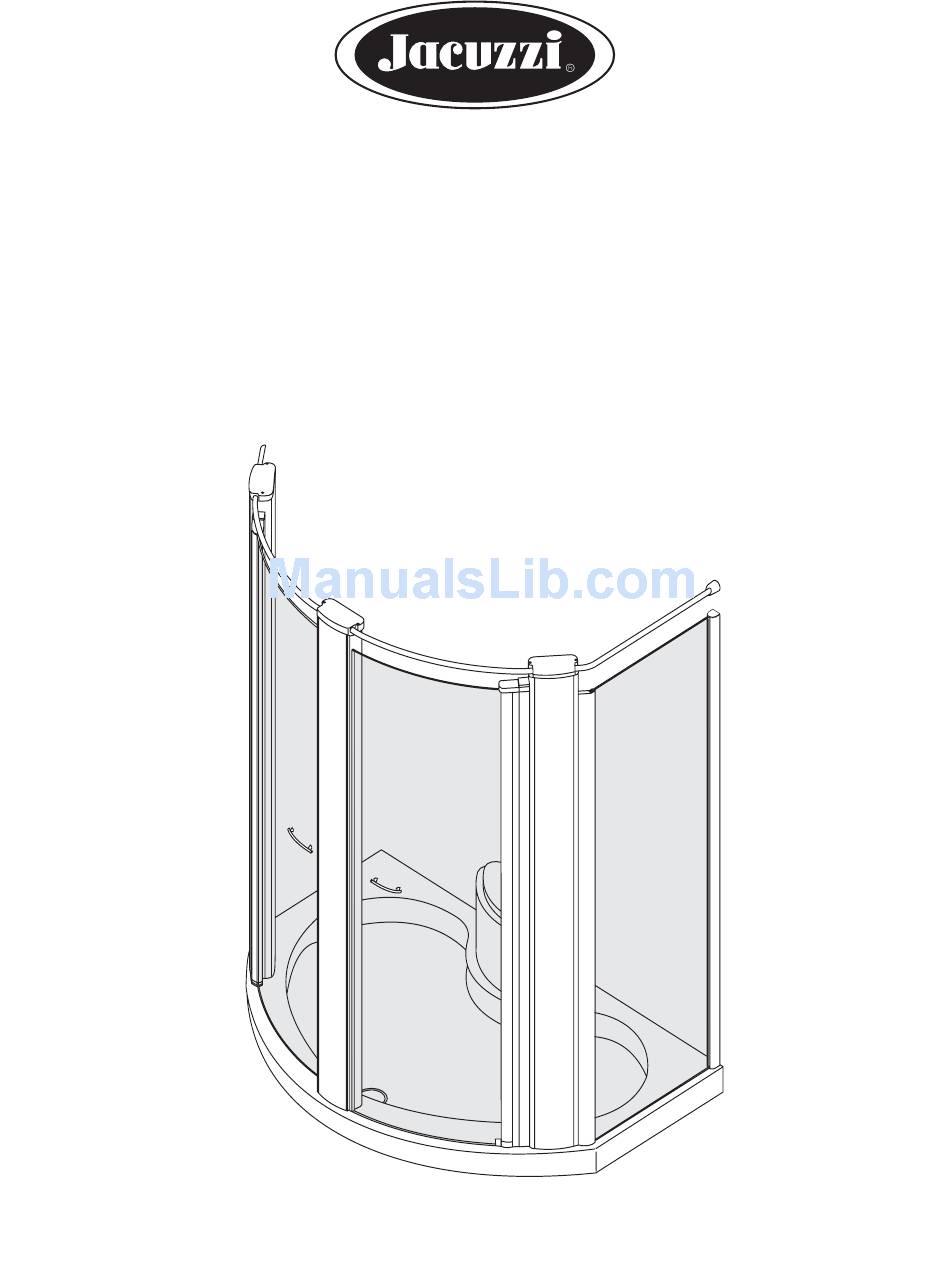

- Page 1 ™ SUMMER RAIN 2 PERSON SHOWER SYSTEM TWO WALL AND THREE WALL INSTALLATION AND OPERATING INSTRUCTIONS © Jacuzzi Whirlpool Bath BZ00000 03/05...
-
Page 2: Important Safety Information
Note: This is a professional grade product. A knowledge of construction techniques, plumbing and electrical installation according to codes are required for proper installation and user satisfaction. We recommend that © a licensed contractor perform the installation of all Jacuzzi Whirlpool Bath products. Our warranty does not cover improper installation related problems. -
Page 3: Table Of Contents
Tower Fixture Repair Parts _______________________________________________________________ 21 Tower Plumbing Repair Parts _____________________________________________________________ 22 Warranty ____________________________________________________________________________ 25-26 Save These Instructions for Future Use. Date Purchased ____________________________________________________________ Purchased From ____________________________________________________________ Installed By ________________________________________________________________ Serial Number _____________________________________________________________ Model ____________________________________________________________________ CONTENTS Owner's Record Jacuzzi Whirlpool Bath © BZ00000 03/05... -
Page 4: Base Specifications
Damage or defect to any component claimed after the unit is installed is excluded from the warranty. Jacuzzi Whirlpool Bath's responsibility for shipping damage ceases upon delivery of the products in good order to the carrier. Refer any claims for damage to the carrier. For definitions of warranty coverage and limitations, refer to the published warranty information packed with the product. -
Page 5: Enclosure Specifications
27-11/16" 48" ROUGH-IN REFERENCE 72" BLOWER MOTOR FOR UNITS WITH AIR 36" TOP VIEW 2 WALL ONLY 84" GLASS SIDE PANEL 2 WALL ONLY 48" SIDE VIEW 38-15/16" AIR LINE FOR UNITS WITH AIR Jacuzzi Whirlpool Bath © BZ00000 03/05... -
Page 6: Component Identification
FRONT VIEW Shown is 2 wall left hand base. Right hand opposite. The 3 wall base has tile flange on both sides and back. WATER TOWER WALL JAMB AND POST Jacuzzi Whirlpool Bath © BZ00000 03/05 WATER TOWER AIR TOWER... -
Page 7: Base Installation
Level and support waste pipe cutout area greater than 5" x 5". The base is NOT to be supported by the tile flange. COMPOUND ETC EVENLY OVER ENTIRE AREA STRAINER SILICONE SEALANT SPREAD MORTOR OR LEVELING Jacuzzi Whirlpool Bath © BZ00000 03/05... - Page 8 After drain is fully installed, test for proper drainage. If the shower base does not drain properly, rectify this condition before proceeding with the installation. Jacuzzi Whirlpool Bath sponsible for removal and/ or reinstallation costs. See Shim...
-
Page 9: Clean Up After Base Installation
You can restore the glossy finish to the acrylic surface of the base with a special compound, Meguiar’s #10 Mirror Glaze. If not available, use automotive rubbing compound followed by an application of automotive paste wax. Major scratches and gouges which penetrate the acrylic surface require refinishing. See your Jacuzzi Whirlpool Bath ©... -
Page 10: Towers And Doors Installation
Check with a level when attaching towers to base. Tighten tower base bolts after leveling (1 bolt per shower tower and 2 bolts for air tower). Jacuzzi Whirlpool Bath © BZ00000 03/05... - Page 11 SCREW (8 PER WATER TOWER) (4 PER AIR TOWER) RAIL HOLD DOWN BRACKET (1 PER AIR TOWER) (2 PER WATER TOWER) SIDE RAIL OR SHORT RAIL SIDE WALL POST BLOCKING SCREW SCREW SIDE JAMB Jacuzzi Whirlpool Bath © BZ00000 03/05...
- Page 12 CEMENT BOARD STUD SHIM IF NECESSARY DO NOT FILL 1-1/8" MAXIMUM NO MINIMUM STEP 8 NOTE: ALLOW 24 HOURS DRYING TIME BEFORE CONTINUING THE TOWERS AND DOORS INSTALLATION. Jacuzzi Whirlpool Bath © BZ00000 03/05 TILE TILE CEMENT BOARD TILE ADHESIVE...
- Page 13 SHORT WALL RAIL MOUNTING FLAT END FLUSH TO WALL ATTACH RAIL BRACKET TO WALL SECURE RAIL TO BRACKET (TURN CW TO TIGHTEN) MOVE COVER CAP OVER BRACKET DRILL 3/16" HOLE ATTACH RAIL BRACKET TO WALL © Jacuzzi Whirlpool Bath BZ00000 03/05...
- Page 14 Do not twist or kink supply lines when connecting. Perform this step for both water towers. SHUT OFF VALVES (PROVIDED) CAULK AROUND SUPPLY PIPING AND INSIDE TOWER BASE STEP 11 (WITH AIR FEATURE ONLY) Attach air supply pipe to air tower plumbing. Jacuzzi Whirlpool Bath © BZ00000 03/05 COLD...
- Page 15 Install cover cap by sliding over adjusting screw and bracket. COVER CAP NOTE: For 3 WALL installation continue with STEP 21 on page 16. After final adjustment, lock this DOOR POST LOCKING HINGE BARREL Jacuzzi Whirlpool Bath © BZ00000 03/05...
- Page 16 Level the post in its proper position and mark where screw holes are to be drilled. Drill 3/16" holes and secure with wall anchors and screws provided. Apply tape (provided) firmly over screw heads. TAPE (3) Jacuzzi Whirlpool Bath © BZ00000 03/05 STEP 17 (2 WALL ONLY) Slide fixed glass panel all the way into wall post.
- Page 17 GLASS INSIDE OF ENCLOSURE APPLY SEALANT GLASS APPLY SEALANT INSIDE OF ENCLOSURE Jacuzzi Whirlpool Bath WALL POST GLAZING GASKET GLAZING GASKET JAMB © BZ00000 03/05...
- Page 18 Screw tower jamb to wallpost using 3 screws (pro- vided). STEP 22 Install all towers' top cover. SCREWS (2) PER TOWER Jacuzzi Whirlpool Bath © BZ00000 03/05 STEP 23 Install handles as shown. Note orientation of handle. Hand tighten knob. Flat screw has a screw driver notch.
-
Page 19: Clean Up After Towers And Doors Installation
APPLY SEALANT ALONG SIDE OF TILE JOINT TO WALL POST APPLY SEALANT ALL AROUND TOWER BASES (ALL 3 BASES) © dealer or visit our website at: http://jacuzzi.com/ for a list of authorized finish (RAIL NOT SHOWN) Jacuzzi Whirlpool Bath © BZ00000... -
Page 20: Operation
Shower Head Body Sprays (2 Upper & 2 Lower) Diverter Control STOP RELEASE Temperature Valve Foot Temperature Tester Jacuzzi Whirlpool Bath © BZ00000 03/05 OPERATION SHOWER TOWERS Shower Head There are three selectable positions: Jet, Normal Pul- sating, and Aerated flow. - Page 21 Note: Temperature and air flow are factory set with a predetermined heat and air speed. OPERATION AIR TOWER CONTROLS ON/OFF INCREASE TEMPERATURE BUTTON AIR FLOW LED AIR TEMPERATURE LED AIR TEMPERATURE CONTROLLER DECREASE TEMPERATURE AIR FLOW Jacuzzi Whirlpool Bath © BZ00000 03/05...
-
Page 22: Maintenance
Remove each water tower cover. Disconnect the supply hoses from the valve and remove filter from the hose. Remove any debris. Reinstallation is the reverse of removal. Turn on hot and cold supply and check for leaks before replacing tower cover. Jacuzzi Whirlpool Bath © BZ00000... -
Page 23: Tower Fixture Repair Parts
18. U548827 Knob, Mixer Valve Chrome 19. D709827 Fill Spout Assembly, Stubby, Chrome 1 (5X) 7 (PART OF U547000) PART OF D709827 2 (5X) 3 (5X) TOWER ASSEMBLY 9 (5X) 11 (4X) WASHER (PART OF D709827) Jacuzzi Whirlpool Bath © BZ00000 03/05... -
Page 24: Tower Plumbing Repair Parts
TOWER PLUMBING REPAIR PARTS Jacuzzi Whirlpool Bath © BZ00000 03/05 ITEM QTY. PART NO. Y221000 U401000 Y724000 7164000 0455000 7269000 7269000 U547000 Y723000 7269000 U405000 7269000 7269000 7269000 U137827 U540000 GASKET U421000 U400000 DESCRIPTION TOWER, 2 PERSON SHOWER FTG, ELL, .50" FST x 10 mm BARB 1/2"... - Page 25 Jacuzzi Whirlpool Bath © BZ00000 03/05...
- Page 26 It is the responsibility of the installer/owner to determine specific local code compliance prior to installation of the product. Jacuzzi Whirlpool Bath © makes no representation or warranty regarding, and will not be responsible for any code compliance. Jacuzzi Whirlpool Bath National Headquarters P.O. Box 702168, Dallas, TX 75370-2168 Service Support: (800) 288-4002 ©...
-
Page 27: Warranty
The attached Warranty Registration Card MUST be filled out by the purchaser within thirty (30) days from purchase and mailed to Jacuzzi Whirlpool Bath in order for this warranty to become effective. -
Page 28: Warranty
The Company will provide the warranty service described above when the following conditions have been met: the failure is of the nature or type covered by the warranty; the user has informed an Authorized Jacuzzi Whirlpool Bath Service Agent or Warranty Service Department Representative of the nature of the problem during the warranty period;...
