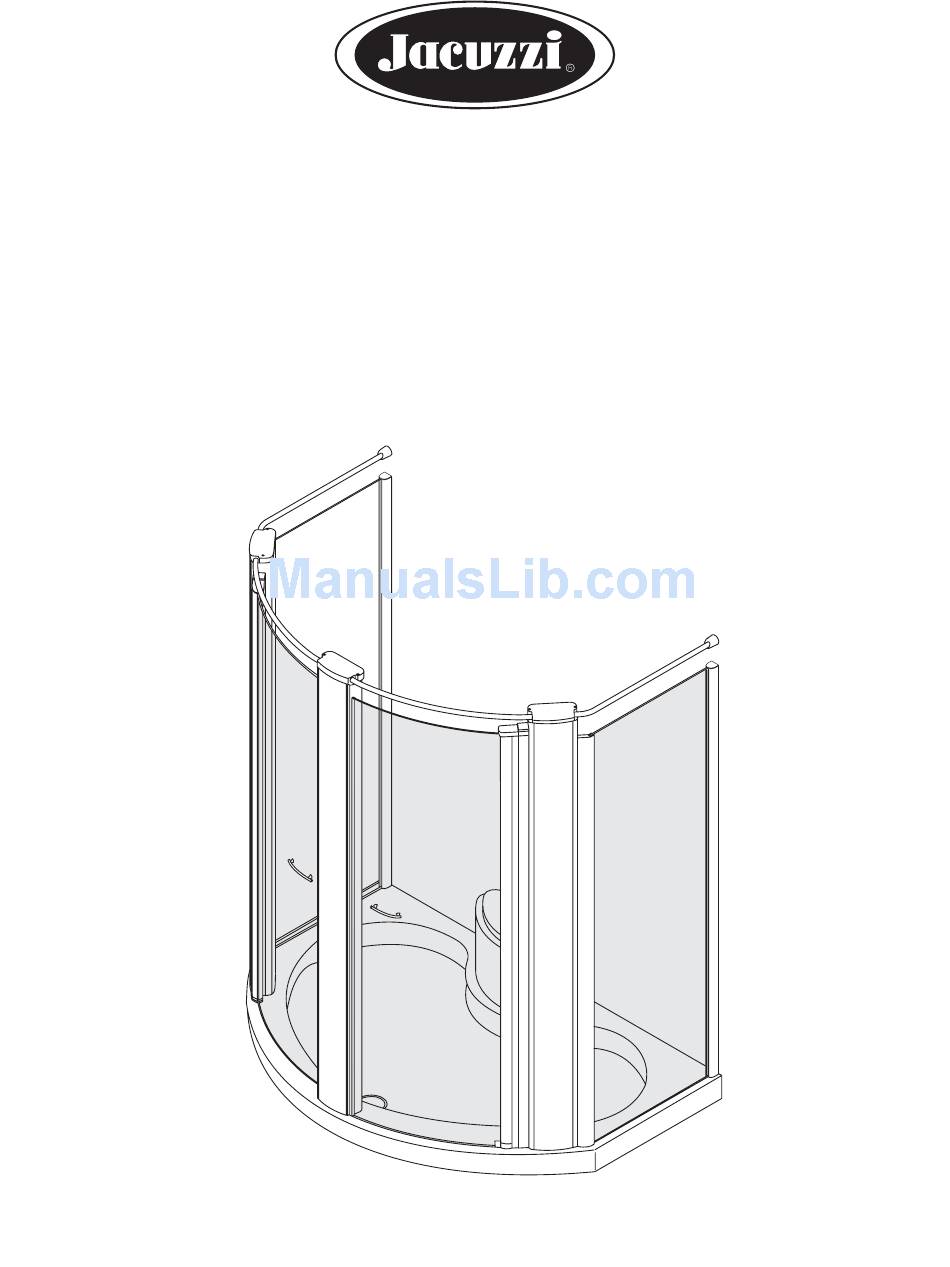

- Page 1 ™ SUMMER RAIN 2 PERSON SHOWER SYSTEM ONE WALL INSTALLATION AND OPERATING INSTRUCTIONS © Jacuzzi Whirlpool Bath BY82000 03/05...
-
Page 2: Important Safety Information
Note: This is a professional grade product. A knowledge of construction techniques, plumbing and electrical installation according to codes are required for proper installation and user satisfaction. We recommend that © a licensed contractor perform the installation of all Jacuzzi Whirlpool Bath products. Our warranty does not cover improper installation related problems. -
Page 3: Table Of Contents
Tower Fixture Repair Parts _______________________________________________________________ 19 Tower Plumbing Repair Parts _____________________________________________________________ 20 Warranty ____________________________________________________________________________ 23-24 Save These Instructions for Future Use. Date Purchased ____________________________________________________________ Purchased From ____________________________________________________________ Installed By ________________________________________________________________ Serial Number _____________________________________________________________ Model ____________________________________________________________________ CONTENTS Owner's Record Jacuzzi Whirlpool Bath © BY82000 03/05... -
Page 4: Base Specifications
Should inspection reveal any damage or defect in any component, do not install the unit. Damage or defect to any component claimed after the unit is installed is excluded from the warranty. Jacuzzi Whirlpool Bath's responsibility for shipping damage ceases upon delivery of the products in good order to the carrier. Refer any claims for damage to the carrier. -
Page 5: Enclosure Specifications
ENCLOSURE SPECIFICATIONS 72" FRONT VIEW ROUGH-IN REFERENCE 1" TILE FLANGE 27-11/16" 48" 48" SIDE VIEW 72" BLOWER MOTOR FOR UNITS WITH AIR AIR LINE FOR UNITS WITH AIR 36" TOP VIEW Jacuzzi Whirlpool Bath 84" 38-15/16" © BY82000 03/05... -
Page 6: Component Identification
SIDE VIEW WALL POST WALL POST GLASS SIDE PANEL GLASS SIDE PANEL SEAT BASE WATER TOWER WATER TOWER DRAIN DOOR POST DOOR POST AIR TOWER GLASS DOORS (SUPPORT AND SIDE SUPPORT RAILS NOT SHOWN) Jacuzzi Whirlpool Bath © BY82000 03/05... -
Page 7: Base Installation
Level and support waste pipe cutout area greater than 5" x 5". The base is NOT to be supported by the tile flange. SPREAD MORTOR OR LEVELING COMPOUND ETC EVENLY OVER ENTIRE AREA STRAINER SILICONE SEALANT Jacuzzi Whirlpool Bath © BY82000 03/05... - Page 8 After drain is fully installed, test for proper drainage. If the shower base does not drain properly, rectify this condition before proceeding with the installation. Jacuzzi Whirlpool Bath sponsible for removal and/ or reinstallation costs. SHIM NOTE: Watertight installation of the drain is the TILE installer’s responsibility.
- Page 9 You can restore the glossy finish to the acrylic surface of the base with a special compound, Meguiar’s #10 Mirror Glaze. If not available, use automotive rubbing compound followed by an application of automotive paste wax. Major scratches and gouges which penetrate the acrylic surface require refinishing. See your Jacuzzi Whirlpool © Bath dealer for special instructions.
-
Page 10: Towers And Doors Installation
Check with a level when attaching towers to base. Tighten tower base bolts after leveling (1 bolt per shower tower and 2 bolts for air tower). Jacuzzi Whirlpool Bath © BY82000 03/05... - Page 11 WATER TOWER DOOR POST ATTACH RAIL BRACKET TO WALL RAIL BRACKET (2) WATER TOWER JAMB SCREW (8 PER WATER TOWER) (4 PER AIR TOWER) RAIL HOLD DOWN BRACKET (1 PER AIR TOWER) (2 PER WATER TOWER) Jacuzzi Whirlpool Bath © BY82000 03/05...
- Page 12 Do not twist or kink supply lines when connecting. Perform this step for both water towers. STEP 4 (WITH AIR FEATURE ONLY) Attach air supply pipe to air tower plumbing. Jacuzzi Whirlpool Bath © BY82000 03/05 SHUT OFF...
- Page 13 After final adjustment, lock this posi- tion with locking nut. Repeat for other door. ADJUSTING SCREW (12mm) STEP 8 Install cover cap by sliding over adjusting screw and bracket. COVER CAP DOOR POST LOCKING HINGE BARREL Jacuzzi Whirlpool Bath © BY82000 03/05...
- Page 14 Level the post in its proper position and mark where screw holes are to be drilled. Drill 3/16" holes and secure with wall anchors and screws provided. Apply tape (provided) firmly over screw heads. TAPE (3) Jacuzzi Whirlpool Bath © BY82000 03/05 STEP 11 Slide fixed glass panel all the way into wall post.
-
Page 15: Tower And Doors Installation
GLASS INSIDE OF ENCLOSURE APPLY SEALANT GLASS APPLY SEALANT INSIDE OF ENCLOSURE Jacuzzi Whirlpool Bath WALL POST GLAZING GASKET GLAZING GASKET JAMB © BY82000 03/05... - Page 16 Install fixed glass cover cap on wall post. COVER CAP STEP 15 Install all towers' top cover SCREWS (2 PER TOWER Jacuzzi Whirlpool Bath © BY82000 03/05 STEP 16 Install handles as shown. Note orientation of handle. Hand tighten knob. Flat screw has a screw driver notch.
- Page 17 Scratches to towers and metal components may not buff or polish out requiring surface refinishing or replacement. Consult your Jacuzzi Whirlpool Bath contractors. APPLY SEALANT ALL AROUND TOWER BASES (ALL 3 BASES) (RAIL NOT SHOWN) © dealer or visit our website at: http://jacuzzi.com/ for a list of authorized finish Jacuzzi Whirlpool Bath © BY82000 03/05...
-
Page 18: Operation
Shower Head Body Sprays (2 Upper & 2 Lower) Diverter Control STOP RELEASE Temperature Valve Foot Temperature Tester Jacuzzi Whirlpool Bath © BY82000 03/05 OPERATION SHOWER TOWERS Shower Head There are three selectable positions: Jet, Normal Pul- sating, and Aerated flow. - Page 19 Note: Temperature and air flow are factory set with a predetermined heat and air speed. OPERATION AIR TOWER CONTROLS ON/OFF INCREASE TEMPERATURE BUTTON AIR FLOW LED AIR TEMPERATURE LED AIR TEMPERATURE CONTROLLER DECREASE TEMPERATURE AIR FLOW Jacuzzi Whirlpool Bath © BY82000 03/05...
-
Page 20: Maintenance
Remove each water tower cover. Disconnect the supply hoses from the valve and remove filter from the hose. Remove any debris. Reinstallation is the reverse of removal. Turn on hot and cold supply and check for leaks before replacing tower cover. Jacuzzi Whirlpool Bath © BY82000... -
Page 21: Tower Fixture Repair Parts
18. U548827 Knob, Mixer Valve Chrome 19. D709827 Fill Spout Assembly, Stubby, Chrome 1 (5X) 7 (PART OF U547000) PART OF D709827 2 (5X) 3 (5X) TOWER ASSEMBLY 9 (5X) 11 (4X) WASHER (PART OF D709827) Jacuzzi Whirlpool Bath © BY82000 03/05... -
Page 22: Tower Plumbing Repair Parts
TOWER PLUMBING REPAIR PARTS Jacuzzi Whirlpool Bath © BY82000 03/05 ITEM QTY. PART NO. Y221000 U401000 Y724000 7164000 0455000 7269000 7269000 U547000 Y723000 7269000 U405000 7269000 7269000 7269000 U137827 U540000 GASKET U421000 U400000 DESCRIPTION TOWER, 2 PERSON SHOWER FTG, ELL, .50" FST x 10 mm BARB 1/2"... - Page 23 Jacuzzi Whirlpool Bath © BY82000 03/05...
- Page 24 It is the responsibility of the installer/owner to determine specific local code compliance prior to installation of the product. Jacuzzi Whirlpool Bath © makes no representation or warranty regarding, and will not be responsible for any code compliance. Jacuzzi Whirlpool Bath National Headquarters P.O. Box 702168, Dallas, TX 75370-2168 Service Support: (800) 288-4002 ©...
-
Page 25: Warranty
NOTICE: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. There are no warranties applicable to Jacuzzi Whirlpool Bath products except as expressly stated herein or as implied by applicable state and federal laws. The Company will not be responsible for any statements or representations made in any form that go beyond, are broader than or are inconsistent with any authorized literature or specifications furnished by the Company. -
Page 26: Warranty
The Company will provide the warranty service described above when the following conditions have been met: the failure is of the nature or type covered by the warranty; the user has informed an Authorized Jacuzzi Whirlpool Bath Service Agent or Warranty Service Department Representative of the nature of the problem during the warranty period;...
