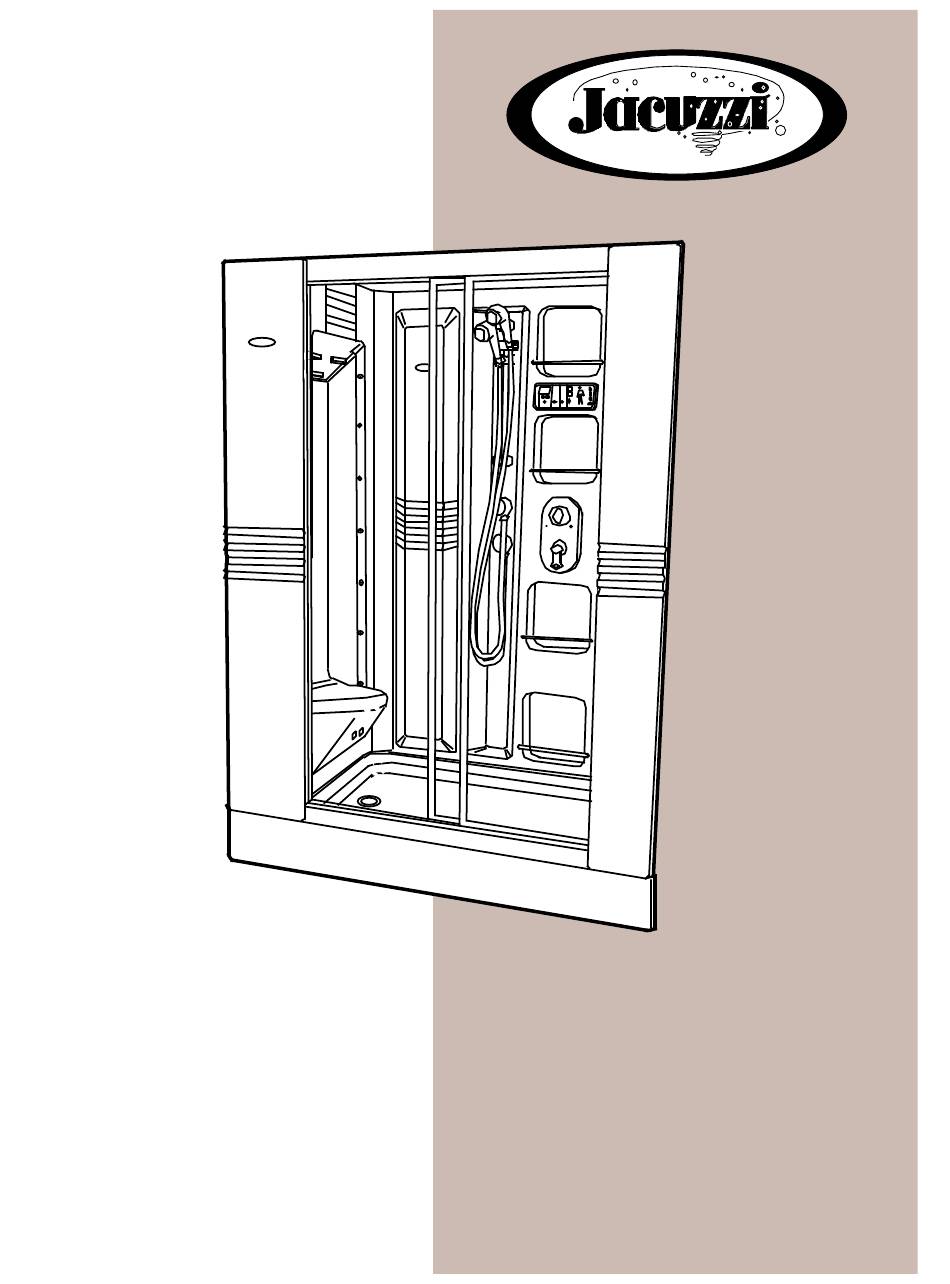

- Page 1 OWNER’S MANUAL Assembly, Installation & Operating Instructions BATH WHIRLPOOL J-DREAM II Shower System...
- Page 2 Do not use alcohol or drugs when using the J-Dream II. The elderly, the infirm, and children should not use the J-Dream II unattended. Pregnant women and people with heart conditions should consult their physicians before using the steamer.
-
Page 3: Table Of Contents
Inspection and Shipping Claim Check for shipping damage upon receipt of the J-Dream II. Jacuzzi Whirlpool Bath is not responsible for damage to the J-Dream II sustained during shipping. If damage is evident before unpacking, see instructions regarding shipping claims on the outside of the carton and immediately file a claim with the carrier. -
Page 4: Specifications
Fast and invigorating or slow and luxurious - the choice is yours. Step into the J-Dream II and see how Jacuzzi has created the ultimate shower experience. Because the J-Dream II is made by Jacuzzi, everything about it - from innovative design and technology to quality manufacturing - is simply the best. -
Page 5: General Information
General Assembly Information The J-Dream II shower unit is installed into a niche with the drain towards the left hand side of the unit as you face the shower door. This manual details the assembly, installation and operation. After the drain, water supply stub-out, and electrical supply are provided, the shower unit should be assembled freestanding away from the walls of the room. - Page 6 Lighting and electrical receptacles must be located at least 5 ft (1.5m) from the J-Dream II. Lighting located between 5 ft and 10 ft (1.5m and 3m) from the J-Dream II must be on a circuit protected by a GFCI. Do not use electrically connected devices, such as television, radio, telephones, stereo speakers, lights or cooking devices within 5 feet of the J-Dream II while it is in use.
-
Page 7: Packaging
J-Dream II Owner's Manual J-Dream II Packaging 6 cartons packed together on a wooden crate. Contents of cartons: • Wall Panels • Door Frame • Base/Cover (includes product accessory pack and owners manual) • Back Wall • Seat Wall • Equipment/Seat Wall... -
Page 8: Hardware Identification
J-Dream II Owner's Manual Circled letters A are used in the illustrations of the assenbly procedure. U-CLIP CLIP WASHER 10-24 FLAT WASHER #10 PAN HEAD SCREW SCREW PAN HEAD SCREW #10-24 x 3/4" SCREW #6-32 x .38 SCREW CAP COVER C WASHER FLAT WASHER 1/4"... -
Page 9: Rough-In
J-Dream II Owner's Manual Rough-in 16" WASHING HOSE MACHINE BIBB (2) OUTLET CONNECT #8 GAUGE (10mm 2 ) (2) 1/2 " HOT & COLD MINIMUM SOLID COPPER BOND WATER WIRE TO THE HOUSE SUPPLY ELECTRICAL PANEL OR APPROVED LOCAL GROUND. -
Page 10: Base And Drain
Before starting assembly, position the base pointing in the same direction as it will be in the final installation position so no unnecessary turning of the unit is required. Niche where J-Dream II is to be finally installed. Floor cut-out for steam tank drain pipe. - Page 11 J-Dream II Owner's Manual Drain Fitting (provided with unit) Leave enough flexibility in the waste line to allow the end of the stub-out to be blocked temporarily in a position under flush with the floor surface. This will allow the shower unit to slide across the floor into position without having to lift the shower unit.
-
Page 12: Installation Of Panels
J-Dream II Owner's Manual Attach Seat Walls to Base (J-Dream II with stereo shown) Bolts (8) Align four holes on seat wall frame over base and insert bolts and tighten nuts from underneath. Washers (8) Non-Equipment Seat Wall Equipment Seat Wall... - Page 13 J-Dream II Owner's Manual Attach Panel #2 to Seat Wall Frame Slide in panel feeding between frame and edge of seat wall. Align to frame and fasten panel to frame. Important: do not caulk panel to seat wall as the seat wall is hinged and designed to swing open.
- Page 14 J-Dream II Owner's Manual Attach Panel #3 to Seat Wall Frame Slide in panel feeding between frame and edge of seat wall. Align to frame and fasten panel to frame. Important: do not caulk panel to seat wall as the seat wall is hinged and designed to swing open.
- Page 15 J-Dream II Owner's Manual Install Back Wall Caulk the bottom and sides of back wall where indicated in the illustrations below. Install fasteners. Now align Pan lip Parallel the back wall parallel to the pan lip to center the back wall between the seat walls.
- Page 16 J-Dream II Owner's Manual Attach Panels #1 and #4 to Seat Walls Caulk Remove 4 bolts from seat walls to attach panels # 1 and #4. Caulk Seat wall attaches to panel #1 and #4 in two places. along surface of seat walls.
- Page 17 J-Dream II Owner's Manual Attach Brackets to Seat Wall Frames and L Bracket to left Angle Bracket Bolt (remove top bolt from seat wall bracket and reinstall). See below dimensions for bolt locations. Seat Wall Side Bracket Nut (2) Panel #4...
- Page 18 J-Dream II Owner's Manual Attach Painted Angle Brackets to Panels #1 and #4 Note that each angle bracket has a notch on the top and bottom. This notch does not get screwed against the side panels but faces out as shown in the side view for both left and right sides.
-
Page 19: Door Frame
J-Dream II Owner's Manual Attach Door Frame to Angle Brackets and Base Frame Before proceeding, make sure the seat walls are closed and fastened. See detail B on page 15. Align door frame over tabs on base frame and pan lip. Pan lip is to fit into corner posts of door frame. -
Page 20: Top Frame
J-Dream II Owner's Manual Attach Top Frame to Door Frame, Back Wall and Seat Wall Frames Press/tap top frame into door frame, aligning notch in door frame with corner of top of frame while aligning with corners of enclosure. Frame snaps down into door frame and back snaps over back wall. -
Page 21: Hose And Electrical Connections
Unravel hoses attached to left seat wall and feed them toward the back wall. Note that they should be top to bottom as shown. Hoses are color coded. Also feed the CD/Radio cable bundle toward the back wall. (J-Dream II with stereo only.) Back of Left Seat Wall... - Page 22 J-Dream II Owner's Manual Use cable ties to attach color coded hoses to back wall. The cable tie will have to be threaded through the two holes in the back wall on both sides (ten places). The hoses are marked to indicate where they are to be tied on the left side of the back wall.
- Page 23 J-Dream II Owner's Manual The five color coded hoses will be attached to tees (highlighted below) with the clamps that are on the hoses. The red and black leads in the CD/Radio wire bundle must be hooked up to the corresponding colored leads of the power supply.
-
Page 24: Bonding
J-Dream II Owner's Manual Bonding (top left hand side of right hand equipment seat wall) CONNECT #8 GAUGE (10mm 2 ) MINIMUM SOLID COPPER BOND WIRE TO THE HOUSE ELECTRICAL PANEL OR APPROVED LOCAL GROUND. AN APPROVED GROUND MAY BE AN 8 FOOT... -
Page 25: Final Plumbing
Close seat wall, reinstall fasteners, continue with step 7. Back Wall Front 7. Adjust the levelling screws in the J-Dream II base feet and lock them in position. 8. Recheck fit of drain plumbing. 9. Secure J-Dream II in position using clamps provided as shown. -
Page 26: Front Panels
J-Dream II Owner's Manual Attach Front Panels to Unit Attach both left and right front panels with pre-installed Velcro®. On the left front panel, install 2 screws through the top of the panel. Connect the CD/radio ground wire, speaker/power connector and antenna wire before installing left front panel. -
Page 27: Cover
J-Dream II Owner's Manual Place cover on top of unit. Align notch in cover with the corresponding notch in the top metal frame. -
Page 28: Completing The Installation
J-Dream II Owner's Manual Turn On Electric Power at Main Breaker Operate Unit and Check for Leaks Attach Bottom Front Panel to Unit Take the bottom panel at an angle and insert under the bottom of the enclosure frame. ®... -
Page 29: Part Ii Operation And Maintenance
Part II: Operating Instructions for Model J-Dream Control Panel System control is provided by the electronic display located inside the shower cabin (see Figure 1) The display is used to start up the four functions of the unit: the shower, the cascade waterfall, the hydromassage, and the steam bath. - Page 30 Starting the Hydromassage The J-Dream allows you to enjoy the benefits of a real hydromassage. The hydromassage is created by the combined action of 32 water jets (eight sets of four) under the pressure of an electrically powered pump. The action of each group of four jets is alternated according to a programmed sequence which can be changed as desired.
- Page 31 If the steam bath is used frequently in a hard water area, particles of limestone may be deposited in the steam generator and reduce its performance. Jacuzzi Whirlpool Bath recommends the installation of a water softener unit, in order to eliminate or reduce limestone deposits.
- Page 32 Jacuzzi Whirlpool Bath has obtained applicable code (standards) listings generally available on a national basis for products of this type. It is the responsibility of the installer/owner to determine specific local code compliance prior to installation of this product. Jacuzzi Whirlpool Bath makes no representation or warranty regarding, and will not be responsible for any code compliance.
