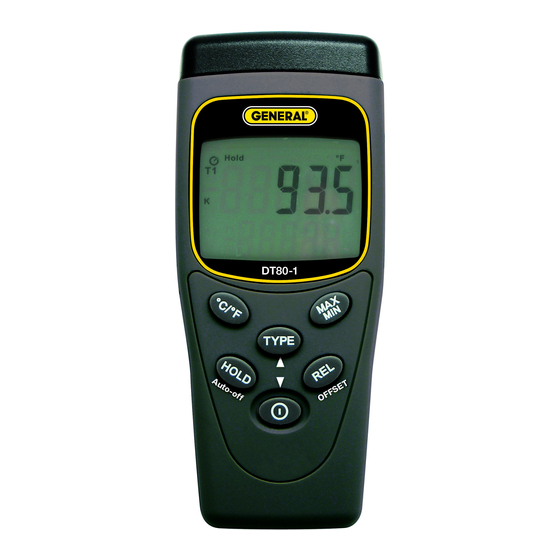

General DT80-1 User Manual

General DT80-1 User Manual

Digital thermocouple thermometers

Advertisement

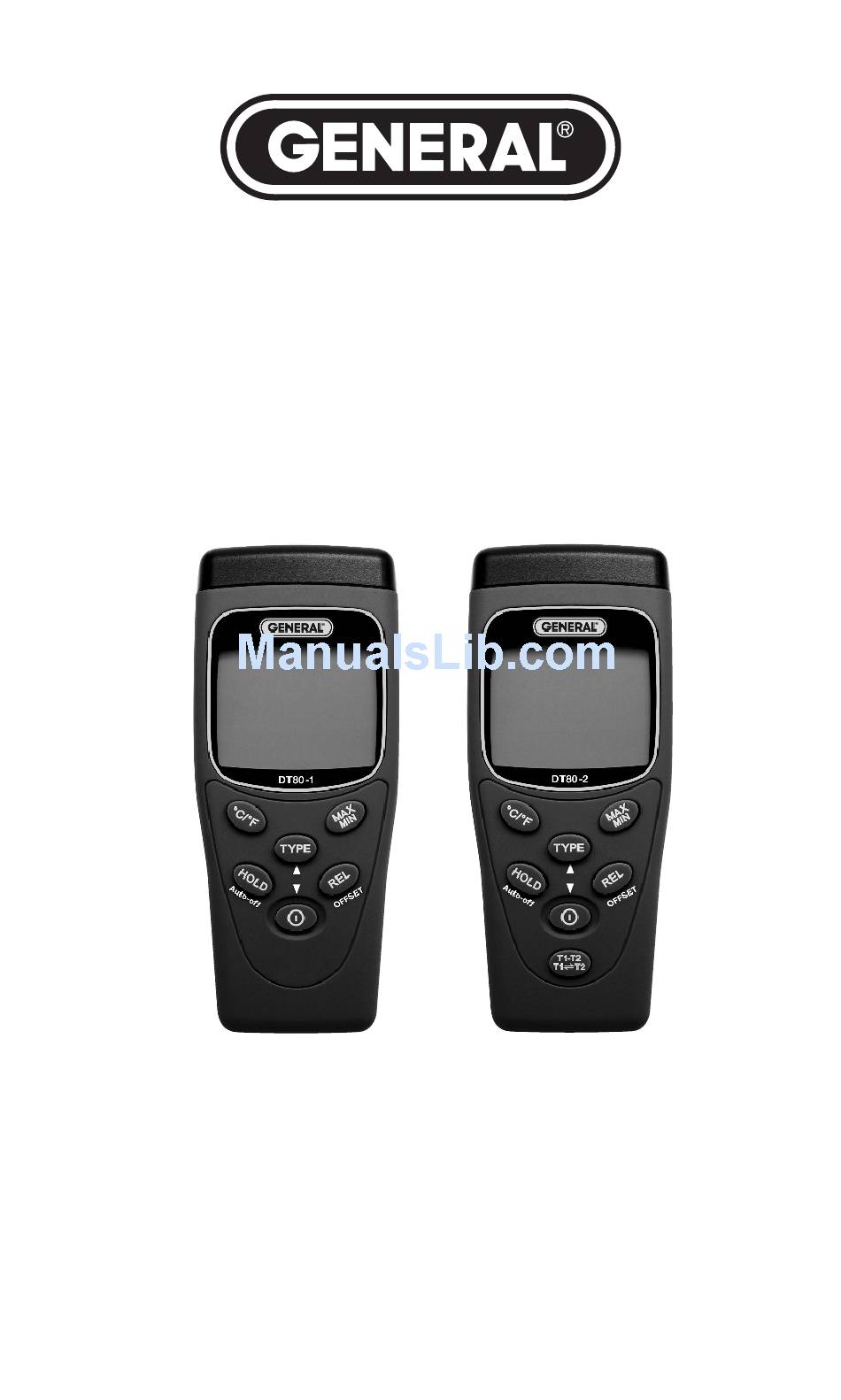

DIGITAL THERMOCOUPLE
THERMOMETERS
USER'S MANUAL
Single
Dual
Thermocouple
Thermocouple
DT80-1 and DT80-2
Please read this manual carefully and thoroughly before using this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT80-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for General DT80-1

  • Page 1 DIGITAL THERMOCOUPLE THERMOMETERS USER’S MANUAL Single Dual Thermocouple Thermocouple DT80-1 and DT80-2 Please read this manual carefully and thoroughly before using this product.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ....... . . 3 Key Features ....... . 4 Operating Instructions .
  • Page 3: Introduction

    The DT80-1 and DT80-2 are thermocouple-type J/K digital thermometers. The DT80-1 is designed to be used with a single thermocouple; the DT80-2 is designed to be fed by two thermocouples configured to deliver a temperature differential.
  • Page 4: Key Features

    Simplicity is another asset of thermocouple thermometers. Thermocouples work by measuring the potential difference produced at the junction of two wires made of different metals but exposed to the same temperature. Since the junction is very small, a thermocouple thermometer can be used to measure the temperature at a point reachable by a probe.
  • Page 5: Operating Instructions

    OPERATING INSTRUCTIONS Familiarize yourself with the nomenclature in the following two illustrations before using the DT80-1 or DT80-2. BACK, FRONT AND TOP VIEWS Thermocouple T1 input · Thermocouple T2 input (DT80-2 only) Display (see next illustration) Function keys Battery cover...
  • Page 6: Display Elements

    DISPLAY ELEMENTS Auto power off icon Low battery indicator Hold (freeze) display indicator Offset change indicator Enable Maximum, Minimum and Average recording; also indicates Current Mode. Offset Setup Mode indicator Limit indicates that the alarm function is enabled; Hi and Lo indicate the reason why alarm sounded. T1 - T2: Indicates differential temperature mode (DT80-2 only).
  • Page 7: Function Keys Overview

    FUNCTION KEYS OVERVIEW Pressing toggles between Celsius and Fahrenheit temperature units (scale chosen is saved upon shutdown and becomes the default of next power up cycle). Pressing enables/disables holding (freezing) of display and updating of data. Pressing and holding enables/disables auto power off function (indicated by In normal operating mode, toggles to select J- or TYPE...
  • Page 8: Specific Operating Instructions

    T1 T2 correct thermocouple type in the secondary display. Both the DT80-1 and DT80-2 will save their setting(s) upon shutdown and make them the default when they next power up. To hold (freeze) the display and stop updating measurements, press the key.
  • Page 9 the standard relative reading. Then, if the temperature rises to 30°C, the display will show 5°C (30° – 25°C). If the temperature falls to 20°C, the display will show - 5°C (20° – 25°C). Pressing the key again disables this function and restores the actual temperature reading to the display.
  • Page 10: Specifications

    To compensate for thermocouple error, you must first set the offset value. To do so (recommended each time the thermocouple probe is changed): 1. Press and hold the key. 2. Use the keys, respectively, to increase TYPE or decrease the offset value. The allowable adjustment range is ±9°F (±5°C).
  • Page 11: Maintenance & Troubleshooting

    Never use a wet cloth, solvents or water. REPLACEMENT PARTS The DT80-1 ships with a carrying case and one general- purpose K-type thermocouple probe with a beaded tip General P/N TPK500. The DT80-2 ships with two of these probes.
  • Page 12: Warranty Information

    Acceptance of the exclusive repair and replacement remedies described herein is a condition of the contract for purchase of this product. In no event shall General be liable for any incidental, special, consequential or punitive damages, or for any cost, attorneys’ fees, expenses, or...
  • Page 13: Return Policy

    Remember to include a copy of your proof of purchase, your return address, and your phone number and/or e- mail address. The DT80-1 or DT80-2 are warranted to be free of defects in materials and workmanship for one year after the date of purchase.
  • Page 14 NOTES...
  • Page 15 NOTES...
  • Page 16 PHONE (212) 431-6100 FAX (212) 431-6499 TOLL FREE (800) 697-8665 e-mail: sales@generaltools.com www.generaltools.com DT80-1 and DT80-2 User’s Manual Specifications subject to change without notice ©2014 GENERAL TOOLS & INSTRUMENTS NOTICE - WE ARE NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS. MAN# DT80-1 and DT80-2...
