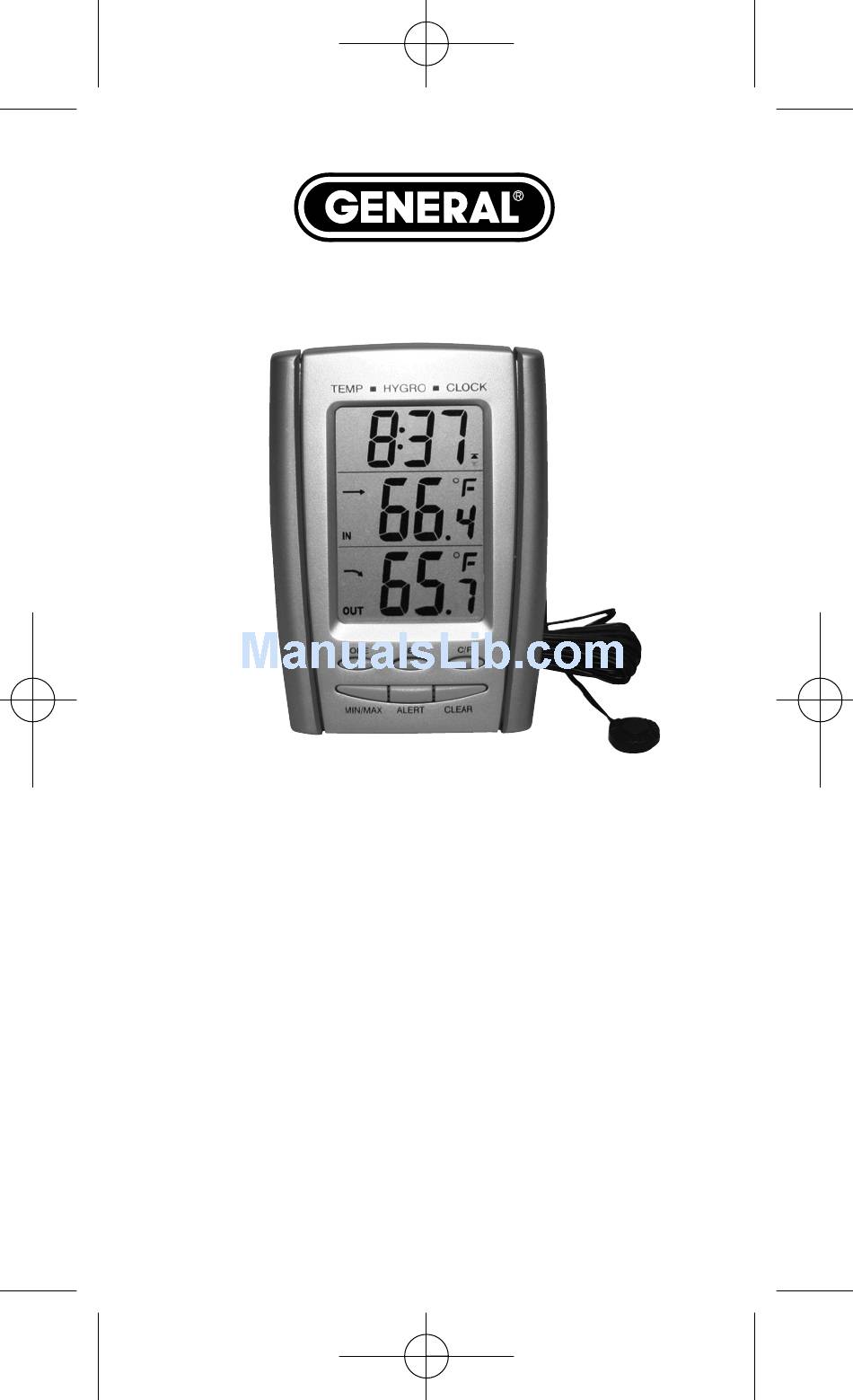

DTH850 Manual -FIN3-100907
10/9/07
12:06
DTH850
USER'S MANUAL
Indoor/Outdoor
Thermometer and Clock
with Humidity Display
Thank you purchasing this new generation electronic
thermometer. Designed and engineered with state-of-
the-art technology and components. This instrument will
provide accurate and reliable measurements of digital
indoor/outdoor thermometer and clock humidity and
includes many extra features: ice alert, temperature
trend indictor, memory for minimum and maximum
temperature, clock, alarm clock with snooze and date.
Read this manual carefully to fully explore the features
and functions of this product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for General DTH850
Summary of Contents for General DTH850
- Page 1 DTH850 Manual -FIN3-100907 10/9/07 12:06 DTH850 USER’S MANUAL Indoor/Outdoor Thermometer and Clock with Humidity Display Thank you purchasing this new generation electronic thermometer. Designed and engineered with state-of- the-art technology and components. This instrument will provide accurate and reliable measurements of digital...
-
Page 2: General Specifications
DTH850 Manual -FIN3-100907 10/9/07 12:06 1. GENERAL SPECIFICATIONS: Power Source: 1 “AAA” battery Battery Life: 12 month of continuous operation Temp Range: Indoor: 32º to 122ºF (0º to +50ºC) below range = Lo, over range = Hi Outdoor: -58º to +158ºF (-50º to +70ºC) -
Page 3: Default Values
DTH850 Manual -FIN3-100907 10/9/07 12:06 2. DEFAULT VALUES: - Clock = 12:00 - Alarm = 12:00 - 12/24 = 24 hr - Alarm position = off - Ice alert = off beeper (ice icon always ready) = Degree C 3. OTHERS:... - Page 4 DTH850 Manual -FIN3-100907 10/9/07 12:06 - While MAX or MIN values are being displayed on screen, press CLEAR to clear records. “ - - - . - C/F/%” displays for 3 seconds when clearing MAX or MIN records, then the screen returns back to normal temp.
-
Page 5: Temperature Trend
DTH850 Manual -FIN3-100907 10/9/07 12:06 • With roll over • Finally press ALERT to confirm and exit • When ambient RH reach the preset level, the relevant arrow icon and the Humidity digit will flash. Press any key to stop alarm and flashing. -
Page 6: Caractéristiques Générales
DTH850 Manual -FIN3-100907 10/9/07 12:06 DTH850 MODE D'EMPLOI Thermomètre intérieur/extérieur avec horloge et affichage d’humidité 1. CARACTÉRISTIQUES GÉNÉRALES : Source d’alimentation : 1 pile AAA Autonomie pile : 12 mois de fonctionnement continu Plage de température : Intérieur : 0 à +50 ºC (32 à... -
Page 7: Valeurs Par Défaut
DTH850 Manual -FIN3-100907 10/9/07 12:06 Alerte gel : -1 à + 4 °C (un bip par seconde) Activé 1 min, désactivé 59 min, jusqu’à pression sur tout bouton ou hors plage (bips 60 s chaque heure) Icône « Gel »... - Page 8 DTH850 Manual -FIN3-100907 10/9/07 12:06 MAX/MIN - Afficher temp. et humidité MAX int. et ext., actualisées toutes les 8 secondes ; alors que les valeurs MAX sont à l’écran, appuyer sur MIN/MAX une deuxième fois pour afficher les valeurs MIN, également actualisées toutes les 8 secondes.
- Page 9 DTH850 Manual -FIN3-100907 10/9/07 12:06 - Tenir le bouton ALERTE pendant 2 secondes pour : • Régler la limite d’humidité haute, la flèche de limite haute clignote, 50% par défaut, appuyer sur SET pour augmenter la valeur de 1 unité ou tenir pour défilement rapide, appuyer sur ALERT pour valider...
-
Page 10: Manual Del Usuario
DTH850 Manual -FIN3-100907 10/9/07 12:06 DTH850 MANUAL DEL USUARIO Termómetro interior/exterior con reloj e indicador de humedad 1. ESPECIFICACIONES GENERALES: Fuente de alimentación: 1 batería “AAA” Vida de la batería: 12 meses de operación continua Rango de temperatura: Interior: 32 a 122°F (0° a +50°C),... - Page 11 DTH850 Manual -FIN3-100907 10/9/07 12:06 12/24 hr: El usuario puede seleccionar Alarma: Alarma diaria con función de siesta de 8 minutos Alerta de hielo: -1° a + 4°C (1 bip/segundo, cada segundo) 1 minuto encendido, 59 minutos apagados, hasta que se oprima...
- Page 12 DTH850 Manual -FIN3-100907 10/9/07 12:06 4. NOMBRE Y FUNCIONES DE LOS BOTONES: Botón Función al oprimir MODE Mostrar Temp > Higrómetro > Temp … • Sostenga 2 segundos por ajustar reloj - Hr > Min > Salir y confirmar - MODE = Seleccionar, SET = Confirmar...
- Page 13 DTH850 Manual -FIN3-100907 10/9/07 12:06 - En modo de temperatura normal, SOSTENGA 2 segundos para ingresar a ajuste de alarma - CLEAR = Seleccionar (Hr, Min), SET = Confirmar SNOOZE - Disparar alarma de siesta repetida de 8 minutos cuando la alarma está sonando - oprima para cambiar °F >...
- Page 14 DTH850 Manual -FIN3-100907 10/9/07 12:06 • La alarma suena durante 60 segundos y descansa 55 minutos, continuando sonando cuando está dentro del rango. Oprima cualquier tecla para detener el sonido. 5. TENDENCIA DE TEMPERATURA: - 3 flechas para temperatura interior y otras...
- Page 15 DTH850 Manual -FIN3-100907 10/9/07 12:06 NOTES ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________...
- Page 16 PHONE (212) 431 - 6100 FAX (212) 431 - 6499 TOLL FREE (800) 697-8665 e-mail: sales@generaltools.com www.generaltools.com DTH850 User’s Manual Specifications subject to change without notice ©2007 GENERAL TOOLS & INSTRUMENTS ™ NOTICE - WE ARE NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS. MAN#DTH850 10/07...
