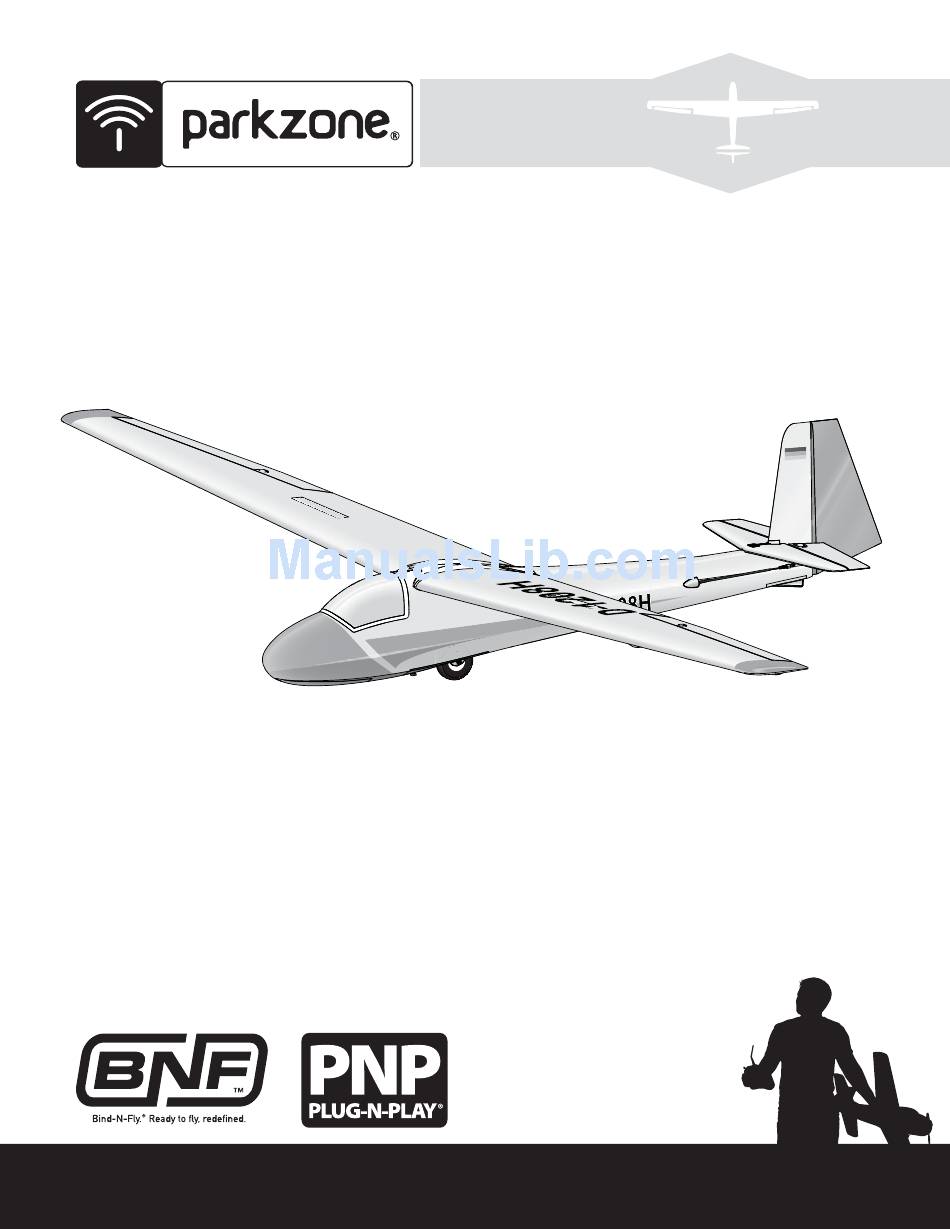

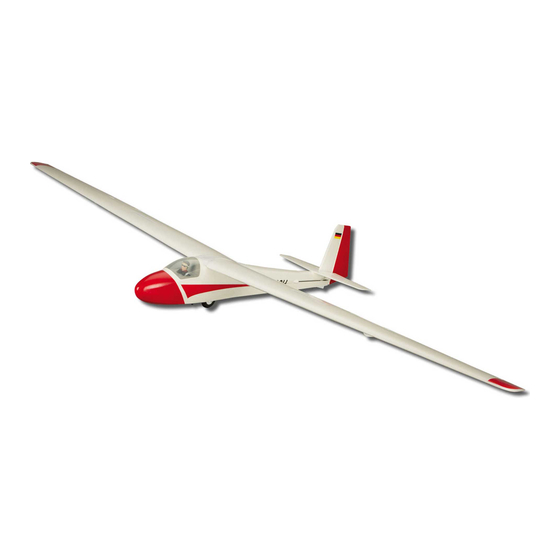

- Page 1 Ka-8 Instruction Manual / Bedienungsanleitung Manuel d’utilisation / Manuale di Istruzioni...
-
Page 2: Charging Warnings
Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, Inc. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warn- ings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury. -
Page 3: Table Of Contents
fl ight characteristics and impressive thermal performance make it the perfect next step for newly licensed pilots eager to stretch their wings. The ParkZone Ka-8 sailplane brilliantly captures the grace of this pre-composite era beauty. Like the full-scale Ka-8, it delivers a relaxing fl ying experience free of any bad habits. -
Page 4: Battery Charging
Battery Charging Your aircraft comes with a DC balancing charger and 2S Li-Po battery. Charger Specifi cations You should only charge your battery with the included charger. Never leave the • Input power: 10-14V battery and charger unattended during the charge process. Failure to follow •... -
Page 5: Transmitter And Receiver Binding
Transmitter and Receiver Binding Binding Procedure Reference Table Read the transmitter instructions for binding to a receiver (loca- “Binding” is the process of programming the receiver to recognize the GUID tion of transmitter’s Bind control). (Globally Unique Identifi er) code of a single specifi c transmitter. You need to Make sure the transmitter is powered OFF. -
Page 6: Voltage Regulator And Receiver Arming
Receiver Selection and Installation • Before installing the wing, install your full range receiver in the fuselage using hook and loop tape or double-sided servo tape. • Connect the elevator and rudder servo to the appropriate channels of the receiver. •... -
Page 7: Wing Assembly And Installation
Wing Assembly and Installation IMPORTANT: Bind the aircraft to your transmitter before wing installation for easier spoiler adjustment. Before fl ying, bind the aircraft to your transmitter again to correctly set failsafe. Assembly 1. Slide the wing tube (A) in the hole in the left wing. 2. -
Page 8: Horizontal Tail Installation
Horizontal Tail Installation 1. Install the horizontal tail (A) in the slot (B) in the vertical tail. Ensure the elevator control horn faces down. 2. Secure the horizontal tail on the fuselage using a screw (C). 3. Attach the clevis to the elevator control horn (see instructions for clevis connection). -
Page 9: Decal Installation
All aircraft carry a unique alphanumeric string that identifi es civil or military aircraft. Your ParkZone ® Ka-8 sailplane includes two alphanumeric decal op- tions. Option A (N15343) represents an aircraft registered in the U.S., while Option B (D54332) represents an aircraft registered in Germany. -
Page 10: Control Direction Test
Control Direction Test Move the controls on the transmitter to make sure the aircraft control surfaces move correctly and in the proper direction. After performing the Control Test, correctly set the failsafe. Make sure the transmitter controls are at neutral and the throttle and throttle trim are in the low position, then rebind the aircraft to your transmitter. If the re- ceiver loses its link to the transmitter, the failsafe will drive the servos to these settings made at binding. -
Page 11: Flying Tips And Repairs
Avoid possible damage to your launch system and aircraft by launching only in areas clear of brush, trees and other obstacles. Hand Launch Hold the Ka-8 fuselage under the wing. Launch the sailplane into the wind with Stand here the wings level. - Page 12 Recommended Aircraft Towing Positions When Flying • The tow release location makes the Ka-8 naturally rise behind the tow- plane without use of the elevator. Down elevator accelerates the sailplane and makes undesirable slack in the tow line.
- Page 13 Flying Tips and Repairs (continued) Flying Spoilers/Air Brakes Thermal Flying The Schempp-Hirth style of spoiler (air brake) on this aircraft gives you Your sailplane can ascend on thermals and other updrafts to prolong its fl ight increased drag without the additional lift of fl aps. far beyond the fl...
-
Page 14: Servoless Tow Release Installation
Tip: Before towing, use your transmitter switch to connect and release a tow line. NOTICE: DO NOT attempt to launch your Ka-8 using a High-Start connected to the tow release or a tow line connected to the High-Start hook. Incorrect use of... -
Page 15: Post Flight Checklist
Post Flight Checklist 1. Disconnect the fl ight battery from the voltage regulator (Required for Safety 5. Repair or replace all damaged parts. and battery life). 6. Store the fl ight battery apart from the aircraft and monitor the 2. Power OFF the transmitter. battery charge. -
Page 16: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Reduced fl ight time Flight battery charge is low Completely recharge fl ight battery Flight battery damaged Replace fl ight battery and follow fl ight battery instructions Flight conditions may be too cold Make sure battery is warm before use Spoilers not fully retracted Center throttle trim and adjust clevises on spoiler servo so spoiler fully retracts... -
Page 17: Limited Warranty
What this Warranty Covers business hours. When sending product into Horizon, please include your RMA Horizon Hobby, Inc. (“Horizon”) warrants to the original purchaser that the number, a list of the included items, and a brief summary of the problem. A product purchased (the “Product”) will be free from defects in materials and... -
Page 18: Warranty And Service Contact Information
Compliance Information for the European Union Declaration of Conformity Declaration of Conformity (in accordance with ISO/IEC 17050-1) (in accordance with ISO/IEC 17050-1) No. HH2013050304 No. HH2013050303 Product(s): PKZ Ka-8 Sailplane PNP Product(s): PKZ Ka-8 Sailplane BNF Item Number(s): PKZ6675 Item Number(s): PKZ6680 Equipment class:... -
Page 19: Replacement Parts
