Eycasa Door & House
Wireless Video System

User Guide

Version 07/2013
Original user guide in German.
Retain for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eycasa CASA30100 and is the answer not in the manual?

Questions and answers

Related Manuals for Abus Eycasa CASA30100

Summary of Contents for Abus Eycasa CASA30100

  • Page 1: User Guide

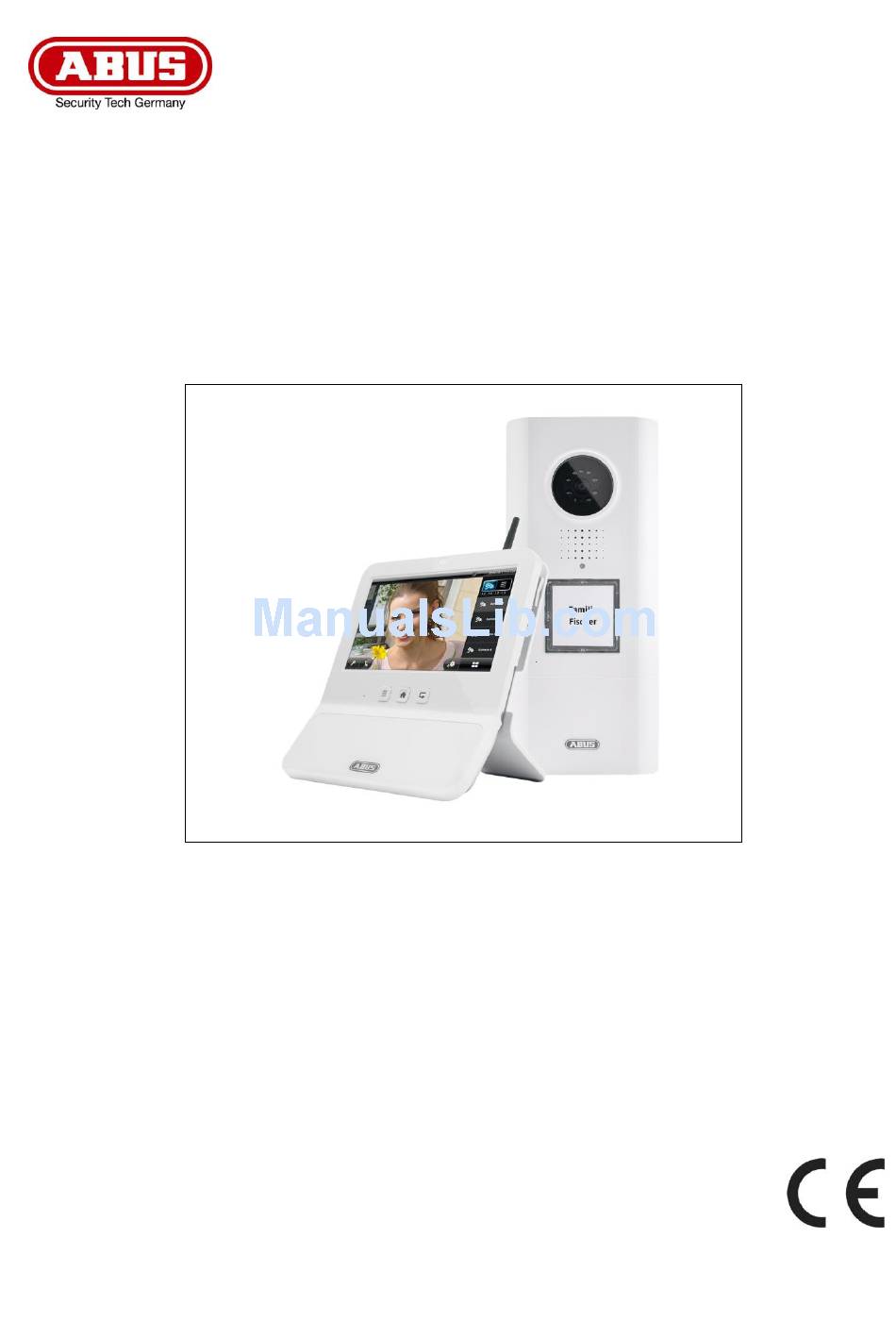

    Eycasa Door & House Wireless Video System User Guide Version 07/2013 Original user guide in German. Retain for future reference.
  • Page 2 ABUS Security-Center GmbH is not liable or responsible for direct or indirect damages resulting from the equipment, performance, and use of this product. No forms of guarantee are accepted for the contents of this...
  • Page 3 English Explanation of symbols The triangular high voltage symbol is used to warn of the risk of injury or health hazards (e.g. caused by electric shock). The triangular warning symbol indicates important notes in this user guide which must be observed. This symbol indicates special tips and notes on the operation of the unit.
  • Page 4 English Wireless transmission The wireless range depends on a variety of environmental factors. The local conditions at the installation site may have a negative impact on the range. A range of up to 100 m can be achieved if there is line of sight between the receiver and transmitter, and a range of up to 30 meters can be achieved indoors (this can be less depending on the situation in the building).

  • Page 5: Table Of Contents

    English Contents Intended use ......................6 Eycasa system components ..................6 Features and functions ..................... 7 Device description ....................8 4.1 Description of the Eycasa main unit ..............8 4.2 Description of the Eycasa video door station ............. 9 4.3 Description of the Eycasa outdoor camera ............13 Pairing the system components ................

  • Page 6: Intended Use

    Eycasa family: Eycasa outdoor cameras (monitoring of driveways or gardens). The system can manage a total of up to four cameras from the Eycasa product family. For a detailed description of functions, refer to Section 3, “Features and functions”. 2. Eycasa system components CASA30100 CASA30150 CASA30200 Eycasa video door station...

  • Page 7: Features And Functions

    English 3. Features and functions  Eycasa door & house wireless video system for watching, speaking, listening, and switching  The Eycasa door & house wireless video system set contains the Eycasa video door station and Eycasa main unit  Secure wireless transmission using 2.4 GHz digital wireless for video and 1.9 GHz DECT for audio ...

  • Page 8: Device Description

    English 4. Device description 4.1 Description of the Eycasa main unit           Used for writing short notes on the memo board. Dry erase  Board marker board marker. Intercom for Eycasa video door station and Eycasa ...

  • Page 9: Description Of The Eycasa Video Door Station

    English Removable table mount, can be used instead of the included  Table mount wall mount. 12 V DC / 1 A  Power supply Device starts automatically when powered by line voltage. Integrated network access, 10/100 Mbps.  RJ45 connection For internal testing purposes only.
  • Page 10 Logo can be rotated 90° with horizontal installation of the video  ABUS logo door station. Built-in proximity reader for use of the ABUS wireless chip key  Proximity reader (FUBE50020) for opening the door on the door station. Not available in battery mode.
  • Page 11 English Connection examples for an electronic door opener/door bell Description of the terminal block Description Note 12V-24 Network connection for video door station 12-24V direct current or AC/DC 12-24V alternating current RELAY Terminal connector for electronic door opener. Potential-free relay, NO (normally open) RELAY Terminal connector for electronic door bell.
  • Page 12 The function to trigger the door bell via RELAY 2 requires the software version Eycasa 1.5 or higher. You can download the software free of charge from the following website: http://www.abus.com/ger/Sicherheit- Zuhause/Tuersicherheit/Tuersprechsysteme/Eycasa/Eycasa-Tuer-Haus-Funk-Videosystem Electronic...

  • Page 13: Description Of The Eycasa Outdoor Camera

    English 4.3 Description of the Eycasa outdoor camera            Antenna Screw-on antenna for 2.4 GHz digital wireless.  Photo sensor Sensor for switching between day and night mode.  Camera Camera with fixed lens.

  • Page 14: Pairing The System Components

    English 5. Pairing the system components 5.1 Pairing the Eycasa components in the Eycasa main unit We recommend that you pair the video door station in the entrance area to camera position 1 (factory setting with the CASA31000). All other components can be paired to any of the other camera positions. Pair the components as follows: Note: The CASA31000 Eycasa video door station and Eycasa main unit included in delivery are...
  • Page 15 English First remove the battery compartment to be able to remove the front cover. You can now continue the pairing process for your video door station. The setup wizard of your main unit should show the following view: A notification message will appear that a camera already paired to the selected camera slot will be overwritten by this action.
  • Page 16 English Your Eycasa main unit connects to your video door station. The process can take several seconds. The setup wizard will signal whether the process is complete or whether it needs to be repeated due to a pairing error. If the message “Video door station was successfully paired” appears, the pairing process is finished. The status LED goes out on your video door station, signaling readiness.

  • Page 17: Pairing The Eycasa Outdoor Camera

    English 5.3 Pairing the Eycasa outdoor camera Ensure that your Eycasa outdoor camera is supplied with power. You can now proceed with the pairing process for your outdoor camera. The setup wizard of your main unit should show the following screen: Follow the instructions on the screen and press and hold the pairing button on the power cable of the camera.

  • Page 18: Mounting The System Components

    English 6. Mounting the system components 6.1 Mounting the Eycasa main unit The Eycasa main unit can be installed either on a table or wall. When delivered, the table mount is already attached, allowing you to place the device wherever you would like indoors. Alternatively, the back cover of the main unit can be replaced with the included wall mount.

  • Page 19: Mounting The Eycasa Video Door Station

    English Now place the main unit on the wall mount and connect the included power supply unit. Ž 6.2 Mounting the Eycasa video door station The Eycasa video door station can be mounted either horizontally or vertically. The video door station is designed for use in protected outdoor areas, thanks to its degree of protection of IP54.
  • Page 20 English You can now open the plastic cover of the doorbell button and attach your nameplate. For labeling, you can use the included nameplate or the PDF template on the included CD. 55 mm Connect the power (12–24 V AC/DC) and an optional electronic door opener (RELAY 1) and/or an electronic door bell (RELAY2) to the terminal block of the video door station.

  • Page 21: Mounting The Eycasa Outdoor Camera

    English After connecting the power supply, mount the video door station on the house wall. The recommended installation height is 1.6 meters between the ground and camera module. Put on the video door station at the desired location and use the screw holes on the bottom shell to mark the drill holes. After finishing the wall mounting, put the door station back together to complete the installation.

  • Page 22: System Operation

    English 7. System operation 7.1 Start-up of the Eycasa main unit Sequence: Connect the power supply unit to your Eycasa main unit. The device starts automatically after the line voltage is present. Wait until the boot process is complete. During initial start-up, the system language is set after the system boots. Select the language by pressing the corresponding country flag on the display.

  • Page 23: Event List And Event Behavior

    English Operates RELAY 1 on the video door station to open the door. Receiver Establish/terminate a voice connection to the video door station. These controls are only available with the video door station camera type. Information window regarding pending/missed event with details on camera name, time stamp, and event type.

  • Page 24: Doorbell Event

    English Video signal failure: Shows the time of a failed signal connection between the main unit and camera. This message appears when the wireless signal fails for longer than 1 minute. Battery strength: Shows the time of weak battery strength on an Eycasa video door station.

  • Page 25: Proximity Key Event

    English 7.3.2 Proximity key event Sequence of the proximity application: 1. Hold the paired proximity key up to the video door station. 2. The door opener (RELAY 1) on the video door station is operated. 3. The screen on the Eycasa main unit is activated. 4.

  • Page 26: General System Settings

    English 7.4 General system settings Pressing the button gives you access to the system settings. Note that you can block access to the settings menu by assigning a PIN. You can save settings in the submenus by pressing the button. Pressing this button also takes you to the higher-level item in the main menu.

  • Page 27: Software Update Settings

    CASA31000 Eycasa main unit. The following steps must be carried out with the update: 1. Download the firmware update from the ABUS homepage. 2. Unzip the update to an SD card.

  • Page 28: Screen Saver Settings

    English 7.4.4 Screen saver settings Select the activation time for the screen saver. The screen saver is automatically activated after the set time if during this time there has been no user input on the touchscreen and no events on the main unit. The monitor dims in this mode, but the system functions are still active.

  • Page 29: Time And Date Settings

    English 7.4.6 Time and date settings Here you set the current time, date, and time zone. These settings are important for proper recording of the messages in the event log of the main unit. Important: Settings for the date and time must be made during initial start-up. If the main unit loses power, the time settings are buffered in the device for about 15 minutes.
  • Page 30 English General camera settings:      Selection of the camera channels 1–4. The currently selected camera is highlighted in blue.  Input field for camera name with a maximum of 12 characters. Choose a suitable name for your camera (such as front door or backyard).
  • Page 31 English Important: In order to ensure legal compliance, it is recommended that continuous transmission of the video image be deactivated when publicly accessible spaces can be viewed. Outdoor camera settings:    Setting for activating/deactivating the event message of the outdoor camera. If the setting is not activated, motion events are not evaluated.

  • Page 32: Proximity Key Settings

    English Note: Pairing mode is automatically ended on all video door stations if no chip key is paired during pairing mode. 7.6 Proximity key settings In the “Pair proximity key” menu, you can manage your chip keys. For pairing the individual keys, in addition to activation of the command within the Eycasa software, the key must be held up to the video door station.
  • Page 33 English Managing proximity keys Press a key from the list to select it and display the chip key management options.       Change the chip key name: Change the name of your chip key using the on-screen keyboard.

  • Page 34: Factory Settings

    English 7.7 Factory settings Select “Reset” to reset your Eycasa main unit to the factory settings. The following settings are deleted:  All settings for doorbell tones are set to the standard settings.  All camera names are deleted.  The wireless connection to all connected cameras is deleted.

  • Page 35: Maintenance And Cleaning

    English 8. Maintenance and cleaning 8.1 Maintenance Examine the technical safety of the product regularly, e.g. check the housing for damage. If it seems that it may no longer be possible to operate the device safely, stop using the product and protect it from unintentional use.

  • Page 36: Technical Data

    English 10. Technical data CASA30100 Model number Eycasa video door station Alarm Doorbell signal on main unit Connectible devices Eycasa main unit Orientation Horizontal or vertical Operating mode Permanent power supply or battery-operated Image sensor 1/4" CMOS Resolution 640 x 480 pixels (VGA) Lens 2.5 mm...
  • Page 37 English Audio transmission power < 20 dBm Audio sensitivity -82 dBm Audio data rate 64 Kbps Wireless range 30 m (depending on site conditions) * Event log Adjustable alarm tone 5 doorbell tones Loudspeakers 8 Ohm, 2 W x 2 Microphone Integrated Network...

This manual is also suitable for:

Eycasa casa30200Eycasa casa30150Eycasa casa30500Eycasa fube50020
