White Knight C427WV Service Manual

White Knight C427WV Service Manual

Air vented dryer

Advertisement

SERVICE MANUAL
0312 427 15008

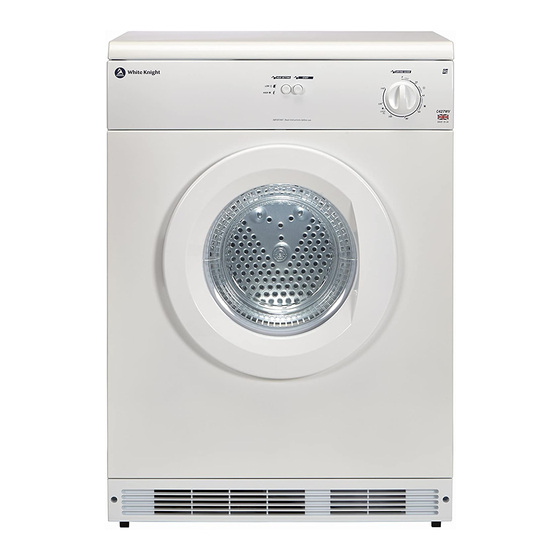

WHITE KNIGHT C427WV
Air Vented Dryer
UK
Exploded Views
Parts List
May 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C427WV and is the answer not in the manual?

Questions and answers

Summary of Contents for White Knight C427WV

  • Page 1 SERVICE MANUAL 0312 427 15008 WHITE KNIGHT C427WV Air Vented Dryer Wiring Diagram Exploded Views Parts List May 2015...
  • Page 2 White Knight Air Vented Dryer - Exploded View 1 235a 248a 203a...
  • Page 3 White Knight Air Vented Dryer - Exploded View 2...
  • Page 4 White Knight Air Vented Dryer- Exploded View 3 445a...
  • Page 5 Wiring Diagram...
  • Page 6 White Knight C427WV - Parts List Item Description Code Expl.View Motor & 8µf Capacitor Assembly 4213 092 25611 8µf Capacitor 4213 092 08091 Drive Belt 4213 092 18601 Mains Cable & Plug 4213 076 35123 Terminal Block 4213 078 44613...
  • Page 7 White Knight C427WV - Parts List Front Seal 4213 077 40942 Lifter 4213 077 41009 Front Bearing (long) 4213 077 40962 445a Bearings & Brush Seal Kit Assy 4213 092 21171 4213 077 40896 2 & 3 Access Cover Assembly 4213 092 18081 2 &...
