Instruction Manual
7 Port Industrial SuperSpeed USB 3.0 Hub
ST7300USBM
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• USB 3.0 Hub
• USB 3.0 Cable (2m)
• DIN Rail Mounting Kit
• Terminal Block
• Instruction Manual
System Requirements
• USB enabled computer system with available USB port
• Microsoft® Windows® XP/ Server 2003/ Vista/ Server 2008 R2/ 7/ 8
(32/64-bit), or Apple® Mac OS® 10.x, or Linux®
Installation
NOTE: Supplying external power is optional, however to ensure that
each USB port is fully powered, connecting external power
is recommended.
1. If not using external power, skip to Step 4. Using a small flat head
screw driver, loosen the screws for the terminal block connectors.
2. Connect the power and ground wires from your DC power source
to the proper terminal block connectors and fasten the screws.
The terminals are marked on the USB Hub's housing.
3. Insert the terminal block housing into the USB Hub.
4. Connect the USB cable from the USB hub (type B port) to the host
computer system. With power being supplied (either from the
terminal block or USB host connection), the power LED should
light up solid.
5. The operating system should detect the USB Hub immediately
and automatically install it.
6. Once installation is complete, USB devices should be able to be
connected to the hub and recognized.
For the most up-to-date information, please visit: www.startech.com

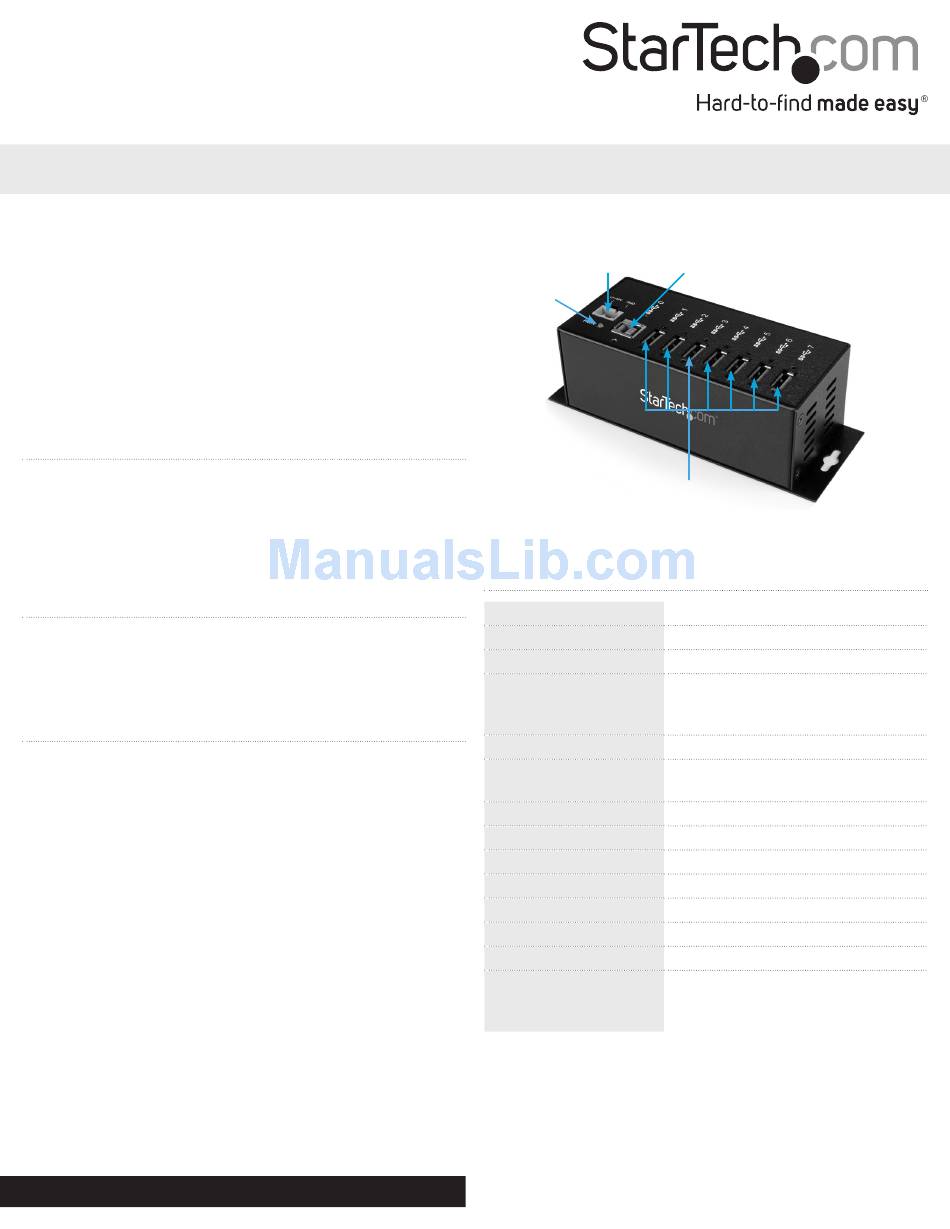

2-wire Power
Terminal Block
(included)
Power LED
USB 3.0 type A ports
Specifications
Host Interface
Number of Ports
Chipset ID
External Connectors
LEDs
Maximum Data
Bandwidth
Enclosure Material
Power Adapter
Operating Temperature
Storage Temperature
Humidity
Dimension
Weight
Compatible Operating
Systems
USB 3.0 type
B port (Host)
*actual product may vary from photos
USB 3.0
7
Genesys Logic GL3520
1 x USB 3.0 type B female
7 x USB 3.0 type A female
1 x 2-wire Terminal Block
1 x Power
USB 3.0: 5Gbps
Metal
7~40V DC
0°C~55°C (32°F~131°F)
-20°C ~ 85°C (-4°F ~ 185°F)
5% ~ 95% RH
122.0mm x 55.0mm x 43.5mm
650g
Windows XP/ Server 2003/ Server 2008
R2/ Vista/ 7/ 8 (32/64-bit), Mac OSX,
Linux
Manual Revision: 07/25/2012
