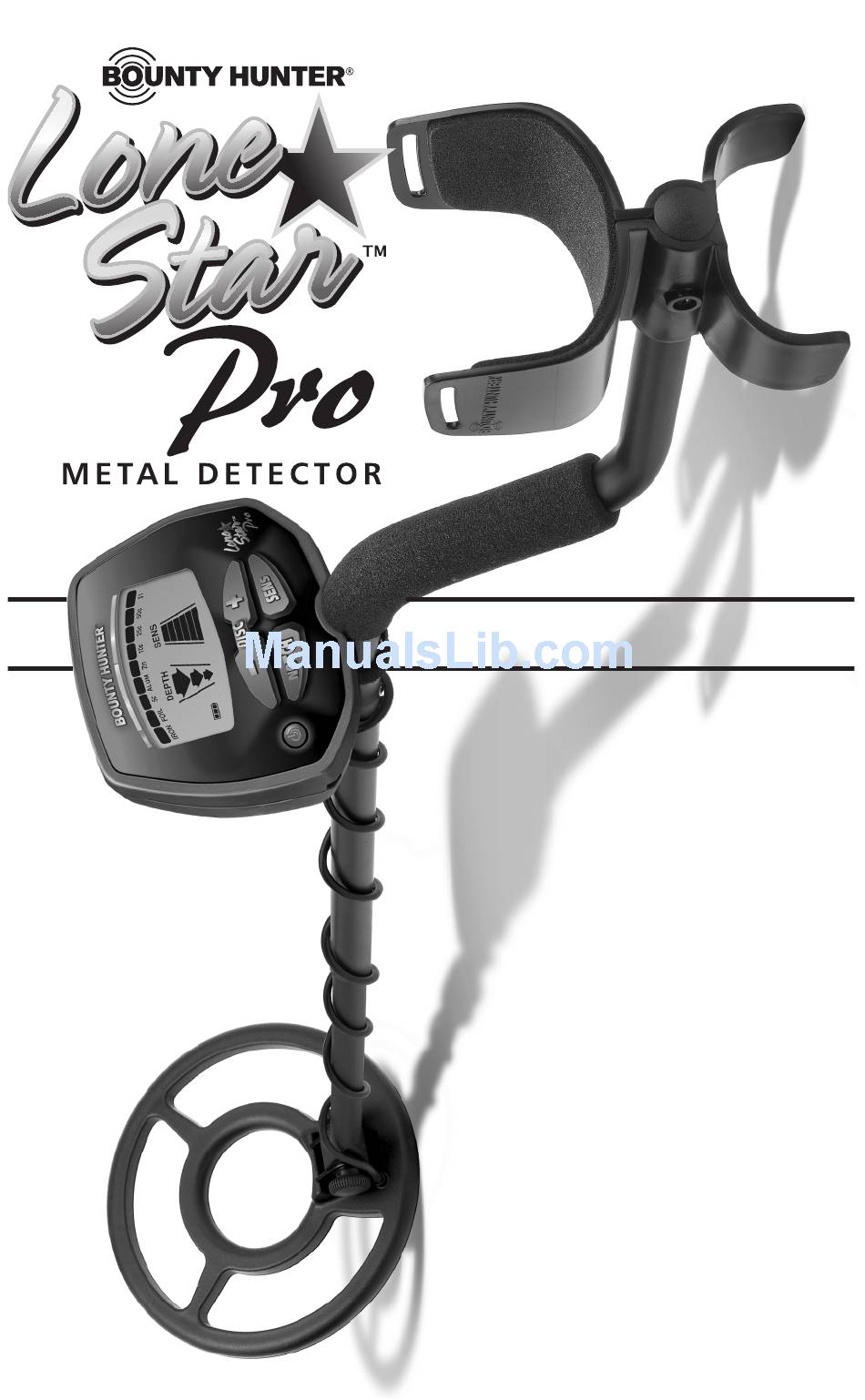

- Page 1 OWNER’S MANUAL Use 9-volt ALKALINE batteries. Do not use “Heavy Duty” batteries. Do not use ordinary “Zinc Carbon” batteries.
-
Page 2: Table Of Contents
Congratulations on the purchase of your new Bounty Hunter ® Lone Star™ Pro Metal Detector. The Lone Star Pro is the result of nine years of software engineering and features the latest advancements in lightweight design and target accuracy. The Lone Star Pro can be used with its default turn-on-and-go settings, or you can adjust the detector's settings to match your hunting conditions. -
Page 3: Terminology
TERMINOLOGY The following terms are used throughout the manual, and are standard terminology among detectorists. RELIC A relic is an object of interest by reason of its age or its association with the past. Many relics are made of iron, but can also be made of bronze or precious metals. -
Page 4: Contents
CONTENTS OF BOX The following detector components are in the box: 1. S-ROD with Control Housing, Arm Rest 2. Lower Stem 3. Searchcoil 4. Bolt & Knurled Knob 5. This Owner's Manual... -
Page 5: Assembly
ASSEMBLING THE DETECTOR Hold S-ROD upright. Insert LOWER STEM into S-ROD and click SILVER BUTTON into a hole. Attach the SEARCHCOIL to the LOWER STEM using the BOLT and KNURLED KNOB. Adjust the LOWER STEM to a length that lets you maintain a comfortable upright posture while holding the detector relaxed at your side with the SEARCHCOIL... -
Page 6: Batteries (Use Alkaline Batteries Only)
BATTERIES The detector requires a single 9-volt ALKALINE battery (battery not included). Do not use ordinary “Zinc Carbon” batteries Do not use “Heavy Duty” batteries. Rechargeable batteries can also be used. If you use rechargeables, we recommend using a “Nickel Metal Hydride” rechargeable battery. The battery compartment is located on the back side of the Control Housing. -
Page 7: Quick-Start Demonstration
QUICK-START DEMONSTRATION I. Supplies Needed: a Nail (made of iron) a U.S. Quarter (or silver coin) a U.S. Nickel a Gold Ring a U.S. Dime a U.S. Penny, dated after 1982 (post-1982 pennies are made of Zinc) (Most newer non-U.S. coinage also contains mostly Zinc) II. -
Page 8: The Basics Of Metal Detecting
THE BASICS OF METAL DETECTING This metal detector is intended for locating buried metal objects. When searching for metals, underground or on the surface, you have the following challenges and objectives: 1. Ignoring signals caused by ground minerals. 2. Ignoring signals caused by metal objects that you do not want to find, like nails. - Page 9 THE BASICS OF METAL DETECTING 5. EMI (Electromagnetic Interference) The searchcoil produces a magnetic field and then detects changes in that magnetic field caused by the presence of metal objects. This magnetic field that the detector creates is also susceptible to the electromagnetic energy produced by other electronic devices.
-
Page 10: How To Work The Controls
HOW TO WORK THE CONTROLS DEPTH SENS POWER ON/OFF Press SENS to Press NOTCH cycle through to accept or sensitivity levels reject a category along the Target Category Arc Press to CHANGE THE DISCRIMINATION SETTING... -
Page 11: The Display
THE DISPLAY Target Conductivity Arc (Metal objects are classified by electrical conductivity, the highest to the right) Target DEPTH SENS Category Icons Battery Level Indicator Target Sensitivity Level Depth Indicator Indicator DEPTH INDICATOR Coin-sized objects will be detected up to 8” deep. The 3-arrow graphic indicator is calibrated to coin-sized objects. -
Page 12: Target Identification
TARGET IDENTIFICATION Target-ID This is a motion detector. When objects are detected, the detector will emit a sound. A segment will illuminate along the Target Conductivity Arc. The illuminated segment indicates the Target-ID of the last object detected. This detector has fast target response and is able to detect different objects in very close proximity. -
Page 13: Depth And Target Display
DEPTH AND TARGET DISPLAY Please refer to the display on your indicate a worthless item such as a nail, or detector and reference the TARGET-ID a more valuable historic iron relic. categories below applicable to your FOIL: Aluminum foil, such as a gum model (not all detectors include all of these categories). -
Page 14: Controls
CONTROLS SENS Adjust the sensitivity from 1 to 6. At startup the default sensitivity is level 4. If the detector beeps erratically or beeps when there are no metal objects being detected, reduce the sensitivity. to reduce the sensitivity Lowest sensitivity detects Highest sensitivity detects coins to approximately 2”... -
Page 15: Controls
CONTROLS Press to program the NOTCH feature. Each press of cycles to a new category and that category icon will flash for 2 seconds. Then the category will reverse status. If the icon had previously been illuminated it will now disappear indicating that the category has been eliminated from detection. -
Page 16: Pinpointing
PINPOINTING Pinpointing targets after detection “X-ing” the target 1. Sweep over target in narrowing side-to- side patterns. 2. Take note of the spot on the ground where “beep” occurs. 3. Step 90° to the side of the target. 4. Sweep searchcoil over same area, at 90°... -
Page 17: Characteristics & Limitations
CHARACTERISTICS & LIMITATIONS 1. This detector comes with a waterproof searchcoil. The searchcoil can be completely submerged into water. The control housing is not waterproof and cannot be submerged in water. To use the detector in inclement weather, consider purchasing the optional detector cover. 2. -
Page 18: Troubleshooting
TROUBLESHOOTING GUIDE SYMPTOM CAUSE SOLUTION Detector chatters, • Using detector • Use detector beeps erratically indoors outdoors only or has low • Using detector near • Move away sensitivity power lines from power lines • Using 2 detectors in • Keep 2 detectors close proximity at least 6 meters (20’) apart... -
Page 19: Treasure Hunter's Code Of Ethics
TREASURE HUNTER’S CODE OF ETHICS: • Always check Federal, State, County and local laws before searching. • Respect private property and do not enter private property without the owner’s permission. • Take care to refill all holes and leave no damage. •... -
Page 20: Accessories
Light and practical plastic, wide blade digging tool. – TROWEL-W Rain Cover Custom made to protect from weather. – RAINCOV-ET Bounty Hunter Baseball Cap ® One size fits all, with Bounty Hunter logo. – BHCAP ® Bounty Hunter T-Shirt ®...
