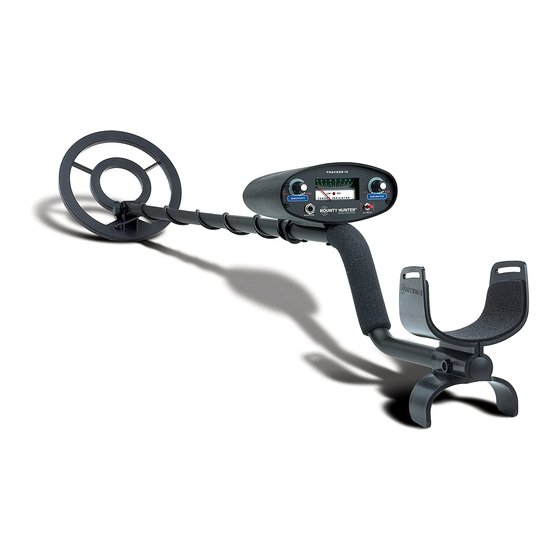

Bounty Hunter Tracker IV Owner's Manual
  1. Manuals
  2. Brands
  3. Bounty Hunter Manuals
  4. Metal Detector
  5. Tracker IV
  6. Owner's manual

Bounty Hunter Tracker IV Owner's Manual

Hide thumbs Also See for Tracker IV:
Table of Contents

Advertisement

Quick Links

Important Facts to Know
about your Metal Detector.
1. This is a MOTION detector.
You must sweep the searchcoil from
side-to-side to detect metal.
A motionless searchcoil over a metal object will
not result in detection.
2. DO NOT USE INDOORS. Detector is for
outdoor use only.
Household appliances emit electromagnetic fields, which can
interfere with your detector. If conducting an indoor demonstration,
turn the sensitivity down and keep the searchcoil away from
appliances such as microwaves, computers and televisions. If your
detector beeps erratically, turn off appliances and lights.
Do not test by placing coins on the floor. Most floors contain metal.
Keep the searchcoil away from floors, walls, and tables, which can
contain metal.
3. Use 9-volt ALKALINE batteries only.
Do not use Heavy Duty batteries.
Do not use ordinary Zinc-Carbon batteries.
4. Adjust sensitivity to a low level in the event of false signals
Always begin use at reduced sensitivity.
Increase to full sensitivity after you are familiar with the detector's
operation.

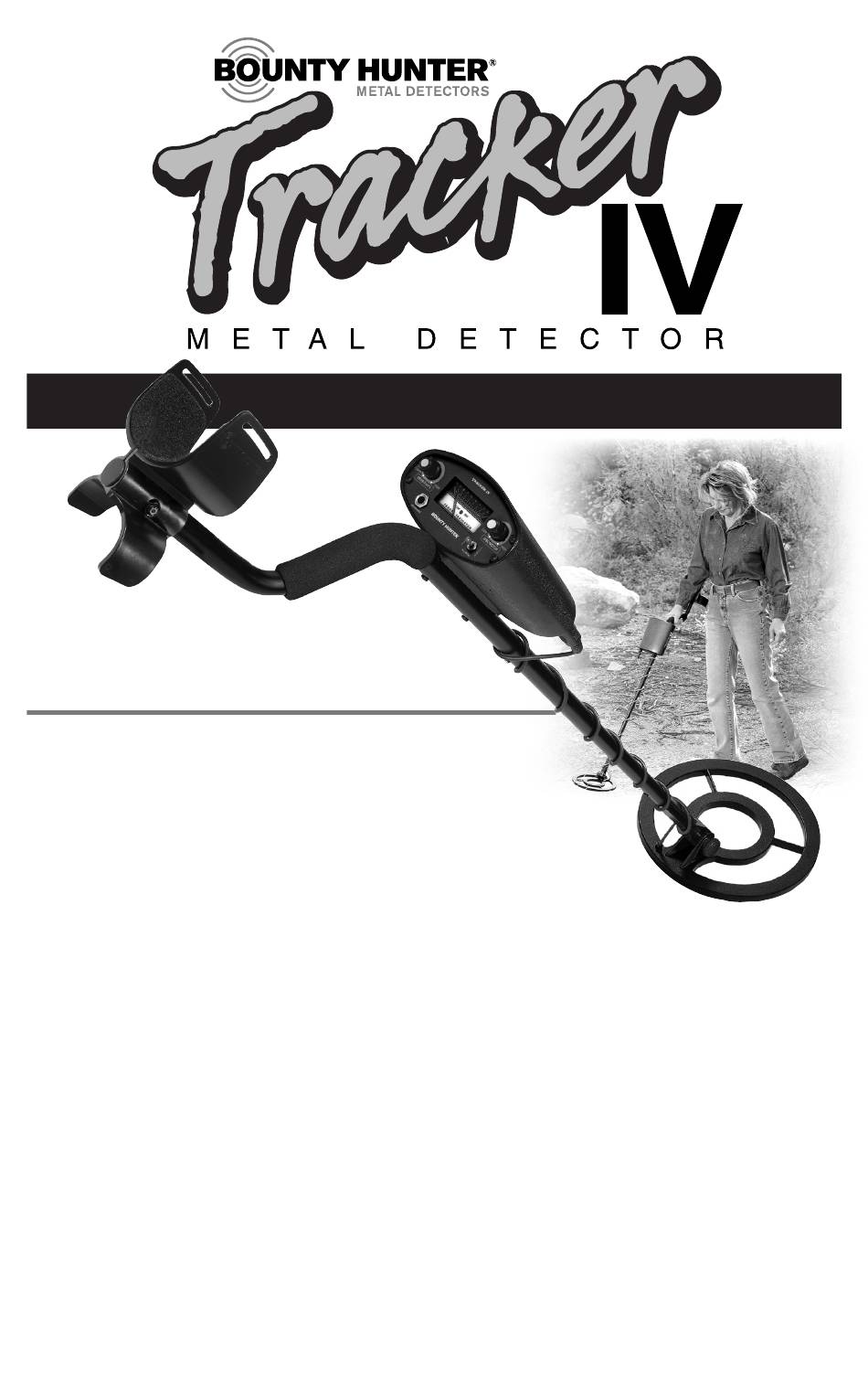

OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tracker IV and is the answer not in the manual?

Questions and answers

Related Manuals for Bounty Hunter Tracker IV

Summary of Contents for Bounty Hunter Tracker IV

  • Page 1 OWNER’S MANUAL Important Facts to Know about your Metal Detector. 1. This is a MOTION detector. You must sweep the searchcoil from side-to-side to detect metal. A motionless searchcoil over a metal object will not result in detection. 2. DO NOT USE INDOORS. Detector is for outdoor use only.

  • Page 2: Table Of Contents

    Introduction ........3 Tracker IV Features ......3 Assembly .

  • Page 3: Introduction

    INTRODUCTION The Tracker IV is a user-friendly in stru ment, re quir ing only a minimum of operator skill, yet de liv er ing effective per for mance over a wide range of conditions and ap pli ca tions. Streamlined in appearance,...

  • Page 4: Assembly

    EASY ASSEMBLY Assembling your Tracker IV Met al Knurled Bolt De tec tor is easy and re quires no Knob tools. Just fol low these steps: 1 Using the supplied bolt and knurled knob, at tach the searchcoil to the low er stem.

  • Page 5: Batteries

    It should flash mo men tari ly when the Pow er Switch is turned off. IMPORTANT: Your Tracker IV met al detector re quires two 9-Volt ALKALINE batteries. Follow these steps to install the bat ter ies.

  • Page 6: Quick-Start Demo

    Quick Start DEMONSTRATION Here is a quick way to demonstrate the basic features of your Tracker IV. I. Supplies Needed • A quarter (25¢) • A nickel (5¢) • A Penny (1¢) • A small piece of aluminum foil • A Nail II.

  • Page 7: Basic Operation

    OPERATION The Tracker IV is a “MO TION” de tec tor. This means that the searchcoil must be moving to de tect the pres ence of metal. When practicing with a stationary metal detector, keep the target moving over the coil. Objects held still un der the searchcoil will not be detected.
  • Page 8 “broken” tone makes pull-tabs and trash easily recognizable. Sensitivity will re duced slightly when using the Tracker IV in the Tone Discrimination mode. If you want optimal depth capability, operate in the All Metal mode by turning the Discriminate con trol completely counterclockwise; then turn the Sen si tiv i ty control clock wise to its highest clockwise position without chatter.

  • Page 9: Ground Balancing

    OPERATION AUTO GROUND CONTROL: The Tracker IV au to mat ic Ground Track fea ture al lows op er a tion in virtually all soil conditions, regardless of mineral content. Use it effectively on the beach or for gold pros pect ing. In the ALL...

  • Page 10: In The Field Techniques

    IN THE FIELD STANCE Stand with your arm ex tend ed in front of your body. Don’t bend or stoop; stand in a comfortable position. Hold the unit so that the searchcoil is about 1/2-inch above the ground. Ad just the searchcoil so that it is par al lel to the ground.

  • Page 11: Pinpoint

    IN THE FIELD PINPOINTING Accurate pinpointing takes practice and is best ac com plished by “X-ing” the sus pect ed target area. 1 Once a buried target is identified by a good tone re sponse, continue sweep ing the coil over the target in a narrowing side to side pattern.

  • Page 12: Troubleshooting

    TROUBLESHOOTING The following trou ble shoot ing steps may assist you in case you’re hav ing prob lems with your Tracker IV. YOUR DETECTOR IS EMIT TING ERRATIC SIGNALS WHEN YOU’RE IN THE FIELD. Your SENSITIVITY may be set too high.

  • Page 13: Metal Detecting Applications

    METAL DETECTING APPLICATIONS COIN SHOOTING The most popular application for metal detectors CONTROL SETTINGS REQUIRED: 1 Toggle switch to the left (disc. mode). 2 Discriminate knob at 3:00 (3/4 turn). Only silver, copper and brass will be detected. Gold items will be eliminated.

  • Page 14: Headphones

    METAL DETECTING APPLICATIONS trash indicate items. Gold rings will induce a low sound. Be aware that some pull-tabs can also induce a low tone. Silver will induce a high tone. Chains and necklaces are difficult to find. If you are looking for gold rings, don’t get discouraged; you will dig up many broken pull-tabs before you find your first gold ring! HOUSEHOLD APPLICATIONS...

  • Page 15: Treasure Hunter's Code Of Ethics

    • All treasure hunters may be judged by the example you set; always conduct yourself with courtesy and consideration of others 5-YEAR LIMITED WARRANTY The Tracker IV metal detector is warranted against defects in materials and workmanship under normal use for five years from the date of purchase to the original owner.
  • Page 16 Deep-Detecting Pinpointer Waterproof, submersible up to 6ft. Pulse induction, selectable sensitivity and alarm type, lost mode alarm, auto shutdown, adjustable LED light. Runs on 2 AA Batteries. TEK-POINT www.tekneticsdirect.com get yours now at: Lightweight plastic wide blade digging tool. TROWEL-W MTK4 REV.7 011520...
