ACCESSORIES
Carry Bag ......
$ 29.95
Rugged double-stitched construction - CBAG-W
Pouch & Digger Combo ......
$ 24.95
Pouch with 2 large pockets & 9" heavy duty digging tool. TP-KIT-W
Bounty Hunter Stereo Headphones ......
Use with Bounty Hunter metal detectors. Lightweight and adjustable with
true stereo sound, adjustable volume, 1/8 jack with 1/4 adaptor,
4' cable. HEAD-W
Pin Pointer ......
$ 69.95
Pinpoints the exact location of buried metal objects. Audio signal indicator
and vibrator. Runs on 1 – 9-Volt Battery. PIN POINTER-W
Sand Scoop......
$ 24.99
Large scoop with filtering holes. Made of strong plastic. SAND SCOOPBH
Coil Covers
Protect your coil from abrasion and damage.
10" Coil Cover – 10COVER..............
$19.99
8" Coil Cover – 8COVER-N..............
$19.99
$14.99
4" Coil Cover – 4COVER...............
Replacement/Accessory Search Coils
10" Magnum Coil – 10COIL........................
$69.95
$49.95
8" Replacement Standard Coil – 8COIL-N......
...........$39.95
4" Gold Nugget Coil – 4COIL.........
9" Heavy-Duty Digging Tool......
Metal blade with comfortable plastic handle and depth gauge TROWEL-2
Digging Tool ......
$ 7.95
Light and practical wide blade digging tool. TROWEL-W
Bounty Hunter T-Shirt ......
$ 19.99
100% cotton with Bounty Hunter
®
Logo. Sizes – LG, XL & XXL
Bounty Hunter Baseball Cap ......
®
One size fits all, with Bounty Hunter
logo.
Gold
Prospecting Kits
$ 39.99
$ 79.99
FOR COMPLETE DETAILS VISIT WWW.DETECTING.COM • 1-800-413-4131
MLON
$ 39.95
$ 10.95
$ 14.95
$ 149.99
REV.2

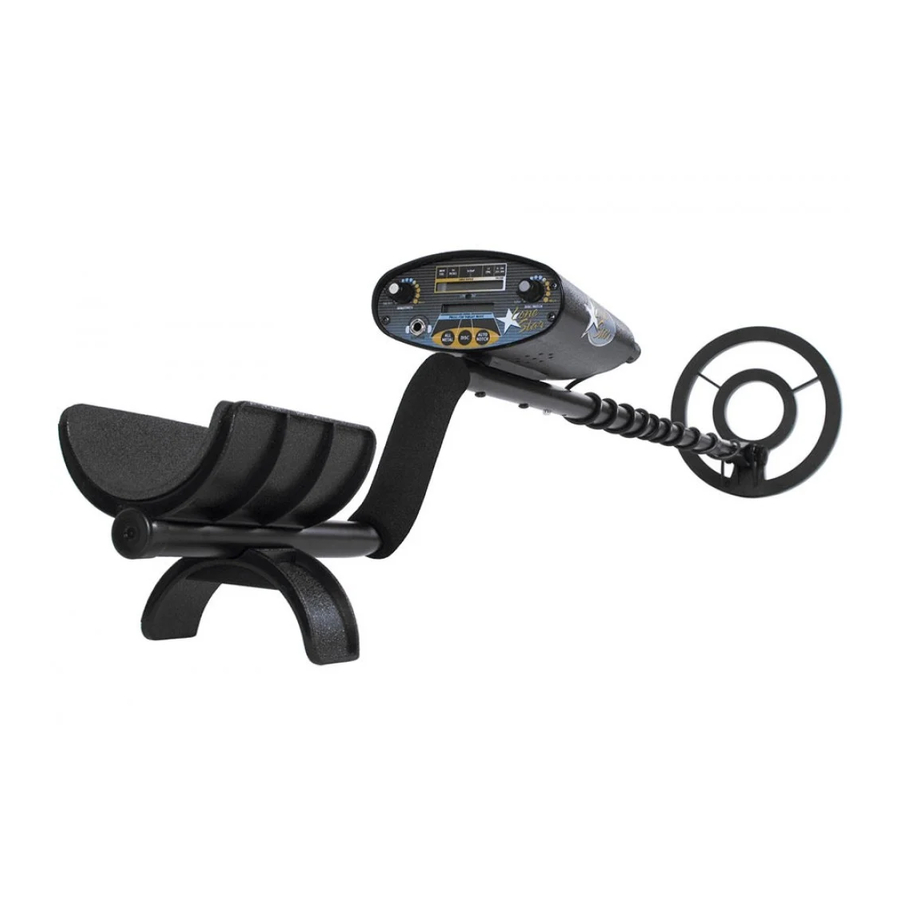

Your Lone Star Metal Detector is an advanced microprocessor-controlled metal
detector. This motion detection system requires movement over an object in
order for the machine to detect the object and emit a tone.
THE LONE STAR HAS TWO TYPES OF OPERATING MODES:
1. ALL METAL DETECTION
All types of metals will be detected. From nails and property markers, to
valuable treasure, all types of metal will induce a single tone.
2. DISCRIMINATE, NOTCH, and AUTO NOTCH modes
Completely eliminate iron and trash items from detection in "DISC" mode,
with the use of the DISC/NOTCH knob.
Automatically eliminate most pull tabs and trash items from detection in
the AUTO NOTCH mode.
FOR OUTDOOR USE ONLY:
• If demonstrating indoors, beware of interference from electromagnetic
fields.
• If interference occurs, the detector will chatter or beep erratically.
• To avoid interference, turn the sensitivity down.
Most floors contain metal, which will interfere with the target's signal.
082312
OWNER'S MANUAL
DO NOT TEST ON THE FLOOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lone Star and is the answer not in the manual?

Questions and answers

Summary of Contents for Bounty Hunter Lone Star

  • Page 1 10” Coil Cover – 10COVER………..$19.99 8” Coil Cover – 8COVER-N……..…... $19.99 Your Lone Star Metal Detector is an advanced microprocessor-controlled metal $14.99 4” Coil Cover – 4COVER…………… detector. This motion detection system requires movement over an object in Replacement/Accessory Search Coils order for the machine to detect the object and emit a tone.
  • Page 2: Treasure Hunter's Code Of Ethics

    • Always check Federal, State, County and local laws before searching. • Respect private property and do not enter private property without the owner’s permission. The Lone Star is an advanced technology metal detector, designed for a variety • Take care to refill all holes and leave no damage.
  • Page 3: Easy Assembly

    TROUBLESHOOTING EASY ASSEMBLY Assembling your Lone Star Metal TROUBLESHOOTING GUIDE Knurled Bolt Detector is easy and requires no tools. Knob Just follow these steps: SYMPTOM CAUSE SOLUTION Using the supplied bolt and knurled Detector chatters • Using detector • Use detector knob, attach the search coil to the lower stem.
  • Page 4: Metal Detecting Applications

    IMPORTANT: Your Lone Star metal detector requires two 9-Volt Control settings required. ALKALINE batteries. 1) Press DISC touchpad. 2) Turn the DISC/NOTCH knob 100% counterclockwise.
  • Page 5: Lone Star Demonstration

    LONE STAR DEMONSTRATION After selecting your operating mode, objects. These signals are easily Here is a quick way to demonstrate the basic features of the Lone Star. swing the search coil gently side-to- recognized by their often broken or I. Supplies Needed side, slightly overlapping each sweep non-repeatable nature.
  • Page 6: Basic Operation

    BASIC OPERATION IN THE FIELD TECHNIQUES TURNING ON YOUR DETECTOR PINPOINTING COIL MOVEMENT Turn the left knob (SENSITIVITY) to the right. As the knob clicks to the "On" position, the detector sounds three tones, the LCD arrows appear When swinging the coil, be Accurate pinpointing takes practice momentarily, and the unit pre-sets to the ALL METAL mode of operation.
  • Page 7: Audio Target Id

    Disc/Notch control setting, the Pull tabs are the most bothersome I.D. categories below applicable to Lone Star emits three distinct tones trash items for detectorist. Most will FOIL: Aluminum foil, such as a gum your model (not all detectors which classify metal objects into induce a medium tone.
  • Page 8: Sensitivity Adjustment

    SENSITIVITY ADJUSTMENT MODES OF OPERATION ALL METAL MODE: The DISCRIMINATION mode is a dimmer switches, also turn these off; fixed-start-point system. As you turn dimmer switches can produce lots of the knob to the right, more objects are EMI. progressively eliminated, including the items left.
