Summary of Contents for Bounty Hunter Land Ranger Pro
-

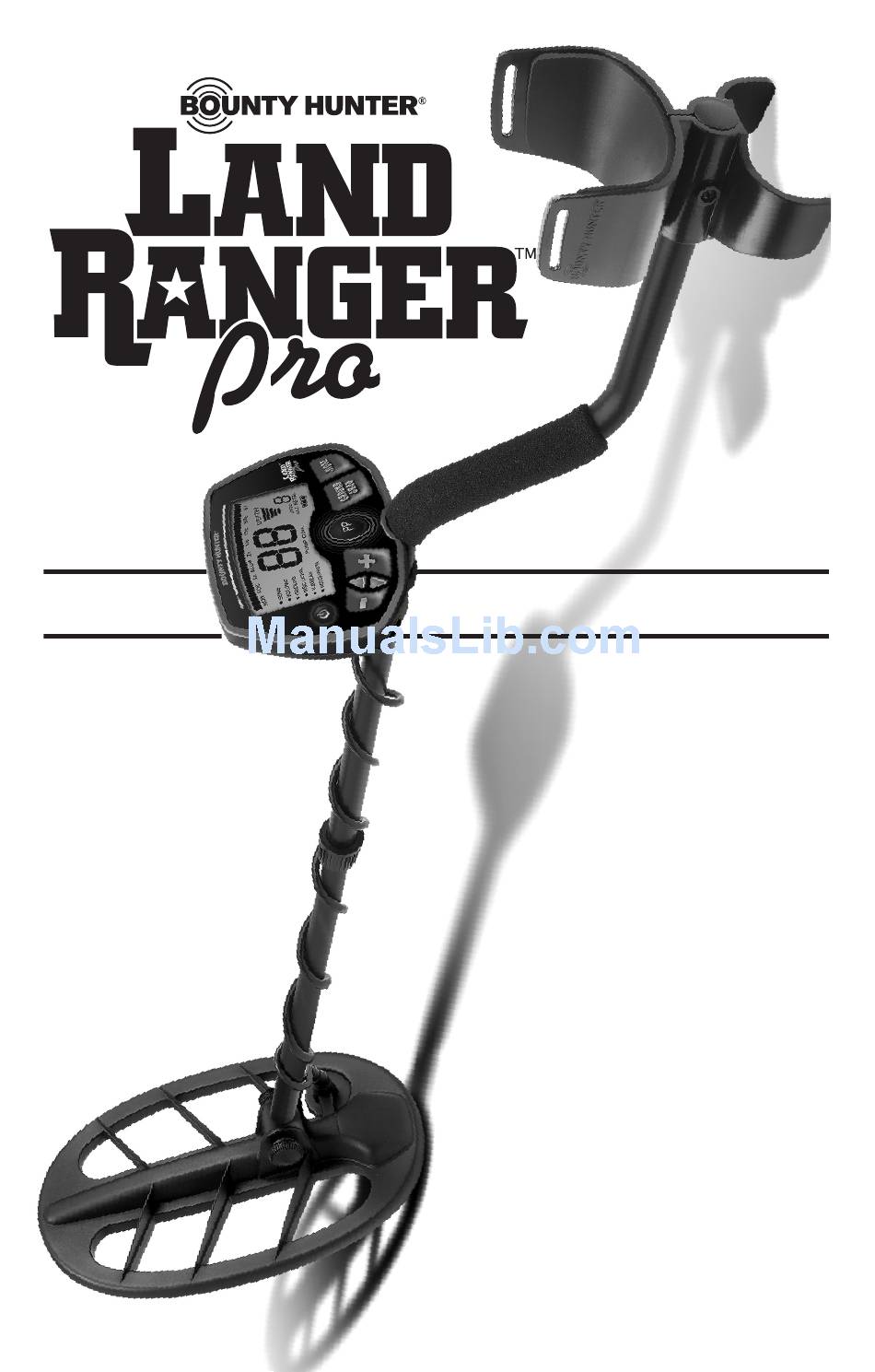

Page 1: Metal Detector
METAL DETECTOR OWNER’S MANUAL Use 9-volt ALKALINE batteries. Do not use “Heavy Duty” batteries. Do not use ordinary “Zinc Carbon” batteries. -
Page 2: Table Of Contents

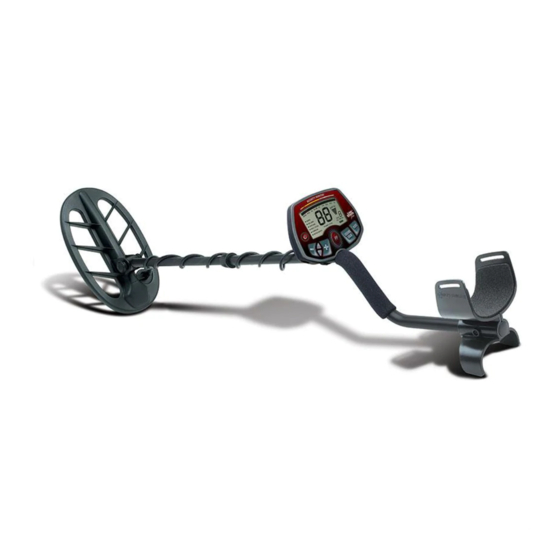

® Land Ranger ™ Pro Metal Detector. The Land Ranger Pro is the result of nine years of software engineering and features the latest advancements in lightweight design, target accuracy and deep-penetrating detection technology. The Land Ranger Pro can be used with its default turn-on-and-go settings or it... -
Page 3: Terminology
TERMINOLOGY The following terms are used throughout the manual, and are standard terminology among detectorists. RELIC A relic is an object of interest by reason of its age or its association with the past. Many relics are made of iron, but can also be made of bronze or precious metals. -
Page 4: Contents
CONTENTS OF BOX The following detector components are in the box: 1. S-ROD with Control Housing, Arm Rest and Locking Collar 2. Lower Stem 3. Searchcoil 4. Bolt & Knurled Knob 5. This Owner's Manual... -
Page 5: Assembly
ASSEMBLING THE DETECTOR Hold S-ROD upright. Loosen LOCKING COLLAR on S-ROD; rotate counterclockwise. Insert LOWER STEM into S-ROD with the SILVER BUTTON pointed upward. Rotate the LOWER STEM until the SILVER BUTTON locates and clicks into a hole. LOCKING COLLAR INTERNAL CAM LOCK SILVER BUTTON... -
Page 6: Batteries (Use Alkaline Batteries Only)
BATTERIES The detector requires a single 9-volt ALKALINE battery (battery not included). Do not use ordinary “Zinc Carbon” batteries Do not use “Heavy Duty” batteries. Rechargeable batteries can also be used. If you use rechargeables, we recommend using a “Nickel Metal Hydride” rechargeable battery. The battery compartment is located on the back side of the Control Housing. -
Page 7: Quick-Start Demonstration
QUICK-START DEMONSTRATION I. Supplies Needed: a Nail (made of iron) a U.S. Quarter (or silver coin) a U.S. Nickel a Gold Ring a U.S. Dime a U.S. Penny, dated after 1982 (post-1982 pennies are made of Zinc) (Most newer non-U.S. coinage also contains mostly Zinc) II. -
Page 8: The Basics Of Metal Detecting
THE BASICS OF METAL DETECTING This metal detector is intended for locating buried metal objects. When searching for metals, underground or on the surface, you have the following challenges and objectives: 1. Ignoring signals caused by ground minerals. 2. Ignoring signals caused by metal objects that you do not want to find, like nails. - Page 9 THE BASICS OF METAL DETECTING 5. EMI (Electromagnetic Interference) The searchcoil produces a magnetic field and then detects changes in that magnetic field caused by the presence of metal objects. This magnetic field that the detector creates is also susceptible to the electromagnetic energy produced by other electronic devices.
-
Page 10: How To Work The Controls
HOW TO WORK THE CONTROLS Press-and-Hold Press MODE to PINPOINT for cycle through Press precision target and select any POWER to cycle through pinpointing of 7 operating the MENU at any time modes ON/OFF Press Press-and-Hold CHANGE THE GROUND GRAB® to Quick-Switch SETTING of perform automatic... -
Page 11: The Display
THE DISPLAY Conductivity Arc (Metal objects are classified by electrical conductivity, the highest to the right) Target Category Target Icons Depth Indicator Mode Menu Indicator Battery Level Indicator Target-ID Ground-Grab Alert DEPTH INDICATOR Coin-sized objects will be detected up to 10” deep. The 5-segment graphic indicator is calibrated to coin-sized objects. -
Page 12: Target Identification
TARGET IDENTIFICATION Target-ID When objects are detected, the detector will emit a sound and a 2-digit Target-ID will appear on the screen. Possible Target-IDs range from 1 to 99. This number represents the electrical conductivity of the target; higher numbers indicate more highly conductive targets. -
Page 13: Operation And Control
OPERATION and CONTROL - an overview MENU The Menu is located on the left side of the screen. During normal operation the Menu is faded and inactive. to select a Menu option. Menu options are: Sens (Sensitivity) Volume Ground (Manual Ground Cancelation) Disc Level (Discrimination) V-Break ®... -
Page 14: Menu
MENU The Menu is located on the left side of the screen. During normal operation the Menu is inactive and faded. • to select a Menu option. The option selected is marked by “ ”. Once a menu option is selected, the setting can be changed using Not all options are available in all Modes. - Page 15 MENU GROUND (continued) The Ground setting is the only user setting that is not saved when the detector is powered off. The user's manual Ground setting carries over into the DISC , DISC DISC modes, but does NOT carry over into DISC modes.
-
Page 16: Menu
MENU To best understand how to use the Menu features that control target detection and tone response, adjust each to any setting and observe how the Conductivity Arc behaves - watch how the bold segments, faded segments and blank segments interact. Below are examples of possible programmed settings: 1 During operation, when a target is detected, the segment area representing... -
Page 17: Operating Modes
OPERATING MODES DISC This preset mode is configured for coin-hunting. Iron, foil and aluminum are not detected. Tones are: Low - zinc Medium - U.S. Nickels High - 10¢, 25¢, 50¢, $1 and silver Sensitivity and Volume settings can be adjusted. The Ground setting is preset to 82 and cannot be adjusted. -
Page 18: Pinpoint
PINPOINT Press-and-hold to activate the Pinpoint feature. Searchcoil motion is not required; a motionless searchcoil over a metal target will induce sound. Audio is V.C.O. The 2-digit number displayed indicates target depth, in inches. The scale in calibrated to coin-size objects. After you have identified a target using a motion mode of detection, press-and- hold to identify the target's exact location. -
Page 19: Ground Cancelation
GROUND CANCELATION WHAT IS GROUND CANCELATION? Why do I need to cancel out the ground? All soils contain minerals. Signals from ground minerals are often tens or hundreds of times as strong as the signal from a buried metal object. The magnetism of iron minerals, found in nearly all soils, causes one type of interfering signal. -
Page 20: Headphones
GROUND BALANCING MANUAL GROUND ADJUSTMENT GROUND Refer to the section of the manual for instructions on how to manually adjust the detector’s internal Ground setting. If the Ground setting is incorrect, there will be a difference in the sound as the searchcoil is either moving toward or away from the ground. -
Page 21: Depth And Target Display
DEPTH AND TARGET DISPLAY Please refer to the display on your as a nail, or a more valuable historic iron detector and reference the TARGET-ID relic. categories below applicable to your FOIL: Aluminum foil, such as a gum model (not all detectors include all of these categories). -
Page 22: Troubleshooting
TROUBLESHOOTING GUIDE SYMPTOM CAUSE SOLUTION Detector chatters, • Using detector • Use detector beeps erratically indoors outdoors only or has low • Using detector near • Move away sensitivity power lines from power lines • Using 2 detectors in • Keep 2 detectors close proximity at least 6 meters (20’) apart... -
Page 23: Treasure Hunter's Code Of Ethics
TREASURE HUNTER’S CODE OF ETHICS: • Always check Federal, State, County and local laws before searching. • Respect private property and do not enter private property without the owner’s permission. • Take care to refill all holes and leave no damage. •... -
Page 24: Accessories
Light and practical plastic, wide blade digging tool. – TROWEL-W Rain Cover Custom made to protect from weather. – RAINCOV-ET Bounty Hunter Baseball Cap ® One size fits all, with Bounty Hunter logo. – BHCAP ® Bounty Hunter T-Shirt ®...
