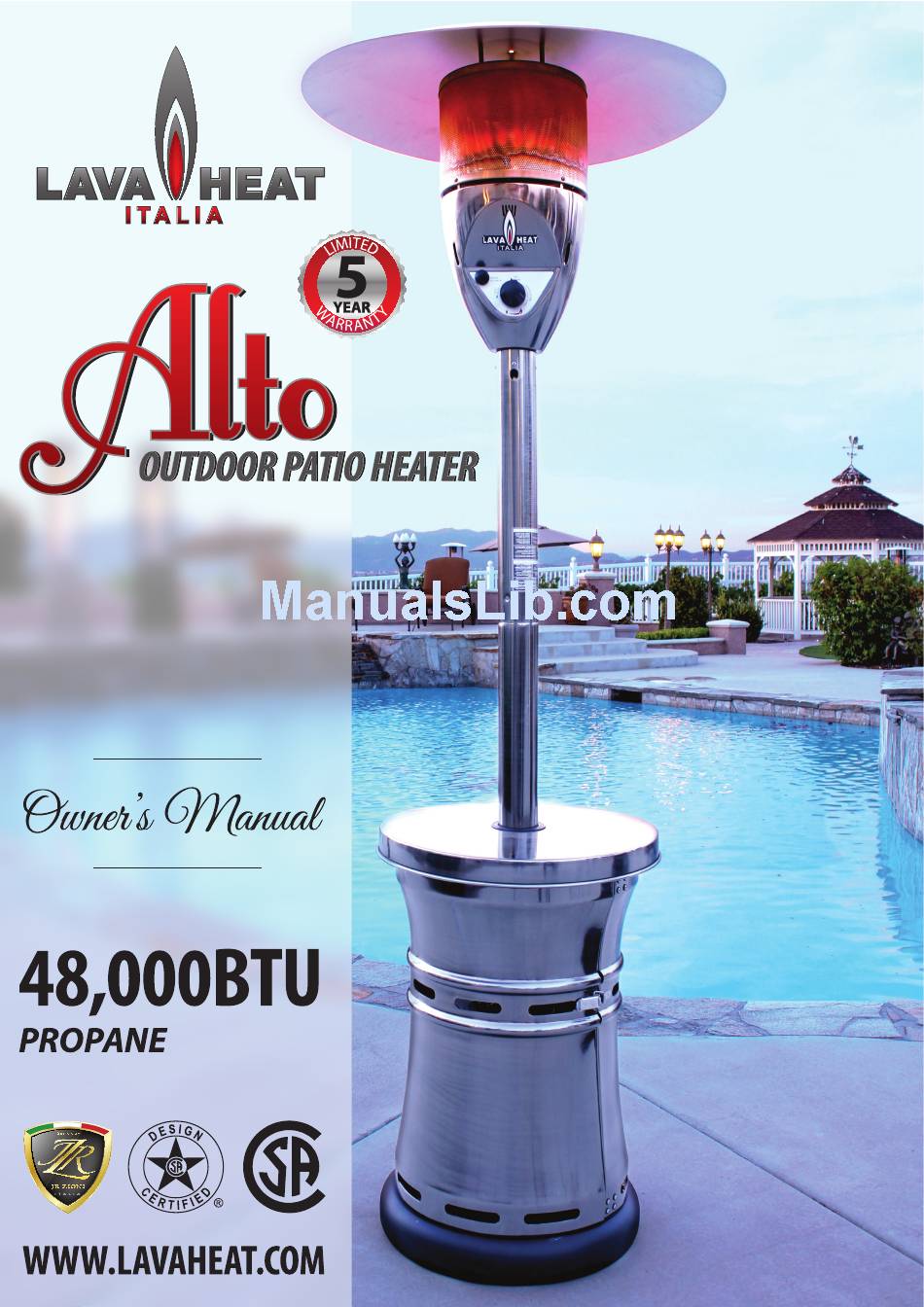

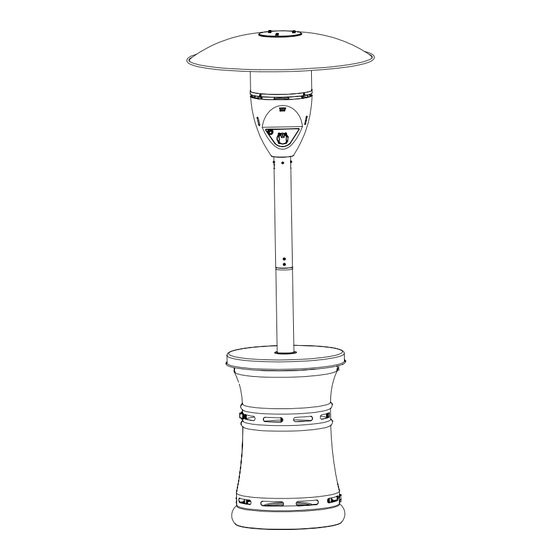

- Page 1 For sales inquiries, contact Sylvane at 1-800-934-9194. If you have service questions, contact Lava Heat at 1-888-779-5282.
- Page 2 ALTO Owner’s Manual DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department. WARNING Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 3: Carbon Monoxide Hazard
DANGER CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you. Never use this appliance in an enclosed space such as a camper, tent or home. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury, death or property damage. - Page 4 NOTE:PLEASE READ THE FOLLOWING SAFETY RULES WARNING: Any guard or other protective device The installation must conform with local codes removed for servicing the heater must be or, in the absence of local codes, with the replaced prior to operating the heater. National Fuel Gas Code, ANSI Z223.1/NFPA 54, NFPA58 Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and...
- Page 5 NOTE:PLEASE READ THE FOLLOWING SAFETY RULES WARNING: Within a partial enclosure which includes an The pressure regulator and hose assembly sup- overhead cover and three side walls, as long as plied with the appliance must be used, replace- 30 percent or more of the horizontal periphery of ment pressure regulators and hose assemblies the enclosure is permanently open.
- Page 6 NOTE: PLEASE READ THE FOLLOWING SAFETY RULES: Perform a leak test with a soapy solution: 1. To check gas connections. 2. After connecting a new cylinder. 3. Upon re-assembly after disassembly. This heater is designed to operate with a standard 20 Ib propane cylinder with Approved Cylinder Connection.
-
Page 7: Parts List / Exploded View
PARTS LIST / EXPLODED VIEW Reflector 1 Burner Assembly 1 Upper Pole 1 Lower Pole 1 Desk surface 1 Pole supporting board 1 Cylinder Chain 3 M6 Nuts 6 6mm Washers 3 M6x70 Double Pointed Bolts 5 4mm Washers 5 M4x8 Bolts 6 M5x12 Bolts 6 5mm Washers 6 M5x12 Bolts... - Page 8 ASSEMBLY WARNING: Read ALL assembly instructions Step 1 thoroughly and carefully to insure proper, safe assembly . Step 1 Insert lower pole (4) into the pole supporting board (6) , fix it with 6 pcs 5mm washers (14) and 6 pcs M5x12 bolts (15) .
- Page 9 ASSEMBLY Step 3 Step 3 Connect the upper pole (3) on the lower pole (4), fix it with 6pcs M5x12 bolts (13) . Hardware Used M5X12 Bolt Step 4 Step 4 Insert the burner assembly (2) in the upper pole (3), fix it with 5pcs 4mm washers (11) and 5pcs M4×8 bolts (12) .
- Page 10 ASSEMBLY Step 5 Step 5 Install reflector assembly (1) , fix it with 3pcs M6×70 double pointed bolts (10) 6pcs 6mm washers (9) and 3 pcs M6 nuts (8) . Hardware Used M6 Nut 6mm Washer M6x70 Double Pointed Bolts Step 6 Step 6 Open the door ,Put cylinder into the...
-
Page 11: Safety Check
SAFETY CHECK Check for leaks Your patio heater has been checked at all factory connections for leakage. To check the connection at the gas hose/regulator /cylinder. 1) Make leakage solution by mixing 1part liquid dish soap and 3 parts water. 2) Spoon or brush several drops (or use squirt bottle) of the solution onto hose connection, regulator &... - Page 12 IGNITER BATTERY INSTALLATION Instruction For Installing Battery Remove igniter button by turning counter-clockwise.Install “AAA” battery with positive terminal up as indicated in Ignition button diagram. Replace igniter button. Control knob Replace Battery Ignition button AAA battery...
-
Page 13: Operation
OPERATION WARNING: DO NOT ATTEMPT TO OPERATE HEATER UNTIL YOU HAVE READ AND UNDERSTAND ALL PRECAUTIONS . FAILURE TO DO SO CAN RESULT IN SERIOUS PERSONAL INJURY, DEATH, OR PROPERTY DAMAGE. WARNING Before turning gas supply ON FOR YOUR SAFETY: If at any time you are unable to Your heater was designed and approved for OUTDOOR light burner and smell gas, wait 5... - Page 14 OPERATION 3) Push and turn the control knob counter-clockwise to the "PILOT" position. Depress the control knob. Push and hold the igniter button until the pilot lights. 4) Once the pilot is lit, release the igniter button and continue to depress the control knob for 30 seconds. 5) After depressing the control knob for 30 seconds, release the control knob and turn it counter-clockwise to the “LOW”...
- Page 15 OPERATION CAUTION : AVOID INHALING FUMES EMITTED FROM THE HEATER'S FIRST USE. SMOKE AND ODOR FROM THE BURNING OF OILS USED IN MANUFACTURING WILL APPEAR. BOTH SMOKE AND ODOR WILL DISSIPATE AFTER APPROXIMATELY 30 MINUTES. THE HEATER SHOULD NOT PRODUCE THICK BLACK SMOKE. NOTE: The burner may be noisy when initially turned on.
-
Page 16: Locating Header For Use
LOCATING HEADER FOR USE CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT, ABOVE, BESIDE OR UNDER THIS HEATER WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND COULD BE SERIOUSLY DAMAGED. This heater is primarily used for the heating of outdoor patios, decks, spas, pools and open working areas. -
Page 17: Maintenance & Storage
MAINTENANCE/STORAGE CLEANING AND MAINTENANCE : To enjoy years of outstanding performance from your heater make sure you perform the following maintenance activities on a regular basis: Keep exterior surfaces clean. Yellow Tip Primarily Blue Use warm soapy water for cleaning. Never use Flame flammable of corrosive cleaning agents. - Page 18 MAINTENANCE/STORAGE Spiders and insects can nest in the burner or orifices. This dangerous condition can damage heater and render it NOTE: unsafe for use. Clean burner holes by using a heavy-duty Wait until heater is cool before pipe cleaner. Compressed air may help clear away covering.
-
Page 19: Troubleshooting
TROUBLESHOOTING PROBLEM PROBABLE CAUSE SOLUTION Pilot will not light Gas valve may be OFF Turn the gas valve ON Tank fuel empty Refill LP gas tank Air in supply system Purge air from lines Loose connection Check all fittings Debris around pilot Clean dirty area Pilot will not stay on Loose connection... -
Page 20: Five-Year Limited Warranty
When You Receive Your Product: If Your Product is.. Please contact the manufacturer: LAVA HEAT ITALIA 888.779.5282 or LAVA HEAT ITALIA Toll free No.: 1.888.779.LAVA 1.888.779.5282 Addr.: 5999 Malburg Way, Vernon, CA, 90058... - Page 21 For sales inquiries, contact Sylvane at 1-800-934-9194. If you have service questions, contact Lava Heat at 1-888-779-5282.
