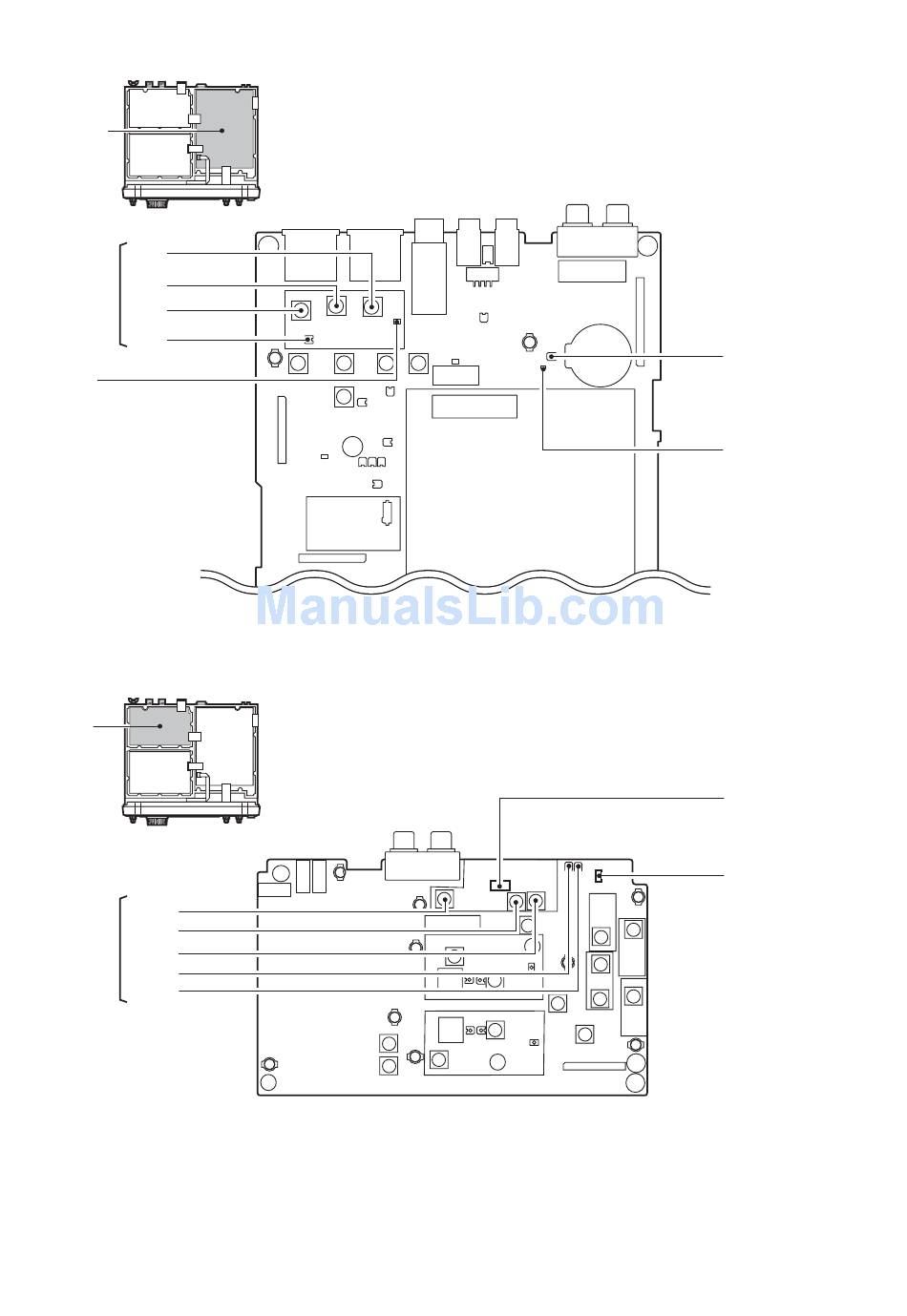

• MAIN-A unit
MAIN-A
unit
Bottom view of the transceiver
L273
Noise
L272
blanker
L271
adjustment
R271
CP271
Noise blanker
check point
• RF-B unit
RF-B
unit
Bottom view of the transceiver
L2102
Spectrum
L2201
scope
L2202
adjustment
R2016
R2012
4 - 11
R210
Receiver total gain
adjustment
CP213
Receiver total gain
check point
J2001
Spectrum scope
pre-setting
CP2002
Spectrum scope
check point
