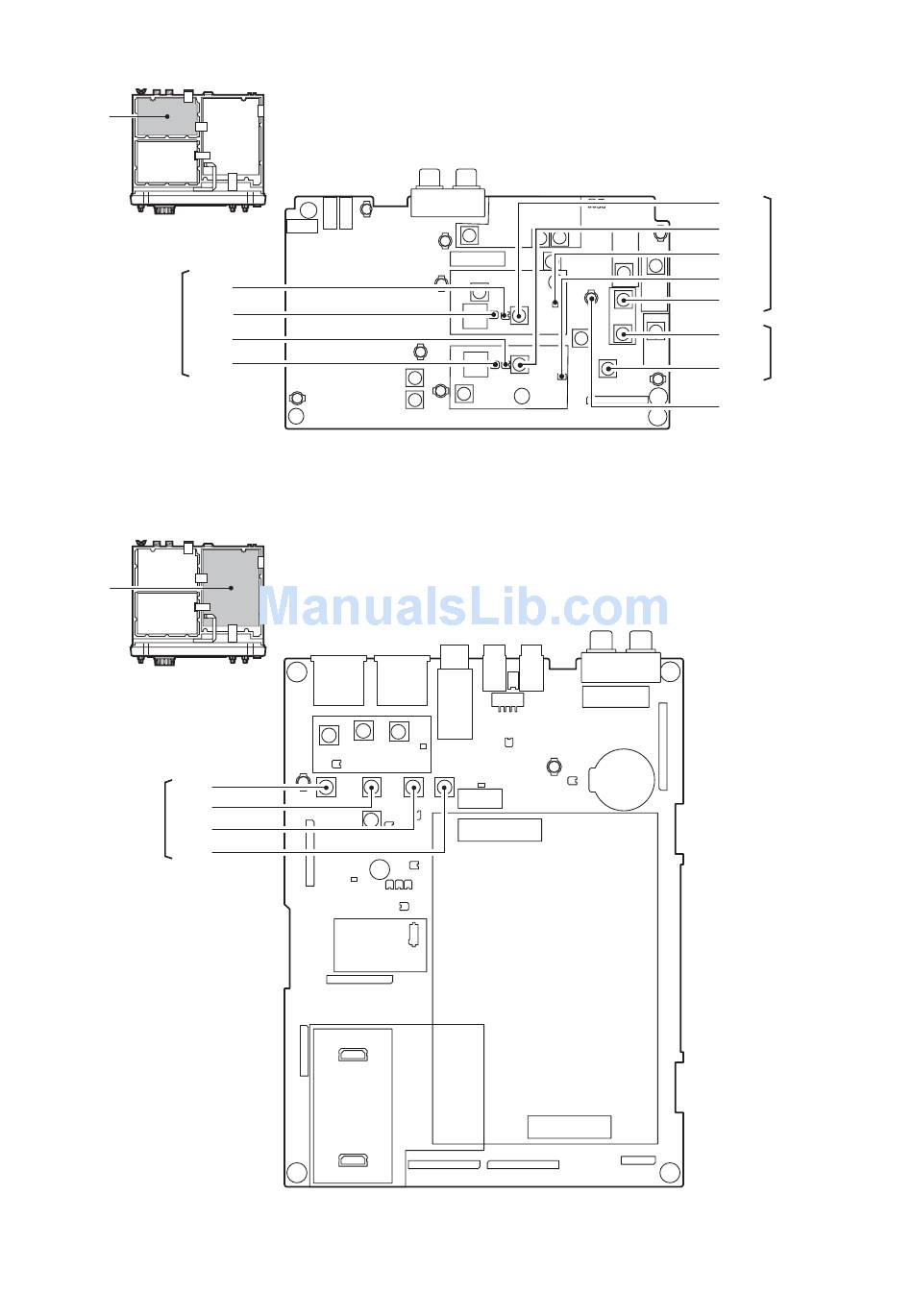

• RF-B unit
RF-B
unit
Bottom view of the transceiver
R1207
Mixer balance
R1206
adjustment
R1007
R1006
• MAIN-A unit
MAIN-A
unit
Bottom view of the transceiver
L111
L112
RX peak
adjustment
L113
L141
4 - 9
L1211
L1011
RX peak
adjustment
C1238
C1036
L1752
L1751
FM distortion
adjustment
L1702
J1651
Mixer ballance
check point
