Dsp-A Board - Icom IC-756PROIII Service Manual
Hf/50mhz all band transceiver
Hide thumbs
Also See for IC-756PROIII:
- Instruction manual (124 pages) ,
- Service manual (106 pages) ,
- Installation notes (4 pages)
Table of Contents
Advertisement

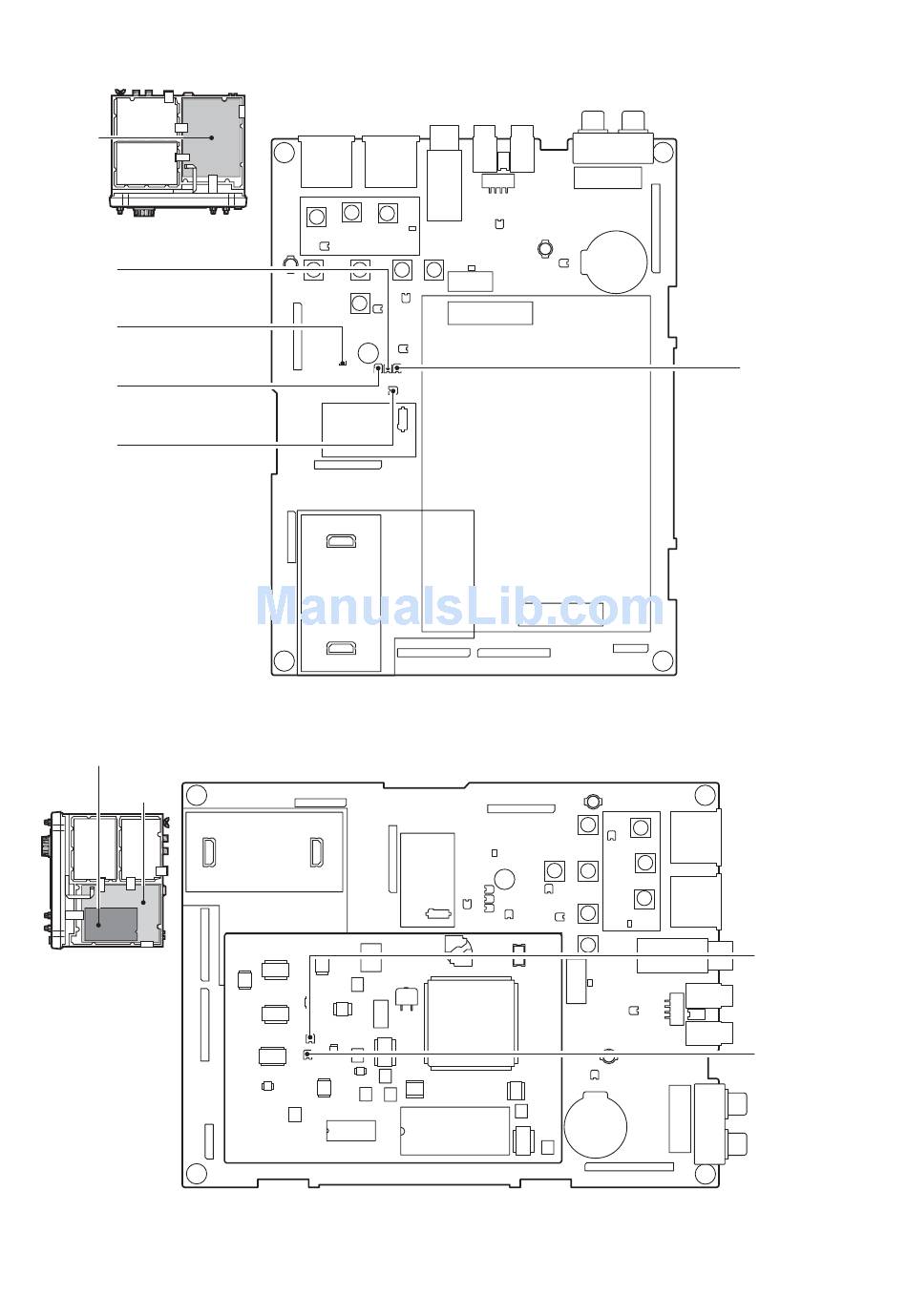

• MAIN-A unit
MAIN-A
unit
Bottom view of the transceiver
R509
50 MHz band output power
adjustment
CP501
Ic APC check point
R507
HF bands output power
adjustment
R545
Ic APC adjustment
• DSP-A board
DSP-A board
MAIN-A
unit
Bottom view
of the transceiver
4 - 7
R510
AM carrier
adjustment
R2227
FM deviation
adjustment
R2229
AM modulation
adjustment
