Alternate Connection Using a Splitter
1. Unplug all of your devices from the electrical outlet.
2. Locate the coax cable coming from your cable wall outlet and disconnect it from the back of your existing
device.
3. Connect the coax cable from your cable wall outlet to the single-connector side of the two-way splitter.
4. Connect one end of the 3-ft. coax cable to one port on the double-connector side of the splitter, and connect
the other end to the Cable In/RF In connection on the back of your existing device.
5. Connect one end of the 20-ft. coax cable to the other port on the double-connector side of the splitter, and
connect the other end to the Cable In/RF In connection on the back of your new device.
6. Make sure all connections are secure.
7. Plug all of your devices into an electrical outlet.
Cable Wall Outlet
*Splitter not included in Self-Installation Kit.
SA VID USER SIK 0112.indd 19

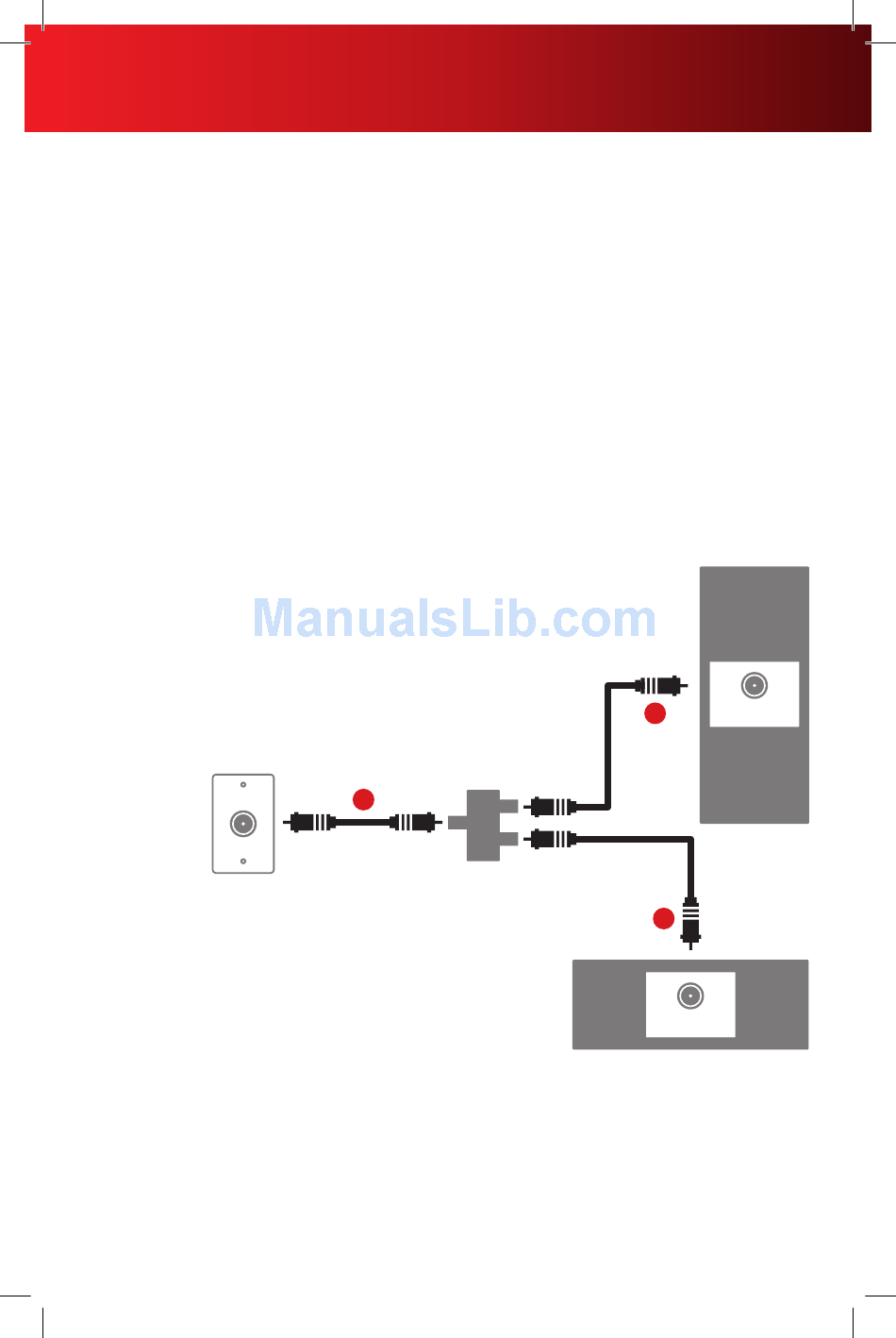

Digital Set-Top Box Connection
3
Coax Cable
Coax Cable
Splitter*
Coax Cable
Existing Device
4 Cable In/RF In
5
Cable In/RF In
New Device
