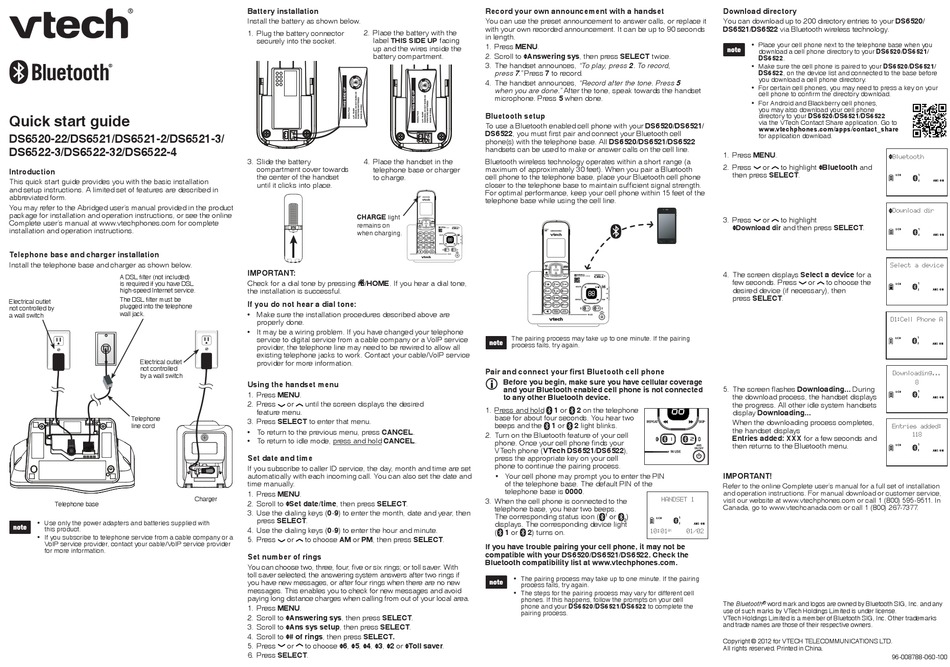

VTech DS6520-22 Quick Start Manual

Quick start guide

DS6520-22/DS6521/DS6521-2/DS6521-3/
DS6522-3/DS6522-32/DS6522-4
Introduction
This quick start guide provides you with the basic installation
and setup instructions. A limited set of features are described in
abbreviated form.
You may refer to the Abridged user's manual provided in the product
package for installation and operation instructions, or see the online
Complete user's manual at www.vtechphones.com for complete
installation and operation instructions.
Telephone base and charger installation
Install the telephone base and charger as shown below.
A DSL filter (not included)
is required if you have DSL
high-speed Internet service.
The DSL filter must be
Electrical outlet
plugged into the telephone
not controlled by
wall jack.
a wall switch
Electrical outlet
not controlled
by a wall switch
Telephone
line cord
Telephone base
• Use only the power adapters and batteries supplied with
this product.
• If you subscribe to telephone service from a cable company or a
VoIP service provider, contact your cable/VoIP service provider
for more information.
Battery installation
Install the battery as shown below.
2. Place the battery with the
1. Plug the battery connector
label
securely into the socket.
up and the wires inside the
battery compartment.
3. Slide the battery 4. Place the handset in the
compartment cover towards
telephone base or charger
the center of the handset to charge.
until it clicks into place.
CHARGE light
remains on
when charging.
IMPORTANT:
/HOME. If you hear a dial tone,
Check for a dial tone by pressing
the installation is successful.
If you do not hear a dial tone:
• Make sure the installation procedures described above are
properly done.
• It may be a wiring problem. If you have changed your telephone
service to digital service from a cable company or a VoIP service
provider, the telephone line may need to be rewired to allow all
existing telephone jacks to work. Contact your cable/VoIP service
provider for more information.
Using the handset menu
1. Press MENU.
2. Press or until the screen displays the desired
feature menu.
3. Press SELECT to enter that menu.
• To return to the previous menu, press CANCEL.
To return to idle mode, press and hold CANCEL.
•
Set date and time
If you subscribe to caller ID service, the day, month and time are set
automatically with each incoming call. You can also set the date and
time manually.
Press MENU.
1.
Charger
2. Scroll to Set date/time, then press SELECT.
3. Use the dialing keys (0-9) to enter the month, date and year, then
press SELECT.
4. Use the dialing keys (0-9) to enter the hour and minute.
5. Press or to choose AM or PM, then press SELECT.
Set number of rings
You can choose two, three, four, five or six rings; or toll saver. With
toll saver selected, the answering system answers after two rings if
you have new messages, or after four rings when there are no new
messages. This enables you to check for new messages and avoid
paying long distance charges when calling from out of your local area.
1. Press MENU.
Scroll to Answering sys, then press SELECT.
2.
3. Scroll to Ans sys setup, then press SELECT.
4. Scroll to # of rings, then press SELECT.
5. Press or to choose 6, 5, 4, 3, 2 or Toll saver.
6. Press SELECT.
Record your own announcement with a handset
You can use the preset announcement to answer calls, or replace it
with your own recorded announcement. It can be up to 90 seconds
in length.
THIS SIDE UP facing
1. Press MENU.
Scroll to Answering sys, then press SELECT twice.
2.
3. The handset announces, "To play, press 2. To record,
press 7." Press 7 to record.
4. The handset announces, "Record after the tone. Press 5
when you are done." After the tone, speak towards the handset
microphone. Press 5 when done.
Bluetooth setup
To use a Bluetooth enabled cell phone with your DS6520/DS6521/
DS6522, you must first pair and connect your Bluetooth cell
phone(s) with the telephone base. All DS6520/DS6521/DS6522
handsets can be used to make or answer calls on the cell line.
Bluetooth wireless technology operates within a short range (a
maximum of approximately 30 feet). When you pair a Bluetooth
cell phone to the telephone base, place your Bluetooth cell phone
closer to the telephone base to maintain sufficient signal strength.
For optimal performance, keep your cell phone within 15 feet of the
telephone base while using the cell line.
• The pairing process may take up to one minute. If the pairing
process fails, try again.
Pair and connect your first Bluetooth cell phone
i
Before you begin, make sure you have cellular coverage
and your Bluetooth enabled cell phone is not connected
to any other Bluetooth device.
1. Press and hold 1 or
base for about four seconds. You hear two
beeps and the 1 or
2. Turn on the Bluetooth feature of your cell
phone. Once your cell phone finds your
VTech phone (VTech DS6521/DS6522),
press the appropriate key on your cell
phone to continue the pairing process.
• Your cell phone may prompt you to enter the PIN
of the telephone base. The default PIN of the
telephone base is 0000.
3. When the cell phone is connected to the
telephone base, you hear two beeps.
The corresponding status icon (
displays. The corresponding device light
1 or 2) turns on.
(
If you have trouble pairing your cell phone, it may not be
compatible with your DS6520/DS6521/DS6522. Check the
Bluetooth compatibility list at www.vtechphones.com.
• The pairing process may take up to one minute. If the pairing
process fails, try again.
• The steps for the pairing process may vary for different cell
phones. If this happens, follow the prompts on your cell
phone and your DS6520/DS6521/DS6522 to complete the
pairing process.
Download directory
You can download up to 200 directory entries to your DS6520/
DS6521/DS6522 via Bluetooth wireless technology.
•
•
•
•
1. Press MENU.
2. Press
then press SELECT.
3. Press
Download dir
4. The screen displays Select a device for a
few seconds. Press
desired device (if necessary), then
press SELECT.
5. The screen flashes Downloading... During
the download process, the handset displays
the progress. All other idle system handsets
2 on the telephone
display Downloading...
When the downloading process completes,
2 light blinks.
the handset displays
Entries added: XXX for a few seconds and
then returns to the Bluetooth menu.
IMPORTANT!
Refer to the online Complete user's manual for a full set of installation
and operation instructions. For manual download or customer service,
HANDSET 1 visit our website at www.vtechphones.com or call 1 (800) 595-9511. In
Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.
1 or )
ECO 1
2
2
ANS ON
10:01 AM 01/02
The Bluetooth
use of such marks by VTech Holdings Limited is under license.
VTech Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks
and trade names are those of their respective owners.
Copyright © 2012 for VTECH TELECOMMUNICATIONS LTD.
All rights reserved. Printed in China.
Place your cell phone next to the telephone base when you
download a cell phone directory to your DS6520/DS6521/
DS6522.
Make sure the cell phone is paired to your DS6520/DS6521/
DS6522, on the device list and connected to the base before
you download a cell phone directory.
For certain cell phones, you may need to press a key on your
cell phone to confirm the directory download.
For Android and Blackberry cell phones,
you may also download your cell phone
directory to your DS6520/DS6521/DS6522
via the VTech Contact Share application. Go to
www.vtechphones.com/apps/contact_share
for application download.
Bluetooth
or to highlight Bluetooth and
ECO 1
ANS ON
2
Download dir
or to highlight
and then press SELECT.
ECO 1
2 ANS ON
Select a device
or to choose the
ECO 1
2 ANS ON
D1:Cel l Phone A
ECO 1
2
ANS ON
Downloading...
8
1
ECO
2 ANS ON
Entries added:
118
1
ECO
2 ANS ON
®
word mark and logos are owned by Bluetooth SIG, Inc. and any
96-008788-060-100
