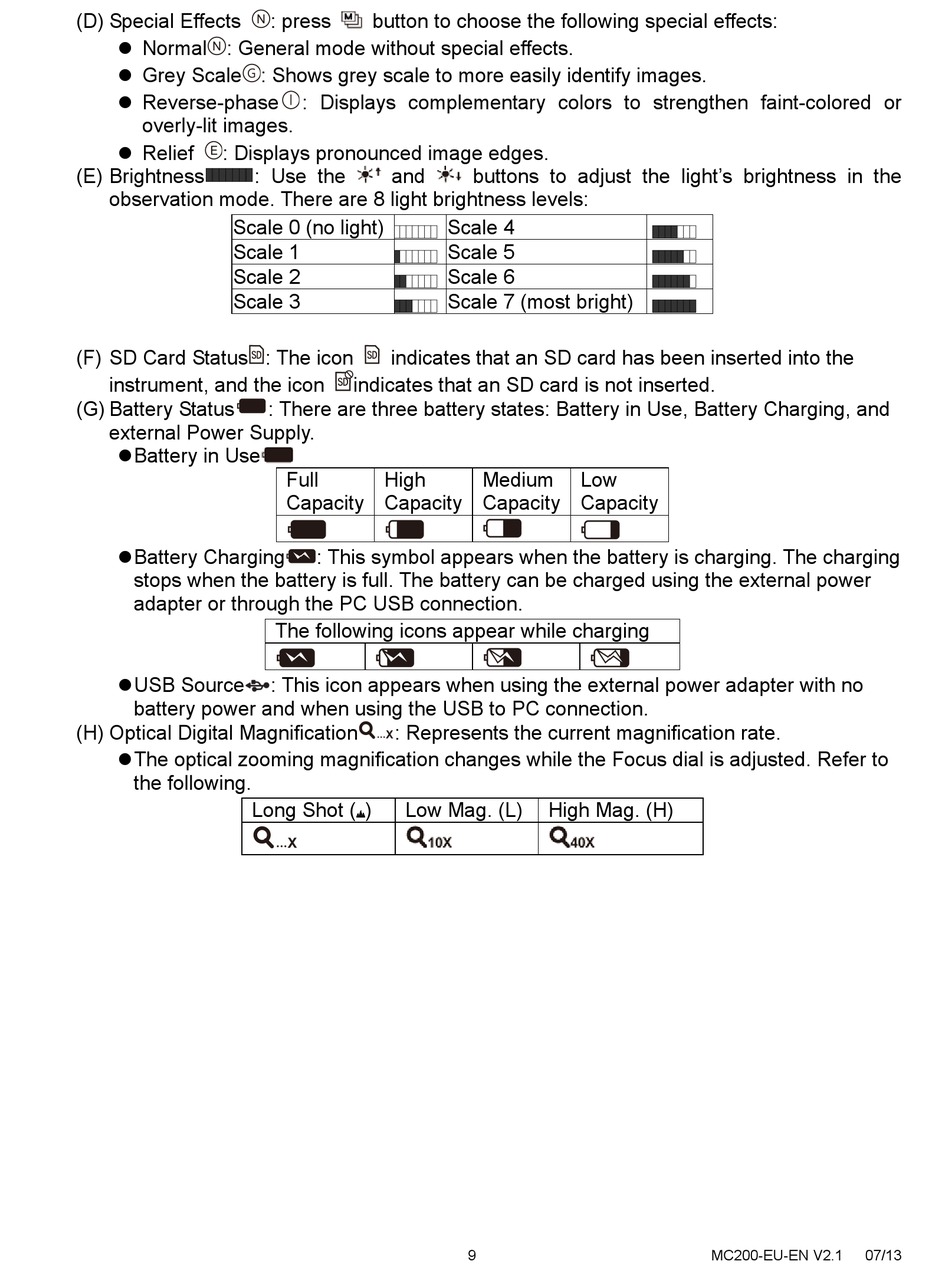

Extech Instruments MC200 User Manual page 9

(D) Special Effects
 Normal : General mode without special effects.
 Grey Scale : Shows grey scale to more easily identify images.
 Reverse-phase
overly-lit images.
 Relief : Displays pronounced image edges.
(E) Brightness : Use the
observation mode. There are 8 light brightness levels:
Scale 0 (no light)
Scale 1
Scale 2
Scale 3
(F) SD Card Status : The icon
instrument, and the icon
(G) Battery Status
external Power Supply.
 Battery in Use
 Battery Charging
stops when the battery is full. The battery can be charged using the external power
adapter or through the PC USB connection.
 USB Source
battery power and when using the USB to PC connection.
(H) Optical Digital Magnification
 The optical zooming magnification changes while the Focus dial is adjusted. Refer to
the following.
Long Shot ( )
: press button to choose the following special effects:
: Displays complementary colors to strengthen faint-colored or
and
indicates that an SD card has been inserted into the
indicates that an SD card is not inserted.
: There are three battery states: Battery in Use, Battery Charging, and
Full High
Capacity Capacity
: This symbol appears when the battery is charging. The charging
The following icons appear while charging
: This icon appears when using the external power adapter with no
: Represents the current magnification rate.
Low Mag. (L)
buttons to adjust the light's brightness in the
Scale 4
Scale 5
Scale 6
Scale 7 (most bright)
Medium Low
Capacity Capacity
High Mag. (H)
