1. Product Introduction

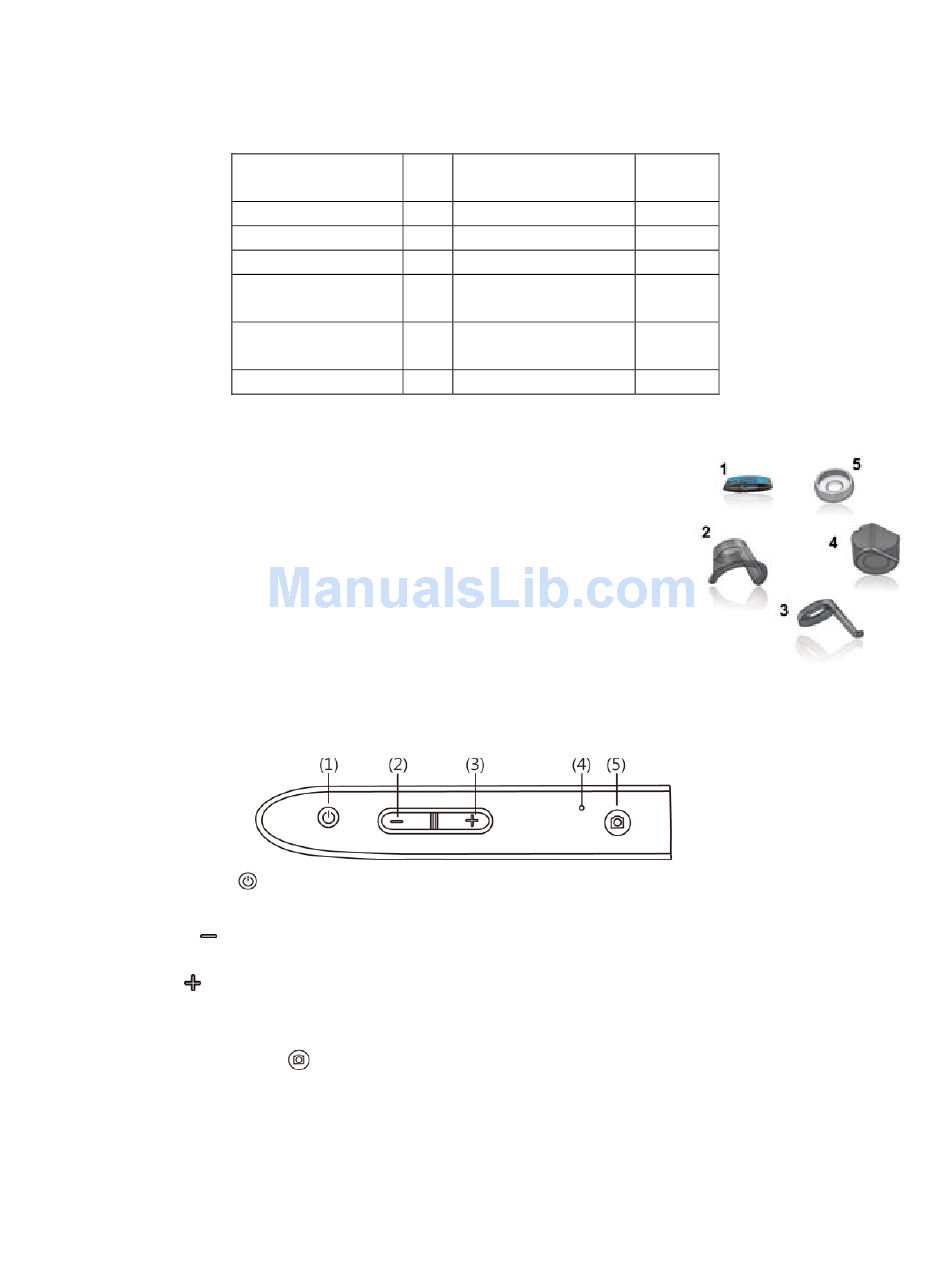

1.1 Packing Contents

The product box includes one instrument and the accessories listed below. Please charge
the lithium battery for 6 to 8 hours before using the instrument for the first time. An SD Card
has been installed in the instrument. Please refer to item (4) of Section 1.5 for instructions
on the removal and installation of SD cards.
*Lens Adaptors (5):
(1) Contact cap 01: Soft materials (cloth, wool, paper, hair, skin,
etc.)
(2) Contact cap 02: SMT components, coins, disks, etc.
(3) Non-contact adaptor: Flowers, insects, etc.
(4) Deep tank: Water, rocks, etc.
(5) Shallow tank: Fish eggs, spores, sand, gems, etc.

1.2 Microscope Functions

The Microscope includes push-buttons, communication ports, and interfaces for external
storage. Refer to the following descriptions:
1. Power Supply : Press this button for two seconds to switch on the instrument; press
again to switch off the instrument.
2. Zoom Out : Use this button to zoom out on a digital image [please refer to (H) and (I) of
item (1) of Section 1.4].
3. Zoom In : Use to zoom in on a digital image.
4. RESET opening: In the event that the instrument freezes operationally (no reaction when
pressing any button), insert a paper clip into the opening to trigger the RESET button.
5. Camera/Video REC
[please refer to item (1) of Section 1.4] and to open files in the Video Play mode [please
refer to item (2) of Section 1.4]. In Video REC mode [please refer to item (3) of Section
1.4], the button is used to start and stop recording video.
Name Qt
y
Microscope 1
USB Cable 1
Power Adapter 1
AV Terminal 1
Cable
2G Micro SD 1
Card
Cleaning Cloth 1
: This button is used to take a photograph in the observation mode
Name
Lithium Battery
User Guide
Installation CD
Protective holder
Wrist Strap
Lens adaptors*
3
Qty
1
1
1
1
1
5
MC200-EU-EN V2.1 07/13
