Summary of Contents for Extech Instruments MC200
-

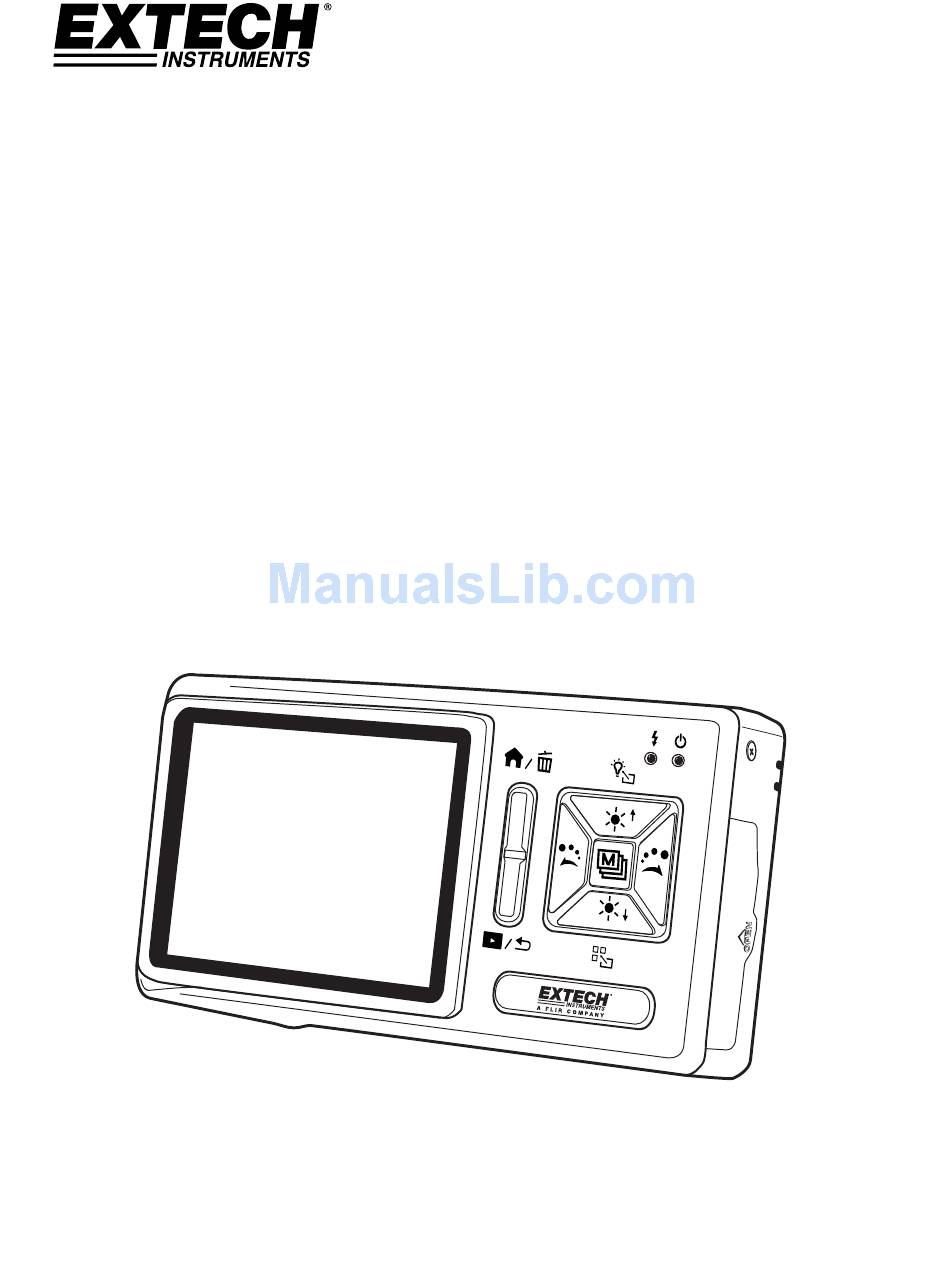

Page 1: Digital Microscope
User Manual Digital Microscope Model MC200... -
Page 2: Table Of Contents
3.2 Photos Preview Window 3.3 Main Menu 3.4 Main Button. 3.4 Files List (Type) 3.6 Special Function Modes 4. Maintenance and Safety 4.1 Maintenance 4.2 Specifications 4.3 Depth of Field 4.4 Safety Instructions 5. Warranty, Repair and Support MC200-EU-EN V2.1 07/13... -
Page 3: Product Introduction
[please refer to item (1) of Section 1.4] and to open files in the Video Play mode [please refer to item (2) of Section 1.4]. In Video REC mode [please refer to item (3) of Section 1.4], the button is used to start and stop recording video. MC200-EU-EN V2.1 07/13... - Page 4 1.4]. This button also Pauses video in the Video Play mode and confirms selections in other modes. 16. Focus dial: Adjust the optical focus [please refer to item (1) of Section 1.3 and (E) of item (1) of Section 1.4]. MC200-EU-EN V2.1 07/13...
- Page 5 21. Battery Compartment [please refer to item (5) of Section 1.5]. 22. SD Card Slot [please refer to item (4) of Section 1.5 and (F) of item (1) of Section 1.4]. 23. Tripod Mount [please refer to item (7) of Section 1.5]. MC200-EU-EN V2.1 07/13...
-
Page 6: Microscope Operation
After focusing, take the photograph. For a standard long shot, the camera mode is selectable [please refer to (C) of item (1) of Section 1.4]. MC200-EU-EN V2.1 07/13... -
Page 7: Microscope Programming Functions
Press the button to confirm. The modes that are shown with the symbols are for manual lamp switching. When one of these modes is selected, use the buttons to manually control the lamps. MC200-EU-EN V2.1 07/13... - Page 8 (C-3) : White mode. For shiny, reflective materials. (C-4) : Grey mode. For light colored materials. (C-5) : Dark Grey mode. For darkly colored materials (C-6) : Black mode. For dark black materials. MC200-EU-EN V2.1 07/13...
- Page 9 USB to PC connection. (H) Optical Digital Magnification : Represents the current magnification rate. The optical zooming magnification changes while the Focus dial is adjusted. Refer to the following. Long Shot ( ) Low Mag. (L) High Mag. (H) MC200-EU-EN V2.1 07/13...
- Page 10 Digital Magnification Scales in the 10x and 40x Optical Rates Rate 10x 15x 20x 25x Scale 105 70.5 52.5 42.0 35.0 30.0 26.5 23.5 21.0 Rate 40x 60x 80x 100x 120x 140x 160x 180x 200x Scale 26.5 17.6 13.2 10.6 8.88 7.60 6.52 5.76 5.32 MC200-EU-EN V2.1 07/13...
- Page 11 (M) Preview mode: Press to enter the photo browsing mode. Viewed saved photos in the MC200 window. The series number of the current photo is shown at the upper left. Press the button to move to the next photo. Press the button to move to the previous photo.
- Page 12 Mode and the Lamp Switching Modecan now be adjusted as previously described. The lamp brightness and digital magnification can now also be adjusted. Recording Time: After recording, recording time is represented in seconds. Maximum recording time for each file is one hour. MC200-EU-EN V2.1 07/13...
- Page 13 Auto Power OFF mode off after a selected period of inactivity. White balance : The white balance can be automatically or manually set to correct an image’s contrast and color. It is recommended that the automatic white MC200-EU-EN V2.1 07/13...
-
Page 14: External Interfaces
(1) Connect the USB cable: The cable’s smaller connector end is used to connect to the MC200, and the larger connector end is used to connect to the USB port on a PC. When the MC200 is connected to the PC, the PC can power and charge the MC200 while transmitting images (PC Camera). - Page 15 Close the battery compartment cover before use. Refer to the following diagram: (6) Install Wrist Strap: Remove the battery compartment cover and connect the wrist strap as shown in the diagram below: (7) Tripod Mount: Refer to the following diagram for tripod connection. MC200-EU-EN V2.1 07/13...
-
Page 16: Program Installation
Click on Install Application Program to install the software Application Program. 2.3 Install Driver Click Install Driver to install the software driver. 2.4 Quit Installation Program After installing the Application Program and Driver, please click Exit to quit the program installation utility. MC200-EU-EN V2.1 07/13... -
Page 17: Application Program
4 Image Preview window 5 Files list 3.1 Video Preview Window Refer to the diagram above. After connecting the MC200 to a PC and running the software, video information, videos, files, as well as operational icons and special functions are displayed. -
Page 18: Special Function Modes
(7) Measurement Mode : Ruler and compass feature allows for measurements in the dynamic mode (real-time image) or static mode (loaded images or frozen image) and also provides various measurement tools. Refer to the diagram below for the tools available in the Measurement Mode. MC200-EU-EN V2.1 07/13... -
Page 19: Maintenance And Safety
Do not expose the instrument in an environment lower than -5°C or higher than 50°C. (8) Store the MC200 in its protective sleeve or original packaging when not in use. Specifications... -
Page 20: Depth Of Field
(7) If the instrument is to be unused for a long period of time, please remove the battery to avoid leakage. (8) Please dispose of the used battery properly complying with local laws and regulations. Copyright © 2013 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO‐9001 Certified www.extech.com MC200-EU-EN V2.1 07/13...
