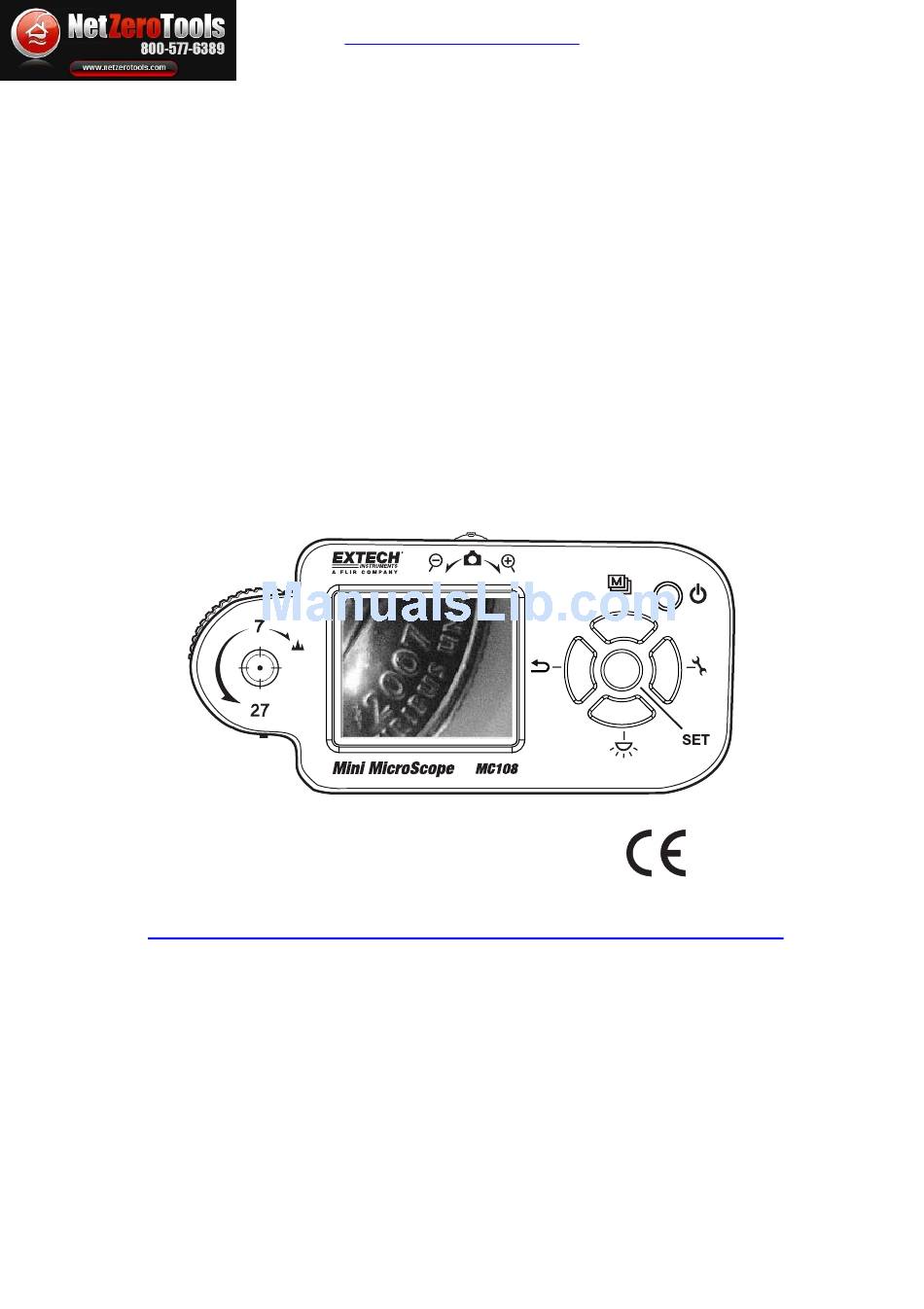

- Page 1 User's Guide Mini Microscope Model MC108 Extech MC108 Digital Mini Microscope netzerotools.com...
- Page 2 • Do not remove power/batteries when Microscope is on. Doing so may cause information loss or circuit damage. • To dispose of the battery, follow local regulations regarding lawful disposal of hazardous materials. MC108-EU-EN-V2.2-4/12 netzerotools.com...
-
Page 3: Operation
Press the save button, or zoom wheel, to capture images for purposes of recording. Controls 1. Optical zoom/focus 2. Aiming mark 3. Display 4. Zoom/ Snapshot 5. Return/Preview 6. Special effects/Up 7. Power 8. Tools 9. Brightness 10. Set/Save/Compare 11. Indicator Optical Zoom/Focus dial MC108-EU-EN-V2.2-4/12 netzerotools.com... -
Page 4: Brightness Control
Press this button to change LED brightness. This button can also be used to turn off the illumination LED. Return/Preview: In a normal mode, press this button to enter Preview Mode. When in other modes, press this button to return to normal mode. MC108-EU-EN-V2.2-4/12 netzerotools.com... - Page 5 The ruler is shown only when the indicator is located at text 7 & 27. It is intended for user’s convenience, not for scientific accuracy. For Example: The value of the ruler is 0.5mm for 10 lattice. Each small lattice is 0.05mm. The scale is not exact due to the variable distance from lens to image MC108-EU-EN-V2.2-4/12 netzerotools.com...
- Page 6 Hold the Special Effects button for 3 seconds to switch between frame-center mark and ruler. Ruler Power Supply Power is supplied by USB cable to PC or an by USB or adapter adaptor. . Charging Recharging batteries engaged. MC108-EU-EN-V2.2-4/12 netzerotools.com...
-
Page 7: Installation Procedure
Click the icon, then the image will upload from PC to the microscope. The image size is limited to 320x240 pixels standard jpg compressed format. MC108-EU-EN-V2.2-4/12 netzerotools.com... - Page 8 3 to save the display image to PC. Click the icon to leave Continuous Image Transfer mode. Figure 3. Click the icon will disconnect the microscope from the PC. Click the icon will leave the program. MC108-EU-EN-V2.2-4/12 netzerotools.com...
-
Page 9: Specifications
You can hand over your used batteries / accumulators at collection points in your community or wherever batteries / accumulators are sold! Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle MC108-EU-EN-V2.2-4/12 netzerotools.com...
