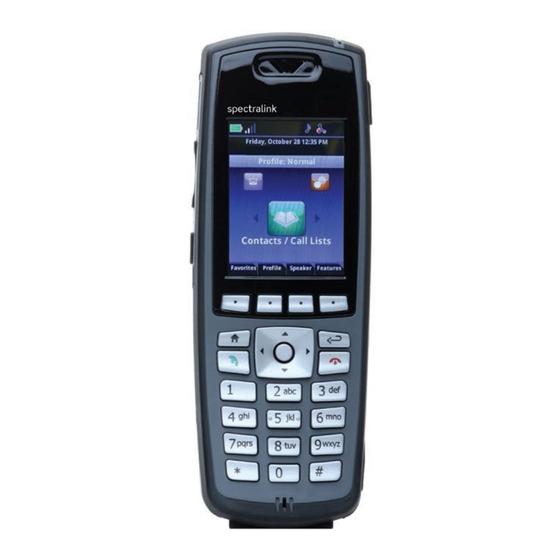

Spectralink 84-Series Wireless Telephone
Barcode Administration Guide
1725-86973-000 Rev: C
June 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 84-series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SpectraLink 84-series

Summary of Contents for SpectraLink 84-series

  • Page 1 Spectralink 84-Series Wireless Telephone Barcode Administration Guide 1725-86973-000 Rev: C June 2014...
  • Page 2 The drawings and specifications contained herein are the property of Spectralink and shall be neither reproduced in whole or in part without the prior written approval of Spectralink, nor be implied to grant any license to make, use, or sell equipment manufactured in accordance herewith.

  • Page 3: Table Of Contents

    Contents Introduction ..............5 Product Support ....................... 5 Spectralink References ....................5 Barcode Reference ......................5 Conventions Used In This Document ................6 Icons ..........................6 Typography ........................7 Chapter 1: Understanding Barcode Technology ......8 1D vs. 2D Formats......................8 8450 and 1D Barcode Patterns ..................
  • Page 4 Spectralink 84-Series Wireless Telephones Barcode Administration Guide PDF 417 .........................40 Plessey Code .........................40 QR Code ........................42 Standard 2 of 5 .......................42 Telepen ..........................43 Appendix A: Open Source Information ........46 OFFER for Source for GPL and LGPL Software ............46 Contact Information for Requesting Source Code ............46 1725-86973-000_C.docx...

  • Page 5: Introduction

    84-Series handsets in any type of facility. It is the fundamental text and a prerequisite to this Administration Guide, especially for administrators who are new to the Spectralink 84-Series handsets or who may wish a refresher course.

  • Page 6: Barcode Reference

    Quick Barcode Connector Administration Guide Provides instruction for implementation of the barcode application. The Spectralink 84-Series User Guide contains information about using the barcode feature. The Spectralink 84-Series User Guide offers comprehensive instructions on using each of the features deployed on the handsets. Barcode Reference The Bar Code Book: A Comprehensive Guide to Reading, Printing, Specifying, Evaluating, and Using Bar Code and Other Machine-Readable Symbols by Roger C.

  • Page 7: Typography

    Italics Used to emphasize text, to show example values or inputs, and to show titles of reference documents available from the Spectralink Support Web site and other reference sites. Underlined blue Used for URL links to external Web pages or documents. If you click on text in this style, you will be linked to an external document or Web page.

  • Page 8: Chapter 1: Understanding Barcode Technology

    Two-dimensional barcode symbologies typically encode more data, which may be contained in a smaller barcode label, as compared with 1D barcode symbologies. The Spectralink 8452/8453 can decode both 1D and 2D barcode label formats, as well as composite 1D/2D barcodes.
  • Page 9 Spectralink 84-Series Wireless Telephones Barcode Administration Guide 2D example (QR Code symbology) 1725-86973-000_C.docx June 2014...

  • Page 10: Chapter 2: Barcode Applications

    Quick Barcode Connector application. QBC enables you to capture barcode data using a Spectralink 8450 or 8452/8453 handset and transfer the data to the application running on the computer associated with the scanning handset. You can think of it as a wireless barcode scanner connected to the computer.

  • Page 11: Supported Symbologies

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide Supported Symbologies All of the symbologies listed here are enabled by default except GS1 Composite. Symbology Aztec Codabar Code11 Code 39 Code 93 Code 128*† DataMatrix EAN / UPC† GS1 Composite*† GS1 DataBar...

  • Page 12: Special Alerts For Barcode Applications

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide Special Alerts for Barcode Applications You can assign special alerts, ringtones and vibrations for certain events. The Spectralink 84-Series User Guide contains instruction on how to set ring types for different conditions. 1725-86973-000_C.docx June 2014...

  • Page 13: Chapter 3: Barcode Implementation

    Configuration flexibility allows you to structure the files according to the most efficient method for your facility. See the Spectralink 84-Series Deployment Guide for a full explanation of .cfg files and how they are structured. Double check the site.cfg file to determine if the barcode you want to deploy is enabled.
  • Page 14 Spectralink 84-Series Wireless Telephones Barcode Administration Guide These recommendations align with the three Scenarios described in the Deployment Guide: Flat Group User Profiles Deployment Deployment 00000000000.cfg <macaddress>.cfg 00000000000.cfg - site.cfg - site.cfg - site.cfg - barcode.cfg - [Group].cfg - <macaddress>-ext.cfg - <identity>.

  • Page 15: Conflicting Symbologies

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide Conflicting Symbologies Caution Certain symbologies are mutually exclusive. If you use the barcode.cfg file, ensure that you disable the symbologies that you do not want to deploy. If you deploy conflicting symbologies, ensure that they are segregated by [Group] or by [User].

  • Page 16: Chapter 4: Barcode Parameters

    0 to 2550, 500 or The aiming beam duration. milliseconds aimingBeamDuration The default for the Spectralink 8450 is 500. The default for the Spectralink 8452/8453 is 400. barcode. 0 to 2 The aiming beam mode. If the aiming beam is turned...
  • Page 17 A low value is useful when there is a high density of barcodes. A high value allows the scanner to more quickly acquire and read a barcode. The default for the Spectralink 8450 is 00. The default for the Spectralink 8452/8453 is 10. barcode.

  • Page 18: Symbology Parameters

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide Parameter Permitted Values Default Interpretation option. Thus, for example, the AIM for an Aztec barcode is “]z0”. The symbology ID and processing option characters for all supported symbologies are: Symbology Symbology ID Processing option...

  • Page 19: Codabar

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide Aztec Permitted Values Default Interpretation Parameter 256-byte ASCII character set. This symbology is only available on the Spectralink 8452/8453 handset. barcode.symbology. 0 or 1 A flag to determine whether or not structure append aztec.
  • Page 20 Spectralink 84-Series Wireless Telephones Barcode Administration Guide Codabar Permitted Values Default Interpretation Parameter The supported values are: • 0 = not active • 1 = transmitted concatenated code only • 2 = transmit all codes (single and concatenated) barcode.symbology. 0 to 2 Concatenation is applied differently depending on the codabar.

  • Page 21: Code 11

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide Codabar Permitted Values Default Interpretation Parameter barcode.symbology. 0 to 255 The Codabar symbology L1 length. codabar. Use L1, L2 and L3 to compose acceptable bar code lengthL1 lengths depending on the barcode.symbology.codabar.lengthMode used.
  • Page 22 Spectralink 84-Series Wireless Telephones Barcode Administration Guide Code 11 Permitted Values Default Interpretation Parameter barcode.symbology. 0 or 1 A flag to determine whether or not the check digit is code11. transmitted for Code 11. The supported values are: checkDigitTransmission • 0 = check digit not transmitted •...

  • Page 23: Code 39

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide Code 11 Permitted Values Default Interpretation Parameter barcode.symbology. 0 to 255 The Code 11symbology L3 length. code11. Use L1, L2 and L3 to compose acceptable bar code lengthL3 lengths depending on the barcode.symbology.code11.lengthMode used Minimum length for Code 11 is 2 characters.
  • Page 24 Spectralink 84-Series Wireless Telephones Barcode Administration Guide Code 39 Permitted Values Default Interpretation Parameter Check digit used by the Italian pharmaceutical industry, also known as Code 32. If the checksum is not validated the code is transmitted as standard Code 39.
  • Page 25 Spectralink 84-Series Wireless Telephones Barcode Administration Guide Code 39 Permitted Values Default Interpretation Parameter Bar code length = <start> + <bar code data> + [check digit] + <stop> barcode.symbology. 0 to 255 The Code 39 symbology L2 length. code39. Use L1, L2 and L3 to compose acceptable bar code...

  • Page 26: Code 93

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide Code 39 Permitted Values Default Interpretation Parameter barcode.symbology. 0 or 1 A flag to determine whether or not the Code 39 code39. start/stop transmission is transmitted. The supported startStop values are: • 0 = not transmitted •...

  • Page 27: Code 128

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide Code 93 Permitted Values Default Interpretation Parameter barcode.symbology. 0 to 255 The Code 93 symbology L2 length. code93. Use L1, L2 and L3 to compose acceptable bar code lengthL2 lengths depending on the barcode.symbology.code93.lengthMode used.
  • Page 28 Spectralink 84-Series Wireless Telephones Barcode Administration Guide Code 128 Permitted Values Default Interpretation Parameter Caution ISBT 128 and Code 128 cannot be enabled at the same time. barcode.symbology. 0 or 1 The GS1-128 identifier. According the GS1-128 symbology128Type. norm, the AIM identifier "]C1" is added by default in...
  • Page 29 Spectralink 84-Series Wireless Telephones Barcode Administration Guide Code 128 Permitted Values Default Interpretation Parameter barcode.symbology. 0 to 255 The symbology 128 L2 length. symbology128Type. Use L1, L2 and L3 to compose acceptable bar code lengthL2 lengths depending on the length mode used.
  • Page 30 Spectralink 84-Series Wireless Telephones Barcode Administration Guide Code 128 Permitted Values Default Interpretation Parameter Only transmits concatenated codes, does not transmit single codes. • 2 = Single codes and concatenated codes Single codes and concatenated codes are both transmitted. If the product can only "see" one code of a code pair it will send that code as a single code.

  • Page 31: Datamatrix

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide Datamatrix Datamatrix Permitted Values Default Interpretation Parameter barcode.symbology. 0 or 1 A flag to determine whether or not the DataMatrix datamatrix. symbology is enabled. DataMatrix is a two- enabled dimensional matrix symbology which can encode up to 2000 characters.
  • Page 32 Spectralink 84-Series Wireless Telephones Barcode Administration Guide EAN / UPC Permitted Values Default Interpretation Parameter barcode.symbology. 0 or 1 A flag to determine whether or not add-on 2 for all upcean. UPC/EAN symbologies is enabled. addondigit. addon2 barcode.symbology. 0 or 1 A flag to determine whether or not add-on 5 for all upcean.
  • Page 33 Spectralink 84-Series Wireless Telephones Barcode Administration Guide EAN / UPC Permitted Values Default Interpretation Parameter <check digit> barcode.symbology. 0 or 1 A flag to determine whether or not number system upce. transmission for UPC-E is enabled. The number system upcNumber...

  • Page 34: Gs1 Composite

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide EAN / UPC Permitted Values Default Interpretation Parameter • 1 = extended GS1 Composite GS1 Composite Permitted Values Default Interpretation Parameter barcode.symbology. 0 or 1 0 = Not active GS1Composite. 1 = Active cc-abCombined.enabled...

  • Page 35: Interleaved 2 Of 5

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide GS1 Databar Permitted Values Default Interpretation Parameter as weight and "best before" date in a linear symbol that can be scanned omni-directionally by suitably programmed point-of-sale scanners. GS1 DataBar Expanded reads the following types of GS1 DataBar: •...
  • Page 36 Spectralink 84-Series Wireless Telephones Barcode Administration Guide Interleaved 2 of 5 Permitted Values Default Interpretation Parameter Interleaved 2 of 5 encodes data in the width of both the bars and spaces. barcode.symbology. 0 or 1 A flag to determine whether or not the check digit is interleaved2of5.

  • Page 37: Micro Pdf 417

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide Interleaved 2 of 5 Permitted Values Default Interpretation Parameter barcode.symbology. 0 to 255 The Interleaved 2 of 5 symbology L1 length. Use L1, L2 interleaved2of5. and L3 to compose acceptable bar code lengths lengthL1 depending on the length mode used.

  • Page 38: Msi Code

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide Micro PDF 417 Permitted Values Default Interpretation Parameter barcode.symbology. 0 or 1 A flag to determine whether or not the Micro PDF417 micropdf417. symbology is enabled. enabled Micro PDF417 is closely based on PDF417 but is more space efficient.
  • Page 39 Spectralink 84-Series Wireless Telephones Barcode Administration Guide MSI Code Permitted Values Default Interpretation Parameter • 2 = double modulo 10 barcode.symbology. 0 to 2 Length 1 (L1), Length 2 (L2) and Length 3 (L3) are used msi. differently depending on the length mode. There are...

  • Page 40: Pdf 417

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide PDF 417 (2D only) PDF 417 Permitted Values Default Interpretation Parameter barcode.symbology. 0 or 1 A flag to determine whether or not the PDF417 pdf417. symbology is enabled. enabled Macro PDF417, a feature of PDF417, extends the capability of PDF417 by allowing up to 99,999 PDF417 symbols to be used to store data.
  • Page 41 Spectralink 84-Series Wireless Telephones Barcode Administration Guide Plessey Code Permitted Values Default Interpretation Parameter width modulated bar code is commonly used for shelf marking in grocery stores. barcode.symbology. 0 or 1 A flag to determine whether or not the check digit is plessey.

  • Page 42: Qr Code

    A wide range of symbol sizes is supported along with four levels of error correction, and the symbology is noted for its high data density. QR code decoding is only supported on the Spectralink 8452/8453 wireless handset. Standard 2 of 5...

  • Page 43: Telepen

    Spectralink 84-Series Wireless Telephones Barcode Administration Guide Standard 2 of 5 Permitted Values Default Interpretation Parameter barcode.symbology. 0 to 2 Length 1 (L1), Length 2 (L2) and Length 3 (L3) are used standard2of5. differently depending on the length mode. There are...
  • Page 44 Spectralink 84-Series Wireless Telephones Barcode Administration Guide Telepen Permitted Values Default Interpretation Parameter ASCII symbology with a defined letter case. It supports both ASCII and numeric formats. barcode.symbology. 0 or 1 Telepen supports two formats, ASCII and numeric. telepen. The Telepen numeric format is used for data...
  • Page 45 Spectralink 84-Series Wireless Telephones Barcode Administration Guide Telepen Permitted Values Default Interpretation Parameter Use L1, L2 and L3 to compose acceptable bar code lengths depending on the length mode used. Minimum length for MSI Code is 3 characters. Bar code length = <bar code data> + [check digit] barcode.symbology.

  • Page 46: Appendix A: Open Source Information

    Handset, as well as related license and copyright information, is available at http://support.spectralink.com. You may also obtain the same information by contacting Spectralink by regular mail or email at the addresses listed at the bottom of this notice. For at least three (3) years from the date of distribution of the applicable product or software, we will give to anyone who contacts us at the contact information provided below, for a charge of no more than our cost of physically distributing, the items listed in “Spectralink OFFER of Source...
