INSTALLATION & OPERATING GUIDE
BUNN-O-MATIC CORPORATION OF CANADA
To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts
Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at
www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and
manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-263-2256.
45246.7000B 03/12 ©2011 Bunn-O-Matic Corporation
280 INDUSTRIAL PARKWAY SOUTH,
AURORA, ONTARIO, L4G 3T9.
PHONE: (905) 841-2866

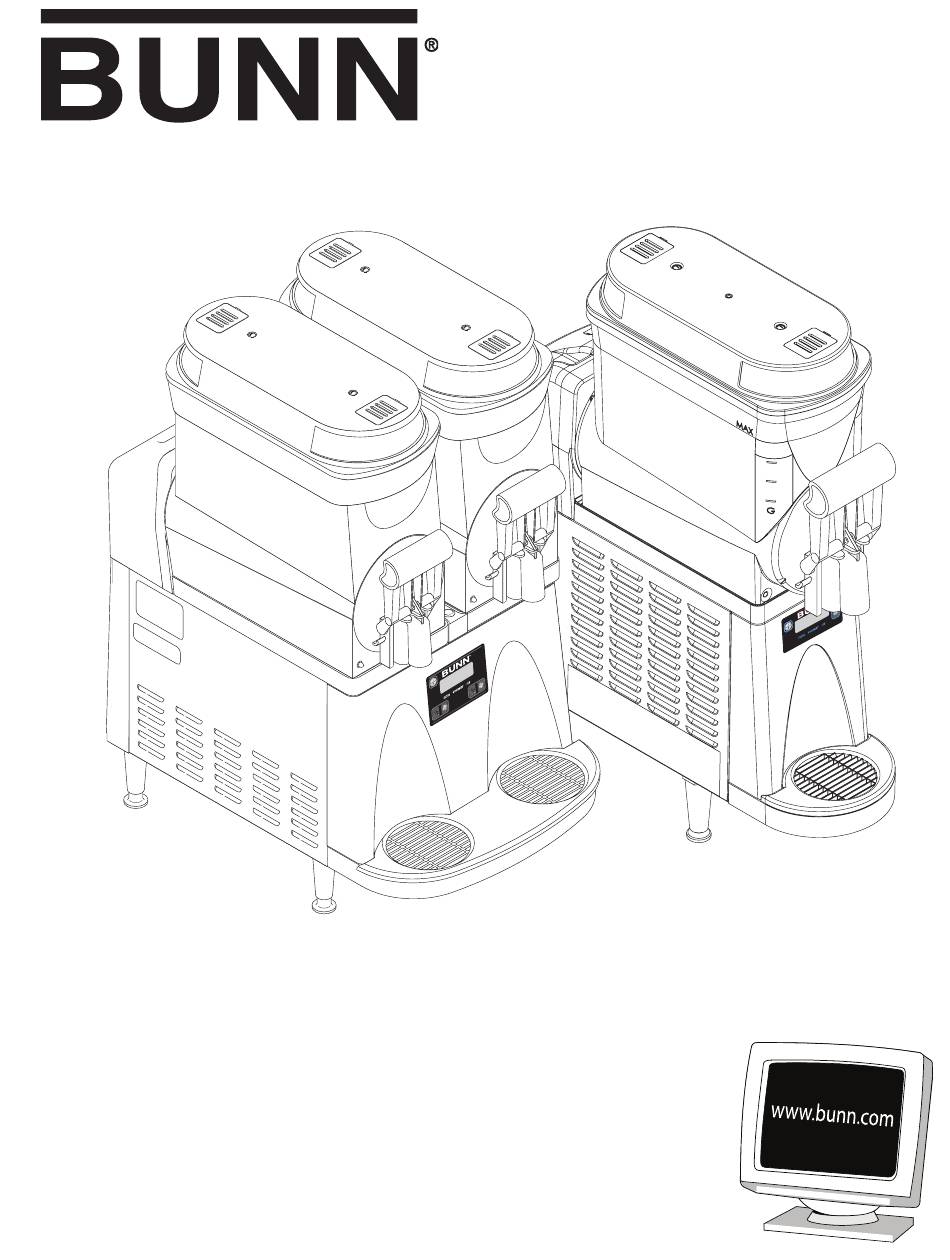

ULTRA-1
ULTRA-2
FAX: (905) 841-2775

Advertisement

Table of Contents
loading

Related Manuals for Bunn ULTRA-1

Summary of Contents for Bunn ULTRA-1

  • Page 1 To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-263-2256.

  • Page 2: Warranty

    BUNN’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall Bunn be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental, consequential or punitive damages.

  • Page 3: Table Of Contents

    CAUTION – Improper electrical installation will damage components. An electrician must provide electrical service as specified below. Model ULTRA-1 & 2, This dispenser has an attached cordset and requires a 2-wire, grounded, individual branch circuit rated 120 volts ac, 15 amp, single phase, 60 Hz. The mating connector must be a NEMA 5-15R.

  • Page 4: Initial Setup

    INITIAL SETUP CAUTION – The dispenser is very heavy! Use care when lifting or moving it. Use at least two people to lift or move the dispenser. 6.0” MIN. 1. Set the dispenser on a sturdy counter top. The dispenser requires a minimum of 6.0” air clearance at the rear of the dispenser.
  • Page 5 INITIAL SETUP (CONT.) 9. Align the auger shaft with the 10. Install auger nose bushing into 11. Thoroughly rinse the hoppers flat fin of the auger. Push the inside front of hopper. and install them over the augers augers as far as they will go and cooling drums.
  • Page 6 INTERNAL BRIXING SYSTEM SETUP INSTRUCTIONS 1. Connect syrup supply lines from 2. Install hoppers onto machine 3. Route the tubes from the motor BIB system. Connect water lines and slide probes onto hoppers cover together and connect to from source. NOTE: Connection into slots provided.
  • Page 7 INTERNAL BRIXING SYSTEM BRIX ADJUSTMENT INSTRUCTIONS 1. Apply power to machine and turn on by pressing the power button. 2. Enter the display menu by pressing the “Gourmet” button for about 5 seconds. Press and release “Gourmet” button to step through the menu to the “Test Refill” screen. Press and release the “Ice” button to select YES. 3.

  • Page 8: Operating Controls

    OPERATING CONTROLS ULTRA-1 There are three of these switches that will be used for the operation of the dispenser. P3932 switch (upper left corner of the control pad) This switch is the ON/OFF toggle switch which powers up the dispenser and the LCD display. When ON the Date and Time toggle back and forth continously except during programming.

  • Page 9: Left

    OPERATING CONTROLS ULTRA-2 There are five of these switches that will be used for the operation of the dispenser. P3677 switch (upper left corner of the control pad) This switch is the ON/OFF toggle switch which powers up the dispenser and the LCD display. When ON the Date and Time toggle back and forth continously except during programming.

  • Page 10: Using The Dispenser For Granita-Type Products

    Wait for the liquid to freeze to the desired consistency. HINTS – Bunn-O-Matic recommends that the product in the dispenser be thawed each day, usually overnight. The ice granules get too large and a consistent product is difficult to maintain if left frozen for an extended period of time.

  • Page 11: Programming

    Access to most controls can be password protected to allow only qualified personnel to make changes. P3931 P3677 ULTRA-1 ULTRA-2 PROGRAMMING SWITCHES To access the programming mode, and to scroll through the different function screens, hidden programming switches are used.
  • Page 12 PROGRAMMING THE DISPENSER During normal operations, the Date, the Time, and the Serial Number toggle back and forth continuously. The following function screens are in the order they appear from the menu display. Each screen will have instructions and procedures to program the various functions of the dispenser. HOME SCREEN Displays the TIME, DATE, SERIAL NUMBER and ASSET NUMBER which toggle back and forth continuously.

  • Page 13: Set Time And Date

    (“ICE”). Two screens will appear for left and right. The operator can scroll through a range of a minimum of 1 (ULTRA) to a maximum of 16 (ICE). Factory default is 10. NOTE: ULTRA-1 models will only have one adjustment screen. SET THICKNESS ?
  • Page 14 INSTALL DATE ULTRA JAN. 2005 VERSION # __.__ 3:55:25 PM NOTE: Several other menu functions are included in this dispenser. Please refer the Programming Manual avail- able on the Bunn website at www.bunn.com 45246 072611...

  • Page 15: Other Recommendations For Your Dispenser

    PREVENTIVE MAINTENANCE Bunn-O-Matic Corporation recommends that preventive maintenance be performed at regular intervals. Maintenance ® should be performed by a qualified service technician. For Technical Service, contact Bunn-O-Matic Corporation at ® 1-800-263-2256. NOTE: Replacement parts or service caused by failure to perform required maintenance is not covered by warranty.

  • Page 16: Recommended Daily Cleaning

    RECOMMENDED CLEANING (ULTRA-2 shown) Frequency of cleaning should be as directed by the product manufacturer. 1. Turn cooling to OFF selection. Empty all product from the hopper(s). Turn auger to OFF selection. Disconnect the hop- per lid lamp cord(s) and remove the lids. On models with autofill, disconnect fill hoses and level probe from hopper. Depress the hopper lock plunger.
  • Page 17 ASSEMBLY FOLLOWING CLEANING 1. Install the seal(s) over the flange at 2. Align the auger shaft(s) with the 3. Install auger nose bushing into the rear of the cooling drum(s) and auger(s). Push the auger(s) as far as inside front of hopper. press the seal(s) firmly into place they will go and rotate so the flat face as shown.

  • Page 18: Autofill Cleaning Instructions

    Auto-fill Cleaning Instructions (With Brixing Pump Installed) Materials required 1. Non-sudsing liquid detergent (such as common household automatic dishwasher liquid detergent). 2. Household bleach (Sodium chloride solution: 5.25%) or equivalent. 3. Clean five (5) gallon bucket. 4. Measuring Cup. 5. An adaptor is needed to hold the Q.C.D. (Quick Connect/Disconnect) fitting on the concentrate suction line open. A connector from an empty bag will work.

  • Page 19: User Notices

    RESPONSABILITÉS,AVANT D’ACHETER OU BUYING OR USING THIS PRODUCT. D'UTILISER LE PRÉSENT PRODUIT. THIS EQUIPMENT IS ENERGIZED AT ALL TIMES UNLESS L' ÉQUIPEMENT EST TOUJOURS SOUS TENSION LORSQU'IL ELECTRICALLY DISCONNECTED. N'EST PAS DÉBRANCHÉ. 29979.7000 00986.7000B 01/10 ©2007 Bunn-O-Matic Corporation 00986.7000 45246 032912...

This manual is also suitable for:

Ultra-2Ultra-2a

Table of Contents
