Invacare TR40L Assembly, Installation And Operating Instructions

SAVE THESE INSTRUCTIONS

NOTE: Check all parts for shipping damage before using.
In case of damage, do not use. Contact the dealer for fur-
ther instructions.

SAFETY SUMMARY

The following reccommendations are made for safe in-
stallation and use of the Tray Mounting Hardware:

GENERAL WARNINGS

DO NOT install this equipment without first
reading and understanding this instruction
sheet. If you are unable to understand
these Warnings, Cautions and Instructions,
contact a healthcare professional, dealer
or technical personnel if applicable be-
fore attempting to install this equipment -
otherwise, injury or damage may occur.
Consult a physician or therapist for ap-
propriate positioning of the tray relative
to the user.
Your therapist and physician should be con-
sulted if you have any questions regard-
ing individual limitations and needs.
The tray mounting hardware is available in two versions
TR40R: Right side hardware (shown)
TR40L: Left side hardware

Tools Required:

1/4-inch drillbit, a 82-degree counter sink drill, a hand drill,
a phillips screwdriver and a 1/2-inch open end wrench.

INSTALLATION (FIGURE 1)

1. Remove the armrest from the wheelchair. Refer to
the wheelchair owner's manual.
2. Using a Phillips screwdriver remove the armrest pad
from the armrest and set the screws aside.
3. Adjust the clamp brackets on the tray receptacle so
that one (1) of the four (4) holes on each clamp bracket
line up with one (1) armrest hole.
4. Secure the armrest pad and tray receptacle assem-
bly to the armrest with the previously removed screws
as shown in FIGURE 1.
5. Put both armrests on the wheelchair.
6. Insert the support arm fully into the tray receptacle until it
cannot move further back.
7. Have the user sit in the wheelchair and position the tray
on the armrests, evenly spaced on both sides.
8. With a pen locate and mark the four (4) drill points on the
tray by using the support arm bracket as a template.
9. Using a 1/4" drillbit, drill four (4) holes corresponding to
the marks made with the pen.
NOTE: This product is designed to work with Invacare trays
LTACL, LTCCL, LTACCL and LTCCCL. The Invacare tray
mounting hardware can also be installed on other manufac-
turers' trays if the tray rim does not interfere with the opera-
tion of the tray support arm.
CAUTION
DO NOT drill too deep as this will render the
tray useless.
10. Counter-sink the holes to accomodate the flat screws
included in the kit.
11. Mount the tray using the flat screws, washers, and acorn
nuts with the hex key wrench provided. DO NOT over-
tighten screws.
12. With the user sitting in the wheelchair, adjust the tray to
the desired position and tighten knob on receptacle.
NOTE: The strap on the tray may be removed or wrapped
around armrest for additional support.
Armrest Pad
Knob
Clamp
Tray
Bracket
Receptacle
Support Arm Bracket
(use as template)

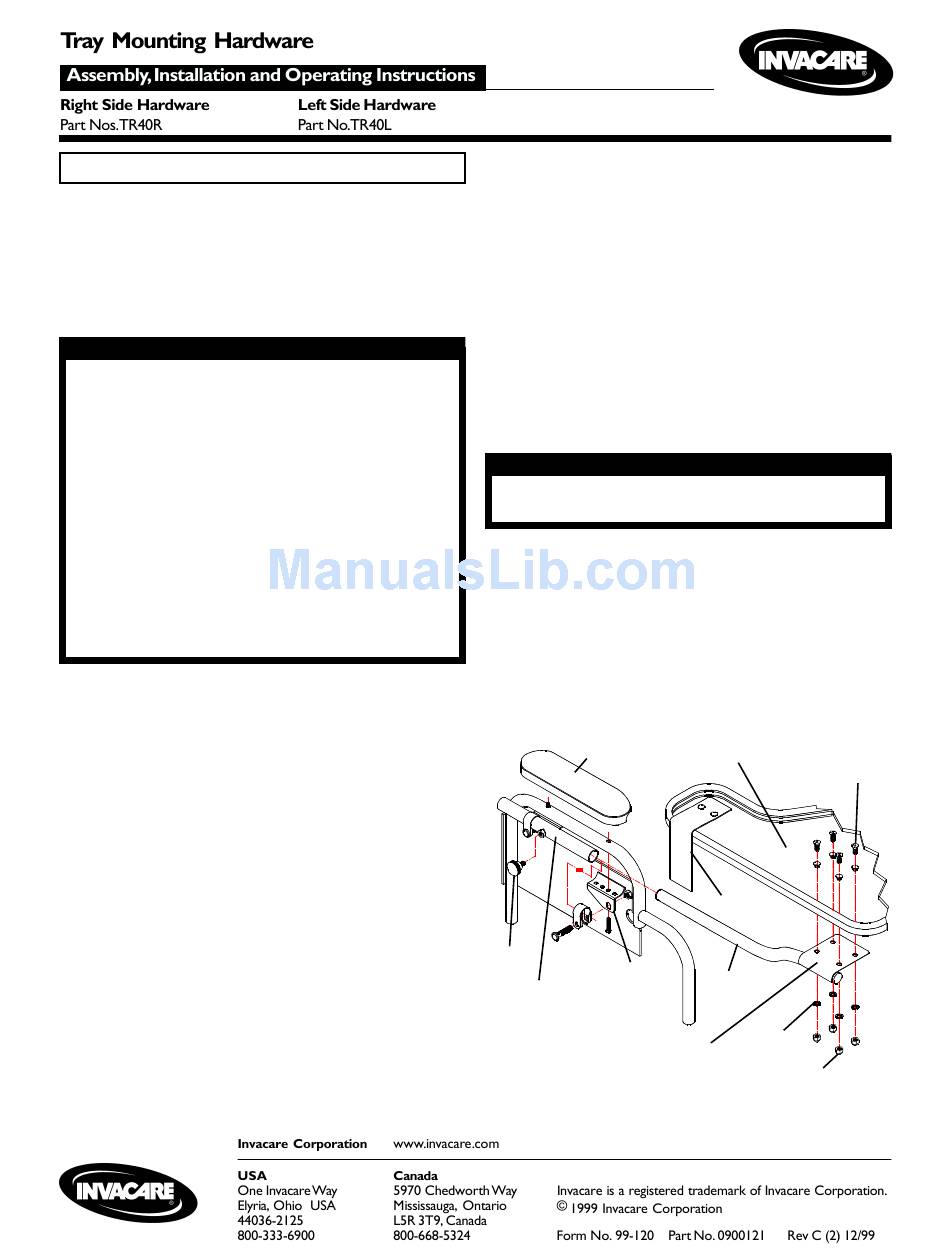

FIGURE 1 - INSTALLATION
Flat
Tray
Screws
Strap
Support
Arm
Washer
Acorn Nut
