Invacare T1483 Assembly, Installation And Operating Instructions

Push Bar

Assembly, Installation and Operating Instructions
Model No. T1483
SAVE THESE INSTRUCTIONS
NOTE: Check all parts for shipping damage before using.
In case of damage, DO NOT use the equipment. Contact
the Dealer/Carrier for further instructions.

SAFETY SUMMARY

The following recommendations are made for the safe
use of the Push Bar:
GENERAL WARNING
DO NOT install or use this equipment without
first reading and understanding these
instructions. If you are unable to understand the
Warnings, Cautions or Instructions, contact a
healthcare professional, dealer or technical per-
sonnel before attempting to install this equipment
- otherwise, injury or damage may occur.
INSTALLATION WARNING
After ANY adjustments, repair or service and BE-
FORE use, make sure that all attaching hardware
is tightened securely.
This kit includes the following:
ITEM
Push Bar (With Lock Knobs)
Back Canes
INSTALLING THE BACK CANES
(FIGURE 1)
NOTE: Refer to the GENERAL WARNINGS in the
SAFETY SUMMARY of this Instruction Sheet.
NOTE: Take note of the position and orientation of the
back cane mounting hardware. The NEW back canes
will be installed at the same height settings as the EXIST-
ING back canes.
1. Remove the eighteen (18) mounting screws and wash-
ers that secure the EXISTING back upholstery to the
back canes. Set aside the mounting screws, washers
and back upholstery.
2. Remove the four (4) long mounting screws and lock-
nuts that secure the two (2) EXISTING back canes to
the wheelchair frame.
The Mounting screws MUST be securely tightened
into the threaded mounting holes of the wheel-
chair frame before installing the locknuts - other-
wise, damamage may occur.
3. Insert the (2) NEW back canes into the wheelchair
4.
5. Securely tighten the back upholstery to the NEW back
Washers
Mounting
Screws
QUANTITY
1
2
CAUTION
frame and secure with the four (4) long mounting
screws through the threaded mounting holes of the
wheelchair frame and the back cane. Securely tighten.
Reinstall the four (4) locknuts. Securely tighten.
canes with the eighteen (18) mounting screws and
washers starting with the top hole of the back cane.
Back Cane Handles
Back
Upholstery
Wheelchair
Frame

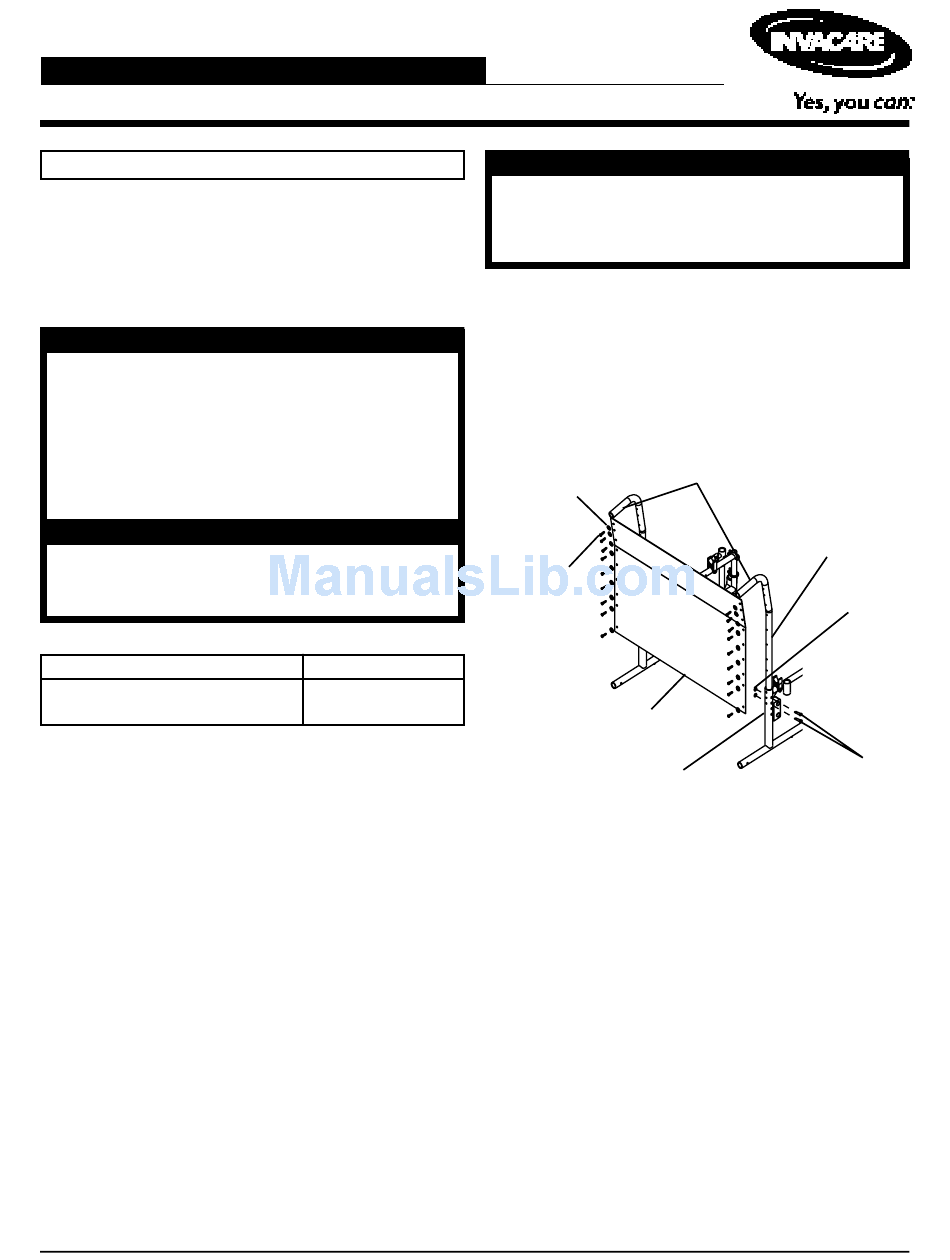

FIGURE 1 - INSTALLING THE BACK CANES
Back
Canes
Locknuts
Long Mounting
Screws
