Invacare RHA450-1 Assembly, Installation And Operating Instructions

Rubber Tips for Patient Lifts
Assembly, Installation and Operating Instructions
Model Nos. RHA450-1, RHL450-1, RPA450-1, RPA450-1E, RPL450-1, RPL450-1E,
RPA600-1, RPA600-1E, RPL600-1
SAVE THESE INSTRUCTIONS
NOTE: Check all parts for shipping damage. In case of damage, DO NOT use. Contact
Carrier/Invacare for further instructions.

Safety Summary

To ensure the safe and proper installation of the Rubber Tips, these instructions MUST be
followed:
WARNING
DO NOT install this equipment without first reading and understanding this
instruction sheet. If you are unable to understand the warnings, cautions and
instructions, contact a healthcare professional, dealer or technical personnel if
applicable, before attempting to install this equipment - otherwise, injury or
damage may occur.
Invacare products are specifically designed and manufactured for use in conjunction
with Invacare accessories. Accessories designed by other manufacturers have not
been tested by Invacare and are not recommended for use with Invacare products.
Installing Rubber Tips on the Hanger Bar
NOTE: For this procedure, refer to FIGURE 1.
1. Align the rubber tip with the end of the hanger bar hook.
2. Firmly press the rubber tip onto the hanger bar hook.
3. Ensure the rubber tip is pressed all the way onto the hanger bar hook by flexing it.
NOTE: A blunt tool may be used to press the rubber tip on.
4. Repeat STEPS 1-3 for the remaining hanger bar hooks.
DETAIL "A" - 450 LBS. LIFTS DETAIL "B" - 600 LBS. LIFTS
Hanger Bar
Hanger Bar
Hanger Bar
Hook
Rubber Tip
Rubber
Tip
Hanger Bar Hook

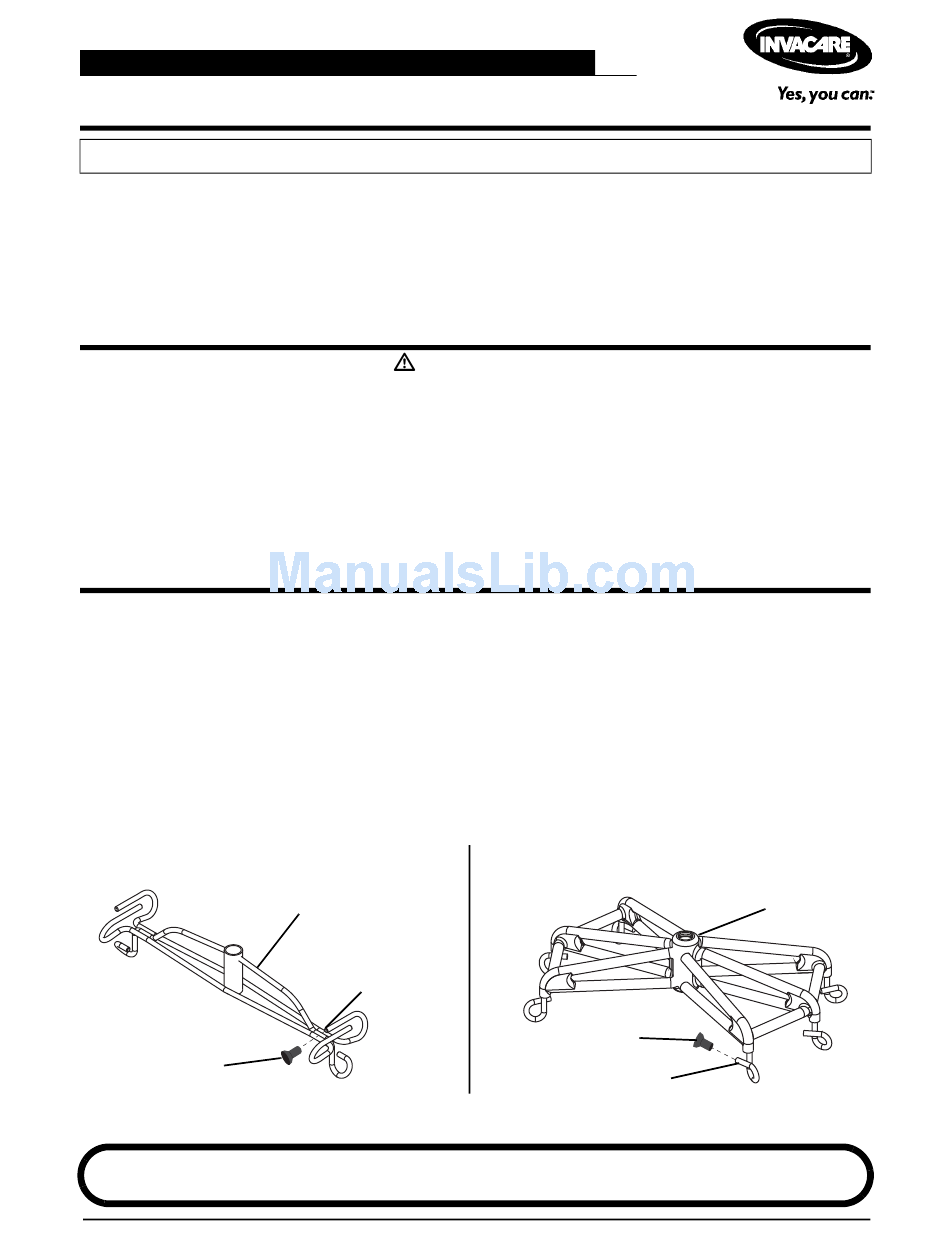

FIGURE 1 Installing Rubber Tips on the Hanger Bar
For more information regarding Invacare products, parts, and services,
please visit www.invacare.com
1
Part No 1134795 Rubber Tips for Patient Lifts
