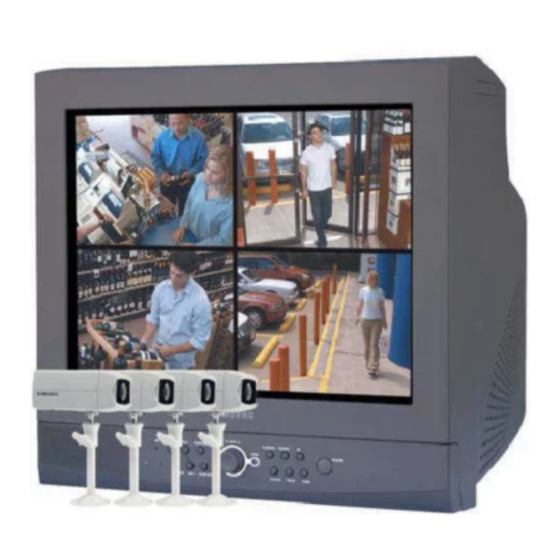

COLOR DUAL QUAD NETWORK
OBSERVATION SYSTEM
SSC21WEB
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Samsung SSC21WEB

Summary of Contents for Samsung SSC21WEB

  • Page 1 SSC21WEB-cover 2004.8.25 6:23 PM Page 2 COLOR DUAL QUAD NETWORK OBSERVATION SYSTEM SSC21WEB User Guide...

  • Page 2: Important Safety Instructions

    SSC21WEB-1 2004.8.25 5:38 PM Page 2 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 3 SSC21WEB-1 2004.8.25 5:38 PM Page 3 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

  • Page 4: Important Safeguards

    Item 5. 6. Attachments : Do not use attachments not recommended by Samsung as they may cause hazards. 7. Water and Moisture : Do not use this monitor near water for example...

  • Page 5: Ssc21Web-1 2004.8.25 5:38 Pm

    The monitor may fall causing serious injury to a child or adult and serious damage to the appliance. Use only with a cart, stand, tripod. bracket or table recommended by Samsung or sold with the monitor. Any mounting of the monitor should follow Samsung’s instructions and should use a mounting accessory recommended by Samsung.
  • Page 6 SSC21WEB-1 2004.8.25 5:38 PM Page 6 13. Lightning : For added protection for this monitor during a lightning storm or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the monitor due to lightning and power-line surges.

  • Page 7: Fcc & Ices Information

    Page 7 18. Replacement Parts : When replacement parts are required be sure the service technician has used replacement parts specified by Samsung or have the same characteristics as the original parts. Unauthorized substitutions may result in fire electric shock or other hazards.
  • Page 8 SSC21WEB-1 2004.8.25 5:38 PM Page 8 Information to user Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules.
  • Page 9 5:38 PM Page 9 The party responsible for product compliance: SAMSUNG ELECTRONICS CO., LTD. America QA Lab of Samsung 3351 Michelson Drive, Suite #290, Irvine, CA92612 USA IC Compliance Notice This Class (A) digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

  • Page 10: Table Of Contents

    SSC21WEB-1 2004.8.25 5:38 PM Page 10 Contents IMPORTANT SAFETY INSTRUCTIONS ......Eng-2 IMPORTANT SAFEGUARDS ..........Eng-4 FCC & ICES Information ............Eng-7 Chapter 1: System Components and Installation 1-1) Environmental requirements for installation and safety ...Eng-12 1-2) System Components............Eng-13 1-3) CAMERA composition and installation method ..Eng-14 1-4) CAMERA Composition and Connecting Method to MONITOR ..............Eng-18...
  • Page 11 3-4) DISPLAY MENU function setting ......Eng-27 3-5) TITLE MENU Function setting ........Eng-28 3-6) ALARM MENU Function setting.........Eng-29 3-7) NETWORK SETUP function and setting method ..Eng-30 3-8) SSC21WEB basic setting ..........Eng-38 3-8-1) “LIVE” MENU ............Eng-40 3-8-2) System Configuration Menu ........Eng-55 3-8-3) Network Configuration Menu.........Eng-63 3-8-4) Moniter Set up............Eng-72...

  • Page 12: Chapter 1: System Components And Installation

    SSC21WEB-1 2004.8.25 5:38 PM Page 12 Chapter 1: System Components and Installation 1-1) Environmental requirements for installation and safety This section describes the environmental requirements for safe installation and use. Install the product on a flat table or in a rack. It should be used only when level and should not be used when stood vertically or obliquely.

  • Page 13: 1-2) System Components

    SSC21WEB-1 2004.8.25 5:38 PM Page 13 1-2) System Components The system consists of the following: STANDARD VCR CABLE MONITOR CAMERA POWER CODE & SENSOR INSTALLATION MANUAL CAMERA CABLE CONNECTOR CAMERA BRACKET ITEM MODEL DESCRIPTION Q’ty NOTE MONITOR SSC21WEB 21" FLAT CRT MONITOR...

  • Page 14: 1-3) Camera Composition And Installation Method

    SSC21WEB-1 2004.8.25 5:38 PM Page 14 1-3) CAMERA composition and installation method 1) Standard Camera composition (SOD14C) PIN NUMBER SPEC SPEAKER(HOT) VIDEO_OUT SPEAKER(COLD) AUDIO_OUT/ALARM_OUT 12V DC a. Lens It has a focal length of 3.8mm and makes it possible for you to observe a relatively wide area.
  • Page 15 SSC21WEB-1 2004.8.25 5:38 PM Page 15 f. Speaker It outputs the sound signal which was transfered from the monitor. 2) INSTALLING STANDARD CAMERA (SOD14C) SOD14C s camera can be attached to the wall, ceiling or shelf using the camera mount bracket (SBR-110).
  • Page 16 SSC21WEB-1 2004.8.25 5:38 PM Page 16 3) CAMERA MOUNT BRACKET(SBR-110) & STANDARD CAMERA(SOD14C) (1) Overview CAMERA MOUNT BRACKET (SBR-110) is used to attach the camera to a wall, ceiling or shelf. (2) Installation Explains the installation of CAMERA MOUNT BRACKET as wall as the installation of the camera onto the CAMERA MOUNT BRACKET.
  • Page 17 SSC21WEB-1 2004.8.25 5:38 PM Page 17 • Loosen the handle by turning it in a counter clockwise direction and then adjust the camera position . Tighten the handle, turning it clockwise, and lock the camera in position. • Connect the camera cable to the camera.

  • Page 18: 1-4) Camera Composition And Connecting Method To Monitor

    SSC21WEB-1 2004.8.25 5:38 PM Page 18 1-4) CAMERA Composition and Connecting Method to MONITOR After positioning monitor and installing four cameras to a desired location, please connect CAMERA to MONITOR through CAMERA CABLE (MCB-60) as shown in the below figure. Please check whether or not it is properly connected.

  • Page 19: External Terminal Connecting Method For Camera And Monitor

    SSC21WEB-1 2004.8.25 5:38 PM Page 19 1-5) External terminal connecting method for CAMERA and MONITOR 1) External terminal connecting method for CAMERA • An additional PIR sensor or external sensor can also be connected. • The additional PIR sensor can be connected as shown in the above graphic.

  • Page 20: 1-6) Whole System Connection And Configuration

    SSC21WEB-1 2004.8.25 5:38 PM Page 20 f) Not Used g) Connect the A/O (HOT) terminal on the rear panel to the Alarm IN terminal of the VCR. h) Connect the A/O (COLD) terminal on the rear panel to the Ground terminal of the VCR.

  • Page 21: Chapter 2: Monitor Front Panel Key Function And

    SSC21WEB-1 2004.8.25 5:38 PM Page 21 Chapter 2: MONITOR FRONT PANEL KEY Function and Using Method Front Panel 2-1) TALK KEY TALK KEY allows users to transmit voice signal to intended camera by inputting voice with built-in MIC in the front of the monitor. For this function, select a target camera with the œ œ ENTER√ √...

  • Page 22: 2-4) Power Save- Key

    SSC21WEB-1 2004.8.25 5:38 PM Page 22 2-4) POWER SAVE- KEY Allows users to set POWER SAVE MODE of monitor. PICTURE screen is off when the POWER SAVE KEY is pressed, and the ON/OFF status of the monitor can be judged through LED ON/OFF status.

  • Page 23: 2-8) Pip- Key

    SSC21WEB-1 2004.8.25 5:38 PM Page 23 2-8) PIP- KEY Can be used to see the main screen while Single screen is displayed. The main screen can be changed and transfered to another channel while PIP is working. Please refer to "CHAPTER 4. DISPLAY MODE SETTING"...

  • Page 24: 2-13) Enter- Key

    SSC21WEB-1 2004.8.25 5:38 PM Page 24 2-13) ENTER- KEY As a multi functional œ œ ENTER√ √ key, it allows users to 1. enter SET UP MENU movement and SETTING MODE and set data, and 2. display single camera picture.

  • Page 25: Chapter 3: Setting Each Item Function At Setup Menu

    SSC21WEB-1 2004.8.25 5:38 PM Page 25 Chapter 3: Setting each item function at SETUP MENU Pressing the MENU BUTTON of the FRONT PANEL allows users to enter SETUP MENU and see the following menu OSD box. Setting method of each SETUP MENU function and operation is as follows.

  • Page 26: 3-2) Date/Time Menu Function Setting

    SSC21WEB-1 2004.8.25 5:38 PM Page 26 3-2) DATE/TIME MENU Function setting • Function: Sets the display date format and current time. Setting method: Move to #2. DATE/TIME MENU by using œ œ ENTER√ √ SWITCH at setup menu, • then press the ENTER SWITCH to display the OSD as shown in the below figure. (The figure shows the initial setting status.)

  • Page 27: 3-4) Display Menu Function Setting

    SSC21WEB-1 2004.8.25 5:38 PM Page 27 If the time is set for each camera channel by using œ œ ENTER√ √ SWITCH, each camera picture will be displayed for the set time and switched to the next picture automatically. 3-4) DISPLAY MENU function setting •...

  • Page 28: 3-5) Title Menu Function Setting

    SSC21WEB-1 2004.8.25 5:38 PM Page 28 3-5) TITLE MENU Function setting • Function: Set the title of each camera at your discretion. Setting method: Move to #5. TITLE MENU by using œ œ ENTER√ √ SWITCH at SETUP MENU, •...

  • Page 29: 3-6) Alarm Menu Function Setting

    SSC21WEB-1 2004.8.25 5:38 PM Page 29 3-6) ALARM MENU Function setting • Function: Allows users to set the ALARM MODE for each camera. Setting method: Move to #6. ALARM MENU by using œ œ ENTER√ √ SWITCH at SETUP •...
  • Page 30 - Constituted by Static IP on the TCP/IP network 1) Move to ‘STATIC...’ by using œ œ ENTER√ √ at NETWORK ACCESS, then press ENTER SWITCH to set STATIC... (STATIC : Select in case the network configuration of SSC21WEB is fixed IP (Public or Private IP) 06/01/03 13:14:00...
  • Page 31 However, if the IP Router is used in a network environment, input proper values with reference to the IP Router manual. If the SSC21WEB is using a Router, you may also connect remotely by typing In the WAN IP Address of the Router and the HTTP port assigned to the SSC21WEB.
  • Page 32 DHCP. In case of a configuration using DHCP, as the connection to SSC21WEB is made using domain names (EX : http://sff0000.websamsung.net) that are automatically registered in our DDNS server, IP address, Subnet Mask and Gateway that are in the network tab of Admin Mode are not necessarily to be inputted.
  • Page 33 On completion of setting to DHCP setup, the screen, [D] is displayed. If the network connection is cancelled or cut, [D] starts blinking. 6) You can view the video source of the SSC21WEB from a remote location PC. 7) Make sure the remote PC meets the minimum specification requirements described in chapters 1 and 2, and make sure that the PC is internet capable and set up to be able to browse the internet.
  • Page 34 Where ff0000 is the MAC address of your SSC21WEB in this example. If your SSC21WEB’s MAC address is ff0001, then type in ff0001 instead of ff0000 * Note : MAC Address. Locate the MAC Address of the SSC21WEB (each SSC21WEB has its own unique MAC address) It can be checked in ‘7.NETWORK SETUP”...
  • Page 35 ADSL User (PPPoE) - Constituted by IP on PPPoE (ADSL) SSC21WEB products can be used on the network using IP through PPPoE (ADSL). In case of a user (EX : ADSL user) who needs ID and password of the communica- tions that he subscribes for in case of internet connection, the configurations using PPPoE would be available.
  • Page 36 CAUTION In case of using ADSL (ISP-internet service provider, you must type correct User Name and Password by ISP to connect to SSC21WEB. If you type incorrect User Name or Password, you can not see the image transferred from SSC21WEB.
  • Page 37 6:30 PM Page 37 10) You can view the video source of the SSC21WEB from a remote location PC. 11) Make sure the remote PC meets the minimum specification requirements described in chapters 1 and 2, and make sure that the PC is internet capable and set up to able to browse the internet.

  • Page 38: 3-8) Ssc21Web Basic Setting

    Modem’s power ON. Since the connection would not be available, as IP is not received from ADSL commu- nications, please reboot by turning off the power of ADSL Modem and SSC21WEB for more than 5 seconds and then try to connect again.
  • Page 39 SSC21WEB-2 2004.8.25 6:30 PM Page 39 6) When you enter properly, a window appears as shown below. Eng-39...

  • Page 40: 3-8-1) "Live" Menu

    SSC21WEB-2 2004.8.25 6:30 PM Page 40 3-8-1) “LIVE” MENU - CAMERA SELECT Initial display mode of monitor if QUAD A. - Remote Viewer Function Buttons KEY Type Function Choose a camera by channel Ch 1 ~ Ch 8 CHANNEL NEXT...
  • Page 41 SSC21WEB-2 2004.8.25 6:30 PM Page 41 PLAY STOP LIVE MODE change ADMIN MODE change - SINGLE SCREEN DISPLAY In case users want to see the camera image at full mode, Select a target camera by turning camera select key. After that it’ selected camera image will be displayed at full screen.
  • Page 42 SSC21WEB-2 2004.8.25 6:30 PM Page 42 - Auto SEQUENCY DISPLAY MODE Pressing on the SEQUENCE KEY on the front allow to automatically switch to SIN- GLE MODE Full screen or QUAD MODE. If the DWELL TIME SETTING of SETUP MENU is set to 3 seconds and the SEUQENCY KEY is pressed at this time, the operation will be carried out as follows.
  • Page 43 “Server Name” is the name of your SSC21WEB you have given during setup of the SSC21WEB. If you have connected to and recorded from more than one SSC21WEB on the same PC, there will be more than one “Server Name” directory.
  • Page 44 SSC21WEB-2 2004.8.25 6:31 PM Page 44 2. PLAY When you select on a play key and press the Open button or double click the file, that file will play back on the Remote Viewer as a motion clip. When the file has finished playing or when you press the Stop button, the Remote Viewer will go back to Live screen.
  • Page 45 Page 45 3. PLAYER - Player installation/execution/deletion - Installation Player will be installed together when it is connected to SSC21WEB. - Execution (Follow the instruction to execute it separately.) Click Start Program —> SSC WEB Control —> Player. (Fig. 3-!) FIG.3 - Deletion Click Start —>...
  • Page 46 SSC21WEB-2 2004.8.25 6:31 PM Page 46 - Program screen configuration - How to play 1. Play - back File - Open... Selecting this, you can choose one between fjp and jpg on a window as shown below. Eng-46...
  • Page 47 SSC21WEB-2 2004.8.25 6:31 PM Page 47 Having chosen and opened a file, you will see a picture as shown below. Reverse playback Enlarge Playback Reduce Pause Original size Stop Partial storing(AVI support) To the back frame Save the present frame as a...
  • Page 48 SSC21WEB-2 2004.8.25 6:31 PM Page 48 Additional function (Tool) - Partial recording - Snap shot - Print - Partial Recording Partial recording is to separate a section from the file selected and played and save it as a form of AVI.
  • Page 49 SSC21WEB-2 2004.8.25 6:31 PM Page 49 And press ‘Save’. Then press ‘Record’ button and the picture below shows that it was completed. * Note : “AVI file frame speed setting” Frame control function of Dialogue box is to con- trol the number of frames of AVI files. Although the original file has been recorded at a speed of 10 frames per second, 30 frames or 3-second frames of the original file will be stored and become a “second in an AVI file if you set the number of...
  • Page 50 SSC21WEB-2 2004.8.25 6:31 PM Page 50 - Snap shot It is a function to save the present image as a form of a jpeg file. Select in the toolbar. The result will be as follows. Type in the file name and press ‘Save’ to store it as a jpeg file.
  • Page 51 SSC21WEB-2 2004.8.25 6:31 PM Page 51 Type in the phrase you added in ‘Description’. Then press the ‘OK’ button. Select Print and press ‘OK’. Eng-51...
  • Page 52 Page 52 Admin Menu It is an administrator’s menu to set the general items on SSC21WEB Server. To use this menu, you need the administrator’s ID and Password. On delivery, they are “root” (administrator’s ID) / “root” (administrator’s Password). The password can be changed on Admin Menu.
  • Page 53 Enter key to execute the Admin Menu as shown below. 4) Screen configuration ! : General menus of Admin Menu. The menus related to SSC21WEB Server are divided into System, Network, Monitor Setup, and Utilities in the main. Each of them has several sub menus.
  • Page 54 SSC21WEB-2 2004.8.25 6:31 PM Page 54 Admin Menu Structure • Category Main Menu System Configuration System Information Admin. Password Access Limitation User Registration Video Alarm Notification Network Configuration Network Configuration PPPoE (ADSL) Network Ports View Network Status Network Status Notification...

  • Page 55: 3-8-2) System Configuration Menu

    1. System Information In this menu, you can check the information on the system including the name of the SSC21WEB Server, its model name and the version of the model and change the name of the SSC21WEB Server. - Menu Configuration Server Name Type in the name of the SSC21WEB Server.
  • Page 56 After clicking the apply button, the new password will be applied. Then the connection of SSC21WEB Server, which was connected by using the existing password, to the Web Page will be cut off because the new password is now applied.
  • Page 57 SSC21WEB-2 2004.8.25 6:32 PM Page 57 3. Access Configuration This menu is to set the targets the SSC21WEB Server can have an access to. - Menu Configuration Access Limitation This is to limit the maximum frame speed when the Configuration users, who are registered in the system, join and see the images.
  • Page 58 SSC21WEB-2 2004.8.25 6:32 PM Page 58 4. User Registration This is a user control menu to register, change, or delete the users who can use the SSC21WEB Server. Eng-58...
  • Page 59 SSC21WEB-2 2004.8.25 6:32 PM Page 59 - Menu Configuration User ID Decide the ID of the person you want to register. Password Decide the password of the person you want to register. Confirm Type again the password of the person you want to register.

  • Page 60: Menu Configuration

    SSC21WEB-3 2004.8.25 6:41 PM Page 60 5. Video Configuration This is to set the data to be added in the video data and set an environment for each channel. - Menu Configuration Image Size This is to choose the size of the image of video data.
  • Page 61 Choose if you want to log in the SMTP of the ISP providing Login SSC21WEB with services. User ID ID for the SMTP server of the ISP that provides SSC21WEB with services. Password Password for the SMTP server of the ISP that provides SSC21WEB with services.
  • Page 62 SSC21WEB-3 2004.8.25 6:41 PM Page 62 EX) When user who has an e-mail address (SSC21WEB@yahoo.com) and password(123456) in YAHOO sets “Alarm Notification” in order to send a mail to test1@yahoo.com... After completing setting, click Apply button. If you click the back button, initial values are typed in all fields.

  • Page 63: 3-8-3) Network Configuration Menu

    6:41 PM Page 63 3-8-3) Network Configuration Menu. 1. Network Configuration On this menu, you can fix the general environment related to the network of the SSC21WEB Server and check the present status of it. - Menu Configuration Network Configuration Set “Static IP”...
  • Page 64 1-1. Network Configuration : Static IP / DHCP Client 1) If the of the SSC21WEB Server is Static : Choose “Static IP”. 2) Type in the IP Address you want to assign to the SSC21WEB Server, NetMask, GateWay, DNS1, and DNS2 addresses.
  • Page 65 Where ff0000 is the MAC address of your SSC21WEB in this example. If your SSC21WEB’s MAC address is ff0001, then type in ff0001 instead of f0000. At this time, you should add “s” in front of “mac address”. * Note : MAC Address.
  • Page 66 5) DNS (Domain Name Service) : Service to convert a Domain Name (ex. www.yahoo.com) into an IP address (ex. 216.109.127.28). The SSC21WEB Server uses this service to join the FTP server or other webs by the Domain Name. ADSL service supports only PPPoE (Point to Point over the Ethernet).
  • Page 67 The present SSC21WEB Server uses HTTP Port (80). - HTTP Port 1) This is the port the Client PC uses to connect to the web page of the SSC21WEB Server. Depending on the environment of the network, its value can be varied.
  • Page 68 The existing setting will be recalled if you press Reload button. 5. Network Status Notification When there is a change in the setting status of the SSC21WEB Server, it sends e-mails to the people who want it. Set Mail Notification to “Enable” to send the network setting status of the SSC21WEB Server to the specified e-mail addresses in the cases as follows.
  • Page 69 SSC21WEB-3 2004.8.25 6:44 PM Page 69 1) DHCP Client has been set in “Network Configuration” menu and an IP has been assigned from the actual DHCP Server to make communication possible. 2) PPP Client has been set in “PPPoE” menu and communication has become possible through the connection with ISP or PPP Server.
  • Page 70 6:44 PM Page 70 Choose to use the Mail Notification function or not. Choose “Enable” if you want to notify the network status of the SSC21WEB Server to the people who want through e-mails. Type the address of the SMTP Server.
  • Page 71 The domain name of this system is sff0000.websamsung.net CAUTION In case of a configuration using DHCP, as the connection to SSC21WEB is made using domain names (EX : http://sff0000.websamsung.net) that are automatically registered in our DDNS server, IP address, Subnet Mask and Gateway that are in the network tab of Admin Mode are not necessarily to be inputted.

  • Page 72: 3-8-4) Moniter Set Up

    SSC21WEB-3 2004.8.25 6:44 PM Page 72 3-8-4) Monitor Set up - Menu Configuration Please refer to the CHAPTER3 of the user’s manual. Date & Time Set the display data format and current time. View Event Log Display the time and data of camera event and type of event...

  • Page 73: 3-8-5) Utilities

    Save Configuration is required to save all of new config- uration in the system. Otherwise, no new configuration will be saved effective. Reboot System reboot is highly and strongly recommended to applied all new configurations properly to the SSC21WEB system System Update System Update Eng-73...
  • Page 74 1. Save Configuration This menu is to save all of the present setting in the Flash Memory. If you changed any of the setting for the SSC21WEB, it is recommended that you save it in the Flash Memory in this menu.
  • Page 75 SSC21WEB-3 2004.8.25 6:45 PM Page 75 2. Reboot This menu is for the rebooting of the system. It is better to reboot the system if you change the setting and update the flash. 1. Click “Reboot” in the utilities group.
  • Page 76 Page 76 4. System Update This menu is to update the inner programs and data of the SSC21WEB Server. They are recorded in the Flash Memory and composed of 4 parts called Kernel Image, Ram disk Image, System Image, and Web Image respectively.
  • Page 77 SSC21WEB-3 2004.8.25 6:46 PM Page 77 4-2. All (kernel, RAM disk, System, Web) Update When you click the start button located in the right side of “All (Kernel, RAM disk, System, Web) Update”, a window will appear to ask if you want to update.
  • Page 78 SSC21WEB-3 2004.8.25 6:46 PM Page 78 3. Click “Next” button to move to the next stage. Click “Skip” button to move to the next stage without Kernel Image’s update. Click “Next” button and a window will appear to check the name and size of the file.
  • Page 79 SSC21WEB-3 2004.8.25 6:47 PM Page 79 Click “Previous button to go back to the previous stage. Click the next button to execute update of the program and move to the next stage. Click the cancel button to stop the update process.
  • Page 80 SSC21WEB-3 2004.8.25 6:47 PM Page 80 5. Click “Next” button to move to the next stage. Click “Skip” button to move to the next stage without Kernel Image’s update. Click “Next” button and a window will appear to check the name and size of the file.
  • Page 81 SSC21WEB-3 2004.8.25 6:47 PM Page 81 6. In the next stage, a pop-up window will appear for the file searching process for the System Image Update. Choose “Fw_2pq.tar.gz” in the browse. 7. Click “Next” button to move to the next stage.
  • Page 82 SSC21WEB-3 2004.8.25 6:47 PM Page 82 Click “Skip” button to move to the next stage without kernel Image’s update. Click “Next” button and a window will appear to check the name and size of the file. Click “Previous” button to go back to the previous stage.
  • Page 83 SSC21WEB-3 2004.8.25 6:48 PM Page 83 9. Click “Next” button to move to the next stage. Click “Skip button to move to the next stage without Kernel Image’s update. Click “Next” button and a window will appear to check the name and size of the file.
  • Page 84 10. A window will appear for rebooting after completing all the update processes. Click the reboot button and press the confirmation button to reboot the system. 11. Close your web browser and wait for about a minute before you log in again Files relate to the update of SSC21WEB Kernel Image zimage RAM Disk Image rfs.gz...

  • Page 85: 3-9) View Event Log Menu Function And Setting Method

    SSC21WEB-3 2004.8.25 6:48 PM Page 85 3-9) VIEW EVENT LOG MENU function and setting method • Function: Displays the time and date of camera event and type of event. Setting method:Move to #7. VIEW EVENT LOG MENU by using œ œ ENTER√ √...

  • Page 86: Chapter 4: Display Mode Setting Method

    SSC21WEB-3 2004.8.25 6:48 PM Page 86 Chapter 4: DISPLAY MODE setting method 4-1) SINGLE SCREEN DISPLAY Initial display mode of monitor is QUAD A. In case users want to see the camera image at full mode, select a target camera by turning œ œ ENTER√ √ SWITCH left and right. After that, press the ENTER SWITCH and selected camera image will be displayed at full screen.

  • Page 87: 4-2) Quad Mode Display

    SSC21WEB-3 2004.8.25 6:48 PM Page 87 4-2) QUAD MODE DISPLAY Users can switch SINGLE DISPLAY MODE and SEQUENTIAL DISPLAY MODE to QUAD DISPLAY MODE, or QUAD A (QUAD B) to QUAD B (QUAD A), or PIP MODE to QUAD MODE, press the QUAD/PAGE KEY.

  • Page 88: 4-3) Auto Sequential Display Mode

    SSC21WEB-3 2004.8.25 6:48 PM Page 88 4-3) AUTO SEQUENTIAL DISPLAY MODE Pressing on the SEQUENCE KEY on the front allows screen to automatically switch to SINGLE MODE full screen or QUAD MODE. (‘no-signal’ channels will be skipped while single screen is auto-switching.) If the DWELL TIME SETTING of SETUP MENU is set to 3 seconds and the SEQUENCE KEY is pressed at this time, the operation will be carried out as follows.

  • Page 89: 4-4) Pip Mode Display

    SSC21WEB-3 2004.8.25 6:48 PM Page 89 4-4) PIP MODE DISPLAY Can be used to see PIP screen in Single screen mode. If you press the œ œ ENTER√ √ on PIP screen ,the main screen will change. If you press the œ...

  • Page 90: 4-5) Zoom Mode Display

    SSC21WEB-3 2004.8.25 6:48 PM Page 90 4-5) ZOOM MODE DISPLAY When users want to see zoomed image of a specific area of the display, press the ZOOM KEY in the front to display zoom selection area. Select zoom target area by turning œ...

  • Page 91: Chapter 5: Each Product Feature

    SSC21WEB-3 2004.8.25 6:48 PM Page 91 Chapter 5: Each product feature SOD14C : Standard Camera Model Name SOD14C NTSC STANDARD Broadcasting System 1/4 ”SUPER HAD IT CCD Imaging Device 510(H) x 492(V) Effective Pixels S Internal Synchronization H :330 TV Lines, V: 350 TV Lines Resolution VBS 1.0Vp-p(75ohms composite)
  • Page 92 SSC21WEB-3 2004.8.25 6:48 PM Page 92 OBSERVATION MONITOR (SSC21WEB) • CAMERA 8 Input: 1.0Vp-p(CVBS), 75Ω (vertical) Video Input • VCR 1 Input (to Video Out of VCR) : 1.0Vp-p, 75Ω (vertical) • BNC 4 Output: 1.0 Vp-p, 75Ω (vertical), S-Jack Type, CVBS Video Output •...

  • Page 93: Ssc21Web Network

    SSC21WEB-3 2004.8.25 6:48 PM Page 93 SSC21WEB NETWORK • 32bit Embedded Processor Hardware • Flash Memory : 8Mbytes • SDRAM : 32Mbytes • HTTP, TCP/IP, FTP, Telnet, ARP, PPP, Network Protocols DHCP, PPPoE • Compression Algorithm : Real-time M-JPEG Image Compression & Quality •...
  • Page 94 If the administrator setting and monitoring may not be available due to conflicting unregistered MAC addresses, please contact a local service center or head office. SSC21WEB enables users to see up to four viewers on one computer. The system may malfunction if over five viewers with low performance computers are connect- ed to the device.

  • Page 95: Appendix A) Software Up Data

    SSC21WEB-3 2004.8.25 6:48 PM Page 95 Appendix A) Software up data The initial screen of Samsung Electronics’ web site is as follows. 1. http://www.securitysamsung.com http://www.samsung.com/Products/CCTV.htm 2. Network Security in Homepage 3. Download the following items from SSC21WEB. ! Owner’s manual - SSC21WEB Owner’s manual...

  • Page 96: Appendix B) Ip Router Setup Guide

    Refer to Router User’s Manual for the detailed router setup. 1. Total System Configuration 2. Local System Configuration 3. Step-by-Step Examples : Linksys (Model : WRT54G) Netgear (Model : WGR614v4) D-Link (Model : DI-624+) SMC (Model : 7004VBR) CAUTION Other routers may be incompatible with SSC21WEB. Eng-96...

  • Page 97: Total System Configuration

    SSC21WEB-3 2004.8.25 6:48 PM Page 97 Total System Configuration Eng-97...

  • Page 98: Local System Configuration

    (such as a PC and a SSC21WEB or several SSC21WEB); you must use an IP Router (different from a simple Network Hub); you must set up the Router to work with the SSC21WEB;...
  • Page 99 SSC21WEB-3 2004.8.25 6:48 PM Page 99 Step-by-Step Setup Example of IP Router Linksys model WRT54G 1. Click the “Application and Gaming” tab. 2. Click “Port Range Forward”. 3. Port forwarding Row #1 : ! Application : Set this to “HTTP”...
  • Page 100 2. Click the WAN and LAN Port information. Write down the WAN Port IP Subnet Mask number and the LAN Port IP Address number. You will need it later when setting up the SSC21WEB. 3. Click “Advanced” and “Port Forwarding”...
  • Page 101 SSC21WEB-3 2004.8.25 6:48 PM Page 101 Step-by-Step Setup Example of IP Router D-Link model DI-624+ 1. Select “Virtual Server” and “Advanced” You need to create Virtual Servers (Port Forwarding) for HTTP, TCP and Upgrade separately. 2. Virtual Server (Port Forwarding) for HTTP ! Enabled : Leave this “checked”...
  • Page 102 SSC21WEB-3 2004.8.25 6:48 PM Page 102 Step-by-Step Setup Example of IP Router SMC model 7004VBR 1. Select “NAT” and “Virtual Server” You need to create Virtual Servers (Port Forwarding) for HTTP 2. Virtual Server (Port Forwarding) for HTTP : use the first empty ID row.
  • Page 103 SSC21WEB-cover 2004.8.25 6:23 PM Page 1 Samsung CCTV dba GVI 2801 Trade Center Drive. Suite 120 Carrollton, TX 75007 Part No.: A A 6 8 - 0 3 5 0 9 A Toll Free : 888-595-2288 Printed in Korea...
