Traynor Small Block 200H Manual page 4

2 3
Input
Passive Active
Mute
0 -6
1
On
SmallBlock
Off
200H
Power

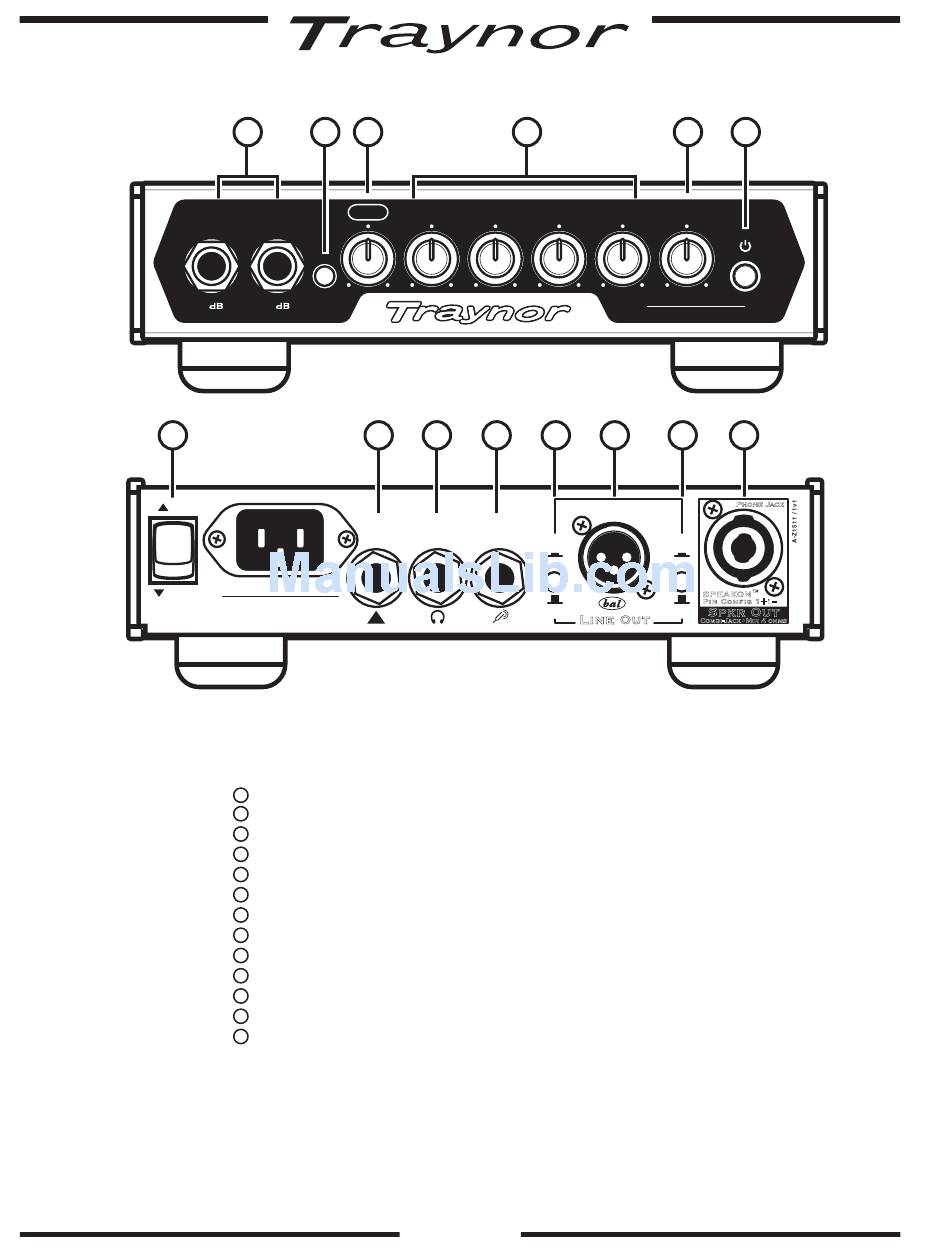

TRAYNOR SB200H
Status LED and Power Switch (switch located on rear)
1
0dB/Passive and -6dB/Active Inputs and Clip LED – ¼-inch phone jacks
2
Mute Control
3
Gain Control
4
Tone Controls – Bass, Low-Mid, Hi-Mid and Treble.
5
Low Expander Control
6
Aux Input – ¼-inch phone jack
7
Phones Jack – ¼-inch TRS jack
8
Tuner Out Jack – ¼-inch phone jack
9
Line Out EQ Switch
10
Line Out – XLR jack
11
GND Lift Switch
12
Speaker Out – ¼-inch/Speakon™ Combi-jack
13
4 5
Gain Bass Low-Mid
7 8 9
Aux Tuner
Phones
In Out
2
6
Low
Hi-Mid Treble
Expander
SmallBlock
200H
10 11 12
EQ GND
Post Lift
SPEAKON™
Pin Config 1+1–
Spkr Out
Pre GND
Line Out
Combi-Jack • Min 4 ohms
1
13
Phone Jack
