NOTE: Check all parts for shipping damage. In case of dam-
age, DO NOT use. Contact your Dealer for further instruction.

SAFETY SUMMARY

The following recommendations are made for the
safe replacement of the PENDANT/CABLE/CUR-
RENT LIMIT DEVICE:
GENERAL WARNINGS
DO NOT install or use this equipment without
first reading and understanding this instruc-
tion sheet. If you are unable to understand
the Warnings, Cautions or Instructions in this
Instruction Sheet and in the Owner's Operat-
ing and Maintenance Manual (Part No.
1081003) provided with the Bath Lift, contact
a healthcare professional, dealer or techni-
cal personnel before attempting to install this
kit, otherwise, injury or damage may occur.
This kit MUST be installed by an Invacare
Dealer or technical personnel.
INSTALLATION WARNINGS
After ANY adjustments, repair or service and
BEFORE use, make sure all attaching hard-
ware is tightened securely - otherwise injury
or damage may occur.
Use proper lifting techniques to avoid in-
jury. Keep back straight and bend knees
when lifting components of the bath lift.
REPLACING THE PENDANT/CABLE/
CURRENT LIMIT DEVICE
NOTE: Refer to the INSTALLATION WARNINGS in the
SAFETY SUMMARY of this instruction sheet.
Removing the Seat (FIGURE 1)
WARNING
To prevent pinching injury between seat
back and motor shroud when removing/
installing the seat, DO NOT grasp seat any-
where other than at the recess at the top
(DETAIL "C"), the opening at the bottom of
the seat or the lip at the top of the seat.
To prevent frame from tipping when remov-
ing seat, either suction the frame to the floor
or place one foot on the frame base when
removing/installing the seat.
CAUTION
The bath lift seat MUST be removed from the
top of the lifting cycle, otherwise, damage
to the unit may occur.
DO NOT grasp seat by side flaps, otherwise
damage to the bath lift or the bathtub may
occur.
1. Secure the frame to the floor with the suction cups or by
standing on the frame base during removal of the seat.
2. Press the UP button on the pendant to raise the
seat all the way up (DETAIL "A").
3. Grasp the handgrip on the battery pack and pull
upwards to remove it from the motor shroud as
shown in DETAIL "B".
4. Press and hold the spring loaded chair release
button to release the seat (DETAIL "C").
5. While holding the button with one hand, grasp the
seat bottom firmly with your other hand.
6. Slide the seat up until the slide block disengages from
the groove in the frame as shown in FIGURE 1.
7. Grasp the handgrip on the battery pack and push
downwards to install onto the motor shroud.
8. Press the DOWN button on the pendant to lower
the bath lift to the lowest position (DETAIL "A").
9. If necessary, remove the bath lift frame from the
bathtub. Refer to REMOVING THE FRAME FROM
THE BATHTUB in this instruction sheet.
DETAIL "A"
STEPS 1 AND 8
Down Button
Pendant
Up
Button
Seat
DETAIL "C"
Recess
STEP 4
Spring Loaded Chair Release Button
LIFT THE SEAT
é
Slide
Block
Seat Bottom

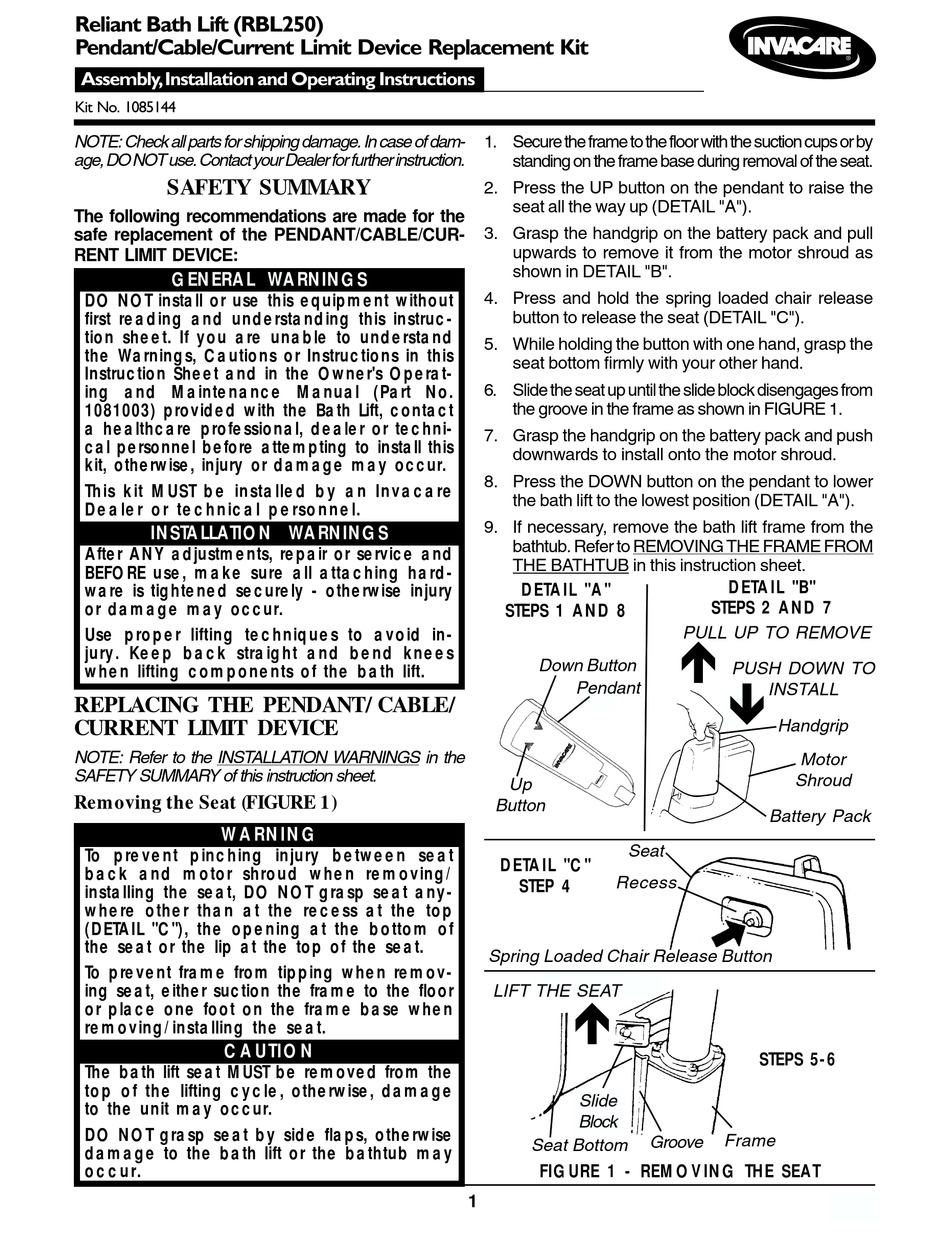

FIGURE 1 - REMOVING THE SEAT
1
DETAIL "B"
STEPS 2 AND 7
PULL UP TO REMOVE
é
PUSH DOWN TO
ê
INSTALL
Handgrip
Motor
Shroud
Battery Pack
STEPS 5-6
Frame
Groove
