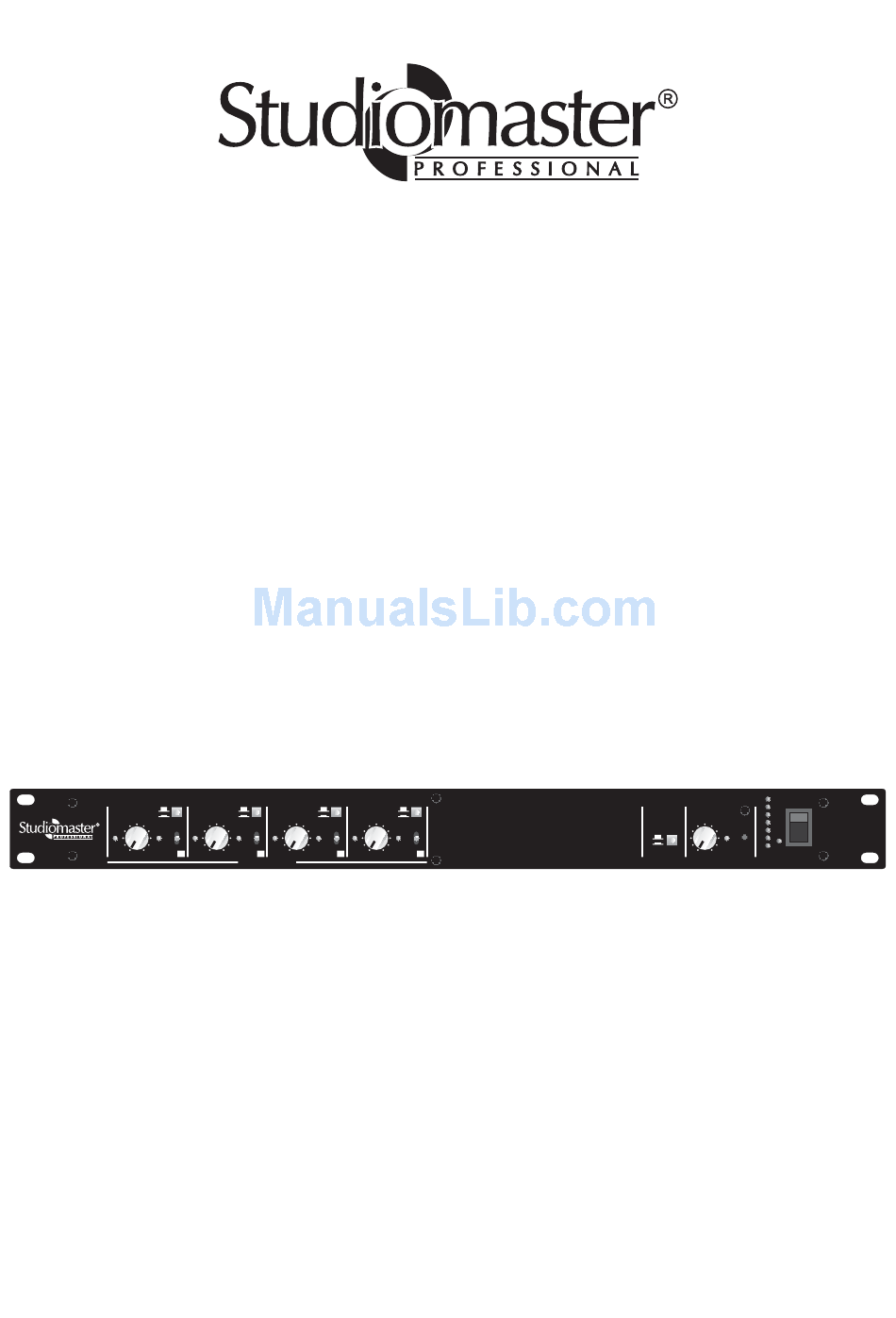

AUTOMATIC MICROPHONE MIXER Auto 4 Owner’s Manual FIXED MASTER PRIORITY BYPASS BYPASS BYPASS BYPASS Auto 4 NORM. NORM. NORM. NORM. LOUD LOUD LOUD LOUD SOFT SOFT SOFT SOFT SIGNAL ACTIVE SIGNAL ACTIVE SIGNAL ACTIVE SIGNAL ACTIVE LOCKOUT LEVEL CLIP CLIP...
Fixed Priority Mode Auto Mode - All Low-Priority Channels Auto Mode - Only one High-Priority Channel Auto Mode - All High-Priority Channels Cascaded Operation of Multiple Auto 4 Mixers Control of External Lamps or Cameras Control of Overhead Speakers Technical Specifications...
UNPACKING Remove the Auto 4 Mixer from the packing and make sure that you have a SMPS with mains cord and a connector for connection to the mixer. Also, make sure that you have a warranty card. Keep the packing in the eventuality that your Auto 4 Mixer needs to be moved or returned for service or repair.
INPUT CONNECTORS Each channel is provided with one XLR mic input and one ¼” TRS jack line input. Both mic and line sockets should not be used simultaneously. 3 pin XLR input For balanced, low impedance microphones, wire pin 1 to screen/ground/earth, pin 2 to positive/hot/+ve phase, and pin 3 to negative/cold/-ve phase.
FRONT PANEL CONTROLS AND INDICATORS FIXED MASTER PRIORITY BYPASS BYPASS BYPASS BYPASS Auto 4 NORM. NORM. NORM. NORM. LOUD LOUD LOUD LOUD SOFT SOFT SOFT SOFT SIGNAL ACTIVE SIGNAL ACTIVE SIGNAL ACTIVE SIGNAL ACTIVE LOCKOUT LEVEL CLIP CLIP CLIP CLIP...
At the end of the discussion, when all microphones are inactive, there is no output from the Auto 4 mixer, as if the entire system has “gone dead”. To prevent this, the Last Mic option can be enabled. In that case, the last microphone is not muted, giving the effect that the microphone is not being used but “not gone dead”.
RJ45 connectors for linking several Auto 4 mixers. Use a CAT 5 cable to connect Link Out of one Auto 4 mixer to Link In of the next mixer. When several Auto 4 mixers are linked in this way, output of the last mixer should be connected to the amplifier.
= Set VOX/ Bypass switch to Bypass = Connect output XLR to input of amplifier Switch on the power to the Auto 4 = Switch on the amplifier = Speak normally into the microphone = Set Channel Level until the Signal/Clip Led lights occasionally...
APPLICATION NOTE OPERATION OF SINGLE AUTO 4 MIXER Fixed Priority Mode Front Panel Settings Common Settings: Master Threshold: 9 o’clock position Master Level: Maximum Fixed Priority: on (pressed) MASTER MASTER FIXED PRIORITY THRESHOLD LEVEL Settings for each channel: Level: 9 o’clock position...
Auto Mode - All Low-Priority Channels Front Panel Settings Common Settings: Master Threshold: 9 o’clock position Master Level: Maximum Fixed Priority: Off (released) MASTER MASTER FIXED PRIORITY THRESHOLD LEVEL Settings for each channel: Level: 9 o’clock position (or, according to microphone requirement) Threshold: Normal NORM.
Auto Mode - Only one High-Priority Channel Front Panel Settings Common Settings: Master Threshold: 9 o’clock position Master Level: Maximum Fixed Priority: Off (released) MASTER MASTER FIXED PRIORITY THRESHOLD LEVEL Settings for each channel: Level: 9 o’clock position (or, according to microphone requirement) Threshold: Normal NORM.
Auto Mode - All High-Priority Channels Front Panel Settings Common Settings: Master Threshold: 9 o’clock position Master Level: Maximum Fixed Priority: Off (released) MASTER MASTER FIXED PRIORITY THRESHOLD LEVEL Settings for each channel: Level: 9 o’clock position (or, according to microphone requirement) Threshold: Normal NORM.
CASCADED OPERATION OF MULTIPLE AUTO 4 MIXERS To Amplifier Auto 4 Mixer 1 Auto 4 Mixer 2 Auto 4 Mixer 3 Channels 1 to 4 Channels 5 to 8 Channels 9 to 12 Link Out Link In Link Out Link In...
Whenever a mic is active, a corresponding control voltage is available from the rear panel. This can be used to switch on overhead lamp or camera as shown below: Ch. 1 Ch. 2 Ch. 3 Ch. 4 Inputs from microphones Amplifier Auto 4 Mixer Control Outputs Delay Delay Delay Delay circuit circuit...
TECHNICAL SPECIFICATIONS Input Impedance ≥ 4,000 ohms ≥ Line 30,000 ohms ≤ Output Impedance 200 ohms Maximum Input Level - 30 dBu Line + 20 dBu Maximum Output Level* Line +14 dBu ≥ 70 dB Maximum Gain Inactive Channel Attenuation 12dB or 20dB switch-selectable Frequency Response 60 Hz to 30 kHz at - 3dB points...
Page 16
PRODUCT OF AUDIOPLUS A1/A2, Giriraj Industrial Estate, Mahakali Caves Road, Andheri (East), Mumbai-400 093. India Tel.: +91-22-66916232 / 33, 30880743, 30880776, 26870268 Fax: 26871453 Email: ap@audioplus-india.com Studiomaster professional reserves the right to make modifications to its products without notice...
