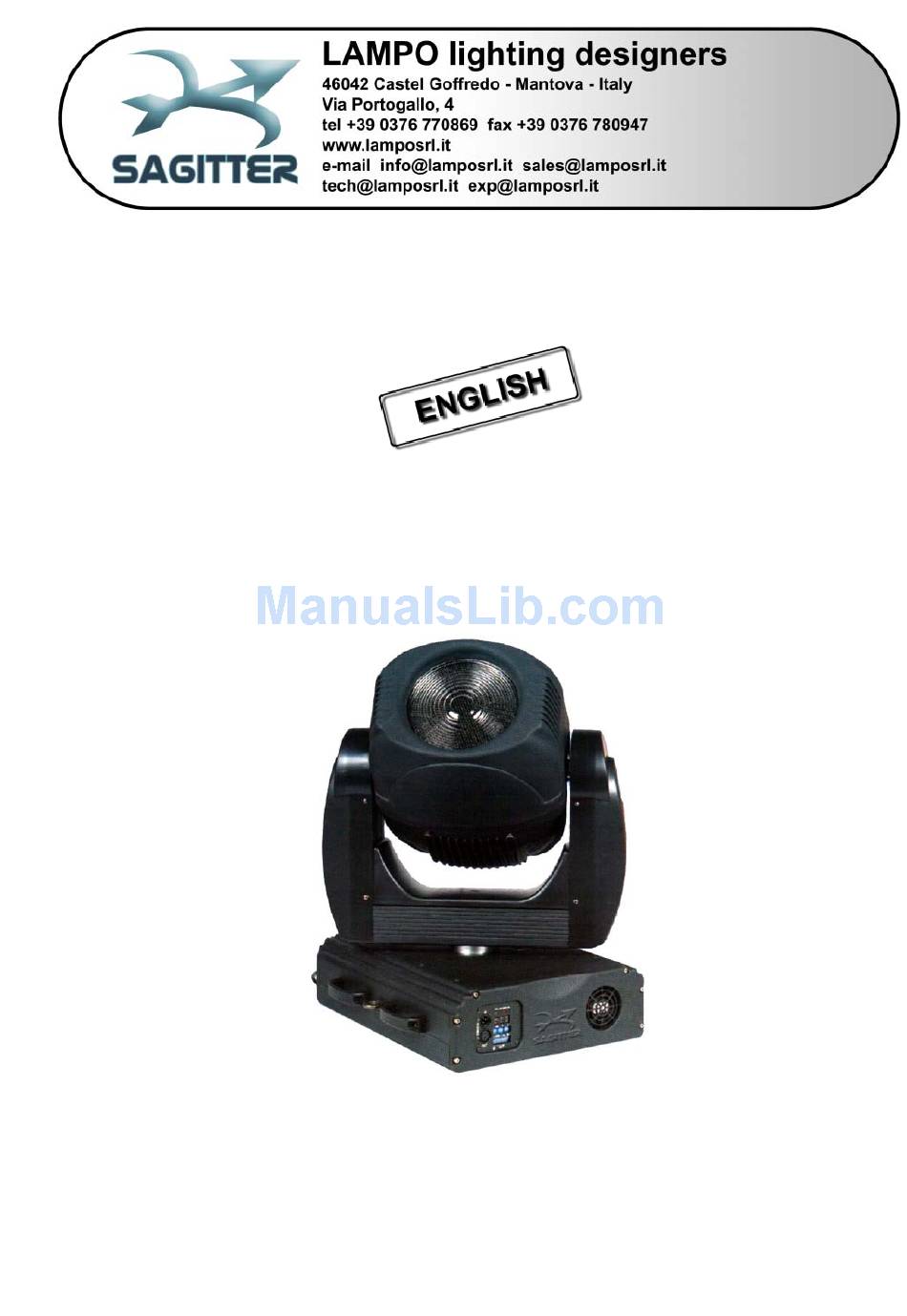

- Page 1 MOVING WASH 1200 (PF09014) Moving head projector USER’ S MANUAL release 1.0 This manual must be considered an integral part of the projector.
-
Page 2: Table Of Contents
BEFORE CONNECTING AND USING THE PROJECTOR, IT IS IMPORTANT TO READ CAREFULLY ALL THE INSTRUCTIONS IN THIS MANUAL. QUALIFIED PERSONNEL ONLY, IN COMPLIANCE WITH ALL THE SECURITY LAWS, CAN DO THE INSTALLATION, THE MAINTENANCE AND THE UTILISATION OF THIS PROJECTOR. BEFORE CONNECTING THE PROJECTOR, MAKE SURE THAT THE FREQUENCY AND THE VOLTAGE VALUES ARE SUITABLE AS SPECIFIED ON THE PROJECTOR. -
Page 3: General Description
GENERAL DESCRIPTION Technical Features and Dimensions Voltage rating 230 V Rated current 7,4 A Frequency 50 Hz Maximum surface temperature 70º C Distance from inflammable surfaces 2 mt Weight 52,5 Kg Protection rate IP20 HMI 1200/S short discharge lamp, socket SFc 10-4 CAUTION The projector cannot be mounted on inflammable surfaces. -
Page 4: Start-Up Procedures
START-UP PROCEDURES Positioning and Installation Follow these steps for opening the package and installing the projector on its working position: · Place the projector near the place it will be installed. · Open the package and remove anchoring elements and accessories. ·... -
Page 5: Projector Address
When in doubt, consult a qualified electrician. Be careful with your operations. With a high voltage you can suffer a dangerous electric shock when touching the wires! Inside the projector, the ignitor circuit have very high voltage, over 5Kv. The User must ensure that the power supply is provided with a highly sensitive differential circuit breaker 30m/A to protect the projector from indirect contacts, and that the grounding system PE is working properly. -
Page 6: Special Functions
SPECIAL FUNCTIONS Dip-switch Function – – – OFF = PAN/TILT 8/ bit resolution ON = PAN/TILT 16 bit fine resolution OFF = Standard configuration of PAN direction ON = Invert PAN direction OFF = Standard configuration of TILT direction ON = Invert TILT direction –... - Page 7 CHANNEL 1 = CYAN WHITE PROPORTIONAL 1 > 85 CYAN 86 > 100 PROPORTIONAL 101 > 254 WHITE = 255 CHANNEL 2 = MAGENTA WHITE PROPORTIONAL 1 > 85 MAGENTA 86 > 100 PROPORTIONAL 101 > 254 WHITE = 255 CHANNEL 3 = YELLOW WHITE PROPORTIONAL...
-
Page 8: Optical System
CHANNEL 8 = OVALIZER NO OVALIZER PROPORTIONAL, from 0° to 360° 1 > 254 360° OVALIZER = 255 CHANNEL 9 = ZOOM NARROW BEAM 0 > 63 19,3° LIGHT FROST 64 > 127 24,8° MEDIUM FROST 128 > 191 27° HEAVY FROST 192 >... -
Page 9: Maintenance
MAINTENANCE CAUTION Safety guards, lenses, and filters must be replaced if they are visibly damaged to the point that they become ineffective (for example, if they have deep slashes or cuts). The lamp must be replaced if damaged, cracked, or deformed by the heat. PLANNED MAINTENANCE at user’s charge and responsibility OPERATION... - Page 10 M4 - CLEANING ATTENTION Cleaning must be carried out when the projector is cool, disconnected from the power supply, with the general power switch turned off, and the ON/OFF switch on the rear panel switched OFF. Frequency It is recommended to clean the projector every two months to ensure efficiency and performances. If the projector is used in particularly smoky or dusty areas, clean the projector more frequently.
