Summary of Contents for Chauvet COLORado 2 Zoom IP
- Page 1 User Manual...
- Page 2 Copyright Notice CHAUVET® owns the content of this User Manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2013 CHAUVET®. All rights reserved.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Before You Begin ............................1 What Is Included ..............................1 Claims ....................................1 Manual Conventions ................................1 Symbols ....................................1 Product at a Glance ............................... 2 Safety Notes ................................2 Personal Safety ..................................2 Mounting and Rigging ................................ - Page 4 Table of Contents Dimmer Speed..................................14 Zoom Selection................................... 14 Zoom Reset ..................................14 Menu Map ................................15 Menu Map (Cont.) ..............................16 DMX Values ................................17 5. Technical Information ..........................19 Product Maintenance ............................19 Returns .................................19 Technical Specifications ............................20 Contact Us ................................21 -ii- COLORado™...
-
Page 5: Before You Begin
Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Manual Conventions Convention... -
Page 6: Product At A Glance
• In case of a serious operating problem, stop using this product immediately! In the unlikely event that your CHAUVET® product may require service, contact CHAUVET® Technical Support. LEDs gradually decline in brightness over time, mostly because of heat. Packaged in... -
Page 7: Introduction

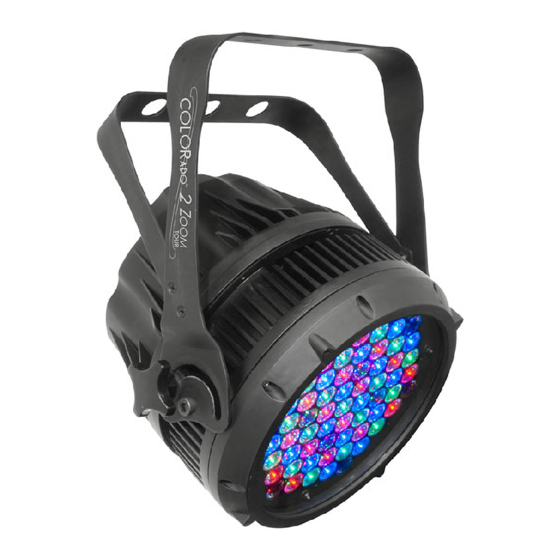

Introduction 2. Introduction The COLORado™ 2 Zoom IP is an RGBW LED wash product with color mixing and Description zoom control. This product consists of a single module that houses the internal power supply, the control panel, the LED drivers, the LED boards, and motorized moving lenses, as well as the power and signal connectors. -
Page 8: Overview
Introduction Overview Power In Power Out IP-Rated Cover Rear View (w/ IP cover) DMX In DMX Out Control Panel Rear View Safety Cable Loop Adjustment Knob Side View COLORado™ 2 Zoom IP User Manual Rev. 1... -
Page 9: Dimensions
Introduction Dimensions COLORado™ 2 Zoom IP User Manual Rev. 1... -
Page 10: Setup
The listed current rating indicates the maximum current draw during normal operation. For more information, you may download Sizing Circuit Breakers from the CHAUVET® website: www.chauvetpro.com. Always connect this product to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire. -
Page 11: Dmx Linking
If you are not familiar with or need more information about DMX standards, Master/Slave connectivity, or the DMX cables needed to link this product to a DMX controller, download Primer from CHAUVET® website: www.chauvetpro.com. COLORado™ 2 Zoom IP User Manual Rev. 1... -
Page 12: Mounting
The COLORado™ 2 Zoom IP consists of a double-yoke bracket and the body of the Rigging product CHAUVET® recommends using the following general guidelines when mounting this product. • When selecting an installation location, consider easy access to this product for operation, programming adjustments, and routine maintenance. -
Page 13: Operation
Operation 4. Operation Control Panel Button Function Description <MENU> Exits from the current menu or function <ENTER> Enables the currently displayed menu or sets the currently selected value in to the current function <UP> Navigates upward through the menu list and increases the numeric value when in a function <DOWN>... -
Page 14: Dmx Control
Operation In this mode, each product will respond to a unique starting address from the DMX DMX Control controller. All products with the same starting address will respond in unison. 1. Select a DMX personality as shown in DMX Personality. 2. -
Page 15: Auto Programs
Operation Auto Programs Auto programs allow for dynamic RGBW color mixing without a DMX controller. 1. Go to AUTO. 2. Select the desired auto (AT. 01~10) or custom program (PR. 01~10). You cannot edit any of the auto programs (AUTO 01~10). However, you can edit the custom programs (PR.01~10). -
Page 16: Dimmer Curves
• Green indicates that the upload process completed successfully. • Red indicates that the upload process failed due to an error. Recheck all cable connections and restart the process. If the issue persists, contact CHAUVET® Technical Support. DO NOT upload the data from a COLORado™ 2 Zoom IP to a different product. The other product may become inoperative. -
Page 17: Reset
Operation This setting allows you to reset the COLORado™ 2 Zoom IP to the default values, Reset including the custom programs. 1. Go to the SET main level. 2. Select REST. 3. When PASS shows, press <ENTER>. 4. Enter the master access password as described in Control Panel Lock. -
Page 18: Tour Notes
Operation TOUR Notes These notes clarify the way the TOUR DMX personality works. • Channel 1 controls the intensity of the currently projected color. Master Dimmer • When the slider is at the highest position (100%), the intensity of the output is at maximum. -
Page 19: Menu Map
Operation Menu Map Main Level Programming Levels Description Combine Red, Green, Blue, and White to make a 000~255 custom color STAT Selects the strobe frequency 00~20 (0~20 Hz) 000~255 Changes the beam angle 10 automatic programs AUTO 01~10 10 customizable programs DMX mode SLAV Master/Slave mode... -
Page 20: Menu Map (Cont.)
Operation Menu Map (Cont.) Main Level Programming Levels Description …. Uploads custom programs to other COLORado™ UPLd. (Enter Password) 2 Zoom IPs …. REST. Defaults product to factory settings (Enter Password) BLAC All LEDs turn off when DMX signal is lost DERR All LEDs stay on the last command used when SAVE... -
Page 21: Dmx Values
Operation DMX Values TOUR Channel Function Value Percent/Setting 000 255 0~100% Dimmer 0~100% 000 255 Step Time When CUS. 01-10 in CH. 8 is activated Green 0~100% 000 255 Step Time When CUS. 01-10 in CH. 8 is activated 000 ... - Page 22 Operation TOUR Channel Function Value Percent/Setting (cont.) 000 255 Only when CH. 8 is Auto 1~10 is activated Auto Speed 000 009 Preset dimmer speed from display menu 010 029 Linear dimmer 030 069 Nonlinear dimming curve 1 (fastest) Dimmer Speed 070 ...
-
Page 23: Technical Information
Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. CHAUVET® will refuse any product returned without an RMA number. -
Page 24: Technical Specifications
Technical Information Technical Specifications Dimensions and Length Width Height Weight Weight 9.3 in (237 mm) 11.9 in (302 mm) 12.2 in (311 mm) 18.5 lbs (8.39 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Electrical Power Supply Type Range Voltage Selection Switching (internal) -
Page 25: Contact Us
Technical Information World Headquarters United Kingdom and Ireland Contact Us CHAUVET® CHAUVET® Europe Ltd. General Information General Information Address: 5200 NW 108th Avenue Address: Unit 1C Sunrise, FL 33351 Brookhill Road Industrial Estate Voice: (954) 929-1115 Pinxton, Nottingham, UK Fax:...
