Summary of Contents for Chauvet Intimidator Spot LED 250

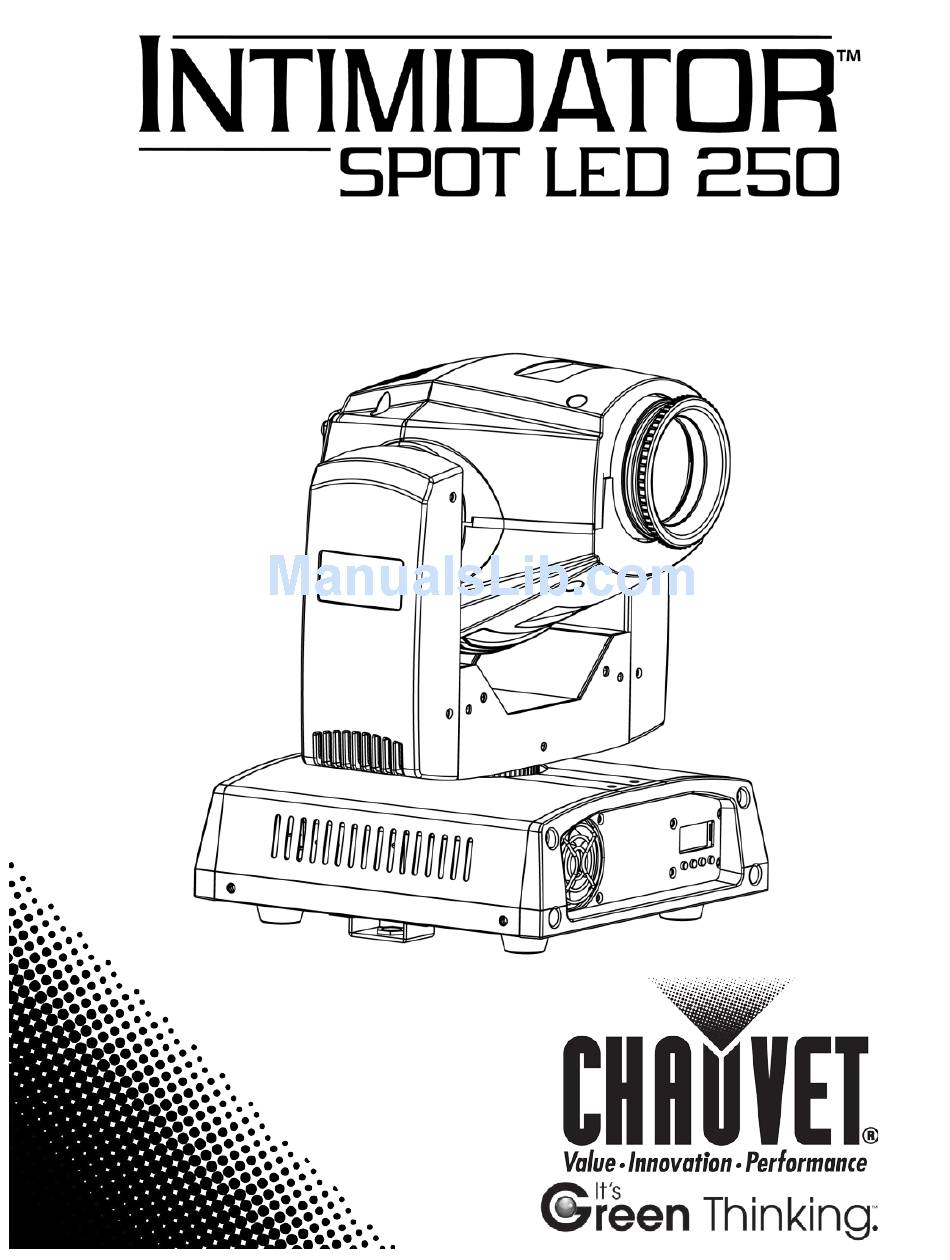

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin................3 What Is Included ................... 3 Unpacking Instructions .................. 3 Claims ........................3 Text Conventions ..................3 Symbols ......................3 Disclaimer ..................... 3 Product at a Glance ..................4 Safety Notes ....................4 2. Introduction..................5 Product Overview .................. -
Page 3: Before You Begin
The information and specifications contained in this document are subject to change without notice. CHAUVET® assumes no responsibility or liability for any errors or omissions. CHAUVET® reserves the right to revise this manual or create a new one to correct any errors or omissions. -
Page 4: Product At A Glance
Product at a Use on Dimmer Auto Programs Glance Outdoor Use Auto-ranging Power Supply Sound-Activated Replaceable Fuse User-Serviceable Master/Slave Safety Notes Please read the following Safety Notes carefully before working with the product. The Notes include important safety information about installation, usage, and maintenance. ·... -
Page 5: Introduction
2. I NTRODUCTION Product Overview Cooling Fan Control Panel and Button Menu Power In DMX Out Power Out DMX In Fuse Holder Intimidator™ Spot LED 250 User Manual Rev. 11 Page 5 of 20... -
Page 6: Product Dimensions
Product Dimensions Page 6 of 20 Intimidator™ Spot LED 250 User Manual Rev. 11... -
Page 7: Setup
The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET® distributor as power linking connectors and requirements may differ in your country or region. -
Page 8: Mounting
Mounting Before mounting the product, read and follow the Safety Notes. Orientation The Intimidator™ Spot LED 250 may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 9: Operation
4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Operation Button Function Press to find an operation mode or to back out of the current menu <MODE/ESC> option <UP> Press to scroll up the list of options or to find a higher value <DOWN>... -
Page 10: Configuration (Dmx)
Configuration Set the product in DMX mode to control with a DMX controller. Connect the product to a suitable power outlet. (DMX) Turn the product on. Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the product. -
Page 11: Dmx Channel Assignments And Values
DMX Channel Assignments and Values Channel Function Value Setting 13-CH 000 ó 255 0–540° 000 ó 255 Fine control of panning Fine Pan 000 ó 255 0–270° Tilt 000 ó 255 Fine control of tilting Fine Tilt 000 ó 255 Pan/Tilt speed (fast to slow) Speed 000 ó... -
Page 12: Dmx Channel Assignments And Values (Cont.)
DMX Channel Assignments and Values (cont.) 13-CH (cont.) Channel Function Value Setting 000 ó 119 Rotation effect with increasing speed 120 ó 231 Reverse rotation effect with increasing speed Gobo Rotation 232 ó 255 Gobo bounce 000 ó 015 Open Prism 016 ó... -
Page 13: 8-Ch
DMX Channel Assignments and Values (cont.) Channel Function Value Setting 8-CH 000 ó 255 0–540° 000 ó 255 0–270° Tilt 000 ó 006 White 007 ó 013 Yellow 014 ó 020 Pink 021 ó 027 Green 028 ó 034 Red 035 ó... -
Page 14: Configuration (Standalone)
Configuration Set the product in one of the standalone modes to control without a DMX controller. Connect the product to a suitable power outlet. (Standalone) Turn the product on. Never connect a product that is operating in any standalone mode (either Static, Automatic, or Sound) to a DMX string connected to a DMX controller. -
Page 15: Display Orientation
Display You are able to flip the LED display for easy readability in any mounting situation. To select your display angle: Orientation Press <MODE/ESC> repeatedly until diS shows on the display. Press <UP> or <DOWN> to select normal display mode (diS) or inverse display mode (r diS). -
Page 16: Password Channel
Password The Intimidator™ Spot LED 250 contains a password-protected mode which allows you to calibrate and troubleshoot any small issues you may have during normal operation. Channel In order to access this mode, do the following: Press and hold <MODE/ESC> for at least 10 seconds. Use the <UP>... -
Page 17: Changing Gobos
Changing To change the gobos in the Intimidator™ Spot LED 250, you do not need to remove the gobo wheel. Simply: Gobos Turn off and disconnect product from power. Place the product on a flat, level surface with the front facing up. Open the gobo-access plate by pushing it in the direction of the arrow. -
Page 18: Technical Information
5. T ECHNICAL NFORMATION Product Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life. To maintain optimum performance and Maintenance minimize wear, you should clean your lighting products at least twice a month. However, be aware that usage and environmental conditions may lead to more frequent cleaning. -
Page 19: Contact Us
· If you live in the UK or Ireland, contact CHAUVET® Europe Ltd. · If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your dealer. See the respective website for dealers’ contact details. Contact Us World Headquarters United Kingdom &... -
Page 20: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 9.3 in (236 mm) 8.1 in (205 mm) 11.3 in (287 mm) 12.6 lbs (5.7 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection Switching (internal)
