Summary of Contents for Chauvet Pocketspot LED

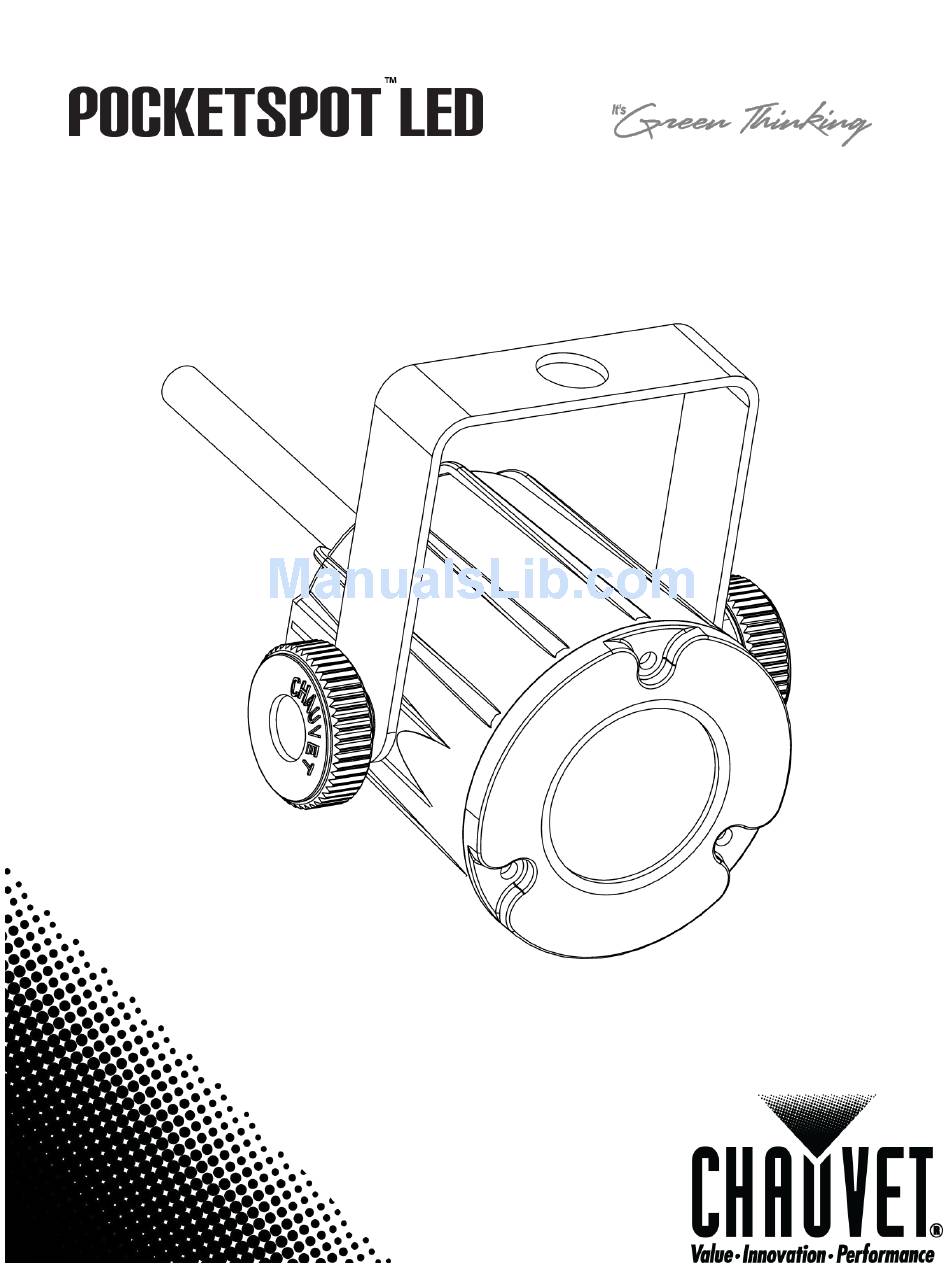

  • Page 1 User Manual...
  • Page 2: Table Of Contents

    CONTACT US ................................. 10 CHAUVET®, 2010, All Rights Reserved Information and specifications in this User Manual are subject to change without notice. CHAUVET® assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Rev01b...
  • Page 3: Before You Begin

    1. B EFORE EGIN What is included  1 x Pocketspot™ LED  1 x Warranty Card  1 x User Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling.
  • Page 4: Safety Instructions

    Safety Instructions Please read these instructions carefully. It includes important information about the installation, usage and maintenance of this product.  Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ...
  • Page 5: Introduction

    2. I NTRODUCTION Features  Extremely compact LED pinspot  Produces a soft-edge, narrow beam  High-power, 4 W (1 A) LED Product Overview Hole for clamp Power Input Bracket Adjustment Knob 2. Introduction 8/31/2010 4:34 PM...
  • Page 6: Setup

    3. S ETUP AC Power This fixture runs on 100~240 VAC, 50/60 Hz. Before powering on the unit, make sure the line voltage to which you are connecting it is within the range of accepted voltages. To determine the power requirements for a particular fixture, see the label affixed to the back plate of the fixture or refer to the fixture’s specifications chart.
  • Page 7: Mounting

    Mounting Orientation The Pocketspot™ LED may be mounted in any position provided there is adequate room for ventilation. Rigging Be sure that the structure can support the weight of the fixture. Please see the “Technical Specifications” section of this manual for a detailed weight listing. Mount the fixture securely. This may be done with a screw, nut and bolt, or a hanging clamp.
  • Page 8: Appendix

     Check for power on Mains. Device does not  Loose power cord  Check power cord power up If you still have a problem after trying the above solutions, please contact CHAUVET® Technical Support. 5. Appendix 8/31/2010 4:34 PM...
  • Page 9: General Maintenance

    Package must be clearly labeled with a Return Merchandize Authorization Number (RMA #). Products returned without the RMA # will be refused. Call CHAUVET and request an RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return.
  • Page 10: Technical Specifications

    THERMAL Maximum ambient temperature ..............104° F (40° C) INDOOR/OUTDOOR Rating ..................... For indoor use only ORDERING INFORMATION Pocketspot LED ..................POCKETSPOTLED WARRANTY INFORMATION Warranty ................... 1-year limited warranty ONTACT W o r l d W i d e General Information CHAUVET®...
