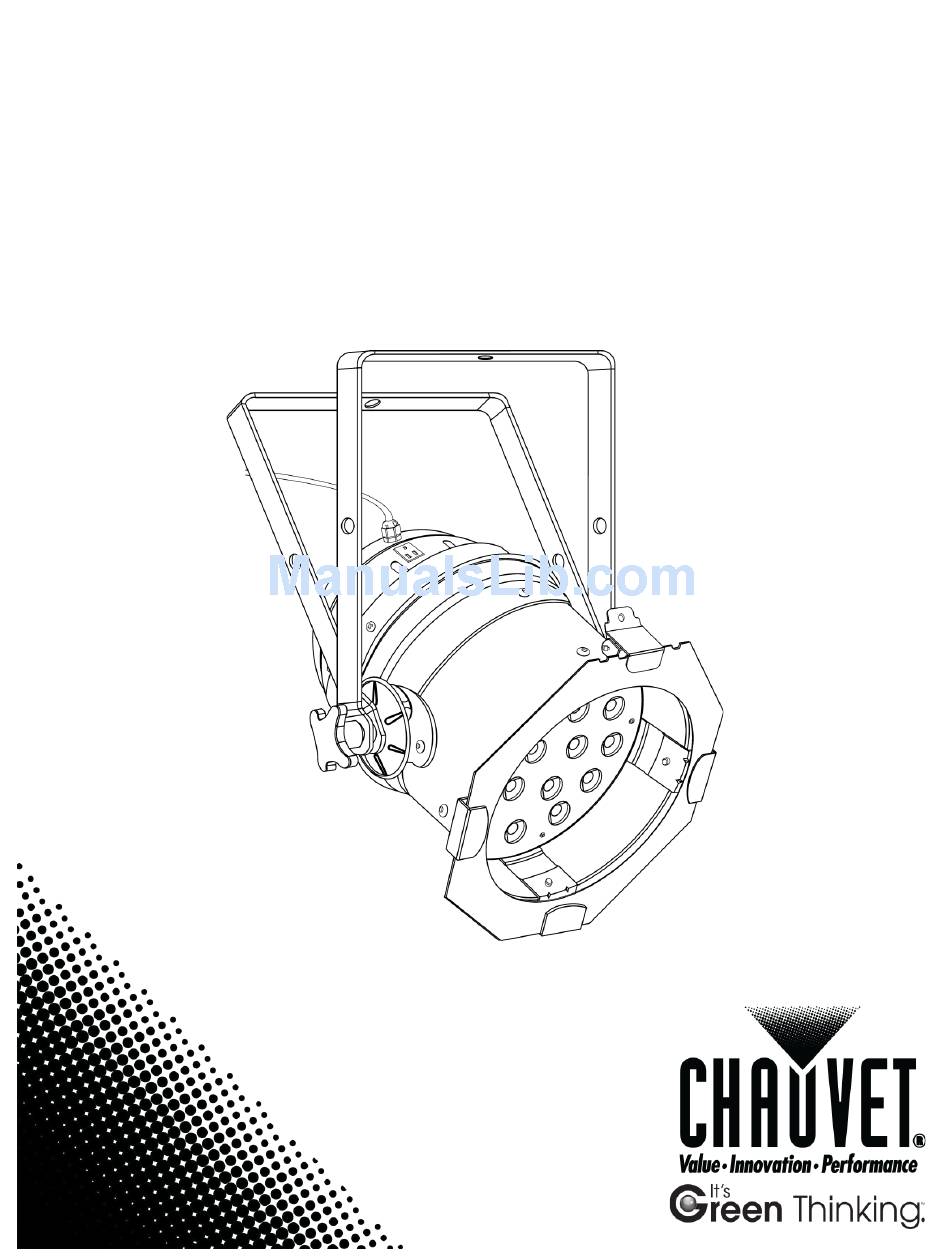

- Page 1 LED PAR 64 Tri-B User Manual...
-
Page 2: Table Of Contents
TECHNICAL SPECIFICATIONS ............................. 18 CONTACT US ................................... 19 CHAUVET®, 2013, All Rights Reserved Information and specifications in this User Manual are subject to change without notice. CHAUVET® assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. -
Page 3: Before You Begin
In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Manual Conventions CHAUVET® manuals use the following conventions to differentiate certain types of information from the regular text. EANING... -
Page 4: Safety Instructions
Safety Instructions Please read these instructions carefully. It includes important information about the installation, usage and maintenance of this product. · Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ·... -
Page 5: Introduction
2. I NTRODUCTION Product Overview Power Out Power In Fuseholder Control Panel (LED Display) Microphone Microphone Bracket Sensitivity Adjustment Adjustment Knob Knob Hanging Bracket DMX In Secondary Bracket DMX Out 2. Introduction 6/21/2013 4:33 PM... -
Page 6: Setup
This fixture contains power linking via the Edison outlet located in front of the power input cable. Please see the diagram below for further explanation. The maximum quantity of LED PAR 64 TRI-B fixtures that may be linked is 15. Additional power link out The power linking shown in this document is for the CHAUVET®... -
Page 7: Mounting
Mounting Orientation Mount the LED PAR 64 TRI-B in any position, provided there is adequate room for ventilation. Rigging Be sure that the structure can support the weight of the fixture. Please see the “Technical Specifications” section of this manual for a detailed weight listing. Mount the fixture securely. This may be done with a screw, nut and bolt, or a hanging clamp. -
Page 8: Operating Instructions
Configuring the Starting Address The LED PAR 64 TRI-B fixture uses up to seven DMX channels. The highest channel that the fixture may be set to in order to function properly is 506. Any address higher than this will prevent access to all of the channels. -
Page 9: Menu Map
Menu Map UNCTION UNCTION ELECTION ELECTION NSTRUCTION 7 Color Switching 7 Color fading Select between 2 switching and 2 fading built-in programs 3 Color Switching 3 Color Fading Use the Audio Sensitivity 7 Color sound active Adjustment Knob located Select between 2 sound active programs 3 Color sound active on the back of the fixture 3-CH... -
Page 10: Dmx Operation
DMX Operation This is the operating mode which will allow for control with an external DMX controller. You must set the starting address for this mode. If this is your first time using DMX, then it is recommended that you refer to the “DMX Primer” section in the “Appendix” of this manual. 3-CH 7-CH Press <MENU>... -
Page 11: Standalone
Standalone Automatic This fixture has preprogrammed chases. These are accessed via the control panel, and the speed may be adjusted for the chases. Please see the instructions below for further explanation. Press <MENU> until appears on the LED screen. Press <ENTER>. Using <UP>... -
Page 12: Dmx Channel Values
DMX Channel Values 7-Channel Personality HANNEL ALUE UNCTION 000 ó 255 Dimmer: 0%~100% Green 000 ó 255 Dimmer: 0%~100% Blue 000 ó 255 Dimmer: 0%~100% Color Macros 000 ó 015 No Function 016 ó 255 Color Macros Speed (CH.6 @ values 032~223) 000 ó... -
Page 13: Appendix
#32. · Keep DMX cables separated from · Interference from AC wires power cables or black lights. If you still have a problem after trying the above solutions, please contact CHAUVET® Technical Support. 5. Appendix 6/21/2013 4:33 PM... -
Page 14: Dmx Primer
Maximum recommended number of fixtures on a daisy chain: 32 Data Cabling To link fixtures together you must obtain data cables. You can purchase CHAUVET® certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference. -
Page 15: Cable Connectors
Cable Connectors Cabling must have a male XLR connector on one end and a female XLR connector on the other end. DMX connector configuration COMMON DMX + INPUT OUTPUT Terminator To avoid signal transmission problems and interference, it is always advisable to connect a DMX signal terminator. -
Page 16: 3-Pin To 5-Pin Conversion Chart
3-Pin to 5-Pin Conversion Chart If you use a controller with a 5-pin DMX output connector, you will need to use a 5-pin to 3-pin adapter. The chart below details a proper cable conversion: IN TO ONVERSION HART Conductor 3-Pin Female (Output) 5-Pin Male (Input) Ground/Shield Pin 1... -
Page 17: General Maintenance
Package must be clearly labeled with a Return Merchandize Authorization Number (RMA #). Products returned without the RMA # will be refused. Call CHAUVET® and request an RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 18: Technical Specifications
Data output ................locking 3-pin XLR male socket Data pin configuration..............pin 1 shield, pin 2 (-), pin 3 (+) Protocol ......................DMX-512 USITT DMX Channels (user-configurable)..................3, 7 ORDERING INFORMATION LED PAR 64 TRI-B (BLACK CASE) ............... LEDPAR64TRIB WARRANTY INFORMATION Warranty....................2-year limited warranty... -
Page 19: Contact Us
ONTACT Wor l d Wi d e General Information CHAUVET® 5200 NW 108 Sunrise, FL 33351 voice: 954.557.4455 fax: 954.929.5560 toll free: 800.762.1084 Technical Support CHAUVET® 5200 NW 108 Sunrise, FL 33351 954.577.4455 (Press 4) voice: 954.929.5560 (Attention: Service) fax: World Wide Web www.chauvetlighting.com...
