Module Replacement Parts Diagram - Metro DataVac C199 Series User Manual

REPLACEMENT PARTS LIST
Item No. Part No.
1 RPC13-017
2 RPC13-083
3 RPC06-313
4 RPHM20-PAN
5 RPC13-127
6 RPC13-129
7 RPC13-105
8 RPHM20-2103
9 RPC13-114
9 RPC13-093
10 RPC13-064
11 RPC13-181
12 RPC13-096
13 RPC13-012
14 RPF02-042
15 RPC11-191
16 RPC13-085
17 RPC07-044
18 RPC06-222
19 RPC13-027
20 RPC13-099
21 RPC13-098
22 RPC13-183

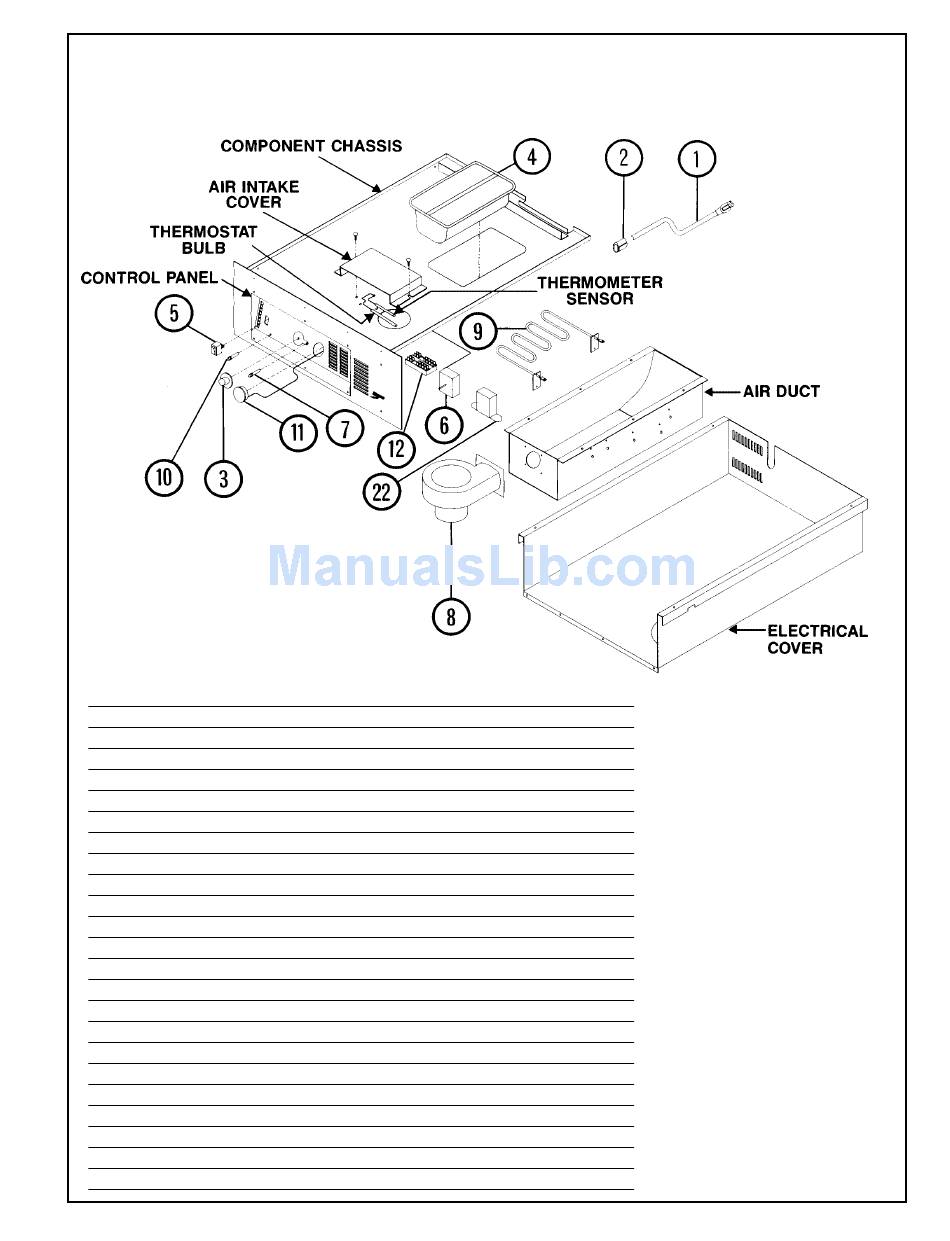

Holding Module Replacement Parts Diagram
Description
Power Cord — 15 AMP (HM15LW only)
Strain Relief — 15 AMP (HM15LW only)
Thermostat Knob
Water Pan
Power Switch
Temperature Thermostat
Yellow Indicator Light
Circulating Blower
Heat Element — Units with 15 Amp Plug
Heat Element — Units with 20 Amp Plug
Red Indicator Light
Thermometer
Terminal Block — Control Panel
Ring Terminal
Push Nut — Indicator Lights
Blower Collar
Wire Nuts — 12 GA
Grommet — Thermometer Wire
Thermostat/Thermometer Bulb Clamp
1
/ " Spade Terminals
4
Power Cord — 20 AMP
Strain Relief — 20 AMP
Thermometer Transformer
11
