Pride Mobility Jazzy 1103 Owner's Manual

Hide thumbs Also See for Jazzy 1103:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Owner's Manual
21 Healey Road
Dandenong, 3175
ACN # 088 609 661
Victoria, Australia
www.pridemobility.com

Advertisement

Table of Contents
loading

Related Manuals for Pride Mobility Jazzy 1103

Summary of Contents for Pride Mobility Jazzy 1103

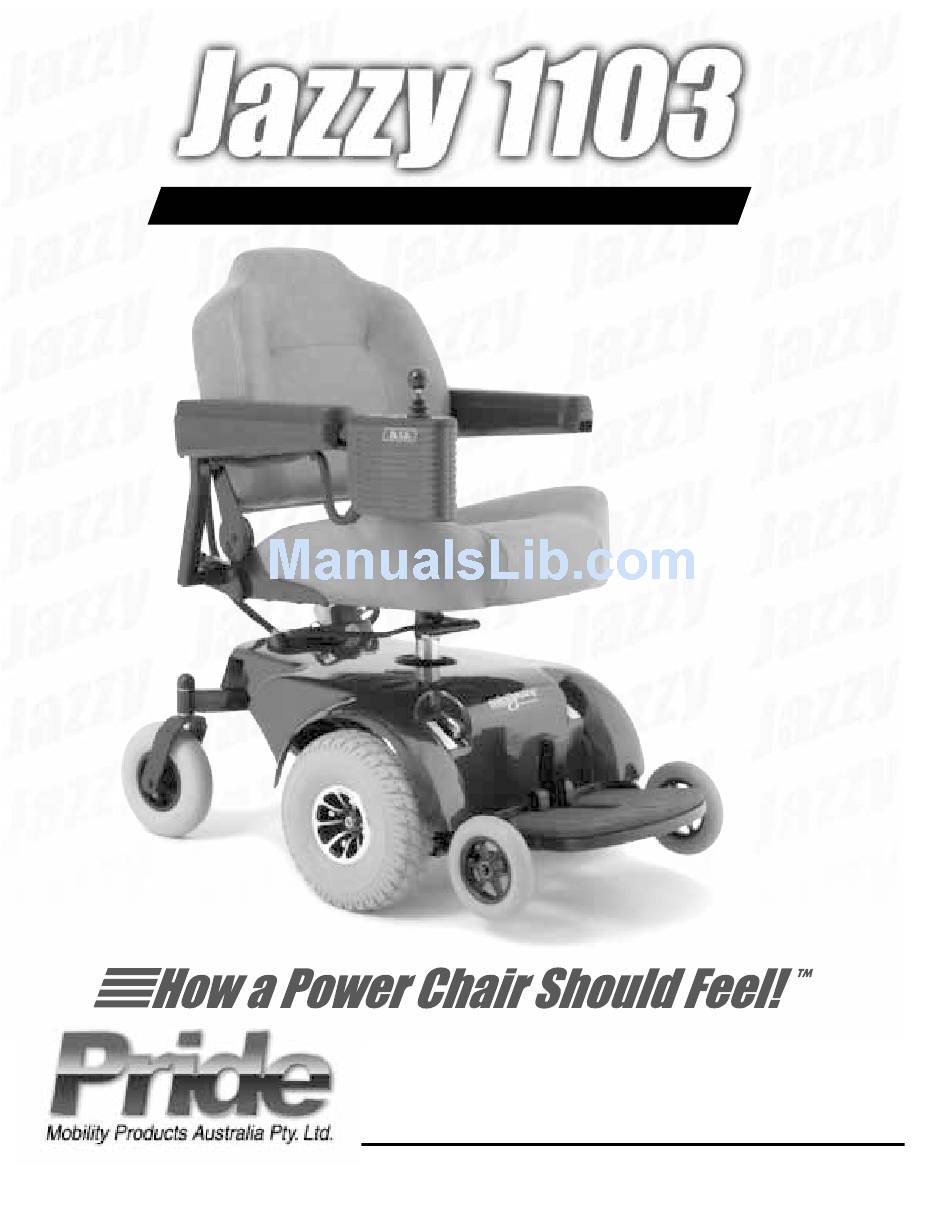

  • Page 1 Owner’s Manual 21 Healey Road Dandenong, 3175 ACN # 088 609 661 Victoria, Australia www.pridemobility.com...
  • Page 2 ..WARNING! Failure to heed the warnings in this owner’s manual may result in personal injury. CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to your power chair. www.pridemobility.com AUS Jazzy 1103 Rev E/Sep02...

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION ......................... 4 SAFETY ............................6 III. THE JAZZY 1103 ........................8 IV. BATTERIES AND CHARGING .................... 12 OPERATION ..........................15 VI. COMFORT ADJUSTMENTS....................21 VII. DISASSEMBLY ......................... 24 VIII. CARE AND MAINTENANCE ....................25 IX.

  • Page 4: Introduction

    I N T R O D U C T I O N Welcome to Pride Mobility Products Australia Pty. Ltd. (Pride). Congratulations on the purchase of your new Jazzy power chair. The Jazzy 1103 design combines the most advanced state-of-the-art components with modern, attractive styling.
  • Page 5 Purchase Date:________________________________________________________________________ NOTE: If you ever lose or misplace your warranty card or your copy of this manual, call or write to us and we will be glad to send you a new one immediately. AUS Jazzy 1103 Rev E/Sep02 www.pridemobility.com...

  • Page 6: Safety

    TRANSFERS Transferring onto and off of your Jazzy 1103 requires a good sense of balance. Be sure to have an attendant or health care professional present while learning to properly transfer yourself. To eliminate the possibility of injury, we ask that you verify the following before attempting a transfer: 1.

  • Page 7: Maximum Recommended Incline

    (e.g., areas covered with snow, ice, wet leaves, or cut grass). When moving down an incline, do so slowly and in the forward direction only. If your Jazzy 1103 starts to move faster than you anticipated, allow the unit to come to a complete stop by releasing the joystick. Then push the joystick forward slightly and continue traveling down the incline.

  • Page 8: The Jazzy 1103

    See figures 1 and 2. SEATBACK ARMRESTS JOYSTICK SEAT ASSEMBLY CONTROLLER SEAT BASE BODY SHROUD FREEWHEEL LEVERS POWER BASE ASSEMBLY FOOTREST ANTI-TIP WHEELS REAR CASTER WHEEL DRIVE WHEEL Figure 1. The Jazzy 1103 www.pridemobility.com AUS Jazzy 1103 Rev E/Sep02...
  • Page 9 50-amp DL-50 Controller 50-amp VSI Controller Weight Capacity: 113 kg Component Weights: Base: 35 kg Seat: 15 kg Batteries: 11 kg each Warranty: Lifetime limited warranty on frame 2-year electronics warranty 18 months on drive motors AUS Jazzy 1103 Rev E/Sep02 www.pridemobility.com...
  • Page 10 J A Z Z Y 1 1 0 3 MOTOR/BRAKE ASSEMBLY BATTERIES SEAT POST FREEWHEEL LEVERS (DISENGAGED POSITION) CONNECTOR HOUSING MOTOR/BRAKE ASSEMBLY Figure 2. Jazzy 1103 Power Base (Shroud Removed) JOYSTICK CHARGER POWER CONTROLLER CORD OUTLET CONNECTORS CHARGER AMMETER MAIN CIRCUIT BREAKER (RESET BUTTON)
  • Page 11 2. Turn them outward to engage the drive motors. 3. Turn them inward to disengage the drive motors. If the lever is difficult to move in either direction, slightly rock the Jazzy 1103 back and forth. The lever should then move to the desired position.

  • Page 12: Batteries And Charging

    2. Run your Jazzy 1103 about the house. Move slowly at first and don’t stray too far until you become accustomed to the controls and break in the batteries. 3. Give the batteries another full charge of 8 to 14 hours and run the Jazzy 1103 again. The batteries should now perform at over 90% of their potential.

  • Page 13: Daily Use

    Daily Use If you use your Jazzy 1103 on a daily basis, charge the batteries as soon as you are finished using it for the day. Your Jazzy 1103 will be ready each morning to give you a full day’s service. We recommend that you charge the batteries 8 to 14 hours after daily use.
  • Page 14 NOTE: If you are storing a Jazzy 1103 for an extended period of time, you may wish to block the unit up off the ground with several boards under the frame. This will keep the tyres off the ground and prevent the possibility of flat spots developing.

  • Page 15: Operation

    2. Push the joystick in the direction you wish to move. The farther you push the joystick from the neutral (center) position, the faster the Jazzy 1103 moves (see figure 4). BATTERY DYNAMIC DL CONTROLLER CONDITION METER The Dynamic DL controller is an integral controller.
  • Page 16 “•” means all 6 LED’s flash on for a period of 0,2 seconds and off for 0,8 seconds. “—” means all 6 LED’s are off for a period of two seconds before flashing sequence repeats. If you cannot resolve your problem, see an authorised Pride provider. www.pridemobility.com AUS Jazzy 1103 Rev E/Sep02...
  • Page 17 Unless the joystick is damaged, this action should stop your power chair. Keypad The keypad is located in front of the joystick. It contains keys necessary to operate your Jazzy. See figure 5b. AUS Jazzy 1103 Rev E/Sep02 www.pridemobility.com...
  • Page 18 The speed/profile setting is displayed on the maximum speed/profile indicator. If your power chair was programmed with a drive profile, contact your authorised Pride provider for more information. www.pridemobility.com AUS Jazzy 1103 Rev E/Sep02...
  • Page 19 This reduces your power chair’s “power,” which could also reduce your power chair’s speed, and allows the electrical components and motors to cool down. When the temperature returns to a safe level, your power chair resumes its normal operation. AUS Jazzy 1103 Rev E/Sep02 www.pridemobility.com...
  • Page 20 The parking brakes have a bad connection. Check the parking brake and motor connections. Make sure the controller connections are secure. An excessive voltage has been applied to the controller. This is usually caused by a poor battery connection. Check the battery connections. www.pridemobility.com AUS Jazzy 1103 Rev E/Sep02...

  • Page 21: Comfort Adjustments

    There are some adjustments PEDESTAL you can make to increase your comfort, such as seat height and armrest angle. If your Jazzy 1103 was configured at your authorised SEAT Pride provider or service center, please consult your health care...
  • Page 22 1. Turn the setscrew clockwise to raise the front of the footrest. Figure 11. Footrest Adjustment 2. Turn the setscrew counter clockwise to lower the front of the footrest. FOOTREST ANGLE ADJUSTMENT Figure 12. Footrest Adjustment www.pridemobility.com AUS Jazzy 1103 Rev E/Sep02...
  • Page 23 The anti-tip wheels are preset at the factory to a height of 1,25 cm off the ground. This is the ideal setting for most Jazzy 1103 users.

  • Page 24: Disassembly

    To remove the body shroud: 1. Turn the power off. 2. Make sure the Jazzy’s motor is disengaged. See III. “The Jazzy 1103.” 3. Unplug the controller wiring harness. 4. Remove the seat.

  • Page 25: Care And Maintenance

    1. Dry your Jazzy 1103 as much as possible with a dry towel. 2. Allow your Jazzy 1103 to sit in a warm, dry place for 24 hours to allow unseen water to evaporate. 3. Perform all safety and operational tests before using your Jazzy again.
  • Page 26 Your power chair should be stored in a dry place free from temperature extremes. When storing, disconnect the batteries from the Jazzy. See V. “Operation” for complete instructions. If you fail to store the unit under the above conditions, the frame can rust and the electronics can be damaged. www.pridemobility.com AUS Jazzy 1103 Rev E/Sep02...

  • Page 27: Cleaning Instructions

    Never hose off your Jazzy 1103 or place it in direct contact with water. n Your Jazzy 1103 has a clear-coated ABS plastic body shroud that allows it to be easily wiped clean with a damp cloth. Never use any chemicals to clean a vinyl seat, as they may cause the seat to become slippery or dry out and crack.
  • Page 28 AUS Jazzy 1103 Rev E/Sep02...

  • Page 29: Options And Accessories

    To use the swivel feature, locate the swivel lever under the seat. It is located on the opposite side of the joystick. Push down on the lever and the seat can be swiveled 90 degrees. AUS Jazzy 1103 Rev E/Sep02 www.pridemobility.com...

  • Page 30: Positioning Belt

    WARNING! The positioning belt is not designed for use as a seat belt in a motor vehicle. Nor is your Jazzy 1103 suitable for use as a seat in any vehicle. Anyone traveling in a vehicle should be properly belted into seats approved by the vehicle Figure 18.
  • Page 31 Swing-away Leg Rests provide the Jazzy with the ability to swing each leg rest to the side for an easier transfer. SPECIALTY SEATING SYSTEMS Your Jazzy may be equipped with specialty seating or the Versa Seat. Please refer to the instructions that come with this seat. AUS Jazzy 1103 Rev E/Sep02 www.pridemobility.com...

  • Page 32: Warranty

    SERVICE CHECKS AND WARRANTY SERVICE Warranty service can be performed by your authorised Pride provider. Please contact your authorised Pride provider for advice on the current cost affecting the service visit. www.pridemobility.com AUS Jazzy 1103 Rev E/Sep02...
  • Page 33 N O T E S AUS Jazzy 1103 Rev E/Sep02 www.pridemobility.com...
