Pride Mobility JAZZY 1101 Technical Instructions

Instructions For Retrofitting The Dual Lever Freewheel System
(FOR THE JAZZY 1101/1121)

Kit Contents:

REF # QTY PART #
A1 1 DWR1101D030
A2 1 DWR1101D031
A3 1 DWR1133C014
A4 1 DWR1133C015
A5 1 DWR1114B014
A6 1 SCRSETS1023
A7 1 SPGRAW1046
A8 2 WASTND1066
A9 2 PINSOTR1000
A10 1 SCRHHCS1184
A11 1 NUTJAM1015
A12 2 WASNYLN1046
A13 1 WASSAE1006
*A6-A13 show quantities for hardware used in right side assembly only.
If you require any assistance with these instructions, please call Pride Technical Service
at 1-877-800-1248. Canada providers, phone 1-888-570-1113.

Tools needed:

• wire cutters
• pliers
• standard wrench set
• flat head screwdriver
• Phillips head screwdriver

Installation instructions:

NOTE: Before performing this procedure, ensure the unit's power is off
and that the unit is in the drive mode. Refer to the owner's manual for
instructions.
NOTE: Figures show right side assembly only.
1. Remove the seat, shroud, batteries, and foot rigging from the power chair. Refer to
the owner’s manual.
2. Remove the four (4) screws that hold the belly pan onto the frame and remove the
belly pan.
3. Remove the four (4) screws from the top of the electronics tray in the rear of the
chair. Slide the electronics tray to the side so that you have access to the charger.
Remove the two (2) screws that attach the charger mounting bracket to the frame
and remove the chager.
4. At the rear of the power chair, cut the brake cable wires as close as possible to the
cable barrels and remove the nuts that hold the cables to the freewheel L-bracket.
See figure 1.
5. At the front of the power chair, cut both brake cable wires close to the motor release
weldment (A5) to disable the single brake release system. See figure 2.
www.prideservice.com
T I
ECHNICAL
FREEWHEEL LEVER W/OVERMOLD COVER, RT
FREEWHEEL LEVER W/OVERMOLD COVER, LEFT
FREEWHEEL RELEASE ROD, RT, JAZZY 1133
FREEWHEEL RELEASE ROD, LEFT, JAZZY 1133
MOTOR RELEASE WELDMENT, 1113ATS
SCREW, SET M6-1.0T X 8MM
SPRING, COMPRESSION, 8MM ID X 10MM OD X 10MM TH, FREEWHEEL RELEASE
LEVER, MTS
WASHER, FLAT, M4 X 10MM OD X .7MM TH, ZINC
PIN, COTTER 1/16" X 1", ZPLATED
SCREW, HHCS, BLK, ZINC, 5/16-18 X 2.00", GRADE 8
NUT, JAM, BLACK ZINC, M8-1.25
WASHER, NYLON, 5/16 ID X 7/8 OD X 1/16 TH
WASHER, FLAT, ZINC, 3/8, 0.4062" ID X 0.8125" OD X 0.0625" TH, SAE
NSTRUCTIONS
DESCRIPTION
www. pridemobility.com
1 of 2
CUT WIRE HERE

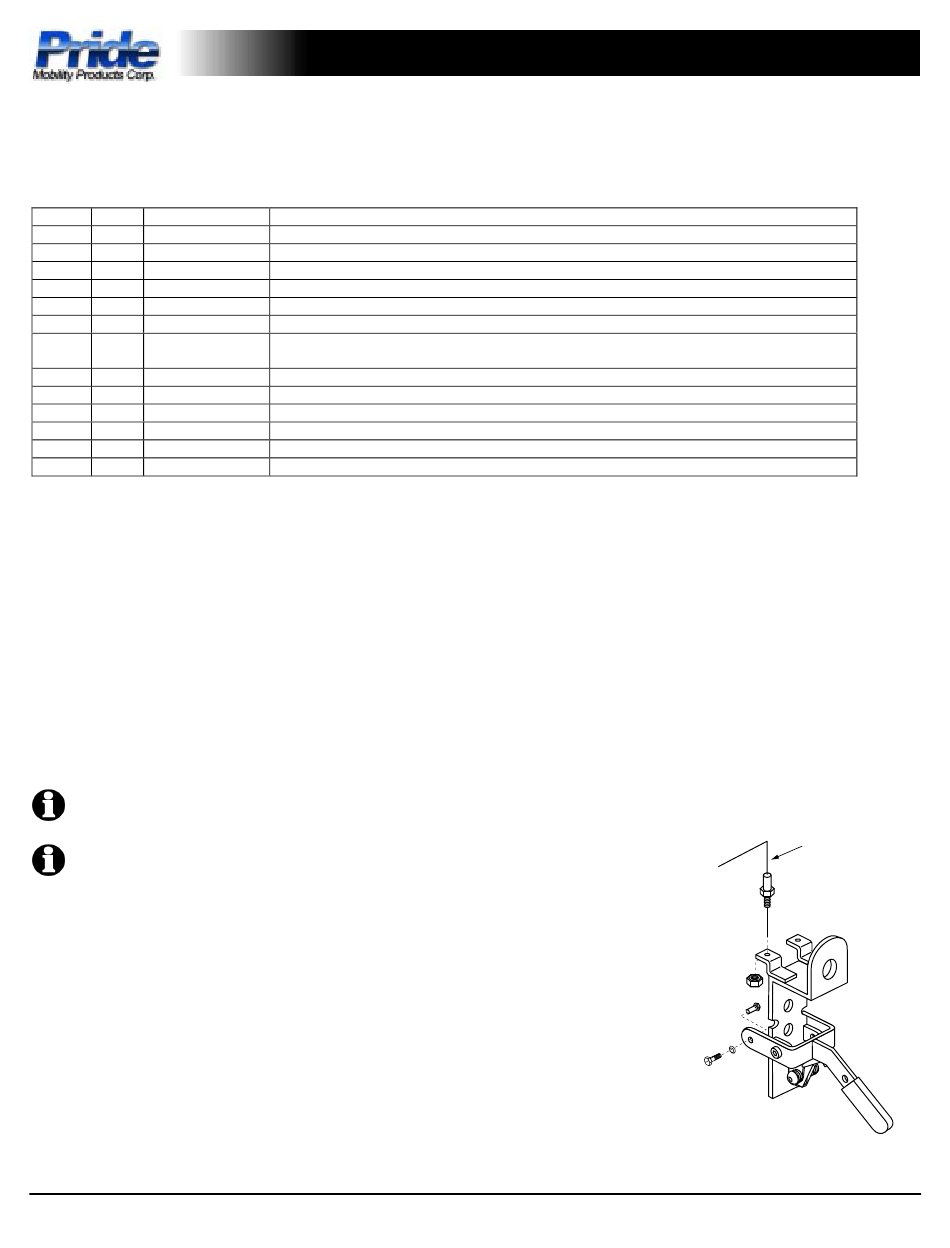

Figure 1. Cut Brake Cable
Wire
INFINFB1571/Rev A/3-08-04
