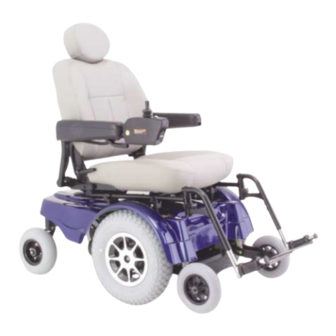

Owner's Manual
ATTENTION:
Please read the content
of your owner’s manual
before operating your
power chair.
Exeter, PA
St. Catharines, ON
1-800-800-8586
www.pridemobility.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jazzy 1170 XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pride Mobility Jazzy 1170 XL

Summary of Contents for Pride Mobility Jazzy 1170 XL

  • Page 1 Owner’s Manual ATTENTION: Please read the content of your owner’s manual before operating your power chair. Exeter, PA St. Catharines, ON 1-800-800-8586 www.pridemobility.com...
  • Page 2 WARNING! Failure to heed the warnings in this owner’s manual may result in personal injury. CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to your power chair. Copyright © 2003 Pride Mobility Products Corp. INFMANU1137 www.pridemobility.com Jazzy 1170XL/RevH/Feb03...

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION ........................4 SAFETY ............................6 III. EMI/RFI ............................12 IV. THE JAZZY 1170XL ......................16 COMFORT ADJUSTMENTS ....................21 VI. BATTERIES AND CHARGING ................... 28 VII. OPERATION ..........................32 VIII.CARE AND MAINTENANCE ....................43 IX.

  • Page 4: Introduction

    I N T R O D U C T I O N INTRODUCTION Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Pride Power Chair. The Pride Power Chair design combines the most advanced state-of-the-art compo- nents with modern, attractive styling.
  • Page 5 I N T R O D U C T I O N Pride Owners Club As an owner of a Pride product, you are invited to register your product’s warranty and enroll in the Pride Owners Club. You may do so by filling out and returning your enclosed registration card or by visiting Pride’s web site at www.pridemobility.com.

  • Page 6: Safety

    I I . S A F E T Y SAFETY WARNING! Do not operate your new power chair for the first time without completely reading and understanding this owner’s manual. Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride pro- vides an extensive variety of products to best fit the individual needs of the power chair user.

  • Page 7: Weight Limitations

    I I . S A F E T Y Perform the following inspections prior to using your power chair: n Check for proper tire inflation. Maintain 30-35 psi in each tire (if equipped with pneumatic tires). n Check all electrical connections. Make sure they are tight and not corroded. n Check all controller connections to the electronics tray.
  • Page 8 I I . S A F E T Y When climbing an incline, try to keep your power chair moving. If you must stop, start up again slowly and then accelerate cautiously. When driving down an incline, set your power chair to the slowest setting and drive in the forward direction only.
  • Page 9 I I . S A F E T Y Cornering Information While your power chair is equipped with rear caster wheels in back and anti-tip wheels in front, excessively high cornering speeds can still create the possibility of tipping. Factors which affect the possibility of tipping include, but are not limited to: cornering speed, steering angle (how sharply you are turning), uneven road surfaces, inclined road surfaces, riding from an area of low traction to an area of high traction (such as passing from a grassy area to a paved area –...
  • Page 10 I I . S A F E T Y Figure 1b. Curb Approach (Correct and Incorrect ) WARNING! Do not attempt to have your power chair climb or descend an obstacle that is higher than two inches unless you have the assistance of an attendant. WARNING! Do not attempt to have your power chair proceed backward down any step, curb, or other obstacle.

  • Page 11: Motor Vehicle Transport

    I I . S A F E T Y Elevators Modern elevators have a door edge safety mechanism that, when pushed, reopens the elevator door(s). n If you are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge or allow the rubber door edge to contact the power chair and the door will reopen.

  • Page 12: Positioning Belts

    I I . S A F E T Y Positioning Belts Your authorized Pride provider, therapist(s), and other healthcare professionals are responsible for deter- mining your requirement for a positioning belt in order to operate your power chair safely. WARNING! If you require a positioning belt to safely operate your power chair, make sure it is fastened securely.

  • Page 13: Removable Parts

    I I . S A F E T Y WARNING! Power chair batteries are heavy. See specifications table. If you are unable to lift that much weight, be sure to get help. Lifting beyond your capacity can result in personal injury. WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.

  • Page 14: Emi/Rfi

    I I I . E M I / R F I Laboratory tests performed by the Food and Drug Administration (FDA) have shown that radio waves can cause unintended motion of power chairs. Radio waves are a form of electromagnetic energy. When this energy adversely affects the operation of an electronic device, it is called Electromagnetic Interference (EMI) or Radio Frequency Interference (RFI).
  • Page 15 I I I . E M I / R F I Are all power chairs susceptible to EMI/RFI? Each make and model of chair differs in its ability to resist electromagnetic interference. That is, each has a particular level of “immunity” to interference, measured in volts per meter (Vm). A higher immunity level offers greater protection.
  • Page 16 HEADREST SEATBACK ARMRESTS JOYSTICK SEAT ASSEMBLY CONTROLLER (PILOT SHOWN) SEAT BASE FOOTRESTS (SWING-AWAY SHOWN) POWER BASE ASSEMBLY BODY SHROUD CASTER WHEEL ANTI-TIP WHEELS DRIVE WHEEL Figure 2. The Jazzy 1170 XL www.pridemobility.com Jazzy 1170XL/RevH/Feb03...

  • Page 17: Specifications

    I V . T H E J A Z Z Y 1 1 7 0 SPECIFICATIONS Suspension: Active-Trac Suspension Drive Wheels: 16 in., pneumatic, center-mounted (solid tires are optional) Caster Wheels: 9 in., pneumatic, rear articulating (solid tires are optional) Anti-tip Wheels: 8 in., solid, front mounted Maximum Speed:...
  • Page 18 FRONT SEAT TOWER ELECTRONICS TRAY FREEWHEEL LEVER BATTERY BATTERY FREEWHEEL LEVER REAR SEAT TOWER FRONT SEAT TOWER Figure 3. The Jazzy 1170 XL Power Base (Shroud Removed) CONTROLLER CONNECTOR CHARGER INHIBIT CONNECTOR AMMETER (PILOT SHOWN) (PILOT ONLY) ONBOARD CHARGER AC POWER CORD...
  • Page 19 Standard lighting systems have a single pin connector. Full lighting systems use a 3-pin connector. Active-Trac System Your Jazzy 1170 XL is equipped with an Active-Trac System (ATS). ATS is a suspension system designed to make your Jazzy traverse different types of terrain and obstacles while maintaining smooth operation.

  • Page 20: Freewheel Levers

    CAUTION ! It is important to remember that when your Jazzy 1170 XL is in freewheel mode, the braking system is disengaged. If a lever is difficult to move in either direction, rock your Jazzy 1170 XL back and forth slightly. The lever should then move to the desired position.

  • Page 21: Comfort Adjustments

    V I . C O M F O R T A D J U S T M E N T S COMFORT ADJUSTMENTS After becoming familiar with your Jazzy’s operation, you may find the need to make some adjustments to increase your comfort, such as seat height and angle, armrest angle, footrest height and angle, and the controller’s position.

  • Page 22: Reclining Seat

    V I . C O M F O R T A D J U S T M E N T S 10. Reinstall the seat. 11. Plug the connectors into the electronics tray. Reclining Seat If your Jazzy is equipped with a reclining seat, you can adjust REMOVE THIS SCREW the seatback angle with the seatback release lever.

  • Page 23: Controller Position

    V I . C O M F O R T A D J U S T M E N T S 4. Turn the adjusting screw clockwise to raise the front of REMOVE THIS NUT AND BOLT TO RAISE OR LOWER THE FOOTREST the armrest, or turn the adjusting screw counterclock wise to lower the front of the armrest.
  • Page 24 V I . C O M F O R T A D J U S T M E N T S Swing-away Footrests SFR RELEASE LEVER Swing-away Footrests (SFRs) are an option. They enable you to rotate the leg rests to the side before you transfer on or off of your Jazzy.
  • Page 25 V I . C O M F O R T A D J U S T M E N T S Anti-tip Wheels The anti-tip wheels are designed to give your Jazzy increased stability on rough surfaces. The anti-tip wheels are preset at the factory to a height of 1/2-in. off the ground. This setting is for smooth surfaces or indoor use only.
  • Page 26 V I . C O M F O R T A D J U S T M E N T S Power Elevating Seat Option Your Jazzy may be equipped with a power elevating seat actuator. See figure 18. This feature can enhance the capabilities of the Jazzy in several ways: n By elevating the seat, your level of reach is extended to allow more freedom and independence in many environments.
  • Page 27 V I . C O M F O R T A D J U S T M E N T S NOTE: Be sure you are on a flat level surface before activating the power elevating seat. Power Elevating Seat Operation You can control the power seat through either the toggle switch located on the armrest or your through controller.

  • Page 28: Charging The Batteries

    2. Be certain the controller power is turned off and the freewheel levers are in the engaged position. See IV. “The Jazzy 1170 XL.” 3. Extend the charger AC power cord and plug it into the wall outlet. The Jazzy incorporates an inhibit function that disables the power chair when the charger is plugged into a wall outlet.

  • Page 29: Batteries And Charging

    I X . B A T T E R I E S A N D C H A R G I N G OFF-BOARD CHARGER To charge the batteries using the off-board charger: 1. Position your Jazzy next to a standard wall outlet. 2.
  • Page 30 I X . B A T T E R I E S A N D C H A R G I N G How often must I charge the batteries? Many factors come into play when deciding how often to charge the batteries. You may use your Jazzy all day on a daily basis or you may not use it for weeks at a time.
  • Page 31 I X . B A T T E R I E S A N D C H A R G I N G Why do my new batteries seem weak? Deep-cycle batteries employ a much different chemical technology than that used in car batteries, nickel- cadmium (nicads), or in other common battery types.

  • Page 32: Operation

    V I I . O P E R A T I O N PILOT CONTROLLER The electronic controller is what you use to operate your power chair. It takes the battery voltage and sends it to the appropriate system. The electronic controller also enables you to monitor battery charge, electronic controller functions, and the condition of your electrical system.
  • Page 33 V I I . O P E R A T I O N Battery Condition Meter The battery condition meter is located in front of the joystick. This is a 10-segment illuminated display that indicates that the Pilot is turned on and also gives the battery status, the Pilot status, and the electrical system status.
  • Page 34 V I I . O P E R A T I O N CAUTION! Failure to properly align the connectors can result in damage to the Pilot, the charger harness, and the connectors. Thermal Rollback The Pilot is equipped with a thermal rollback circuit. This circuit monitors the temperature of the motors and the Pilot.

  • Page 35: Remote Plus Controller

    V I I . O P E R A T I O N REMOTE PLUS CONTROLLER The Remote Plus is a modular electronic control system. The electronics necessary to operate the power chair are contained in several modules located on different parts of your power chair. The Remote Plus system consists of the following components: n master remote n communications cable(s)

  • Page 36: Remote Plus Keypad

    V I I . O P E R A T I O N Mode Key Press the key to change speed setting or to activate the power accessories. See “Speed Settings” or “Power Accessories.” ON/OFF Speed Setting Indicator BATTERY CONDITION Indicates the selected speed setting.

  • Page 37: Speed Settings

    V I I . O P E R A T I O N NOTE: When the batteries approach a discharged state, the first red light will begin to slowly flash, reminding you the batteries need to be charged immediately! Speed Settings The Remote Plus speed settings range from 1 to 5.

  • Page 38: Power Module

    V I I . O P E R A T I O N Power Module Typically, the power module is mounted to the power base. See figure X. The power module provides a power interface for the joystick module. It routes the battery power to the motors and other powered acces- sories such as lights and power seats.
  • Page 39 V I I . O P E R A T I O N DX CONTROLLER The Dynamic DX electronic control system is a modular system. The electronics necessary to operate the power chair are contained in several modules located on different parts of your power chair. The Dynamic DX system consists of the following components: n master remote (Europa) n communications cable(s)
  • Page 40 V I I . O P E R A T I O N SYSTEM STATUS LED On/Off Key The on/off key toggles the system power on and off. BATTERY CONDITION REMOTE METER STATUS LIGHT ON/OFF KEY WARNING! Unless faced with an emergency MAGNETIC LOCKING situation, do not use the on/off key to stop the...
  • Page 41 V I I . O P E R A T I O N will be on. As the battery voltage drops, the number of lights reduces from right to left. When the battery capacity drops to 10% or below, all of the lights will flash once every second. Drive Program Select Key The drive program select key enables you to select a drive program and an actuator mode.
  • Page 42 V I I . O P E R A T I O N Sleep Mode (If Enabled) The power chair controller features a sleep mode. Sleep mode is a built-in circuit that will automatically shut off the main power if the joystick is not moved in any direction for a period of time. This time factor is programmed into the controller.

  • Page 43: Routine Maintenance

    V I I I . C A R E A N D M A I N T E N A N C E ROUTINE MAINTENANCE Your Jazzy is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks.

  • Page 44: Daily Checks

    V I I I . C A R E A N D M A I N T E N A N C E WARNING! Make sure your tires are inflated to 30-35 psi. Do not underinflate or overinflate your tires. Low pressure may result in loss of control, and overinflated tires may burst. Overinflating tires can cause them to explode and can result in personal injury.

  • Page 45: Cleaning Instructions

    V I I I . C A R E A N D M A I N T E N A N C E To calibrate the joystick (Remote Plus only): 1. Position the joystick in the full reverse position and hold it there. Turn on the controller. 2.

  • Page 46: Battery Replacement

    To replace the batteries: 1. Turn the power off. 2. Make sure that the Jazzy is in drive mode. See IV. “The Jazzy 1170 XL.” 3. Unplug the connectors from the electronics tray. 4. Remove the seat. See V. “Comfort Adjustments.”...

  • Page 47: Corrective Maintenance

    V I I I . C A R E A N D M A I N T E N A N C E MOTOR BRUSHES The electric motors that power your Jazzy use carbon brushes. These brushes may become susceptible to wear over a long pe- riod of time.

  • Page 48: Optional Accessories

    I X . O P T I O N A L A C C E S S O R I E S The following accessories are available from your authorized Pride provider. POSITIONING BELT The positioning belt is designed to support your torso so that you do not slide down or forward in the seat. n The positioning belt is not designed for use as a restraining device.

  • Page 49: Warranty

    LIFETIME LIMITED WARRANTY For the lifetime of your Jazzy 1170 XL from the date of purchase, Pride will repair or replace at our option, to the original purchaser, free of charge, any of the following parts found upon examination by an...
  • Page 50 Repairs and/or modifications made to any part without specific consent from Pride n Circumstances beyond the control of Pride n Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized by Pride Mobility Products Corporation Damage caused by: Battery fluid spillage or leakage...
  • Page 51 Quality Control - Model 1170 XL Thank you for making the Pride Jazzy your choice in power chairs. We have thoroughly inspected your Jazzy. The following checkmarks indicate that it has been test driven and inspected. Model #______________ Joystick Serial # Serial #______________ Controller Serial # Inclusion of all Parts...
