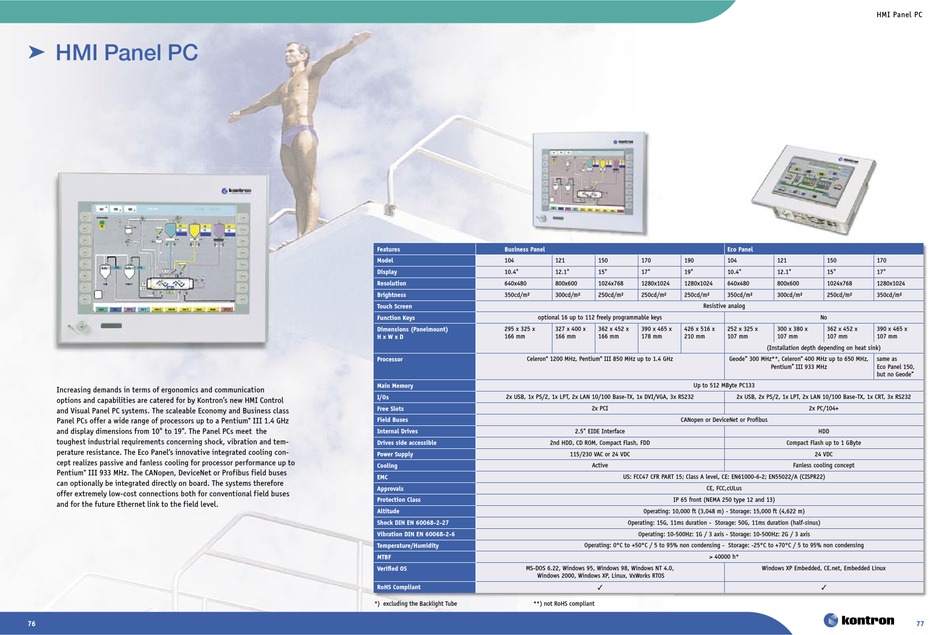

HMI Panel PC

Increasing demands in terms of ergonomics and communication
options and capabilities are catered for by Kontron's new HMI Control
and Visual Panel PC systems. The scaleable Economy and Business class
Panel PCs offer a wide range of processors up to a Pentium
and display dimensions from 10" to 19". The Panel PCs meet the
toughest industrial requirements concerning shock, vibration and tem-
perature resistance. The Eco Panel's innovative integrated cooling con-
cept realizes passive and fanless cooling for processor performance up to
Pentium ® III 933 MHz. The CANopen, DeviceNet or Profibus field buses
can optionally be integrated directly on board. The systems therefore
offer extremely low-cost connections both for conventional field buses
and for the future Ethernet link to the field level.
76
Features
Model
Display
Resolution
Brightness
Touch Screen
Function Keys
Dimensions (Panelmount)
H x W x D
Processor
Main Memory
I/Os
Free Slots
® III 1.4 GHz Field Buses
Internal Drives
Drives side accessible
Power Supply
Cooling
EMC
Approvals
Protection Class
Altitude
Shock DIN EN 60068-2-27
Vibration DIN EN 60068-2-6
Temperature/Humidity
MTBF
Verified OS
RoHS Compliant
*) excluding the Backlight Tube
Business Panel
104 121 150 170 190
10.4" 12.1" 15" 17" 19"
640x480 800x600 1024x768 1280x1024 1280x1024
350cd/m² 300cd/m² 250cd/m² 250cd/m² 250cd/m²
optional 16 up to 112 freely programmable keys
295 x 325 x 327 x 400 x 362 x 452 x 390 x 465 x 426 x 516 x
166 mm 166 mm 166 mm 178 mm 210 mm
Celeron ® 1200 MHz, Pentium ® III 850 MHz up to 1.4 GHz
2x USB, 1x PS/2, 1x LPT, 2x LAN 10/100 Base-TX, 1x DVI/VGA, 3x RS232
2x PCI
CANopen or DeviceNet or Profibus
2.5" EIDE Interface
2nd HDD, CD ROM, Compact Flash, FDD
115/230 VAC or 24 VDC
Active
US: FCC47 CFR PART 15; Class A level, CE: EN61000-6-2; EN55022/A (CISPR22)
IP 65 front (NEMA 250 type 12 and 13)
Operating: 10,000 ft (3,048 m) - Storage: 15,000 ft (4,622 m)
Operating: 15G, 11ms duration - Storage: 50G, 11ms duration (half-sinus)
Operating: 10-500Hz: 1G / 3 axis - Storage: 10-500Hz: 2G / 3 axis
Operating: 0°C to +50°C / 5 to 95% non condensing - Storage: -25°C to +70°C / 5 to 95% non condensing
MS-DOS 6.22, Windows 95, Windows 98, Windows NT 4.0,
Windows 2000, Windows XP, Linux, VxWorks RTOS

**) not RoHS compliant
Eco Panel
104 121 150
10.4" 12.1" 15"
640x480 800x600 1024x768
350cd/m² 300cd/m² 250cd/m²
Resistive analog
No
252 x 325 x 300 x 380 x 362 x 452 x
107 mm 107 mm 107 mm
(Installation depth depending on heat sink)
Geode ™ 300 MHz**, Celeron ® 400 MHz up to 650 MHz,
Pentium ® III 933 MHz
Up to 512 MByte PC133
2x USB, 2x PS/2, 1x LPT, 2x LAN 10/100 Base-TX, 1x CRT, 3x RS232
2x PC/104+
HDD
Compact Flash up to 1 GByte
24 VDC
Fanless cooling concept
CE, FCC,cULus
> 40000 h*
Windows XP Embedded, CE.net, Embedded Linux

HMI Panel PC
170
17"
1280x1024
350cd/m²
390 x 465 x
107 mm
same as
Eco Panel 150,
but no Geode
™
