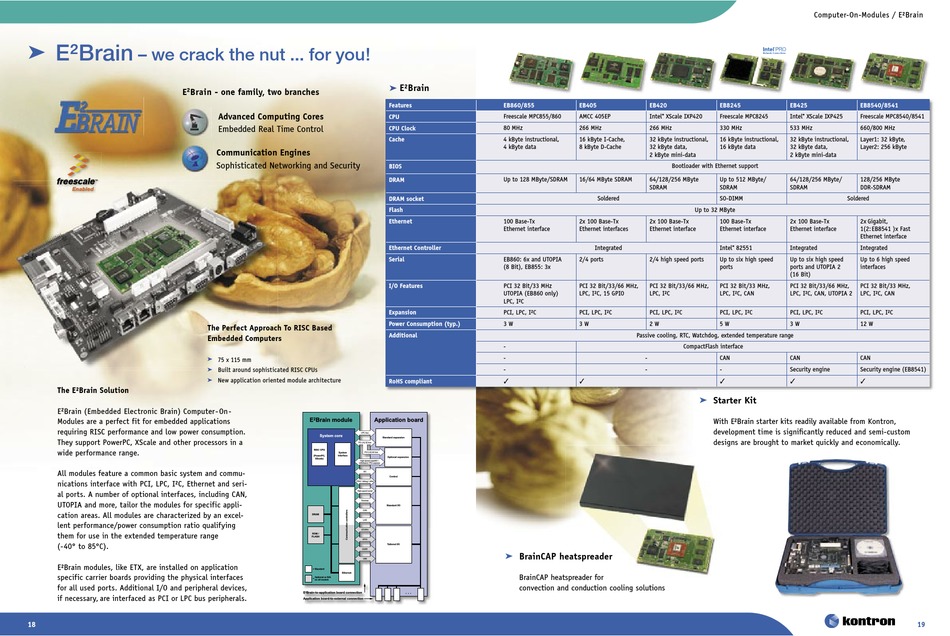

E ² Brain - one family, two branches
The E²Brain Solution
E²Brain (Embedded Electronic Brain) Computer- On-
Modules are a perfect fit for embedded applications
requiring RISC performance and low power consumption.
They support PowerPC, XScale and other processors in a
wide performance range.
All modules feature a common basic system and commu-
nications interface with PCI, LPC, I²C, Ethernet and seri-
al ports. A number of optional interfaces, including CAN,
UTOPIA and more, tailor the modules for specific appli-
cation areas. All modules are characterized by an excel-
lent performance/power consumption ratio qualifying
them for use in the extended temperature range
(-40° to 85°C).
E²Brain modules, like ETX, are installed on application
specific carrier boards providing the physical interfaces
for all used ports. Additional I/O and peripheral devices,
if necessary, are interfaced as PCI or LPC bus peripherals.
18
Advanced Computing Cores
Embedded Real Time Control
Communication Engines
Sophisticated Networking and Security
The Perfect Approach To RISC Based
Embedded Computers
75 x 115 mm

 Built around sophisticated RISC CPUs
New application oriented module architecture

E²Brain

Features EB860/855
CPU Freescale MPC855/860
CPU Clock 80 MHz
Cache 4 kByte instructional,
4 kByte data
BIOS
DRAM Up to 128 MByte/SDRAM
DRAM socket
Flash
Ethernet 100 Base-Tx
Ethernet interface
Ethernet Controller
Serial EB860: 6x and UTOPIA
(8 Bit), EB855: 3x
I/O Features PCI 32 Bit/33 MHz
UTOPIA (EB860 only)
LPC, I²C
Expansion PCI, LPC, I²C
Power Consumption (typ.) 3 W
Additional
-
-
-
RoHS compliant

BrainCAP heatspreader

BrainCAP heatspreader for
convection and conduction cooling solutions
EB405 EB420 EB8245
AMCC 405EP Intel ® XScale IXP420 Freescale MPC8245
266 MHz 266 MHz 330 MHz
16 kByte I-Cache, 32 kByte instructional, 16 kByte instructional,
8 kByte D-Cache 32 kByte data, 16 kByte data
2 kByte mini-data
Bootloader with Ethernet support
16/64 MByte SDRAM 64/128/256 MByte Up to 512 MByte/
SDRAM SDRAM
Soldered SO-DIMM
Up to 32 MByte
2x 100 Base-Tx 2x 100 Base-Tx 100 Base-Tx
Ethernet interfaces Ethernet interface Ethernet interface
Integrated Intel ® 82551
2/4 ports 2/4 high speed ports Up to six high speed
ports
PCI 32 Bit/33/66 MHz, PCI 32 Bit/33/66 MHz, PCI 32 Bit/33 MHz,
LPC, I²C, 15 GPIO LPC, I²C LPC, I²C, CAN
PCI, LPC, I²C PCI, LPC, I²C PCI, LPC, I²C
3 W 2 W 5 W
Passive cooling, RTC, Watchdog, extended temperature range
CompactFlash interface
- CAN
- -
 
Starter Kit

With E²Brain starter kits readily available from Kontron,
development time is significantly reduced and semi-custom
designs are brought to market quickly and economically.
Computer-On-Modules / E²Brain
EB425 EB8540/8541
Intel ® XScale IXP425 Freescale MPC8540/8541
533 MHz 660/800 MHz
32 kByte instructional, Layer1: 32 kByte,
32 kByte data, Layer2: 256 kByte
2 kByte mini-data
64/128/256 MByte/ 128/256 MByte
SDRAM DDR-SDRAM
Soldered
2x 100 Base-Tx 2x Gigabit,
Ethernet interface 1(2:EB8541 )x Fast
Ethernet interface
Integrated Integrated
Up to six high speed Up to 6 high speed
ports and UTOPIA 2 interfaces
(16 Bit)
PCI 32 Bit/33/66 MHz, PCI 32 Bit/33 MHz,
LPC, I²C, CAN, UTOPIA 2 LPC, I²C, CAN
PCI, LPC, I²C PCI, LPC, I²C
3 W 12 W
CAN CAN
Security engine Security engine (EB8541)
 
