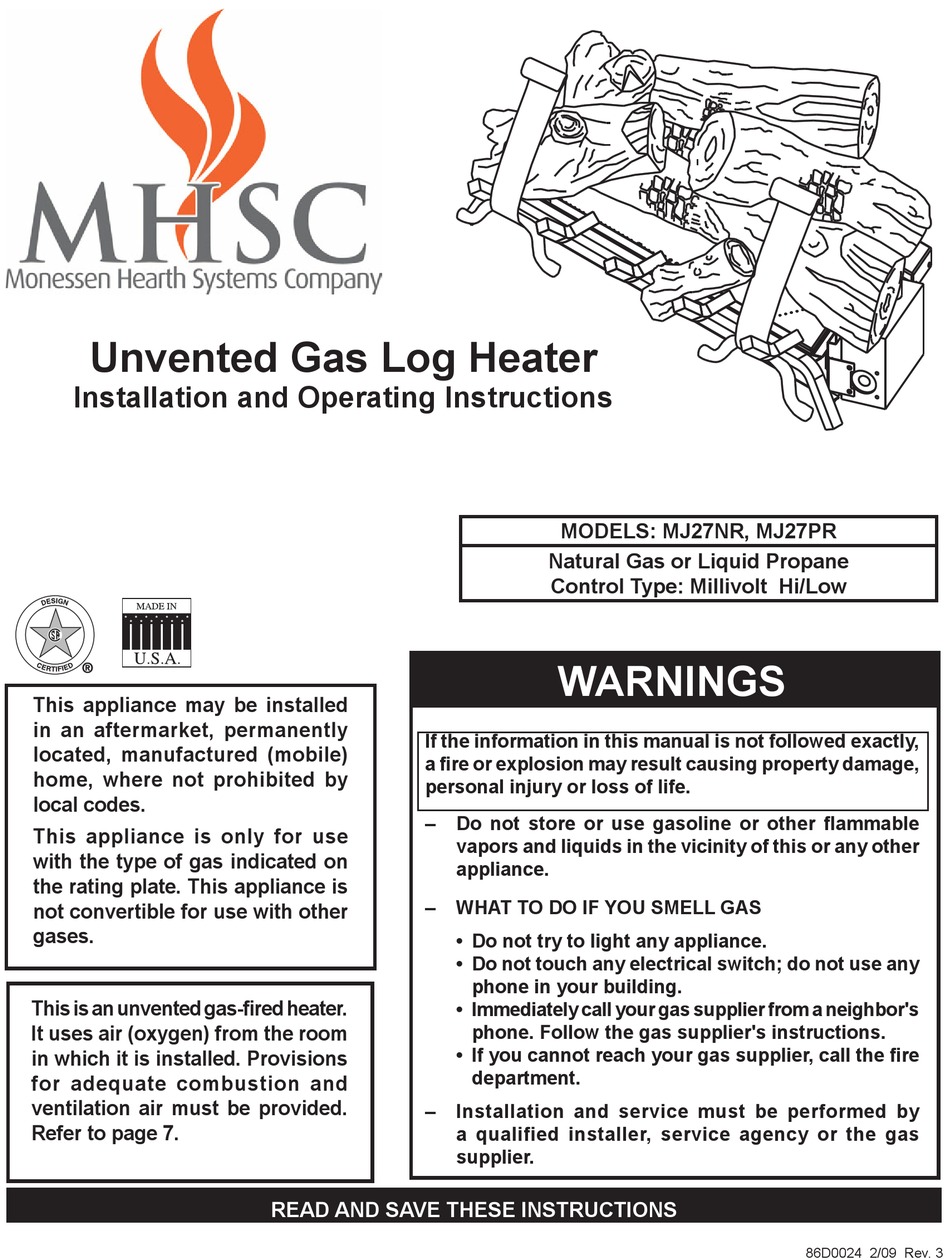

Unvented Gas Log Heater
Installation and Operating Instructions
This appliance may be installed
in an aftermarket, permanently
located, manufactured (mobile)
home, where not prohibited by
local codes.
This appliance is only for use
with the type of gas indicated on
the rating plate. This appliance is
not convertible for use with other
gases.
This is an unvented gas-fired heater.
It uses air (oxygen) from the room
in which it is installed. Provisions
for adequate combustion and
ventilation air must be provided.
Refer to page 7.
If the information in this manual is not followed exactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
–
–
–
READ AND SAVE THESE INSTRUCTIONS
MODELS: MJ27NR, MJ27PR
Natural Gas or Liquid Propane
Control Type: Millivolt Hi/Low
WARNINGS
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
860024
MJ27 cover
10/08
86D0024 2/09 Rev. 3
